◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11544 - FVZ(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#122193) — 346 parça

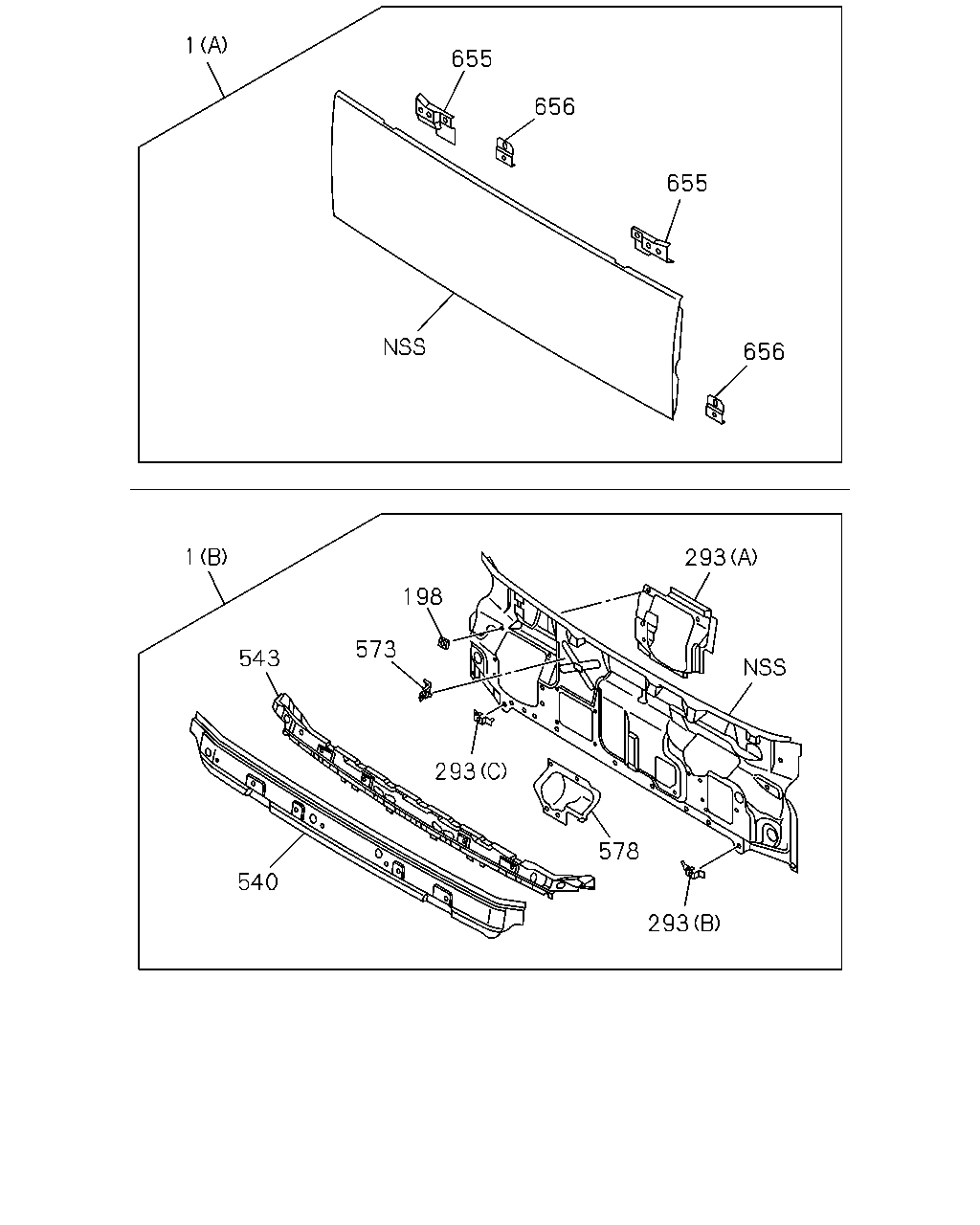

çizim 356567
1 655 656 655 656 293 198 573 543 1 540 293 578 293
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1306-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1306-
198 NUT; PANEL
M6 MAL 		9-09114-086-0 02 1 1306-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1306-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1306-
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1306-
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1306-
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1306-
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1306-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1306-
655 PATCH; HINGE 8-98031-263-0 01 1 1306-
655 PATCH; HINGE 8-98031-264-0 01 1 1306-
656 PATCH; STRIKER 8-98031-265-0 02 1 1306-

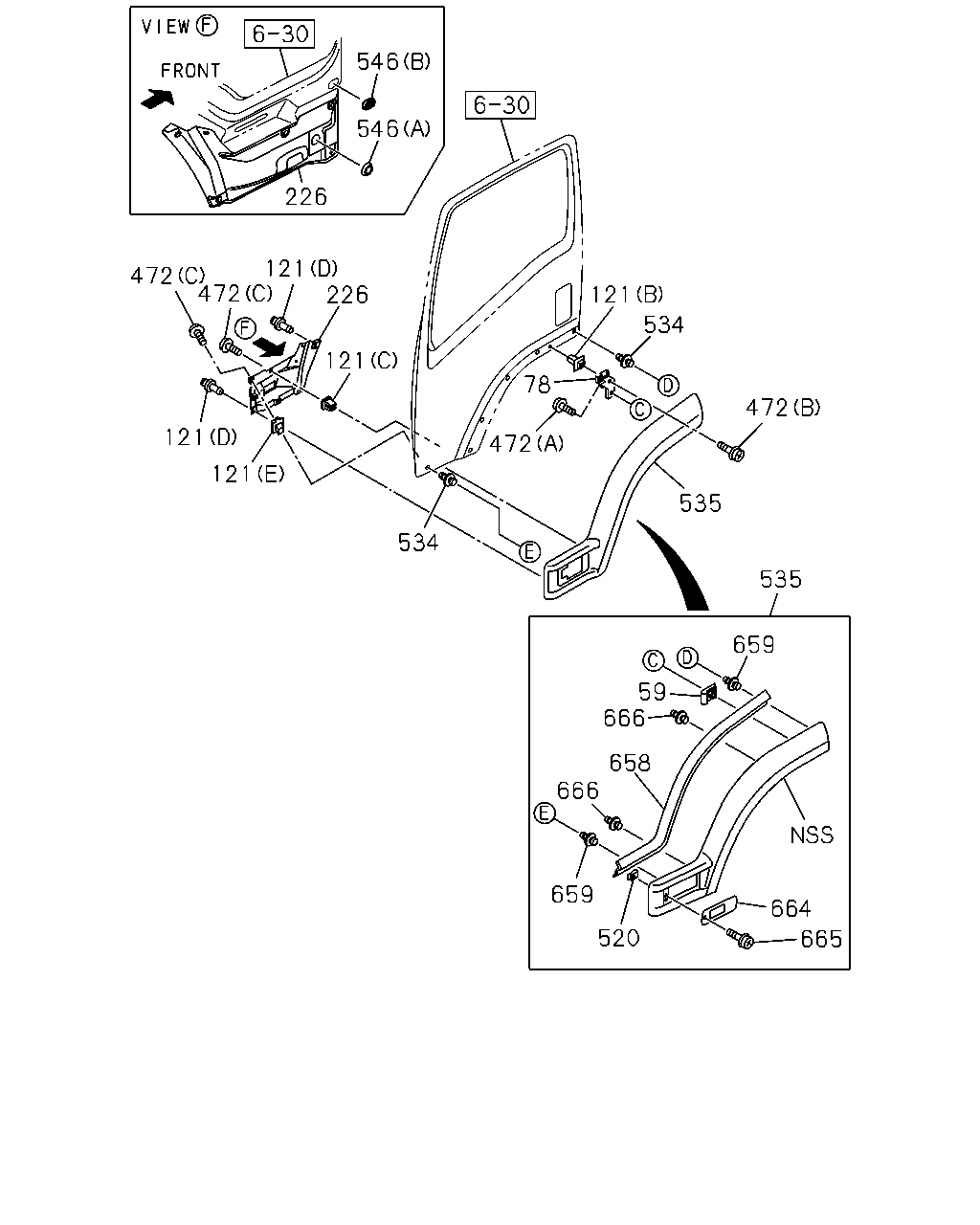

çizim 356723
121 534 472 535 535 659 664 665 520 659 666 658 666 59 534 472 78 121 226 121 121 472 472 121 226 546 546
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> 		8-94279-723-0 08 1 1306-1308
59 GROMMET; SCREW 8-94279-723-0 02 1 1309-
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> 		8-94279-723-0 10 1 1306-1308
59 GROMMET; SCREW 8-94279-723-0 08 1 1309-
78 BRACKET; FENDER 8-98041-166-1 01 1 1306-
78 BRACKET; FENDER 8-98041-165-1 01 1 1306-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 MAL 		8-94279-078-0 06 1 1306-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1306-
121 GROMMET; FENDER
(D) OD=8.3 MAL 		8-94279-989-0 12 1 1306-
121 GROMMET; FENDER
(B) H=15 MAL 		8-94463-268-1 04 1 1306-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1306-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1306-
226 PROTECTOR; FRT 8-98037-715-2 01 1 1306-
226 PROTECTOR; FRT 8-98037-714-2 01 1 1306-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1306-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1306-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1306-
520 NUT; FENDER
EXC. CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 1306-1308
520 NUT; FENDER 8-94279-501-0 02 1 1309-
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1306-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-359-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-379-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-353-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-373-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-360-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-380-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-354-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-374-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-361-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-381-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-357-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-377-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-370-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-390-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-371-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-391-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-372-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-392-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-367-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-387-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-362-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-382-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-369-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-389-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-744-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-745-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-356-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-376-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-355-1 01 1 1309-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-375-1 01 1 1309-
535 FENDER; BLISTER
CAB ALL PAINTING<TFD> WHITE 		8-97415-384-1 01 1 1306-1306
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-384-1 01 1 1307-
535 FENDER; BLISTER
CAB ALL PAINTING<TFD> WHITE 		8-97415-364-1 01 1 1306-1306
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-364-1 01 1 1307-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98106-503-0 01 1 1306-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98106-502-0 01 1 1306-
546 PLUG; DUMMY HOLE
(A) OD=38 MAL 		8-94159-507-0 02 1 1306-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1306-
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 1306-1308
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1309-
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 1306-1308
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1309-
659 CLIP; FENDER
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 1306-1308
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-521-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-549-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-509-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-537-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-523-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-551-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-511-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-539-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-487-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-499-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-519-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-547-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-533-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-596-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-489-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-501-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-535-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-563-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-493-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-505-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-491-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-503-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-531-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-559-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-605-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-607-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-515-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-543-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-495-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-507-0 01 1 1309-
664 BASE; DOOR,SIDE TURN
CAB ALL PAINTING<TFD> WHITE 		8-97421-497-0 01 1 1306-1306
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-497-0 01 1 1307-
664 BASE; DOOR,SIDE TURN
CAB ALL PAINTING<TFD> WHITE 		8-97421-485-0 01 1 1306-1306
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-485-0 01 1 1307-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 1306-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 1306-
665 SCREW; FENDER
EXC. CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1306-1308
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1309-
666 CLIP; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 1306-1308
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1309-

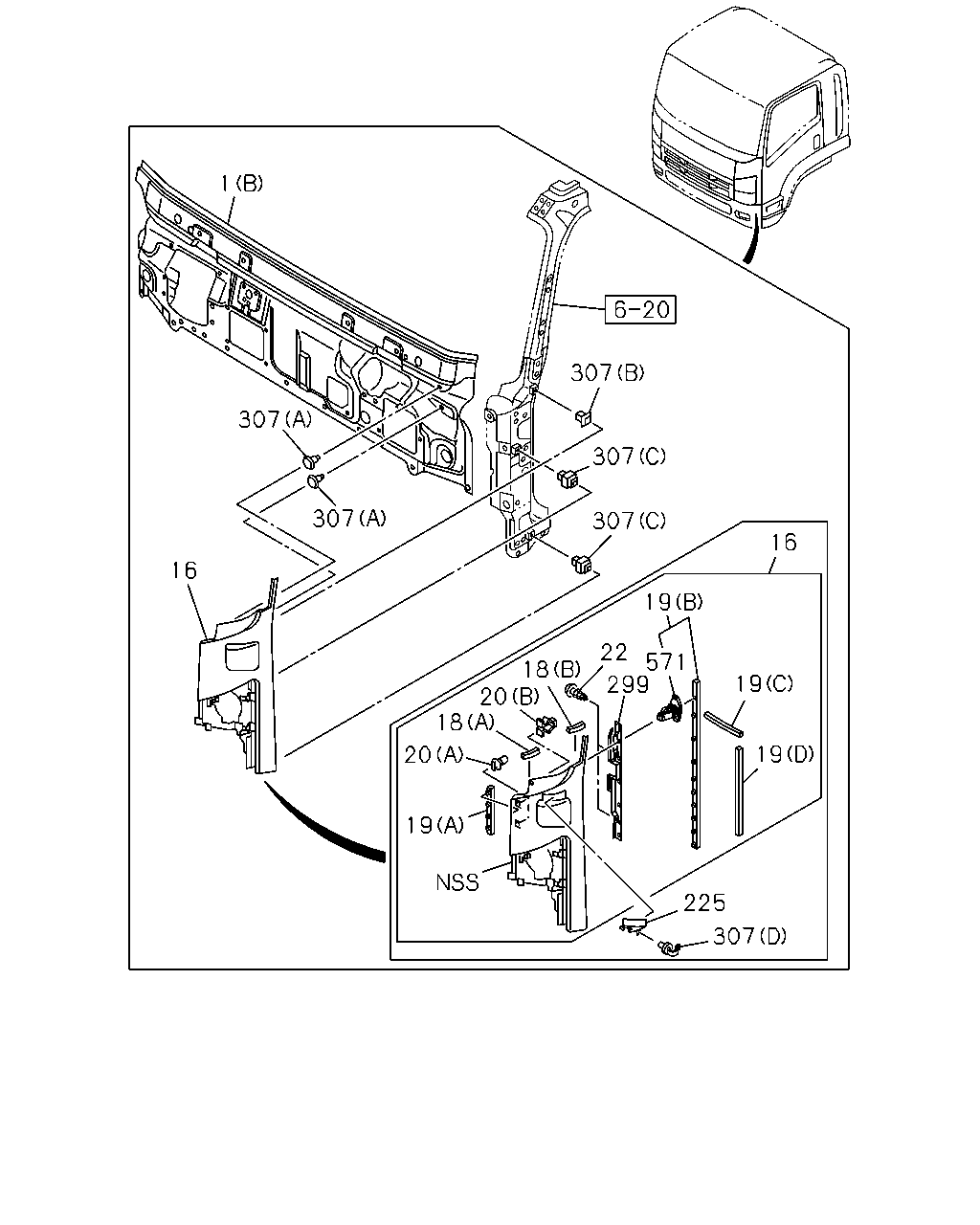

çizim 356754
1 307 307 16 307 307 307 16 19 22 571 19 19 299 18 20 18 20 19 225 307
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1306-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1306-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> GRAY 		8-97417-654-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BLUE 		8-97417-655-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED 		8-97417-656-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BLUE 		8-97415-030-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> WHITE 		8-97409-901-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED 		8-97411-298-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> DARK GREEN 		8-97415-031-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> YELLOW 		8-97415-032-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BEIGE 		8-97411-299-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BLUE 		8-97417-657-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> YELLOW 		8-97411-302-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED 		8-97411-301-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ORANGE 		8-97417-658-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> WHITE 		8-97417-659-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> GREEN 		8-97417-660-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BLUE 		8-97411-303-4 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-576-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-586-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> GRAY 		8-97413-586-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-577-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-587-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BLUE 		8-97413-587-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-578-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-588-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED 		8-97413-588-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-579-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-589-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BLUE 		8-97413-589-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-286-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED 		8-97411-286-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-292-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-580-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-590-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> DARK GREEN 		8-97413-590-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-581-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-591-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> YELLOW 		8-97413-591-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-287-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BEIGE 		8-97411-287-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-293-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-582-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-592-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BLUE 		8-97413-592-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-290-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> YELLOW 		8-97411-290-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-296-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-289-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED 		8-97411-289-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-295-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-583-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-593-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ORANGE 		8-97413-593-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-652-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> WHITE 		8-97417-652-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-653-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-585-4 01 1 1309-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-595-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> GREEN 		8-97413-595-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-291-5 01 1 1309-1412
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BLUE 		8-97411-291-5 01 1 1501-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-297-4 01 1 1309-
16 PANEL; FRONT,SIDE
WHITE 		8-97407-511-5 01 1 1306-1306
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97407-511-5 01 1 1307-1412
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> WHITE 		8-97407-511-5 01 1 1501-
16 PANEL; FRONT,SIDE
WHITE 		8-97407-509-4 01 1 1306-1306
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97407-509-4 01 1 1307-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 1306-1308
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (B) 		8-98038-608-0 01 1 1309-1408
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1309-1408
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORTRANS BLUE(999) (B) 		8-98038-608-0 01 1 1409-1412
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLANDYELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLO R MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904), BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (B) 		8-98038-608-0 01 1 1409-1412
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR MARINE BLUE(890) ,BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) (B) 		8-98038-608-0 01 1 1409-1412
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (B) 		8-98038-608-0 01 1 1501-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1501-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 1306-1308
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (A) 		8-98043-511-1 01 1 1309-1408
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1309-1408
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORTRANS BLUE(999) (A) 		8-98043-511-1 01 1 1409-1412
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLANDYELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLO R MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904), BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (A) 		8-98043-511-1 01 1 1409-1412
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR MARINE BLUE(890) ,BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) (A) 		8-98043-511-1 01 1 1409-1412
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (A) 		8-98043-511-1 01 1 1501-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1501-
19 SEAL; FRT SIDE PANEL
(C) 		8-98035-268-0 02 1 1306-1308
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (C) 		8-98035-268-0 01 1 1309-1408
19 SEAL; FRT SIDE PANEL
(C) 		8-98035-268-0 01 1 1309-1408
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORTRANS BLUE(999) (C) 		8-98035-268-0 01 1 1409-1412
19 SEAL; FRT SIDE PANEL
BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLANDYELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLO R MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904), BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (C) 		8-98035-268-0 01 1 1409-1412
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR MARINE BLUE(890) ,BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) (C) 		8-98035-268-0 01 1 1409-1412
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (C) 		8-98035-268-0 01 1 1501-
19 SEAL; FRT SIDE PANEL
(C) 		8-98035-268-0 01 1 1501-
19 SEAL; FRT SIDE PANEL
(D) 		8-98062-215-0 02 1 1306-1308
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (D) 		8-98062-215-0 01 1 1309-1408
19 SEAL; FRT SIDE PANEL
(D) 		8-98062-215-0 01 1 1309-1408
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORTRANS BLUE(999) (D) 		8-98062-215-0 01 1 1409-1412
19 SEAL; FRT SIDE PANEL
BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLANDYELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLO R MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904), BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (D) 		8-98062-215-0 01 1 1409-1412
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR MARINE BLUE(890) ,BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) (D) 		8-98062-215-0 01 1 1409-1412
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (D) 		8-98062-215-0 01 1 1501-
19 SEAL; FRT SIDE PANEL
(D) 		8-98062-215-0 01 1 1501-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1306-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1306-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1306-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 1306-1308
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-0 02 1 1309-1408
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 02 1 1309-1408
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORTRANS BLUE(999) (A) 		8-97410-739-0 02 1 1409-1412
20 CLIP; FRT PANEL SIDE
BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLANDYELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLO R MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904), BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-0 02 1 1409-1412
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR MARINE BLUE(890) ,BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) (A) 		8-97410-739-0 02 1 1409-1412
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-1 02 1 1501-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1501-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 1306-1308
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-2 01 1 1309-1408
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 01 1 1309-1408
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORTRANS BLUE(999) (B) 		8-97410-740-2 01 1 1409-1412
20 CLIP; FRT PANEL SIDE
BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLANDYELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLO R MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904), BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-2 01 1 1409-1412
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR MARINE BLUE(890) ,BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) (B) 		8-97410-740-2 01 1 1409-1412
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-3 01 1 1501-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1501-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1306-1308
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1309-1408
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1309-1408
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORTRANS BLUE(999) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1409-1412
22 SCREW; FRT PANEL SIDE
BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLANDYELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLO R MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904), BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1409-1412
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR MARINE BLUE(890) ,BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1409-1412
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1501-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1501-
225 COVER; SIDE,FRT 8-98041-431-1 01 1 1306-1412
225 COVER; SIDE,FRT
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98041-431-1 01 1 1501-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1306-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1306-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1306-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1306-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1306-
307 GROMMET; FRT PANEL
(D) 		8-98028-743-0 01 1 1306-1412
307 GROMMET; FRT PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98028-743-0 01 1 1501-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1306-1308
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1309-1408
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1309-1408
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORTRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1409-1412
571 CLIP; SEAL
BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLANDYELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLO R MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904), BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1409-1412
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR MARINE BLUE(890) ,BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) NATURAL 		8-98027-457-0 10 1 1409-1412
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1501-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1501-

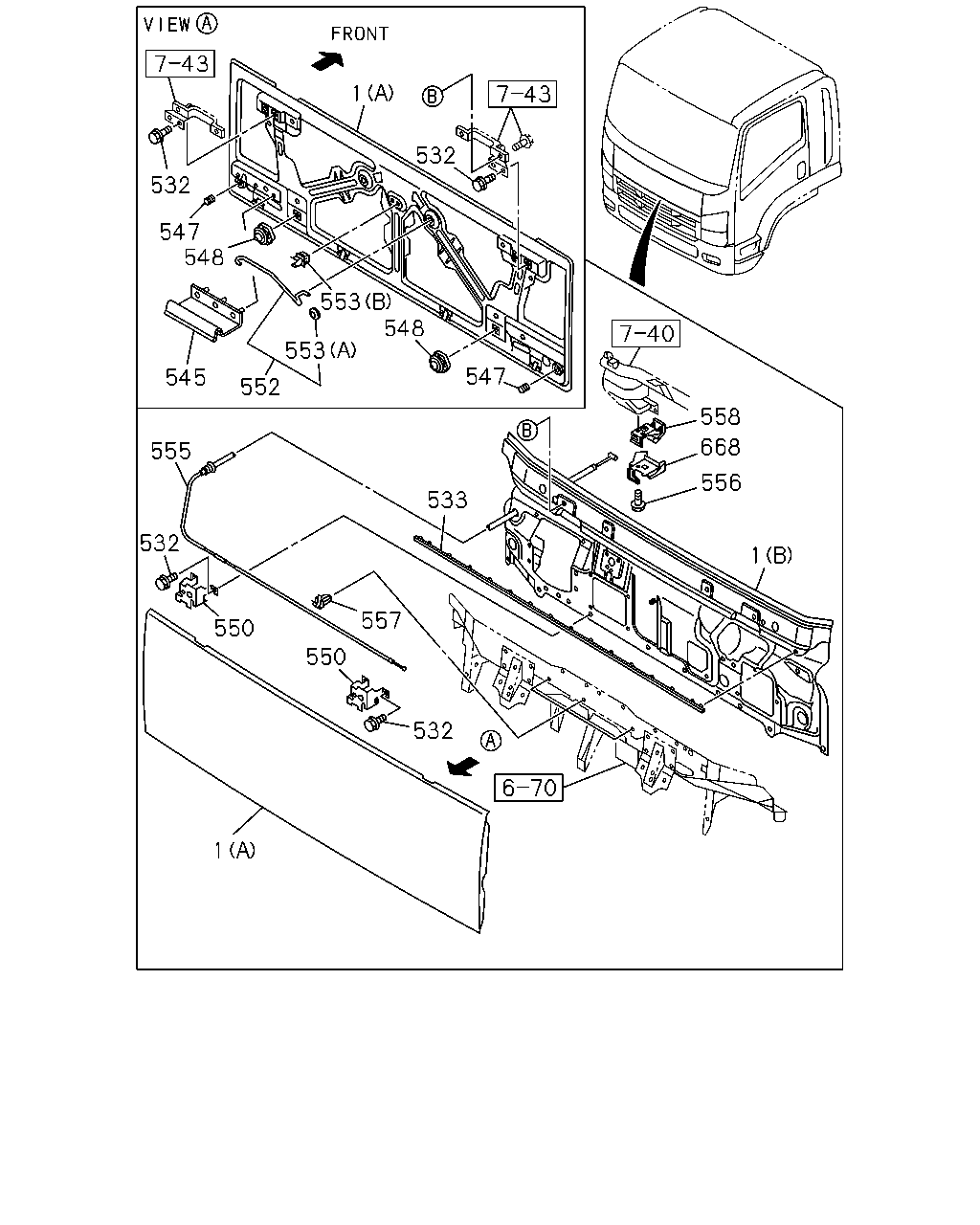

çizim 356903
1 550 533 550 557 532 558 668 556 1 532 547 548 553 553 552 555 545 548 547 532 1 532
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1306-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1306-
532 BOLT; FRT PANEL
M8X20 FLANGE MAL 		0-28650-820-0 08 1 1306-
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1306-
545 SEAL; FRT LID 8-98123-265-0 01 1 1306-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1306-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1306-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1306-
552 STAY; FRT LID 8-98089-838-0 01 1 1306-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1306-
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1306-
555 CABLE; FRT LID 8-98036-574-1 01 1 1306-
556 BOLT; CABLE
M6X16 FLANGE MAL 		0-28650-616-0 01 1 1306-
557 CLIP; CABLE
ID=4.8 MAL 		8-94128-483-0 03 1 1306-
558 LEVER; FRT LID 1-79338-007-1 01 1 1306-
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1306-

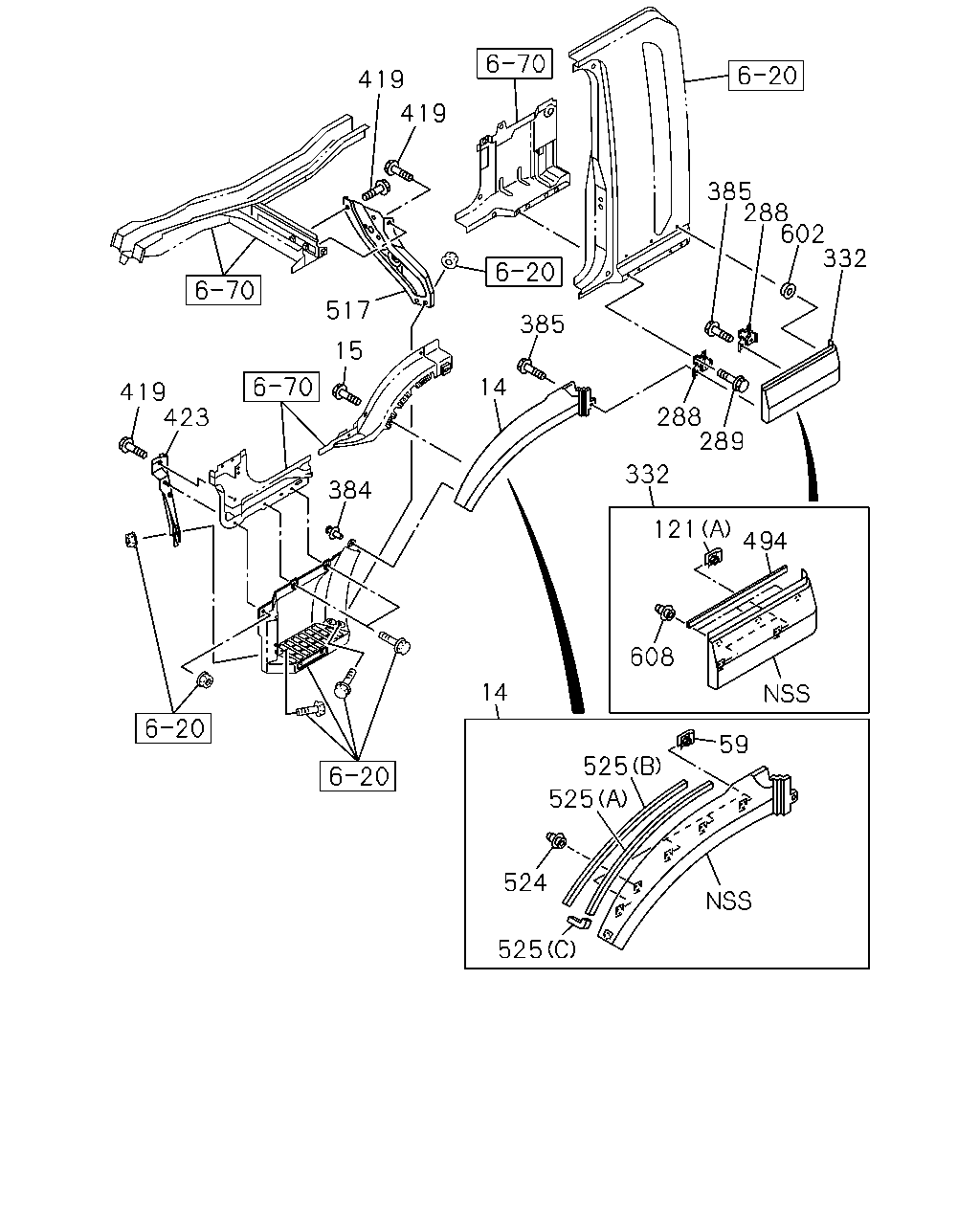

çizim 356906
419 419 517 15 419 423 384 14 525 525 524 525 59 608 494 121 332 289 288 332 602 288 385 385 14
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 1306-
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 1306-
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 1306-
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 1306-
15 BOLT; FENDER
M6X20 W/PL WASHER MAL 		8-98059-504-0 06 1 1306-
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> 		8-94279-723-0 08 1 1306-1308
59 GROMMET; SCREW 8-94279-723-0 02 1 1309-
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> 		8-94279-723-0 10 1 1306-1308
59 GROMMET; SCREW 8-94279-723-0 08 1 1309-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 MAL 		8-94279-078-0 06 1 1306-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1306-
121 GROMMET; FENDER
(D) OD=8.3 MAL 		8-94279-989-0 12 1 1306-
121 GROMMET; FENDER
(B) H=15 MAL 		8-94463-268-1 04 1 1306-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1306-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1306-
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 1306-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE MAL 		0-28650-616-0 08 1 1306-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 1309-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 1309-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 1309-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 1309-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 1309-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 1309-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 1309-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 1309-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 1309-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 1309-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 1309-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 1309-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 1309-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 1309-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 1309-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 1309-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 1309-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 1309-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 1309-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 1309-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 1309-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 1309-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 1309-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 1309-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 1309-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 1309-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 1309-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 1309-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 1309-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 1309-
332 FENDER; RR
CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 1306-1306
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 1307-
332 FENDER; RR
CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 1306-1306
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 1307-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 1306-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 1306-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1306-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER MAL 		8-98059-504-0 04 1 1306-
419 BOLT; STEP
M8X20 FLANGE MAL 		0-28650-820-0 08 1 1306-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1306-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1306-
494 FINISHER; FENDER 8-98072-723-0 01 1 1306-
494 FINISHER; FENDER 8-98041-172-1 01 1 1306-
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 1306-
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 1306-
524 CLIP; FENDER COVER
OD=7.9 BLACK MAL 		8-94279-974-1 02 1 1306-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1306-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1306-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1306-
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1306-
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
