Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11544 - FVZ(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

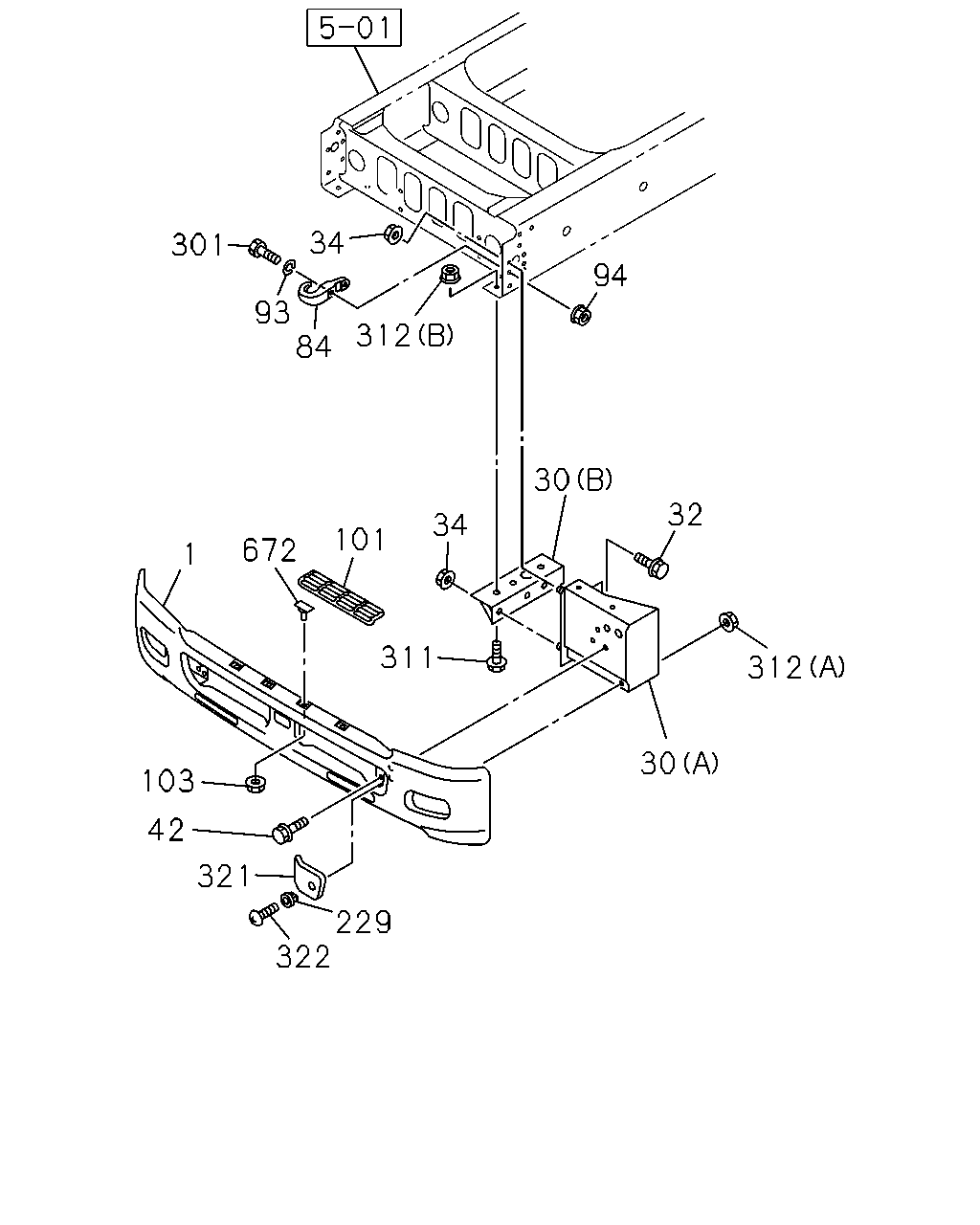

6-01 — FRONT BUMPER
(#122191) — 39 parça
312
30
32
30
34
101
311
672
1
103
42
321
322
229
312
84
93
34
301
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
BODY COLOR AL GRAY(517) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR PURPLISH BLUE(668) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR GERANIUM RED(681) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR DARK BLUE(695) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR CARDINAL RED(736) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR WOODLAND GREEN(807) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR WHEATLAND YELLOW(812) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR SAHARA BEIGE(829) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR MARINE BLUE(890) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR GOLDEN YELLOW(904) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR FIRE RED(915) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR HIGHWAY ORANGE(944) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR POLAR WHITE(982) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR GREEN(989) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
BODY COLOR TRANS BLUE(999) WHITE
8-97425-754-0
01
1
1309-
1
BUMPER ASM; FRT
WHITE
8-97425-754-0
01
1
1306-1306
1
BUMPER ASM; FRT
BODY COLOR ARC WHITE(729) WHITE
8-97425-754-0
01
1
1307-
30
BRACKET; FRT BUMPER
(A)
8-98177-903-0
01
1
1306-
30
BRACKET; FRT BUMPER
(B)
8-98179-463-0
01
1
1306-
30
BRACKET; FRT BUMPER
(A)
8-98177-902-0
01
1
1306-
30
BRACKET; FRT BUMPER
(B)
8-98179-462-0
01
1
1306-
32
BOLT; BRKT,BUMPER
M12X40 FLANGE MAL
0-28651-240-0
02
1
1306-
34
NUT; BRKT,BUMPER
M12 FLANGE MAL
0-91180-212-0
08
1
1306-
42
BOLT; BUMPER
M10X30
8-94324-205-0
06
1
1306-
84
HOOK
1-57181-027-1
01
1
1306-
93
WASHER; LK,HOOK
ID=16.2
0-91510-816-0
02
1
1306-
94
NUT; HOOK
M16
0-91110-516-0
02
1
1306-
101
STEP; BUMPER
8-97611-541-0
01
1
1306-
101
STEP; BUMPER
8-97611-540-0
01
1
1306-
103
NUT; BUMPER STEP
M6 FLANGE MAL
0-91180-106-0
04
1
1306-
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1306-
301
BOLT; HOOK TO FRAME
M16X70
0-10861-670-0
02
1
1306-
311
BOLT; BRKT
M14X45 FLANGE
0-28851-445-0
06
1
1306-
312
NUT; BRKT
(A) M10 FLANGE MAL
0-91180-210-0
02
1
1306-
312
NUT; BRKT
(B) M14 FLANGE
0-91180-214-0
06
1
1306-
321
COVER; BUMPER FRT SIDE
8-97616-291-1
01
1
1306-
321
COVER; BUMPER FRT SIDE
8-97616-290-1
01
1
1306-
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR MAL
0-72180-516-0
02
1
1306-
672
STUD; STEP
M6X20
8-97611-666-0
04
1
1306-
