Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11544 - FVZ(MALAYSIA)
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

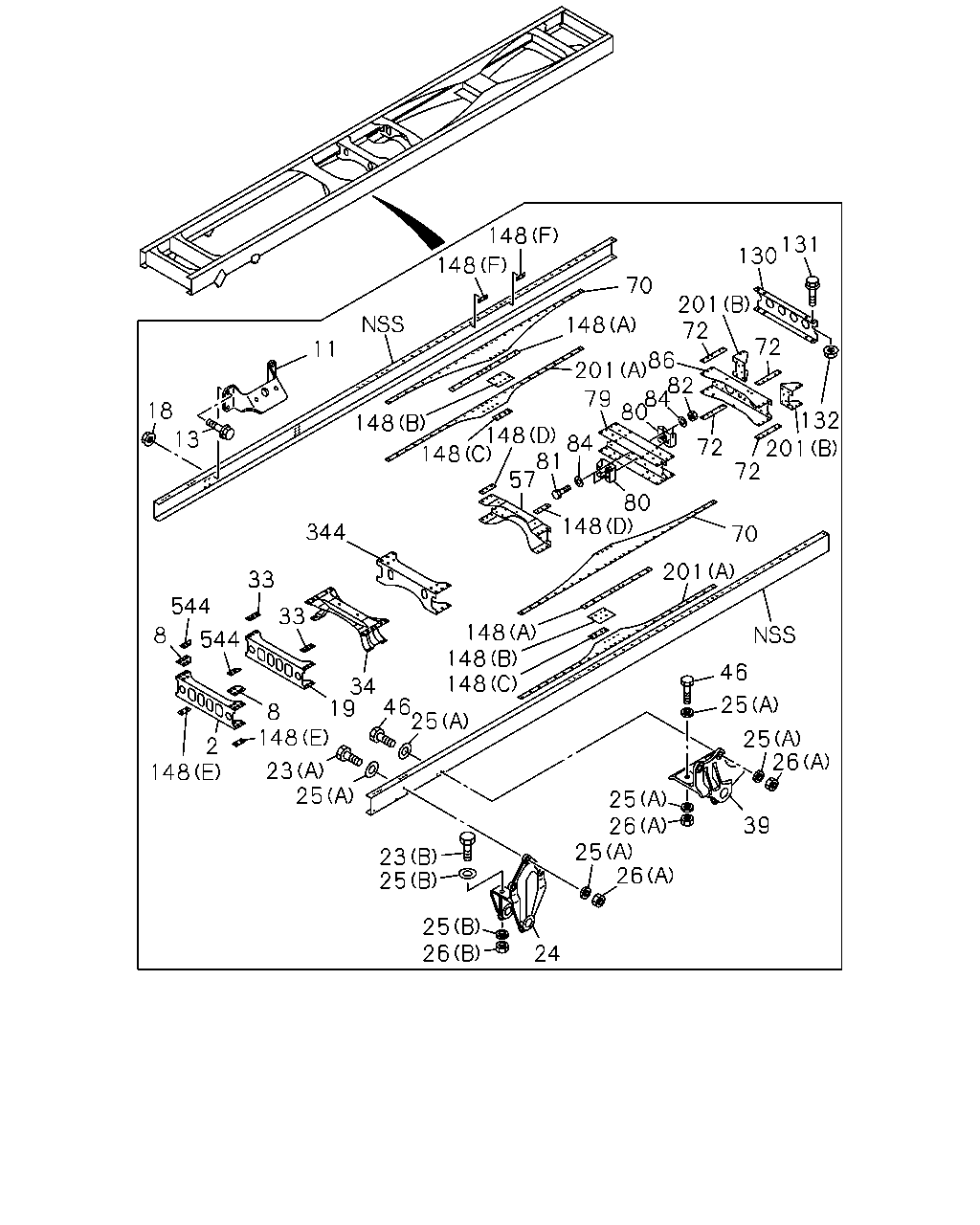

5-01 — FRAME AND OTHER PARTS
(#122186) — 42 parça
18
13
11
148
148
148
148
70
544
344
148
148
79
201
86
72
201
130
131
148
148
19
8
8
544
33
33
34
46
25
148
148
148
57
81
84
80
84
82
72
72
201
132
72
70
201
80
148
23
25
23
25
25
26
25
26
25
26
46
25
25
26
39
24
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97610-852-7
01
1
1306-
8
GUSSET; 1ST C/MBR
MAL
8-97611-027-0
02
1
1306-
11
BRACKET; ENG MTG
8-97619-550-0
02
1
1306-
13
BOLT; BRKT,ENG MTG
M12X40 FLANGE
0-28661-240-0
08
1
1306-
18
NUT; BRKT,ENG MTG
M12 FLANGE MAL
0-91180-212-0
08
1
1306-
19
MEMBER; CROSS,2ND
8-97610-853-5
01
1
1306-
23
BOLT; BRKT,SPR
(A) M14X50 MAL
0-20951-450-0
06
1
1306-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1306-
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1306-
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1306-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1306-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1306-
26
NUT; BRKT,SPR
(A) M14 MAL
0-91110-514-0
14
1
1306-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1306-
33
SPACER; 2ND C/MBR,UPR
MAL
8-97611-040-0
02
1
1306-
34
MEMBER; CROSS,3RD
MAL
8-97610-854-2
01
1
1306-
39
BRACKET; FRT SPR,RR
8-98043-648-0
01
1
1306-
39
BRACKET; FRT SPR,RR
8-98043-649-0
01
1
1306-
46
BOLT; BRKT FIX
M14X50 MAL
0-20951-450-0
08
1
1306-
57
MEMBER; CROSS,RR SUSP FRT
8-97612-103-1
01
1
1306-
70
GUSSET; TRUNNION,UPR
8-97612-106-0
02
1
1306-
72
SPACER; TRUNNION
8-97612-110-0
04
1
1306-
79
MEMBER; CROSS,TRUNNION ASM
8-97612-104-0
01
1
1306-
80
BRACKET; C/MBR
1-53363-068-0
02
1
1306-
81
BOLT; BRKT
M14X50
0-10956-450-0
02
1
1306-
82
NUT; BRKT
M14 MAL
0-91110-514-0
02
1
1306-
84
WASHER; PL,BRKT
ID=15
8-98010-627-1
04
1
1306-
86
MEMBER; CROSS,RR SUSP RR
8-97612-105-4
01
1
1306-
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1306-
131
BOLT; END C/MBR
M12X30 W/LK WASHER MAL
0-50541-230-0
04
1
1306-
132
NUT; END C/MBR
M12 MAL
0-91110-512-0
04
1
1306-
148
SPACER; C/MBR
(E)
8-97611-039-0
02
1
1306-
148
SPACER; C/MBR
(D)
8-97612-109-0
02
1
1306-
148
SPACER; C/MBR
(F)
8-97612-111-0
04
1
1306-
148
SPACER; C/MBR
(A)
8-97612-112-0
02
1
1306-
148
SPACER; C/MBR
(B)
8-97612-113-0
02
1
1306-
148
SPACER; C/MBR
(C)
8-97612-115-0
02
1
1306-
201
GUSSET; C/MBR
(B)
8-97612-108-2
02
1
1306-
201
GUSSET; C/MBR
(A)
8-97618-440-1
01
1
1306-
201
GUSSET; C/MBR
(A)
8-97640-018-2
01
1
1306-
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1306-
544
PLATE; CAB FRT MTG
MAL
8-97615-598-0
02
1
1306-
