4-80 — ROAD WHEEL (#122185) — 85 parça

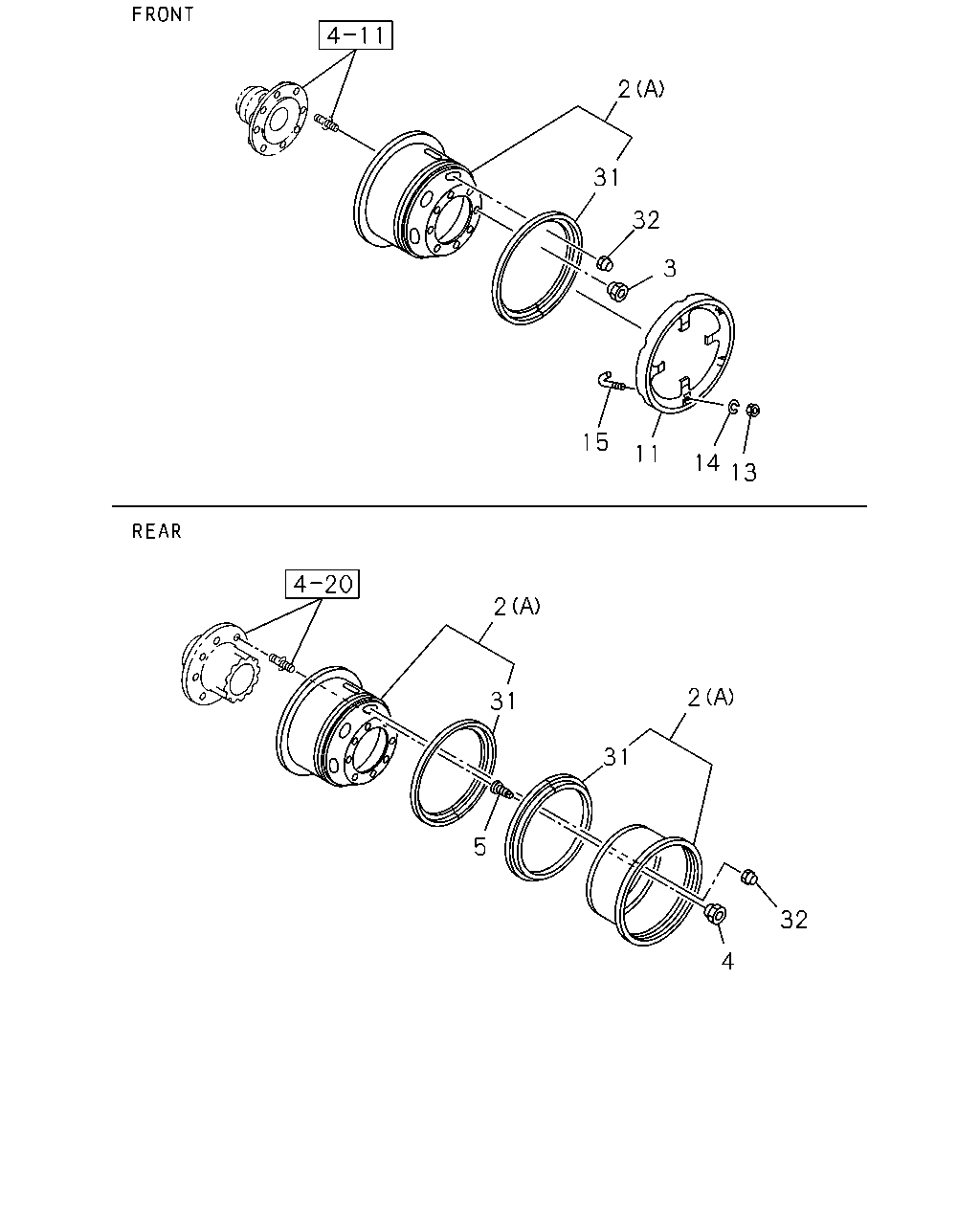

çizim 356930
2 31 32 3 15 11 14 13 2 31 2 31 32 4 5
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) FRONT,REARWARDFRONT MAL 		1-42350-478-0 06 1 1309-1408
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) FRONT,REARWARDFRONT MAL 		1-42350-478-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REARWARDFRONT 		1-42350-758-0 06 1 1309-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REARWARDFRONT 		1-42350-758-0 02 1 1409-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) FRONT,REARWARDFRONT 		1-42350-667-0 06 1 1309-1408
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) FRONT,REARWARDFRONT 		1-42350-667-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REAR 		1-42350-758-0 10 1 1306-1308
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) REARWARDREAR 		1-42350-758-0 04 1 1309-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B)REARWARDREAR 		1-42350-758-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B)REARWARDREAR 		1-42350-758-0 04 1 1409-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE 		1-42350-758-0 01 1 1306-1308
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE 		1-42350-758-0 01 1 1309-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) SPARE 		1-42350-667-0 01 1 1306-1308
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) SPARE 		1-42350-667-0 01 1 1309-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) FRONT,REAR MAL 		1-42350-478-0 10 1 1306-1308
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) REARWARDREAR MAL 		1-42350-478-0 04 1 1309-1408
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) REARWARDREAR MAL 		1-42350-478-0 04 1 1409-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) REARWARDREAR MAL 		1-42350-478-0 04 1 1409-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE MAL 		1-42350-478-0 01 1 1306-1308
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) SPARE MAL 		1-42350-478-0 01 1 1309-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) FRONT,REAR 		1-42350-667-0 10 1 1306-1308
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) REARWARDREAR 		1-42350-667-0 04 1 1309-1408
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) REARWARDREAR 		1-42350-667-0 04 1 1409-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) REARWARDREAR 		1-42350-667-0 04 1 1409-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD MAL 		1-42334-022-3 08 1 1306-
3 NUT; WHEEL,FRT AXLE
M24 MAL 		1-42333-022-3 08 1 1306-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD MAL 		8-97359-810-0 16 1 1306-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD MAL 		8-97359-809-0 16 1 1306-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD MAL 		8-97359-806-0 16 1 1306-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD MAL 		8-97359-805-0 16 1 1306-
11 STEP; DISC WHEEL SIDE 1-43139-002-2 02 1 1306-
13 NUT; STEP DISC
M10 MAL 		0-91110-510-0 06 1 1306-
14 WASHER; LK,STEP DISC
ID=10.2 MAL 		0-91510-810-0 06 1 1306-
15 BOLT; STEP DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) L=60 		1-43139-016-0 06 1 1306-
15 BOLT; STEP DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) L=44 		9-43139-023-1 06 1 1306-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) MAL 		1-42355-003-1 06 1 1309-1408
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) MAL 		1-42355-003-1 02 1 1409-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) FRONT,REAR MAL 		1-42355-003-1 10 1 1306-1308
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) MAL 		1-42355-003-1 04 1 1309-1408
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) MAL 		1-42355-003-1 04 1 1409-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) MAL 		1-42355-003-1 04 1 1409-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46> SPARE MAL 		1-42355-003-1 01 1 1306-1308
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12(Q54) MAL 		1-42355-003-1 01 1 1309-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> MAL 		1-42374-001-0 11 1 1306-

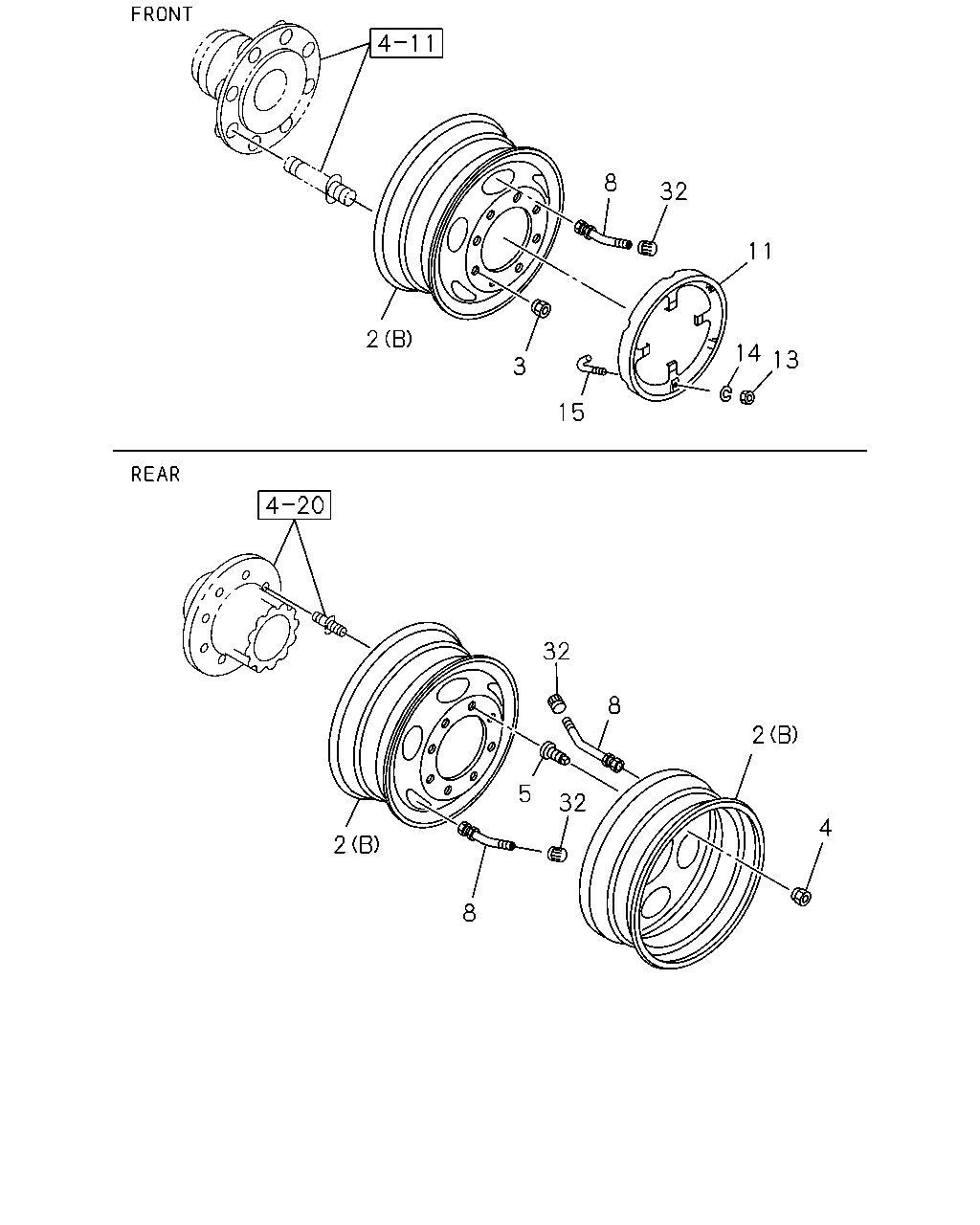

çizim 357033
4 2 8 32 5 32 8 2 13 14 11 32 8 15 3 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) FRONT,REARWARDFRONT MAL 		1-42350-478-0 06 1 1309-1408
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) FRONT,REARWARDFRONT MAL 		1-42350-478-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REARWARDFRONT 		1-42350-758-0 06 1 1309-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REARWARDFRONT 		1-42350-758-0 02 1 1409-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) FRONT,REARWARDFRONT 		1-42350-667-0 06 1 1309-1408
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) FRONT,REARWARDFRONT 		1-42350-667-0 02 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT,REAR 		1-42350-758-0 10 1 1306-1308
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) REARWARDREAR 		1-42350-758-0 04 1 1309-1408
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B)REARWARDREAR 		1-42350-758-0 04 1 1409-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B)REARWARDREAR 		1-42350-758-0 04 1 1409-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE 		1-42350-758-0 01 1 1306-1308
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE 		1-42350-758-0 01 1 1309-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) SPARE 		1-42350-667-0 01 1 1306-1308
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) SPARE 		1-42350-667-0 01 1 1309-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) FRONT,REAR MAL 		1-42350-478-0 10 1 1306-1308
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) REARWARDREAR MAL 		1-42350-478-0 04 1 1309-1408
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) REARWARDREAR MAL 		1-42350-478-0 04 1 1409-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) REARWARDREAR MAL 		1-42350-478-0 04 1 1409-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE MAL 		1-42350-478-0 01 1 1306-1308
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) (A) SPARE MAL 		1-42350-478-0 01 1 1309-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) FRONT,REAR 		1-42350-667-0 10 1 1306-1308
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) REARWARDREAR 		1-42350-667-0 04 1 1309-1408
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) REARWARDREAR 		1-42350-667-0 04 1 1409-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) REARWARDREAR 		1-42350-667-0 04 1 1409-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD MAL 		1-42334-022-3 08 1 1306-
3 NUT; WHEEL,FRT AXLE
M24 MAL 		1-42333-022-3 08 1 1306-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD MAL 		8-97359-810-0 16 1 1306-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD MAL 		8-97359-809-0 16 1 1306-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD MAL 		8-97359-806-0 16 1 1306-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD MAL 		8-97359-805-0 16 1 1306-
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42370-020-3 08 1 1309-
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FRONT,REAR 		1-42370-020-3 10 1 1306-1308
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42370-020-3 02 1 1309-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE 		1-42370-020-3 01 1 1306-1308
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42370-020-3 01 1 1309-
11 STEP; DISC WHEEL SIDE 1-43139-002-2 02 1 1306-
13 NUT; STEP DISC
M10 MAL 		0-91110-510-0 06 1 1306-
14 WASHER; LK,STEP DISC
ID=10.2 MAL 		0-91510-810-0 06 1 1306-
15 BOLT; STEP DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) L=60 		1-43139-016-0 06 1 1306-
15 BOLT; STEP DISC
WHEEL 8STUD 7.00TX20 162-12(Q54) L=44 		9-43139-023-1 06 1 1306-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> MAL 		1-42374-001-0 11 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
