Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11544 - FVZ(MALAYSIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

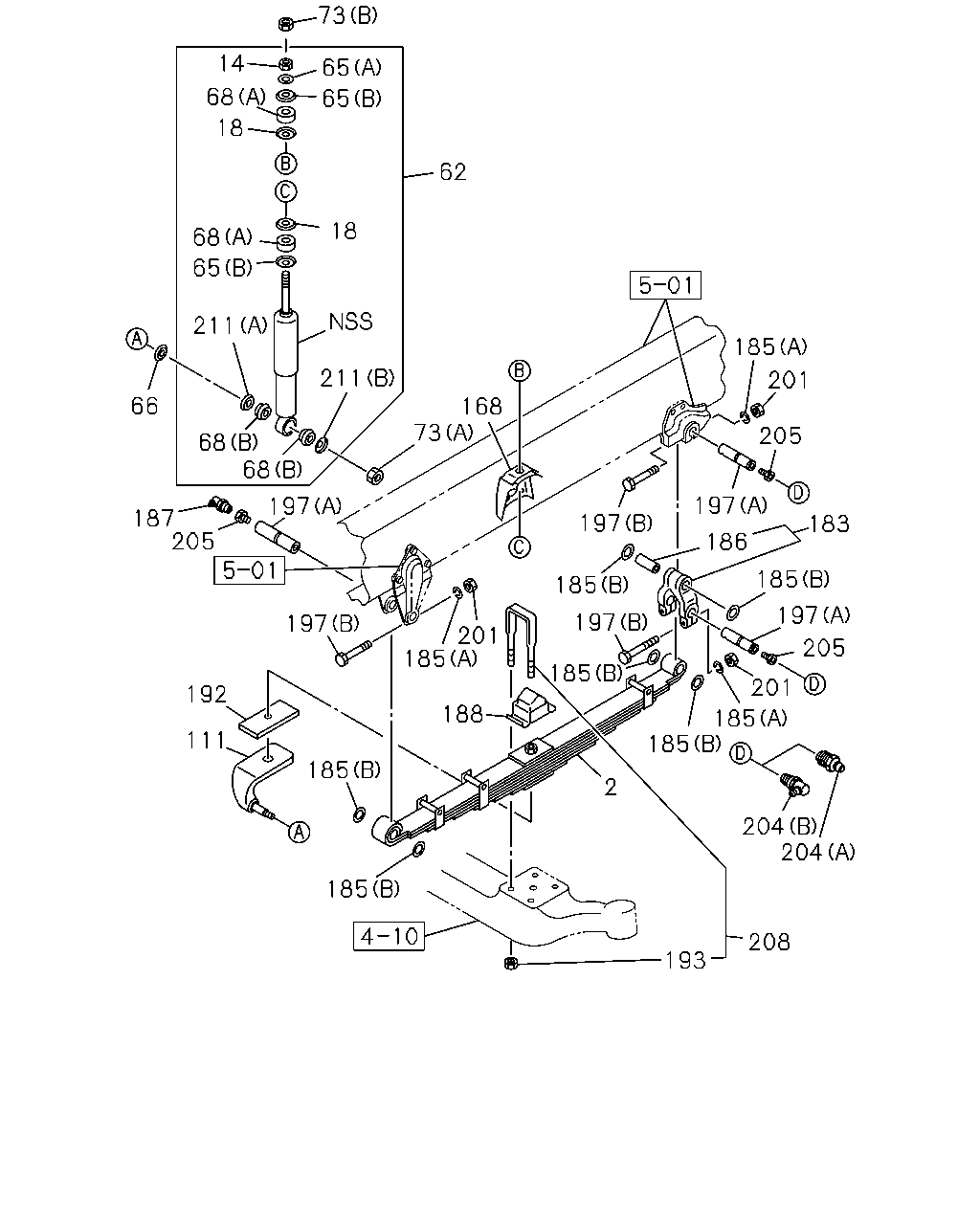

4-50 — FRONT SUSPENSION
(#122181) — 31 parça
73
65
65
62
18
14
68
68
65
18
211
211
66
68
68
197
187
205
168
73
197
185
201
188
185
111
192
185
2
185
197
185
205
201
197
183
185
197
205
201
185
185
185
197
204
204
208
193
186
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98167-308-0
02
1
1306-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
1306-
18
WASHER; CENTERING,S/ABS
ID=24 MAL
1-51631-067-0
04
1
1306-
62
ABSORBER ASM; SHOCK,FRT
1-51630-512-0
02
1
1306-
65
WASHER; S/ABS
(A) ID=16.5
1-09503-266-0
02
1
1306-
65
WASHER; S/ABS
(B) ID=16.5 MAL
1-51631-068-0
04
1
1306-
66
WASHER; LK,S/ABS SETTING
ID=21
0-91610-520-0
02
1
1306-
68
BUSHING; S/ABS
(A) ID=16 T=25 MAL
1-51631-069-0
04
1
1306-
68
BUSHING; S/ABS
(B) MAL
9-51631-026-0
04
1
1306-
73
NUT; BRKT,SHOCK
(A) M20
0-91110-520-0
02
1
1306-
73
NUT; BRKT,SHOCK
(B) M14
0-91111-514-0
02
1
1306-
111
SUPPORTER; S/ABS,FRT SUSP
8-98121-195-0
01
1
1306-
111
SUPPORTER; S/ABS,FRT SUSP
8-98121-193-0
01
1
1306-
168
BRACKET; S/ABS,FRT SUSP
MAL
1-51681-616-0
02
1
1306-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1306-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1306-
185
WASHER; LK,PIN
(A) ID=12.2
8-98179-315-0
12
1
1306-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1306-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1306-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-125-1
02
1
1306-
192
PIECE; DIST
80X144 ID=17.5
1-51177-284-1
AR
1
1306-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1306-
197
PIN; FRT SPR,FRT
(B) M12X80 MAL
0-10856-280-0
12
1
1306-
197
PIN; FRT SPR,FRT
(A) MAL
1-51161-031-0
06
1
1306-
201
NUT; PIN LK
M12 MAL
0-91110-512-0
12
1
1306-
204
NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1306-
204
NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1306-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1306-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1306-
211
WASHER; BRKT,SHOCK
(A) ID=27 MAL
9-51631-027-0
02
1
1306-
211
WASHER; BRKT,SHOCK
(B) ID=21 MAL
9-51631-028-0
02
1
1306-
