◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11544 - FVZ(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#122169) — 29 parça

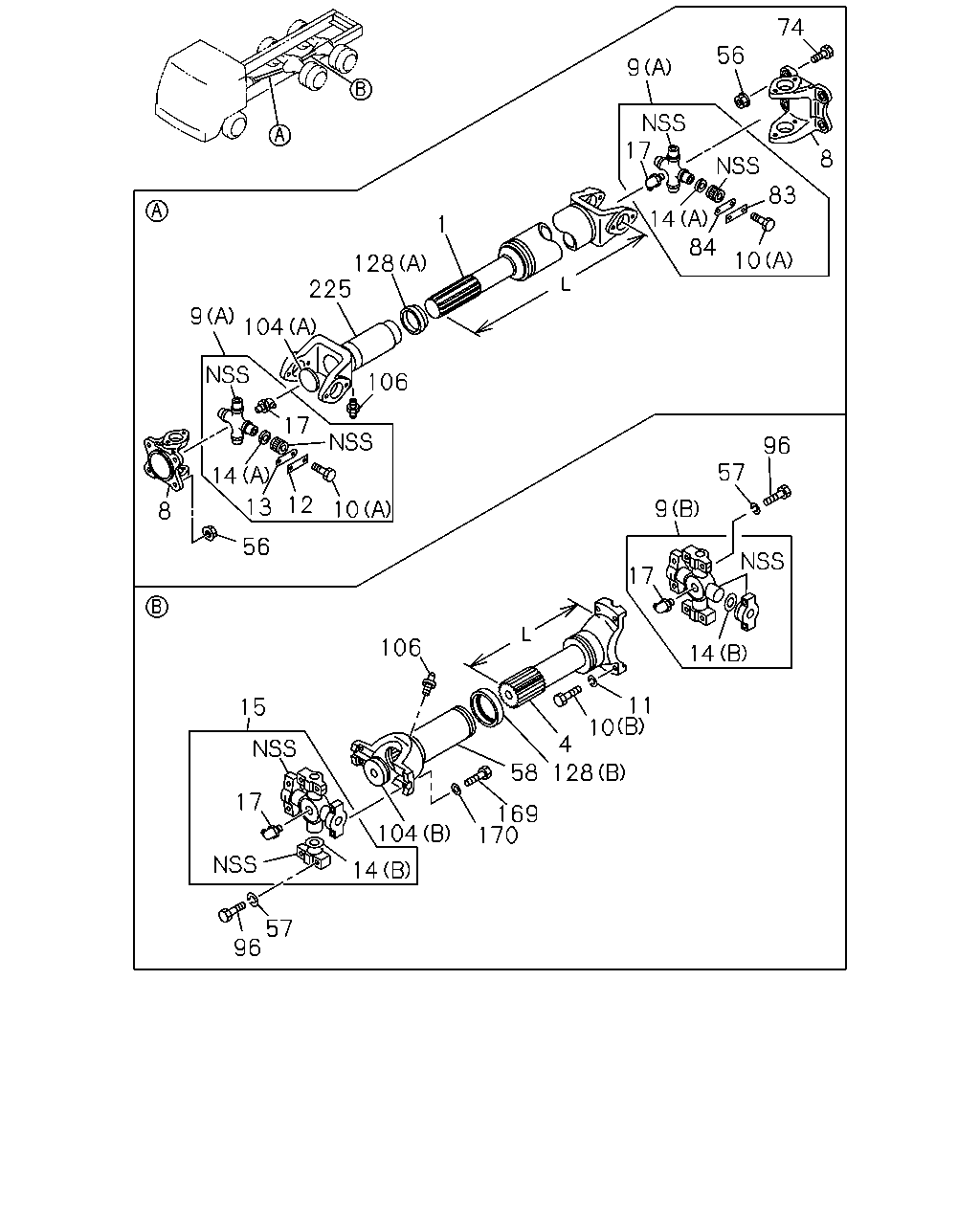

çizim 358193
11 10 4 58 128 169 170 104 14 57 96 17 15 106 17 9 57 96 14 106 10 12 56 13 8 14 17 104 9 225 128 1 9 56 74 8 83 10 84 14 17
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
L=1407 		1-37124-233-0 01 1 1306-
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 1306-
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1306-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 1306-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1306-
10 BOLT; UJT
(A) M10X20 		0-20951-020-0 16 1 1306-
10 BOLT; UJT
(B) M12X45 		8-98036-382-0 04 1 1306-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 MAL 		0-91510-612-0 04 1 1306-
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1306-
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1306-
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1306-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1306-
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1306-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1306-
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 1306-
57 WASHER; LK,YOKE
ID=12.2 MAL 		0-91510-612-0 08 1 1306-
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1306-
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1306-
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 1306-
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 1306-
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1306-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 1306-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 1306-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1306-
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1306-
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1306-
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1306-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 MAL 		0-91510-612-0 04 1 1306-
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
