11544 - FVZ(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#122161) — 32 parça
◀

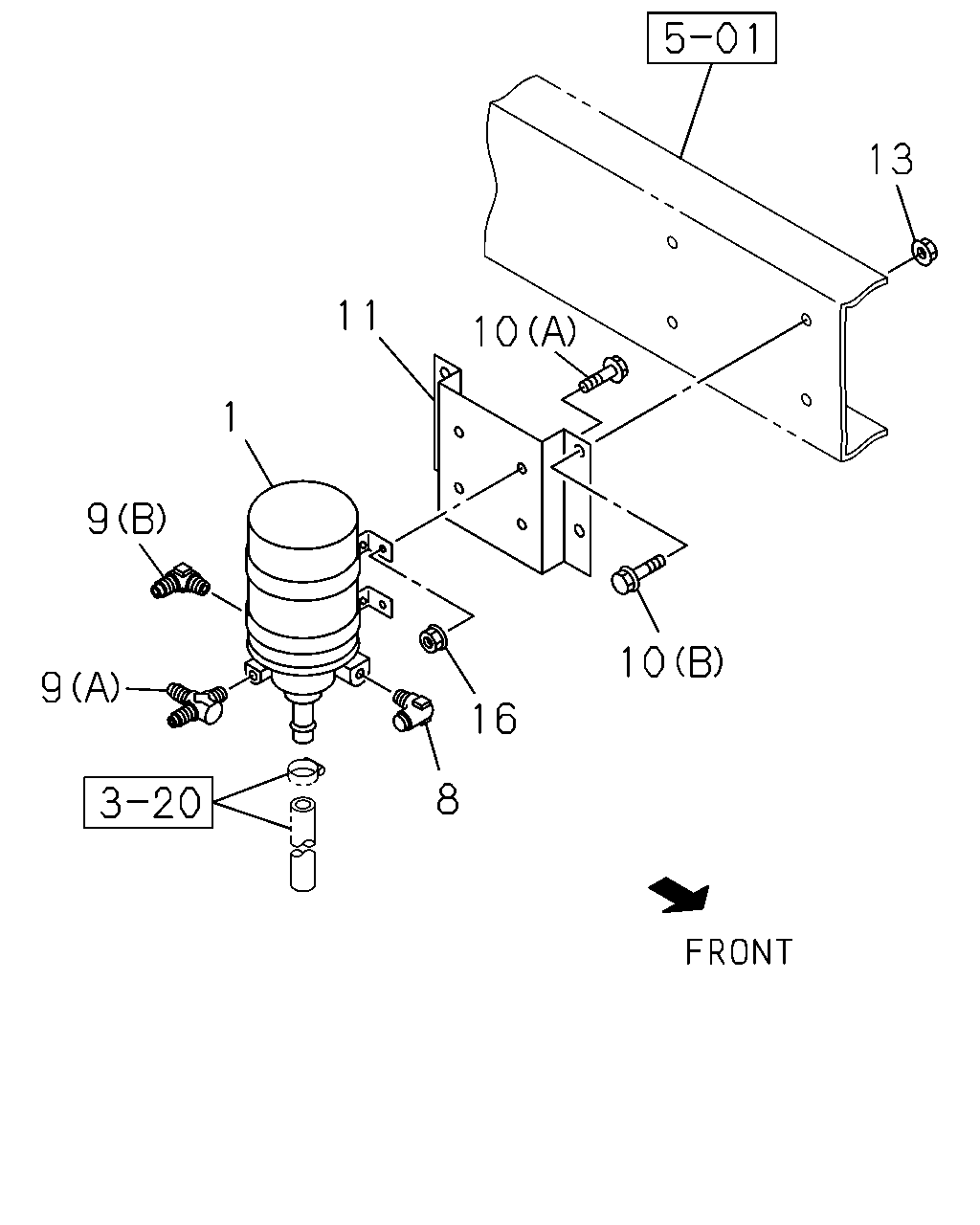

[346A] FIXING (9 parça)

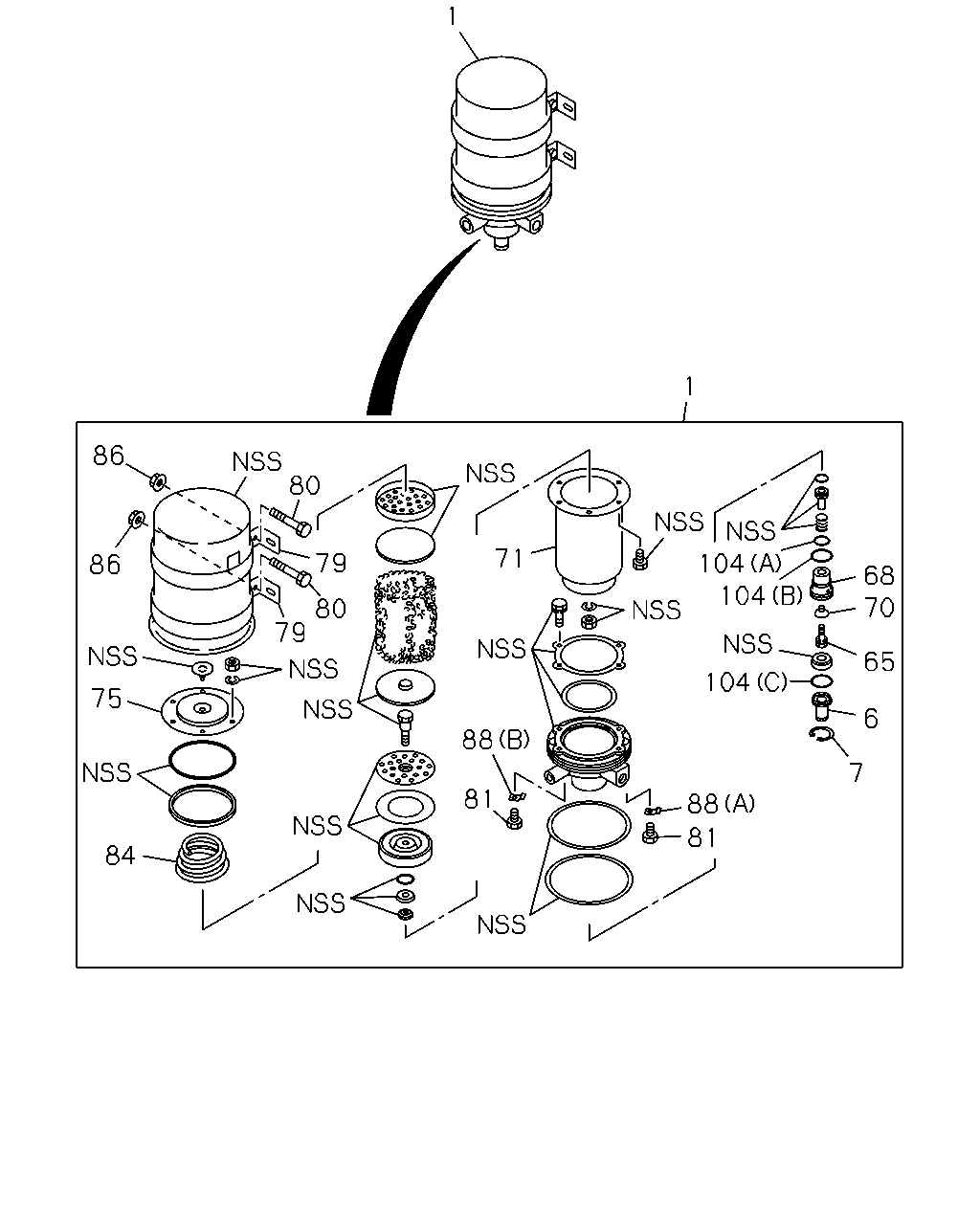

[346A] COMPONENT (18 parça)

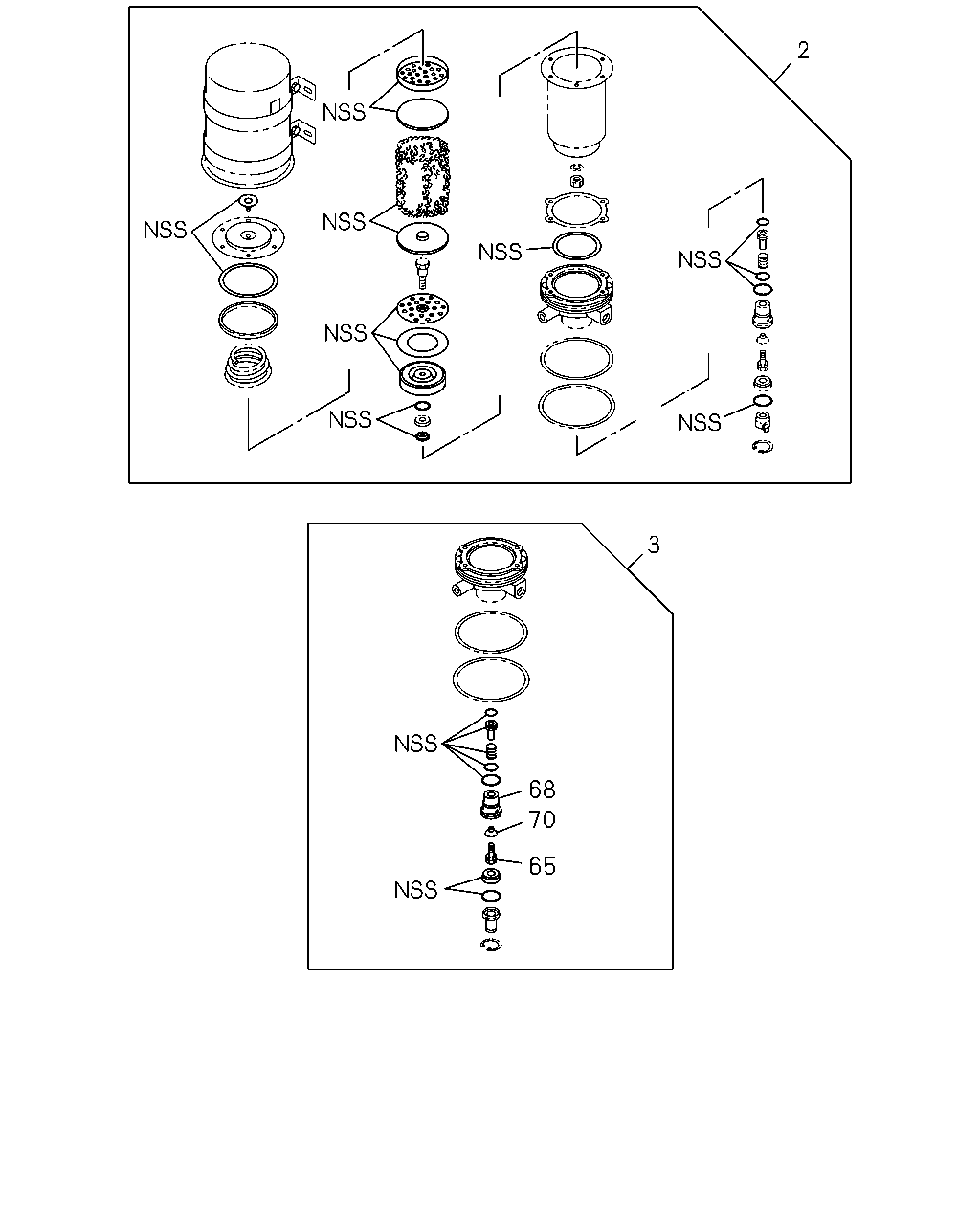

[346A] REPAIR KIT AND PISTON KIT (5 parça)
▶
10
16
8
10
11
1
9
9
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98182-324-0
01
1
1306-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW MAL
1-09660-960-0
01
1
1306-
9
CONNECTOR; PIPE,AIR DRYER
(A) M12X2 & PT1/4 3WAY MAL
1-09656-230-1
01
1
1306-
9
CONNECTOR; PIPE,AIR DRYER
(B) M22 & R1/2 W/VALVE
1-48320-026-2
01
1
1306-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE MAL
0-28651-025-0
04
1
1306-
10
BOLT; AIR DRYER
(B) M10X35 FLANGE MAL
0-28651-035-0
04
1
1306-
11
BRACKET; AIR DRYER
1-48317-876-0
01
1
1306-
13
NUT; AIR DRYER
M10 FLANGE MAL
0-91180-210-0
04
1
1306-
16
NUT; BRKT
M10 FLANGE MAL
0-91180-210-0
04
1
1306-
1
1
86
86
75
84
80
79
80
79
71
88
81
81
7
6
65
70
68
104
104
104
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98182-324-0
01
1
1306-
6
COVER; EXH,AIR DRYER
1-48199-101-0
01
1
1306-
7
RING; SNAP,AIR DRYER
1-48199-154-0
01
1
1306-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
1306-
68
BODY; VALVE
1-48199-216-0
01
1
1306-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
1306-
71
CASE; INNER,AIR DRYER
1-48199-156-1
01
1
1306-
75
COVER; CASE,AIR DRYER
1-48199-167-0
01
1
1306-
79
BRACKET; AIR DRYER
1-48199-189-0
02
1
1306-
80
BOLT; BRKT
1-48199-190-0
02
1
1306-
81
BOLT; CASE,AIR DRYER
1-48199-177-0
02
1
1306-
84
SPRING; AIR DRYER
1-48199-166-0
01
1
1306-
86
NUT; BRKT
1-48199-320-0
02
1
1306-
88
PLATE; STOPPER
(A)
1-48199-178-0
01
1
1306-
88
PLATE; STOPPER
(B)
1-48199-179-0
01
1
1306-
104
GASKET
(A)
1-48199-108-0
01
1
1306-
104
GASKET
(B)
1-48199-109-0
01
1
1306-
104
GASKET
(C)
1-48199-153-0
01
1
1306-
2
3
68
70
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-463-0
01
1
1306-
3
PISTON KIT; AIR DRYER
1-85576-057-1
01
1
1306-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
1306-
68
BODY; VALVE
1-48199-216-0
01
1
1306-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
1306-
