Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11544 - FVZ(MALAYSIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

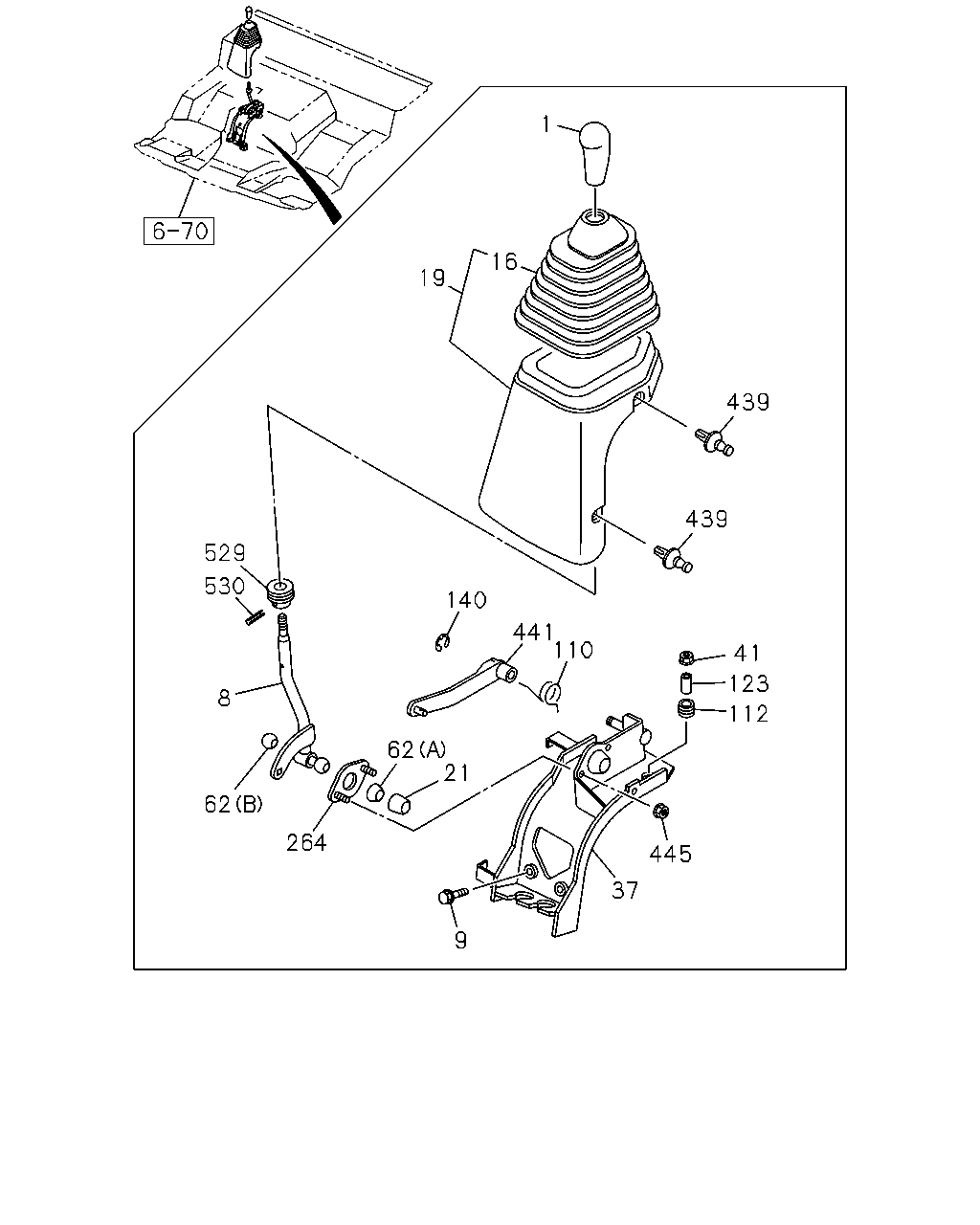

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#122145) — 20 parça
439
439
41
123
112
110
441
140
19
16
1
529
530
8
62
264
62
21
37
445
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
1-33611-099-1
01
1
1306-
8
LEVER; CHANGE
8-98093-455-0
01
1
1306-
9
BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER
8-94412-342-0
02
1
1306-
16
BOOT; CHANGE LEVER
1-79998-751-4
01
1
1306-
19
COVER; CHANGE LEVER
GRAY
8-97407-954-0
01
1
1306-
21
SEAT; CHANGE LEVER
1-33619-429-0
01
1
1306-
37
BRACKET; CHANGE LEVER SUPPORT
8-98093-444-0
01
1
1306-
41
NUT; CHANGE LEVER
M8 W/DISHED WASHER MAL
8-97329-625-0
02
1
1306-
62
SEAT; BALL,CHANGE LEVER
(A)
1-33619-427-0
01
1
1306-
62
SEAT; BALL,CHANGE LEVER
(B)
8-97049-147-0
01
1
1306-
110
SPRING; RETURN,CHANGE LEVER
1-33619-435-0
01
1
1306-
112
RUBBER; CUSHION
1-33619-442-0
04
1
1306-
123
COLLAR; DIST,CHANGE LEVER
1-33619-443-0
04
1
1306-
140
RING; SNAP
ID=10
0-91805-510-0
01
1
1306-
264
PLATE; COVER
1-33619-430-0
01
1
1306-
439
FASTENER; COVER
GRAY
8-97407-955-0
04
1
1306-
441
LEVER; SELECT
8-98093-449-0
01
1
1306-
445
NUT; PLATE
M6 FLANGE MAL
0-91180-106-0
02
1
1306-
529
RING; BOOT
1-33619-504-0
01
1
1306-
530
PIN; SPRING
1-33619-505-0
01
1
1306-
