2-05 — CLUTCH PIPING (#122138) — 36 parça

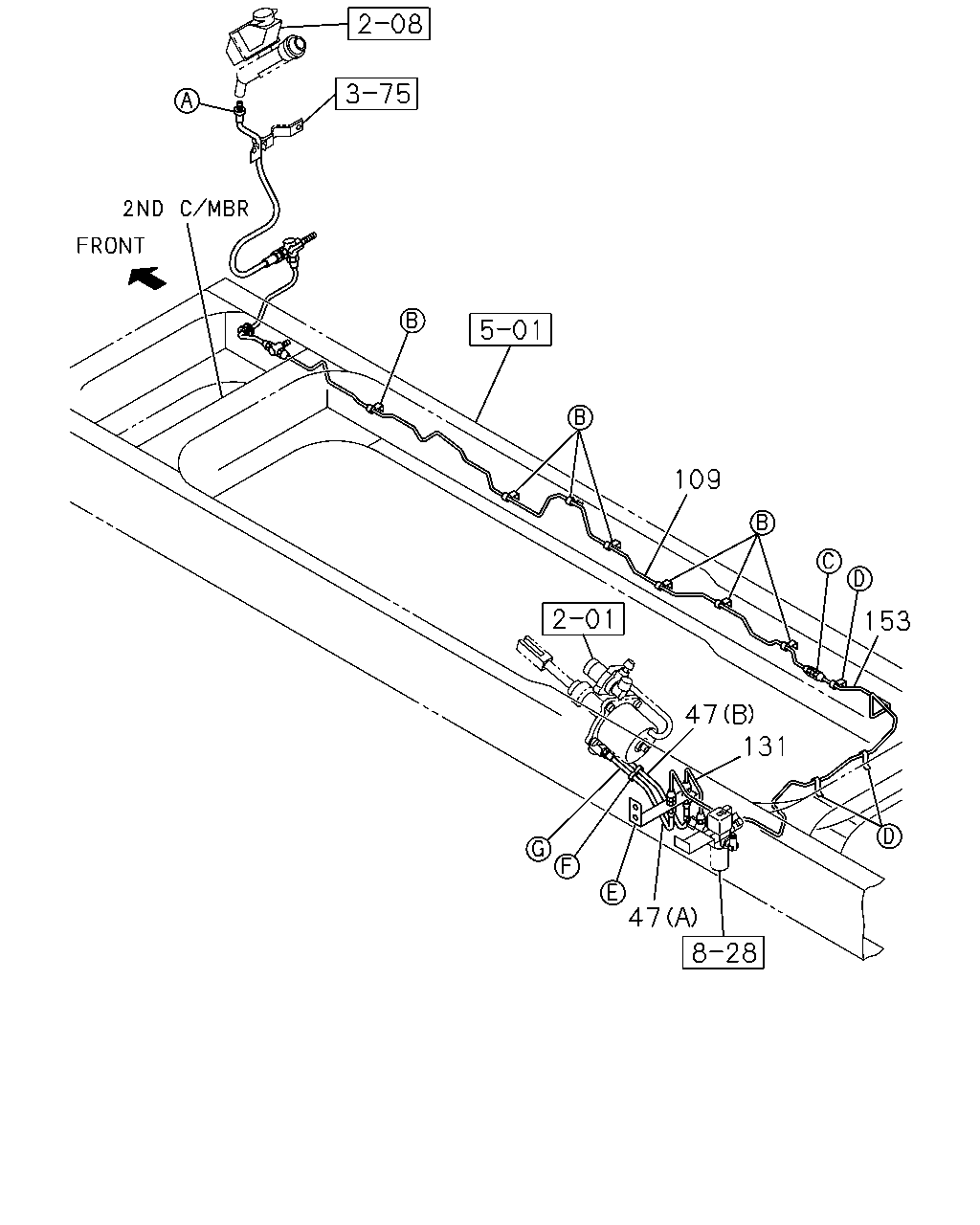

çizim 358675
109 153 47 131 47
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(B) L=560 		1-09363-689-0 01 1 1306-
47 HOSE; FLEX,CLU CONT
(A) L=520 		1-09364-583-0 01 1 1306-
109 PIPE; AIR,UNION TO UNION
L=2766 SERVICED BY L=3000 		1-47428-773-0 01 1 1306-
131 PIPE; AIR,UNION TO FLEX HOSE
L=203 		8-98100-103-0 01 1 1306-
153 PIPE ASM; CLU,UNION TO FLEX
L=1667 SERVICED BY L=1700 		1-47428-767-0 01 1 1306-

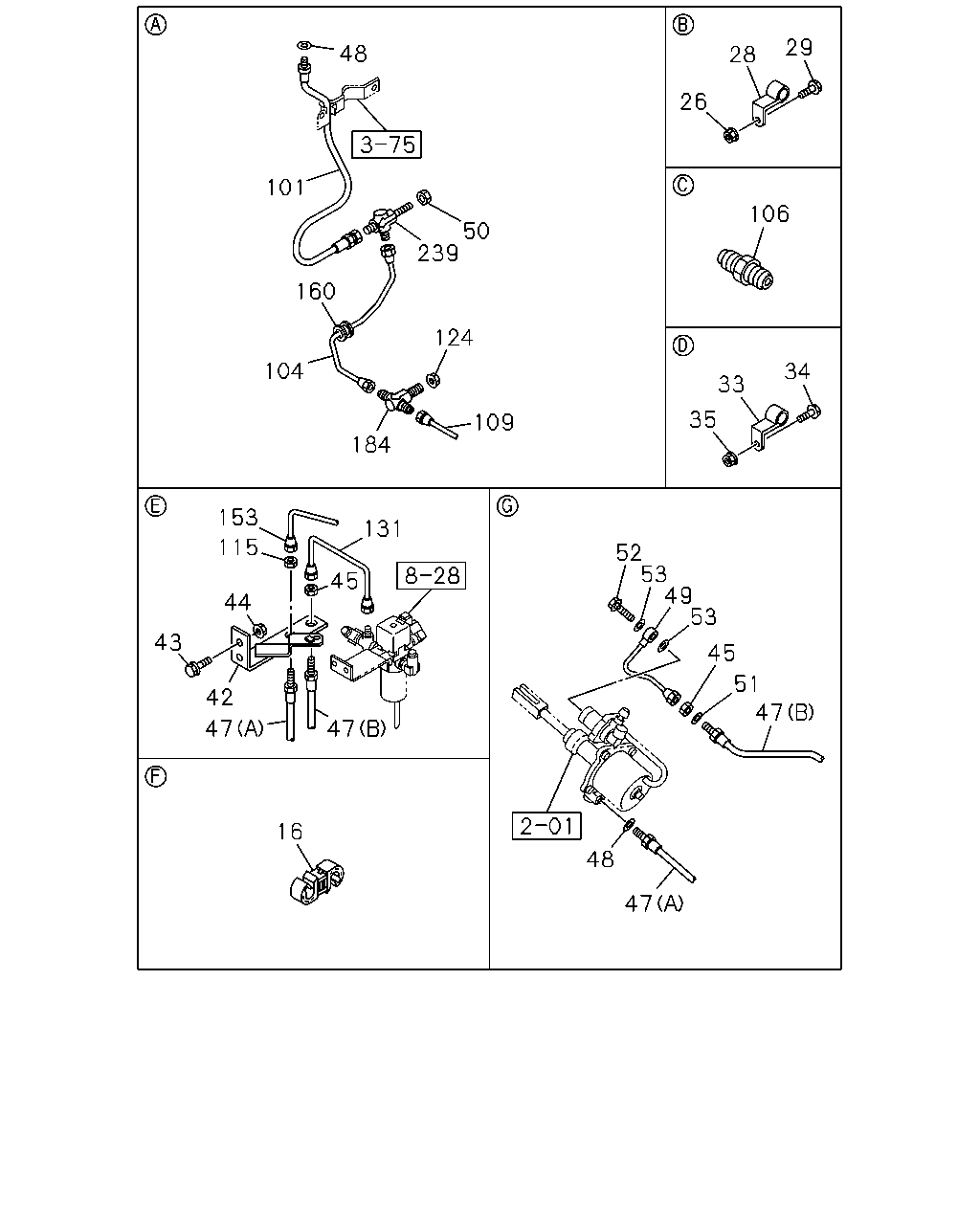

çizim 358832
48 101 239 50 160 104 184 124 109 35 33 34 106 26 28 29 131 153 115 44 43 45 42 47 47 16 52 53 49 53 45 51 47 48 47
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1306-
26 NUT; CLIP,OIL PIPE
M8 FLANGE MAL 		0-91180-108-0 07 1 1306-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 07 1 1306-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 07 1 1306-
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 1306-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1306-
35 NUT; PIPE CLIP
M8 FLANGE MAL 		0-91180-108-0 03 1 1306-
42 BRACKET; FLEX HOSE,CLU CONT 8-98077-571-0 01 1 1306-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE MAL 		0-91180-108-0 02 1 1306-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 02 1 1306-
47 HOSE; FLEX,CLU CONT
(B) L=560 		1-09363-689-0 01 1 1306-
47 HOSE; FLEX,CLU CONT
(A) L=520 		1-09364-583-0 01 1 1306-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1306-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=232 		1-49124-795-0 01 1 1306-
50 NUT; UNION
M12 		0-91111-512-0 01 1 1306-
51 WASHER; LK
ID=12.2 MAL 		0-91510-812-0 01 1 1306-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 1306-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 1306-1312
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1306-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=544 SERVICED BY L=550 		1-47428-753-0 01 1 1306-
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 1306-
109 PIPE; AIR,UNION TO UNION
L=2766 SERVICED BY L=3000 		1-47428-773-0 01 1 1306-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1306-
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1306-
131 PIPE; AIR,UNION TO FLEX HOSE
L=203 		8-98100-103-0 01 1 1306-
153 PIPE ASM; CLU,UNION TO FLEX
L=1667 SERVICED BY L=1700 		1-47428-767-0 01 1 1306-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1306-
184 UNION; FLEX HOSE
M14 2WAY 		1-09654-176-2 01 1 1306-
239 UNION; CLU HOSE 8-98107-850-0 01 1 1306-
