◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#12213) — 16 parça

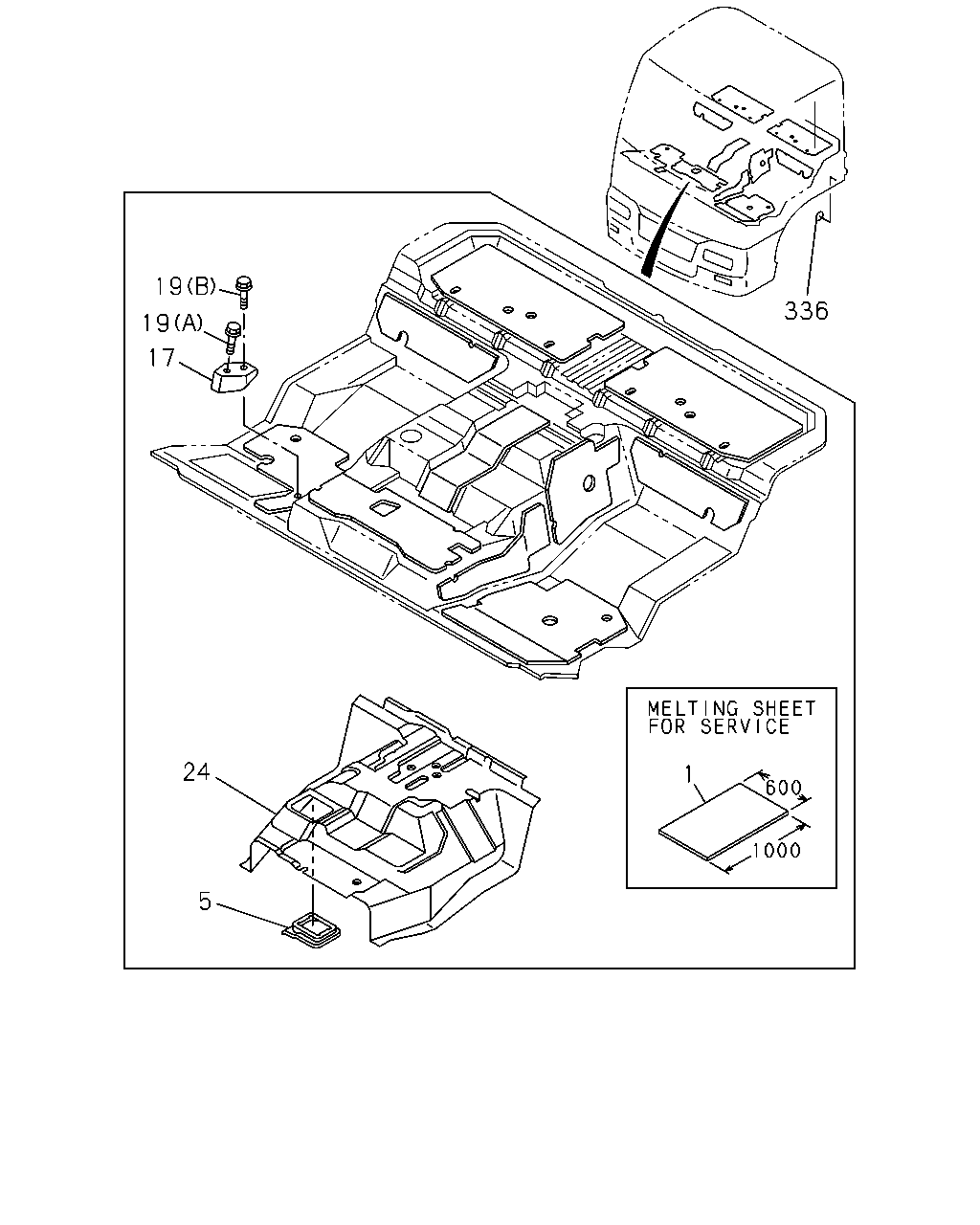

çizim 79918
19 336 19 17 24 1 5
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0105-
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 0105-
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 0105-
19 BOLT; FOOT REST
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0105-
19 BOLT; FOOT REST
(A) M6X47 		8-94407-876-1 01 1 0105-
24 INSULATOR; HEAT,FRT 1-71907-299-6 01 1 0105-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 0105-
çizim 79919
144 146 146 342 50 211 144 211 141 326
BalonParca AdiParca NoAdetTipApplied Date
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 0105-
141 HOLDER 1-79907-076-2 01 1 0105-
144 COVER; HAND BRK VLV
(A) 		1-72417-381-1 01 1 0105-
144 COVER; HAND BRK VLV
(B) 		1-76337-461-0 01 1 0105-
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0105-
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0105-
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0105-
326 SEAL; COVER 1-79997-978-1 01 1 0105-
342 FASTENER
ANTI NOISE EQUIPMENT<SV9> D8X13.5 		1-09987-270-0 01 1 0105-
