Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11544 - FVZ(MALAYSIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#122129) — 40 parça
◀

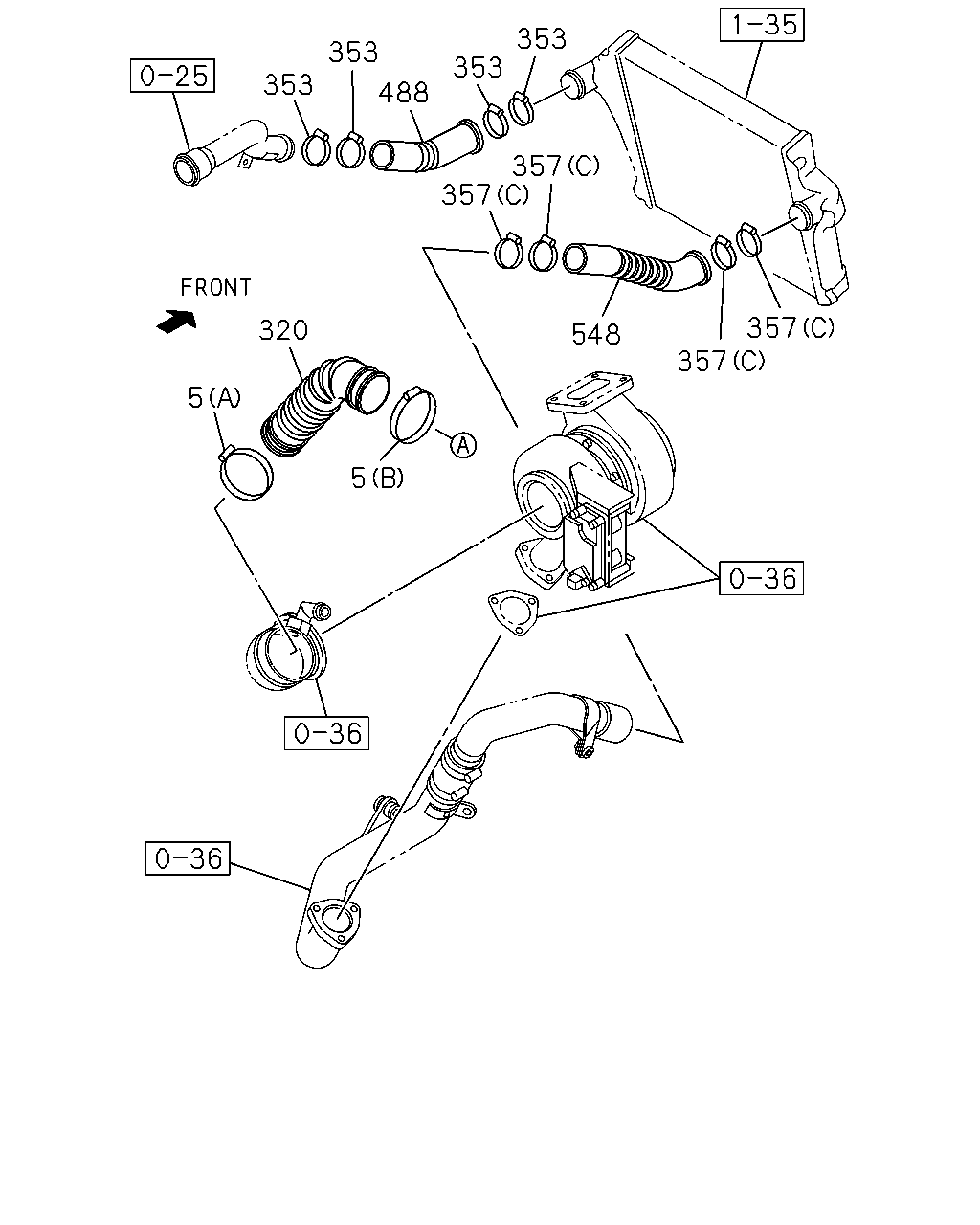

[131A] PIPING (9 parça)

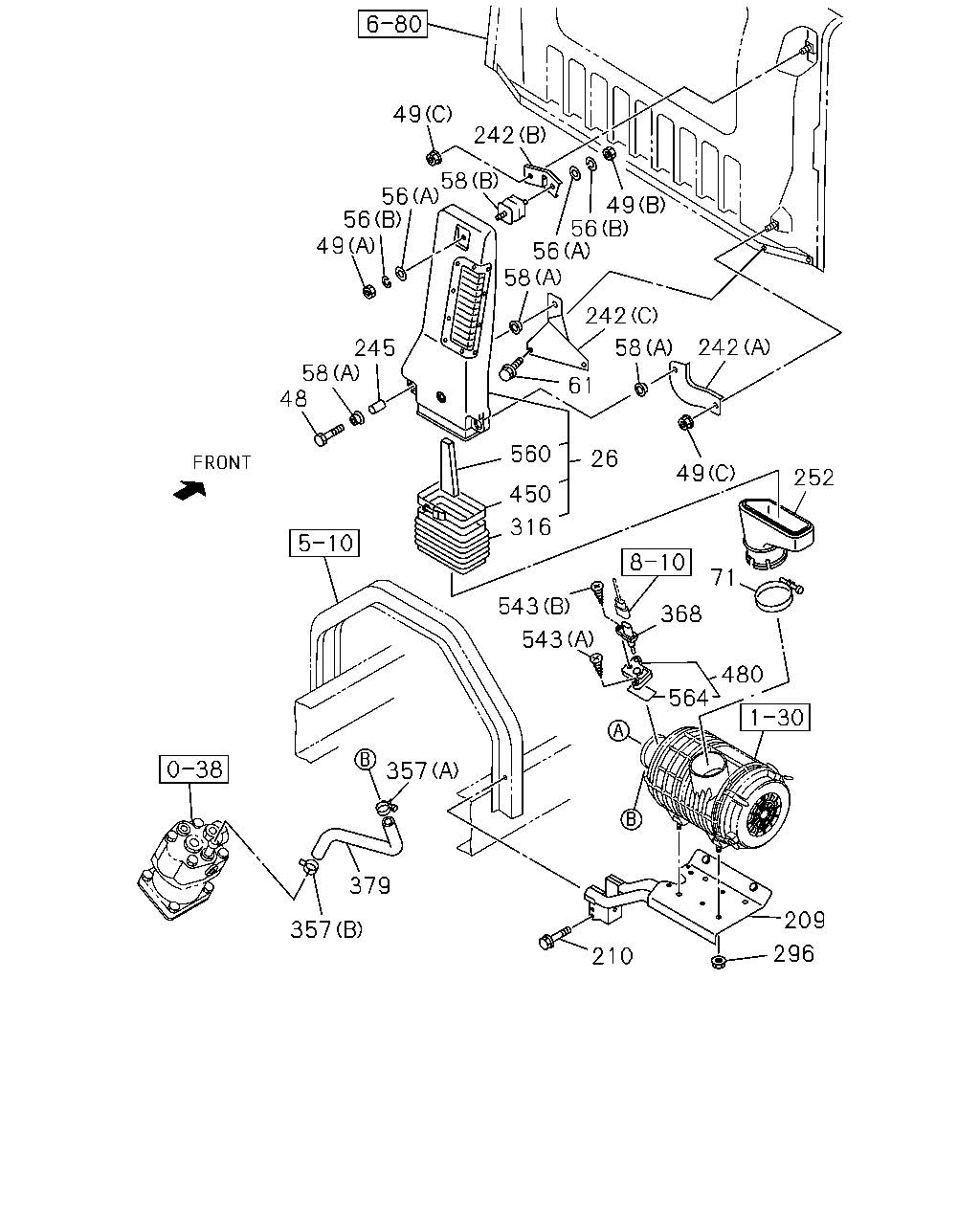

[131A] DUCT FIXING (31 parça)
▶
353
353
353
353
488
357
357
548
357
357
5
320
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(B) ID=130-150
8-98133-360-0
01
1
1306-
5
CLIP; AIR DUCT
(A) ID=90-110
8-98133-365-0
01
1
1306-
320
HOSE; CONN,ACL
8-98073-259-0
01
1
1306-
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
04
1
1306-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
1306-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
1306-
357
CLIP; RUBBER HOSE
(C) ID=55-75
8-98133-349-0
04
1
1306-
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
1306-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98181-974-1
01
1
1306-
480
564
368
543
543
316
450
560
26
49
71
252
209
296
210
357
379
357
48
58
245
61
58
242
242
58
56
56
49
242
58
56
56
49
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1306-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1306-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1306-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1306-
49
NUT; AIR DUCT
(C) M8 FLANGE MAL
8-94279-517-0
02
1
1306-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1306-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1306-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1306-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1306-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1306-
71
CLIP; AIR DUCT
ID=140-160
8-98133-368-0
01
1
1306-
209
BRACKET; ACL
8-98021-995-1
01
1
1306-
210
BOLT; ACL BRKT
M10X25 FLANGE MAL
0-28651-025-0
04
1
1306-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1306-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1306-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1306-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1306-
252
DUCT; AIR INT
8-98021-989-1
01
1
1306-
296
NUT; ACL
M8 FLANGE MAL
0-91180-108-0
04
1
1306-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1306-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
1306-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
1306-
357
CLIP; RUBBER HOSE
(C) ID=55-75
8-98133-349-0
04
1
1306-
368
SENSOR; TEMP
8-98065-377-0
01
1
1306-
379
HOSE; RUBBER
8-97639-463-0
01
1
1306-
450
CLAMP; HOSE
9-09915-504-1
01
1
1306-
480
ADAPTER
8-98086-417-0
01
1
1306-
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1306-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1306-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1306-
564
GASKET; ADAPTER
8-98071-416-0
01
1
1306-
