◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#12211) — 71 parça

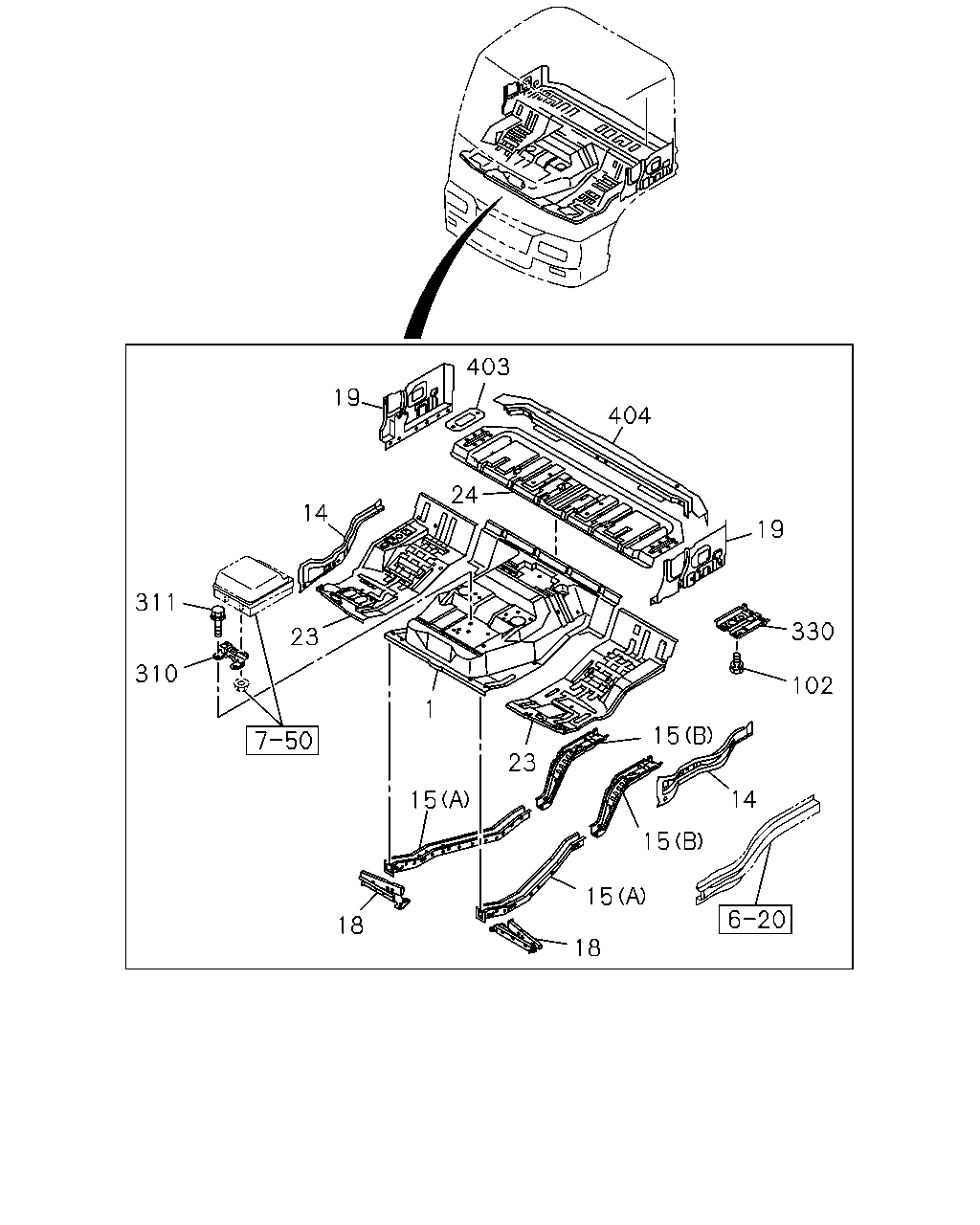

çizim 78195
403 19 404 24 14 19 311 330 23 310 102 1 15 23 14 15 15 15 18 18
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
ISUZU M/T<X9A> 		1-62172-610-2 01 1 0105-0205
1 PANEL; FLOOR
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-610-4 01 1 0206-
1 PANEL; FLOOR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-603-4 01 1 0105-
14 PANEL; FLOOR SIDE,FRT
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62482-918-6 01 1 0105-0205
14 PANEL; FLOOR SIDE,FRT
ISUZU M/T<X9A> 		1-62482-918-6 01 1 0105-0205
14 PANEL; FLOOR SIDE,FRT
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62482-918-6 01 1 0206-
14 PANEL; FLOOR SIDE,FRT
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62482-918-6 01 1 0206-
14 PANEL; FLOOR SIDE,FRT
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62482-917-6 01 1 0105-0205
14 PANEL; FLOOR SIDE,FRT
ISUZU M/T<X9A> 		1-62482-917-6 01 1 0105-0205
14 PANEL; FLOOR SIDE,FRT
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62482-917-6 01 1 0206-
14 PANEL; FLOOR SIDE,FRT
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62482-917-6 01 1 0206-
15 FRAME; UNDER
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-62472-603-8 01 1 0105-0205
15 FRAME; UNDER
ISUZU M/T<X9A> (A) 		1-62472-603-8 01 1 0105-0205
15 FRAME; UNDER
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) 		1-62472-603-9 01 1 0206-
15 FRAME; UNDER
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-62472-603-9 01 1 0206-
15 FRAME; UNDER
TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-62472-680-1 01 1 0105-0205
15 FRAME; UNDER
ISUZU M/T<X9A> (B) 		1-62472-680-1 01 1 0105-0205
15 FRAME; UNDER
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (B) 		1-62472-680-1 01 1 0206-
15 FRAME; UNDER
TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-62472-680-1 01 1 0206-
15 FRAME; UNDER
TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-62472-598-6 01 1 0105-0205
15 FRAME; UNDER
ISUZU M/T<X9A> (B) 		1-62472-598-6 01 1 0105-0205
15 FRAME; UNDER
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (B) 		1-62472-598-6 01 1 0206-
15 FRAME; UNDER
TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-62472-598-6 01 1 0206-
15 FRAME; UNDER
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-62472-766-0 01 1 0105-0205
15 FRAME; UNDER
ISUZU M/T<X9A> (A) 		1-62472-766-0 01 1 0105-0205
15 FRAME; UNDER
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) 		1-62472-766-1 01 1 0206-
15 FRAME; UNDER
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-62472-766-1 01 1 0206-
18 FRAME; FLOOR,CENTER SIDE
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62482-997-5 01 1 0105-0205
18 FRAME; FLOOR,CENTER SIDE
ISUZU M/T<X9A> 		1-62482-997-5 01 1 0105-0205
18 FRAME; FLOOR,CENTER SIDE
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62482-997-6 01 1 0206-
18 FRAME; FLOOR,CENTER SIDE
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62482-997-6 01 1 0206-
18 FRAME; FLOOR,CENTER SIDE
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62483-168-2 01 1 0105-0205
18 FRAME; FLOOR,CENTER SIDE
ISUZU M/T<X9A> 		1-62483-168-2 01 1 0105-0205
18 FRAME; FLOOR,CENTER SIDE
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62483-168-3 01 1 0206-
18 FRAME; FLOOR,CENTER SIDE
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62483-168-3 01 1 0206-
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62472-660-2 01 1 0105-0205
19 PANEL; FLOOR SIDE,REAR
ISUZU M/T<X9A> 		1-62472-660-2 01 1 0105-0205
19 PANEL; FLOOR SIDE,REAR
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 0206-
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62472-660-2 01 1 0206-
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S151 OD(Y2N) BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-614-4 01 1 0105-0205
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> ISUZU M/T<X9A> 		1-62472-614-4 01 1 0105-0205
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S151 OD(Y2N) BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-614-4 01 1 0206-
19 PANEL; FLOOR SIDE,REAR
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-659-2 01 1 0105-
19 PANEL; FLOOR SIDE,REAR
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-659-2 01 1 0105-
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-799-0 01 1 0105-0205
23 PANEL; FLOOR,SIDE
ISUZU M/T<X9A> 		1-62172-799-0 01 1 0105-0205
23 PANEL; FLOOR,SIDE
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-799-0 01 1 0206-
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-799-0 01 1 0206-
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-798-0 01 1 0105-0205
23 PANEL; FLOOR,SIDE
ISUZU M/T<X9A> 		1-62172-798-0 01 1 0105-0205
23 PANEL; FLOOR,SIDE
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-798-0 01 1 0206-
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-798-0 01 1 0206-
24 PANEL; BED PAN
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-540-8 01 1 0105-0205
24 PANEL; BED PAN
ISUZU M/T<X9A> 		1-62172-540-8 01 1 0105-0205
24 PANEL; BED PAN
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-540-9 01 1 0206-
24 PANEL; BED PAN
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-540-9 01 1 0206-
102 BOLT; FLOOR BOARD
M8X20 W/LK&PL WASHER 		8-94279-208-0 06 1 0105-
310 BRACKET; SEAT STAND
EXC. CENTER SEAT DELETE(SP9) 		1-76397-015-0 01 1 0105-
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X20 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-
330 REINFORCEMENT; FLOOR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-585-5 01 1 0105-0205
330 REINFORCEMENT; FLOOR
ISUZU M/T<X9A> 		1-62172-585-5 01 1 0105-0205
330 REINFORCEMENT; FLOOR
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-585-5 01 1 0206-
330 REINFORCEMENT; FLOOR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-585-5 01 1 0206-
403 PATCH; FIRE EXTINGUSHER
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-569-0 01 1 0105-0205
403 PATCH; FIRE EXTINGUSHER
ISUZU M/T<X9A> 		1-62172-569-0 01 1 0105-0205
403 PATCH; FIRE EXTINGUSHER
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62172-569-0 01 1 0206-
403 PATCH; FIRE EXTINGUSHER
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-569-0 01 1 0206-
404 RAIL ASM; MTG,RR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62472-596-8 01 1 0105-0205
404 RAIL ASM; MTG,RR
ISUZU M/T<X9A> 		1-62472-596-8 01 1 0105-0205
404 RAIL ASM; MTG,RR
ISUZU M/T<X9A> EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-596-8 01 1 0206-
404 RAIL ASM; MTG,RR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62472-596-8 01 1 0206-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
