◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#12210) — 70 parça

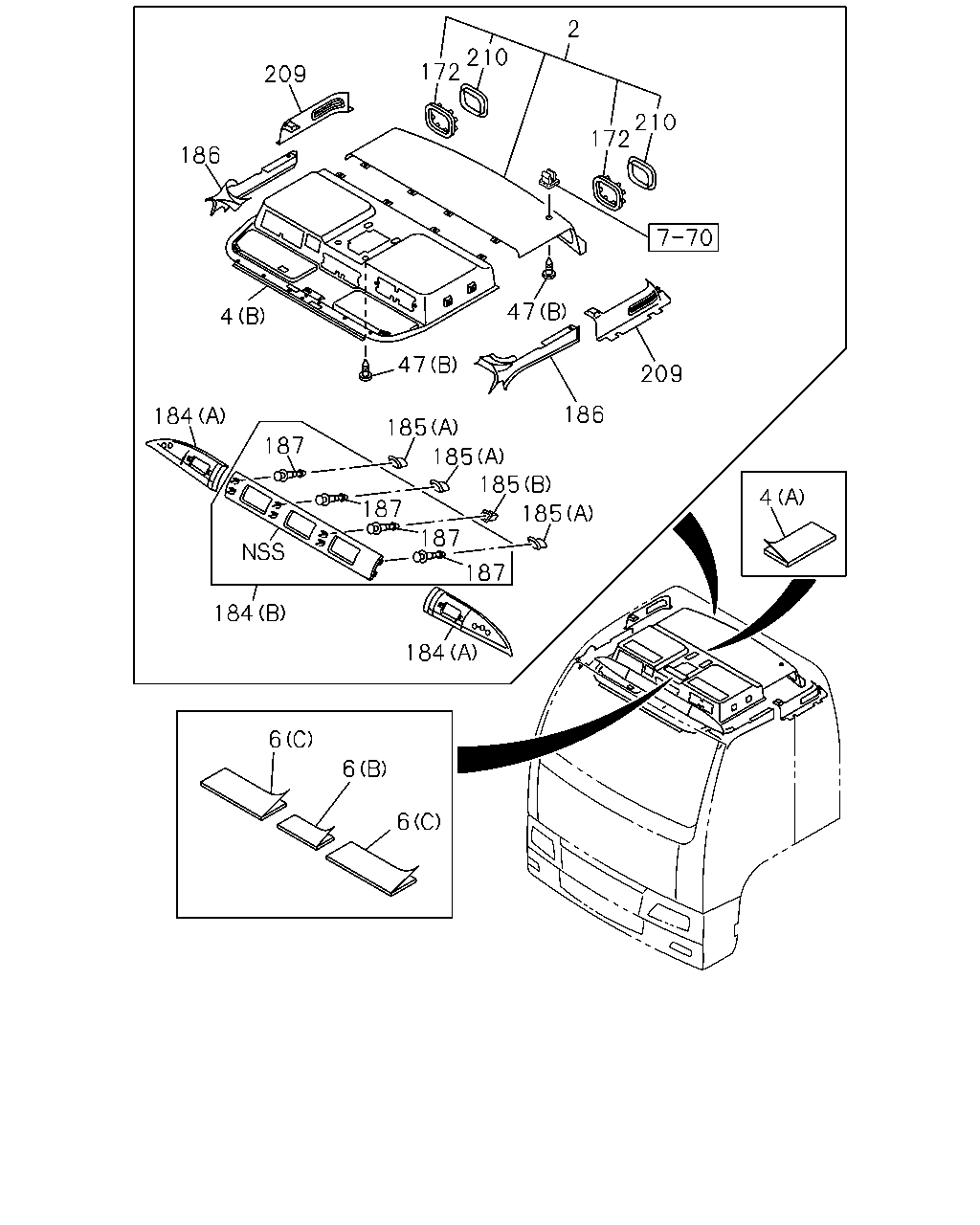

çizim 78194
2 210 172 209 210 172 186 47 4 47 209 186 184 185 187 185 185 4 187 185 187 187 184 184 6 6 6
BalonParca AdiParca NoAdetTipApplied Date
2 LINING; HD,ROOF RR
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> 		1-73317-403-8 01 1 0105-
2 LINING; HD,ROOF RR
EXC. SPEAKER SYSTEM 4 SPEAKER<NBV>,HIGH ROOF<S2F> 		1-73317-402-8 01 1 0105-
4 LINING; ROOF,FRT
(A) 		1-73317-436-0 02 1 0105-
4 LINING; ROOF,FRT
ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F> (B) 		1-73317-396-9 01 1 0105-
4 LINING; ROOF,FRT
EXC. ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F> (B) 		1-73317-400-9 01 1 0105-
6 SPACER; HD LINING
HIGH ROOF<S2F> (A) 		1-73317-434-2 02 1 0105-
6 SPACER; HD LINING
EXC. HIGH ROOF<S2F> (B) 140X300 		1-73317-435-2 01 1 0105-
6 SPACER; HD LINING
EXC. HIGH ROOF<S2F> (C) 		1-73317-430-0 01 1 0105-
6 SPACER; HD LINING
EXC. HIGH ROOF<S2F> (C) 140X800 		1-73317-429-0 01 1 0105-
47 CLIP; HEADLINING
(B) D5X14.7 		1-09983-183-0 05 1 0105-
47 CLIP; HEADLINING
HIGH ROOF<S2F> (C) D8X13.5 		1-09987-276-0 02 1 0105-
47 CLIP; HEADLINING
HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY 		1-73318-629-0 36 1 0105-
47 CLIP; HEADLINING
HIGH ROOF<S2F> (A) 		8-94313-458-0 08 1 0105-
47 CLIP; HEADLINING
EXC. HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY 		1-73318-629-0 11 1 0105-
47 CLIP; HEADLINING
EXC. ROOM LAMP FLUORESCENT<NGG> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0105-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> 		1-73317-450-0 02 1 0105-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> 		1-73317-449-0 01 1 0105-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> 		1-73317-448-0 01 1 0105-
184 ORNAMENT; ROOF
EXC. HIGH ROOF<S2F> (B) 		1-73318-626-0 01 1 0105-0111
184 ORNAMENT; ROOF
EXC. HIGH ROOF<S2F> (B) 		1-73318-660-3 01 1 0112-
184 ORNAMENT; ROOF
EXC. HIGH ROOF<S2F> (A) 		1-73317-388-0 01 1 0105-0111
184 ORNAMENT; ROOF
EXC. HIGH ROOF<S2F> (A) 		1-73317-409-2 01 1 0112-
184 ORNAMENT; ROOF
EXC. HIGH ROOF<S2F> (A) 		1-73317-387-0 01 1 0105-0111
184 ORNAMENT; ROOF
EXC. HIGH ROOF<S2F> (A) 		1-73317-408-2 01 1 0112-
185 GROMMET; ORNAMENT
EXC. HIGH ROOF<S2F> (A) 		1-79198-012-0 06 1 0105-
185 GROMMET; ORNAMENT
EXC. HIGH ROOF<S2F> (B) 		1-79198-013-0 02 1 0105-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-2 01 1 0105-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-2 01 1 0105-
187 PIN; ORNAMENT
EXC. HIGH ROOF<S2F> D4.2X13 		1-09983-161-0 08 1 0105-
209 COVER; GRILLE
EXC. HIGH ROOF<S2F> 		1-73347-866-3 01 1 0105-
209 COVER; GRILLE
EXC. HIGH ROOF<S2F> 		1-73347-865-3 01 1 0105-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> 		1-73996-208-1 02 1 0105-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> 		1-73347-886-1 01 1 0105-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> 		1-73347-885-1 01 1 0105-

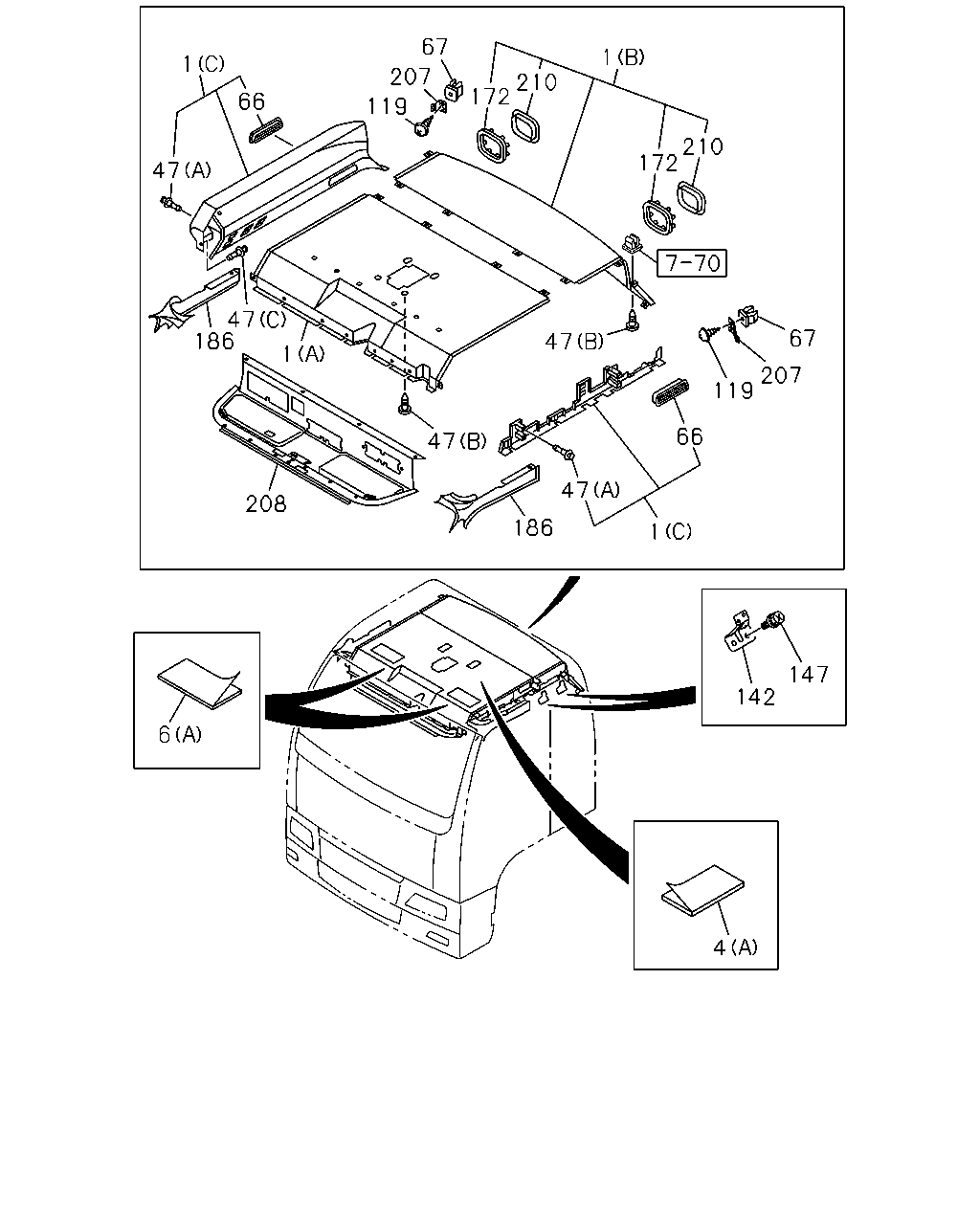

çizim 79641
67 1 1 207 210 172 66 119 210 172 47 47 186 67 47 1 207 119 66 47 47 208 186 1 147 142 6 4
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD
HIGH ROOF<S2F> (C) 		1-73317-420-5 01 1 0105-
1 LINING; HD
HIGH ROOF<S2F> (C) 		1-73317-419-5 01 1 0105-
1 LINING; HD
HIGH ROOF<S2F> EXC. ROOM LAMP FLUORESCENT<NGG> (A) 		1-73317-479-3 01 1 0105-
1 LINING; HD
HIGH ROOF<S2F> EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-73317-418-7 01 1 0105-
1 LINING; HD
ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> (A) 		1-73317-417-7 01 1 0105-
1 LINING; HD
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (B) 		1-73317-446-7 01 1 0105-
4 LINING; ROOF,FRT
(A) 		1-73317-436-0 02 1 0105-
4 LINING; ROOF,FRT
ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F> (B) 		1-73317-396-9 01 1 0105-
4 LINING; ROOF,FRT
EXC. ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F> (B) 		1-73317-400-9 01 1 0105-
6 SPACER; HD LINING
HIGH ROOF<S2F> (A) 		1-73317-434-2 02 1 0105-
6 SPACER; HD LINING
EXC. HIGH ROOF<S2F> (B) 140X300 		1-73317-435-2 01 1 0105-
6 SPACER; HD LINING
EXC. HIGH ROOF<S2F> (C) 		1-73317-430-0 01 1 0105-
6 SPACER; HD LINING
EXC. HIGH ROOF<S2F> (C) 140X800 		1-73317-429-0 01 1 0105-
47 CLIP; HEADLINING
(B) D5X14.7 		1-09983-183-0 05 1 0105-
47 CLIP; HEADLINING
HIGH ROOF<S2F> (C) D8X13.5 		1-09987-276-0 02 1 0105-
47 CLIP; HEADLINING
HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY 		1-73318-629-0 36 1 0105-
47 CLIP; HEADLINING
HIGH ROOF<S2F> (A) 		8-94313-458-0 08 1 0105-
47 CLIP; HEADLINING
EXC. HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY 		1-73318-629-0 11 1 0105-
47 CLIP; HEADLINING
EXC. ROOM LAMP FLUORESCENT<NGG> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0105-
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> 		1-73317-367-1 01 1 0105-
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> 		1-73317-366-1 01 1 0105-
67 GROMMET; SCREW
HIGH ROOF<S2F> D=8X8 L=7.5 M5 		8-94279-078-0 04 1 0105-
119 SCREW; BRKT
HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 0105-
142 BRACKET ASM; ROOF COVER
HIGH ROOF<S2F> 		1-61170-747-3 04 1 0105-
147 BOLT; SUPPORT BRKT
HIGH ROOF<S2F> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 16 1 0105-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> 		1-73317-450-0 02 1 0105-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> 		1-73317-449-0 01 1 0105-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> 		1-73317-448-0 01 1 0105-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-2 01 1 0105-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-2 01 1 0105-
207 BRACKET; HEADLINING
HIGH ROOF<S2F> 		1-61170-835-0 01 1 0105-
207 BRACKET; HEADLINING
HIGH ROOF<S2F> 		1-61170-834-0 01 1 0105-
208 COVER; HEADER SHELF
HIGH ROOF<S2F> 		1-73317-421-8 01 1 0105-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> 		1-73996-208-1 02 1 0105-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> 		1-73347-886-1 01 1 0105-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> 		1-73347-885-1 01 1 0105-
