Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11544 - FVZ(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#122097) — 39 parça
◀

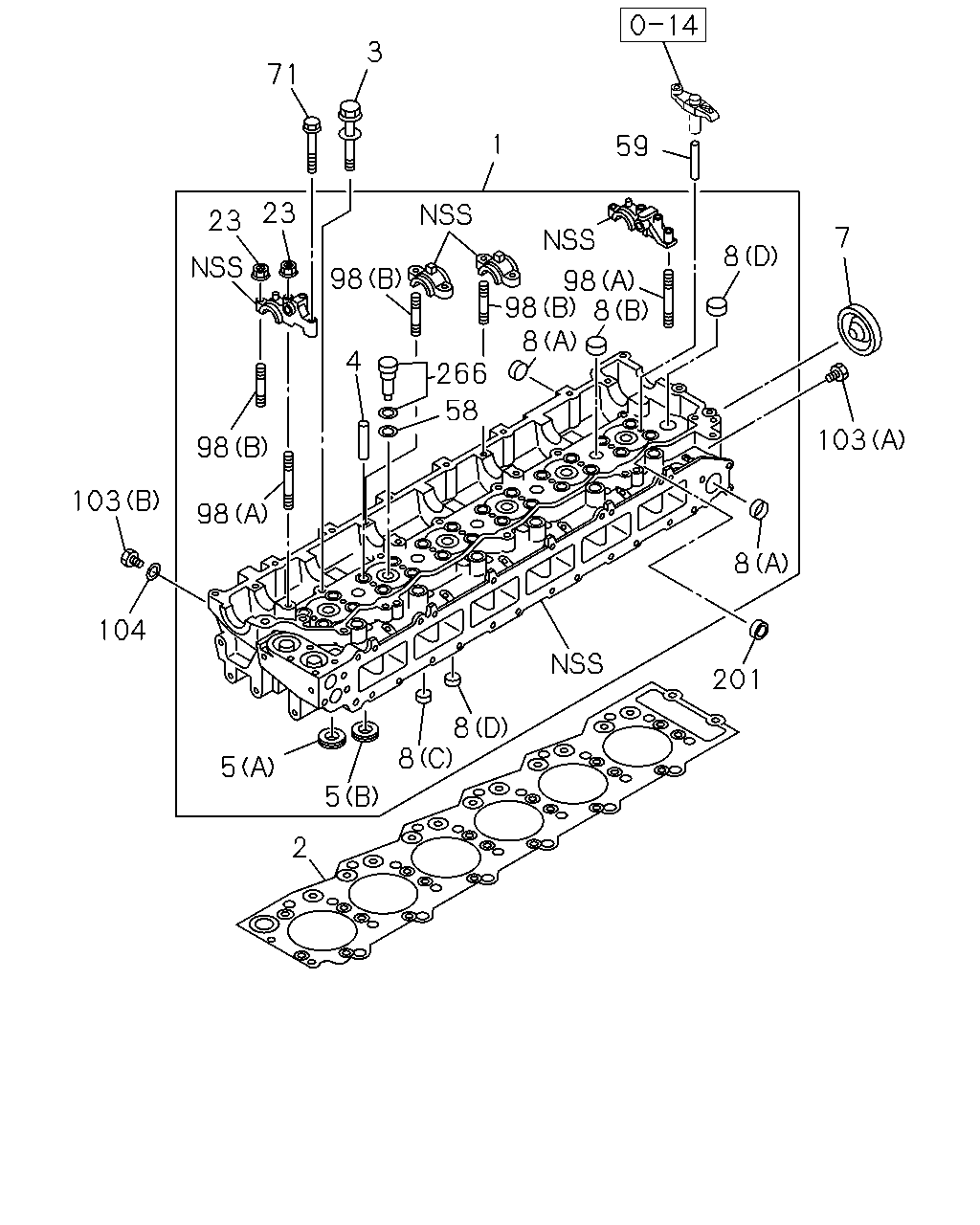

[011A] COMPONENT;CYLINDER HEAD (24 parça)

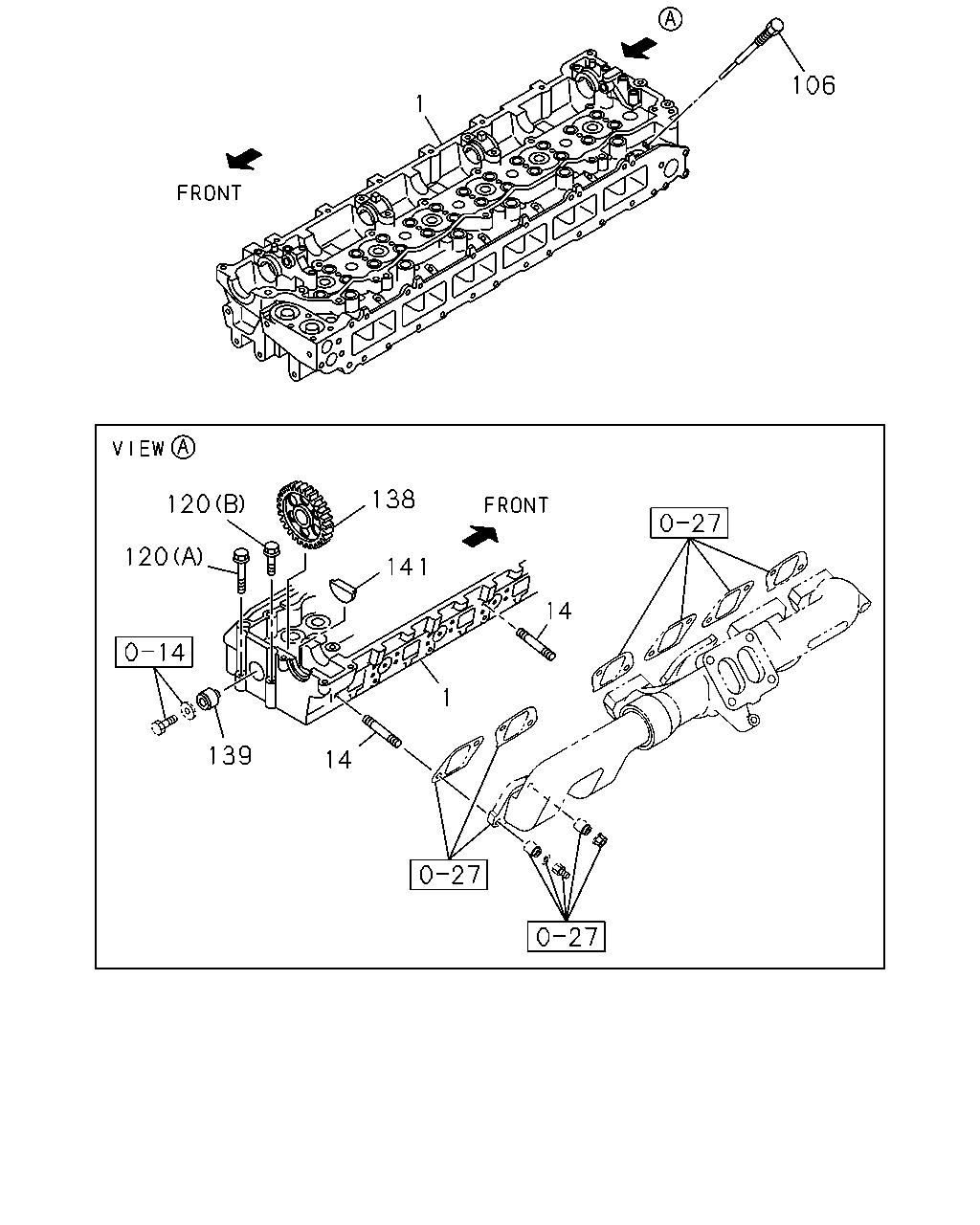

[011A] GLOW PLUG AND IDLE GEAR (8 parça)

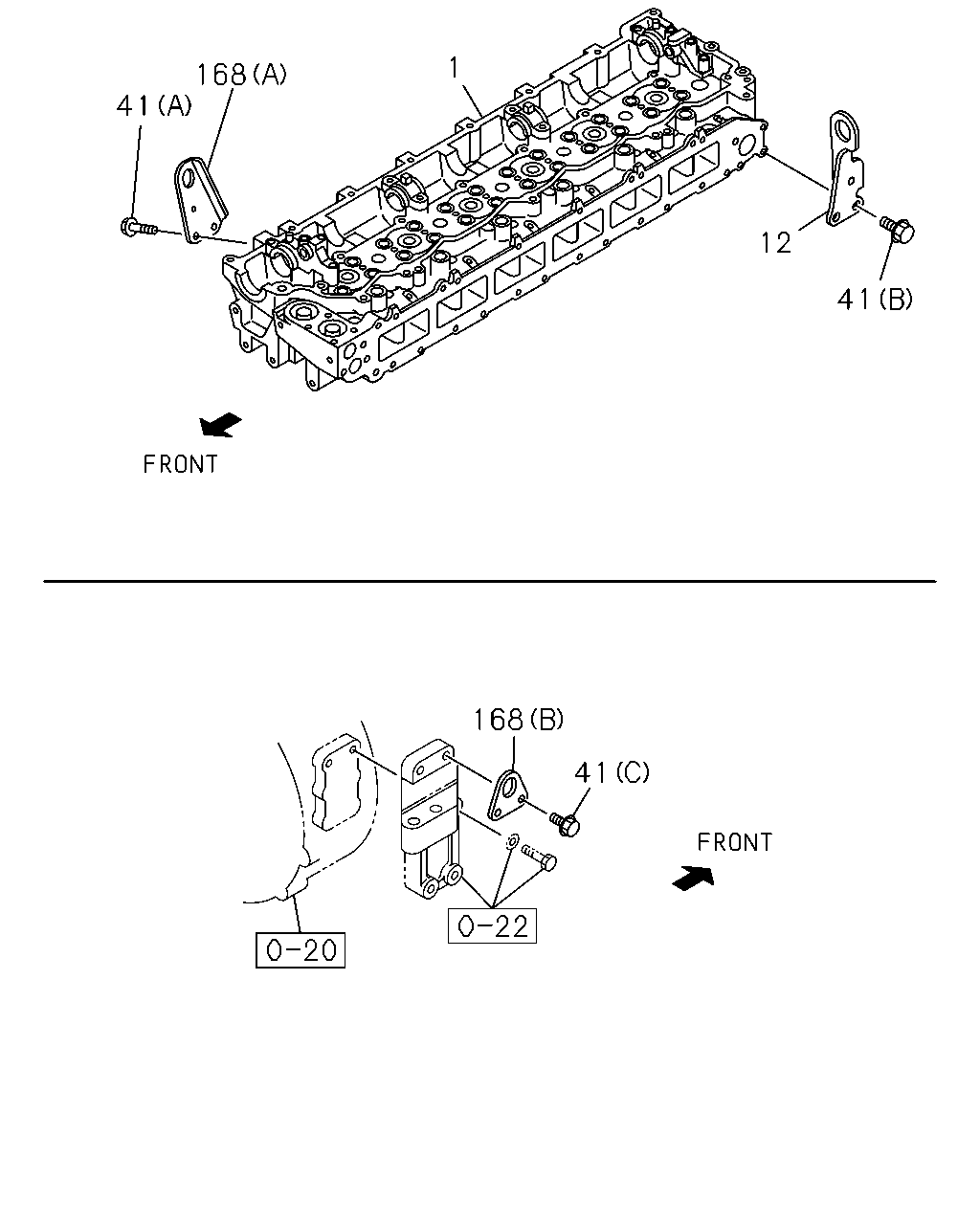

[011A] ENG HANGER AND FIXING (7 parça)
▶
71
3
59
1
23
23
98
98
103
104
5
5
8
2
8
201
8
103
7
8
98
98
8
8
266
4
98
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98243-823-0
01
1
1306-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97601-819-5
01
1
1306-
3
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
8-97077-638-0
26
1
1306-1407
3
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
8-98260-005-0
26
1
1408-
4
GUIDE; VLV
L=57
8-97376-719-2
24
1
1306-
5
SEAT; VLV INSERT
(A) INLET ID=32 OD=38
8-98028-874-0
12
1
1306-
5
SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38
8-98028-875-0
12
1
1306-
7
CUP; SEALING,CYL HEAD
OD=51
8-97096-826-0
01
1
1306-
8
CUP; SEALING,WATER JACKET
(A) OD=32
1-09600-012-2
07
1
1306-
8
CUP; SEALING,WATER JACKET
(B) OD=25
1-09600-016-0
06
1
1306-
8
CUP; SEALING,WATER JACKET
(C) OD=16
5-11129-006-0
07
1
1306-
8
CUP; SEALING,WATER JACKET
(D) OD=20
9-11129-128-0
11
1
1306-
23
NUT; CAM BRKT
M8 FLANGE
0-91180-208-0
08
1
1306-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4
8-97604-916-0
06
1
1306-
59
GUIDE; BRIDGE
8-97381-603-1
12
1
1306-
71
BOLT; CAM BRKT
M8X35 FLANGE
0-28050-835-0
02
1
1306-
98
STUD; CAM BRKT
(A) M8X54 L=79
8-94322-512-2
02
1
1306-
98
STUD; CAM BRKT
(B) M8X41 L=66
8-94322-513-2
06
1
1306-
103
PLUG; HD
(A) M8X10
8-98003-416-0
01
1
1306-
103
PLUG; HD
(B) M14X14 MAL
9-09862-156-0
01
1
1306-
104
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
01
1
1306-1312
104
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
8-98251-345-0
01
1
1401-
201
GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30
1-09639-034-0
06
1
1306-
266
SLEEVE ASM; NOZZLE HOLDER
8-98018-462-0
06
1
1306-
1
120
120
138
141
1
14
139
14
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98243-823-0
01
1
1306-
14
STUD; EXH MANIF
M10X60 L=75
8-94397-286-0
12
1
1306-
106
PLUG; GLOW PLUG HOLE
8-94392-236-0
06
1
1306-
120
BOLT; CYL HD TO HSG
(A) M10X73
8-94399-554-0
01
1
1306-
120
BOLT; CYL HD TO HSG
(B) M10X43
8-94399-555-0
01
1
1306-
138
GEAR; IDLE
Z=41
8-97606-929-0
01
1
1306-
139
SHAFT; IDLE GEAR
8-97186-398-1
01
1
1306-
141
PLUG; RUBBER,CYL HD
8-98163-813-0
02
1
1306-
41
168
1
12
41
168
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98243-823-0
01
1
1306-
12
HANGER; ENG,RR
8-94392-081-1
01
1
1306-
41
BOLT; ENG HANGER
(A) M10X20 FLANGE
0-28151-020-0
02
1
1306-
41
BOLT; ENG HANGER
(B) M10X25 FLANGE
0-28751-025-0
02
1
1306-
41
BOLT; ENG HANGER
(C) M12X25 FLANGE
0-28751-225-0
02
1
1306-
168
HANGER; ENG,FRT
(A)
8-94394-071-2
01
1
1306-
168
HANGER; ENG,FRT
(B)
8-94394-398-1
01
1
1306-
