Isuzu WW
▶
TRUCKS
▶
GVR
▶
11543 - GVR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#122081) — 28 parça
◀
[828A] FRONT SIDE (6 parça)
[828A] FRAME SIDE NO.1 (4 parça)
[828A] FRAME SIDE NO.2 (7 parça)
[828A] RELAY;CAB HARNESS (7 parça)
[828A] RELAY;FRAME HARNESS (4 parça)
▶

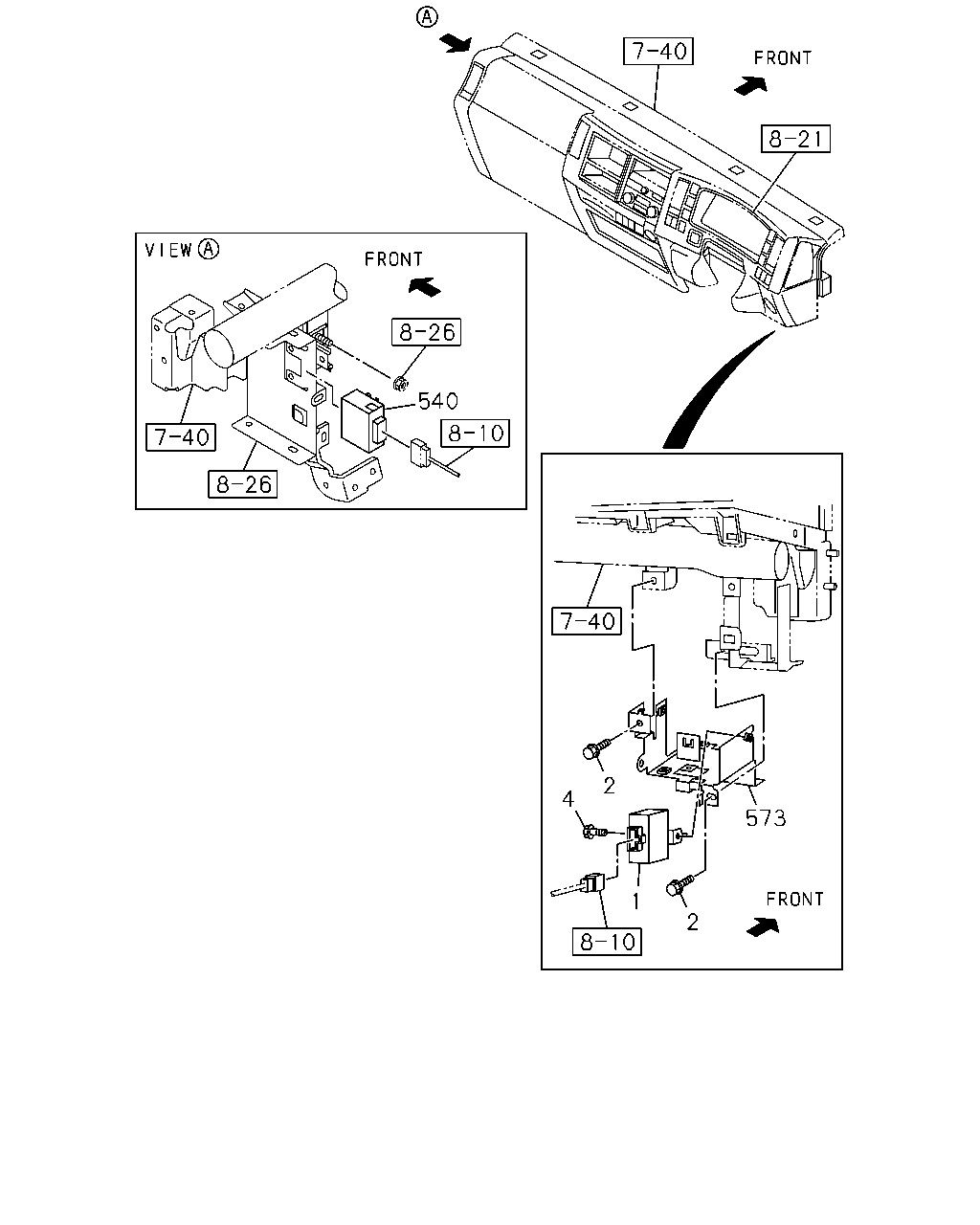

540
4
2
2
1
573
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-97613-970-1
01
1
1304-
2
BOLT; FLASHER UNIT
M6X16 FLANGE THA
0-28650-616-0
02
1
1304-
4
SCREW; FLASHER UNIT
M6X16 FLANGE THA
0-28650-616-0
01
1
1304-
540
RELAY; WIPER INTERVAL
8-98060-388-0
01
1
1304-1308
540
RELAY; WIPER INTERVAL
8-98233-976-0
01
1
1309-
573
BRACKET; FLASHER UNIT
8-97609-984-5
01
1
1304-

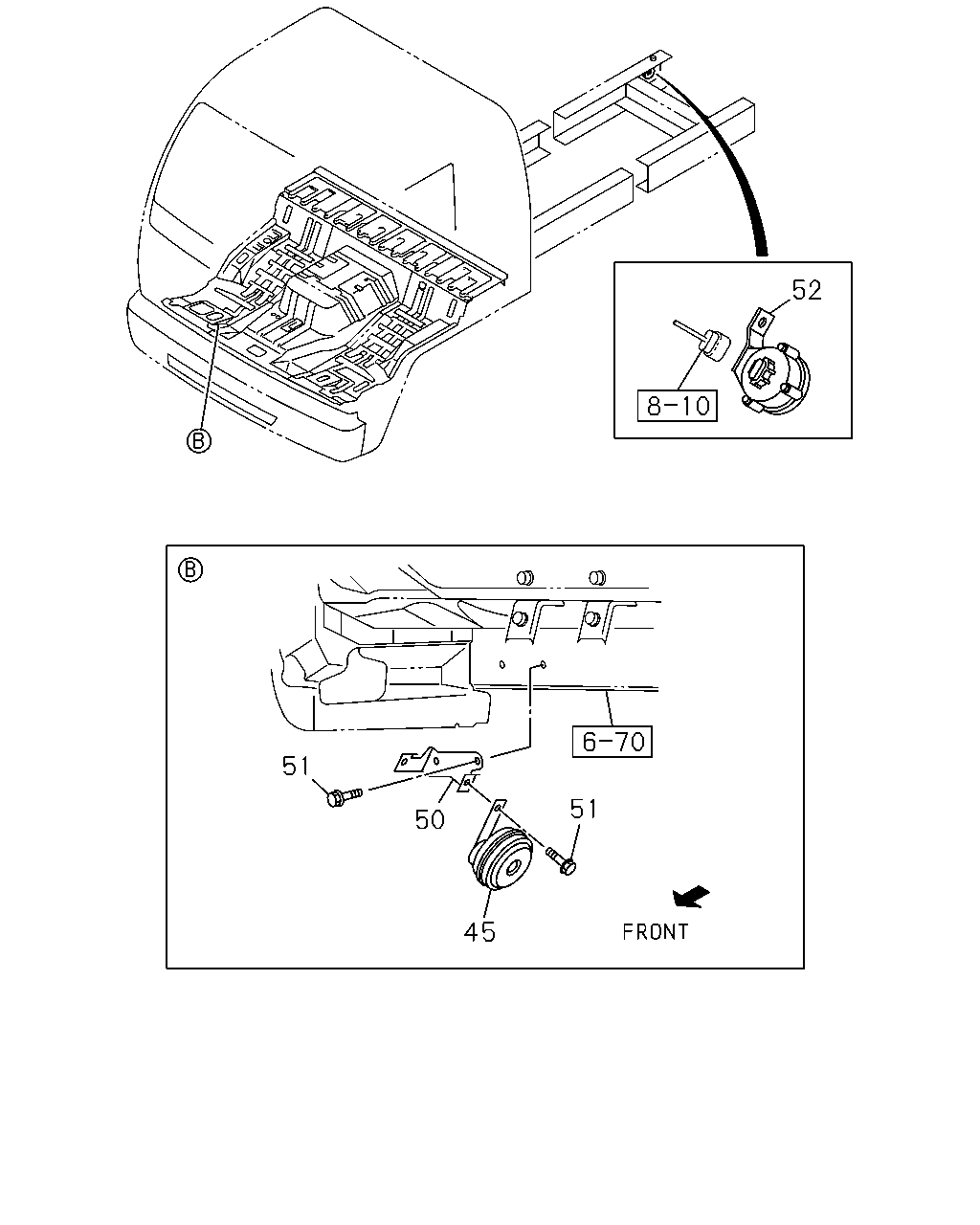

52
51
50
51
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
HORN; LOW NOTE
THA
8-97925-172-0
01
1
1304-
50
BRACKET; HORN
8-97613-300-2
01
1
1304-
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
03
1
1304-
52
BUZZER; BACK
8-97617-027-0
01
1
1304-

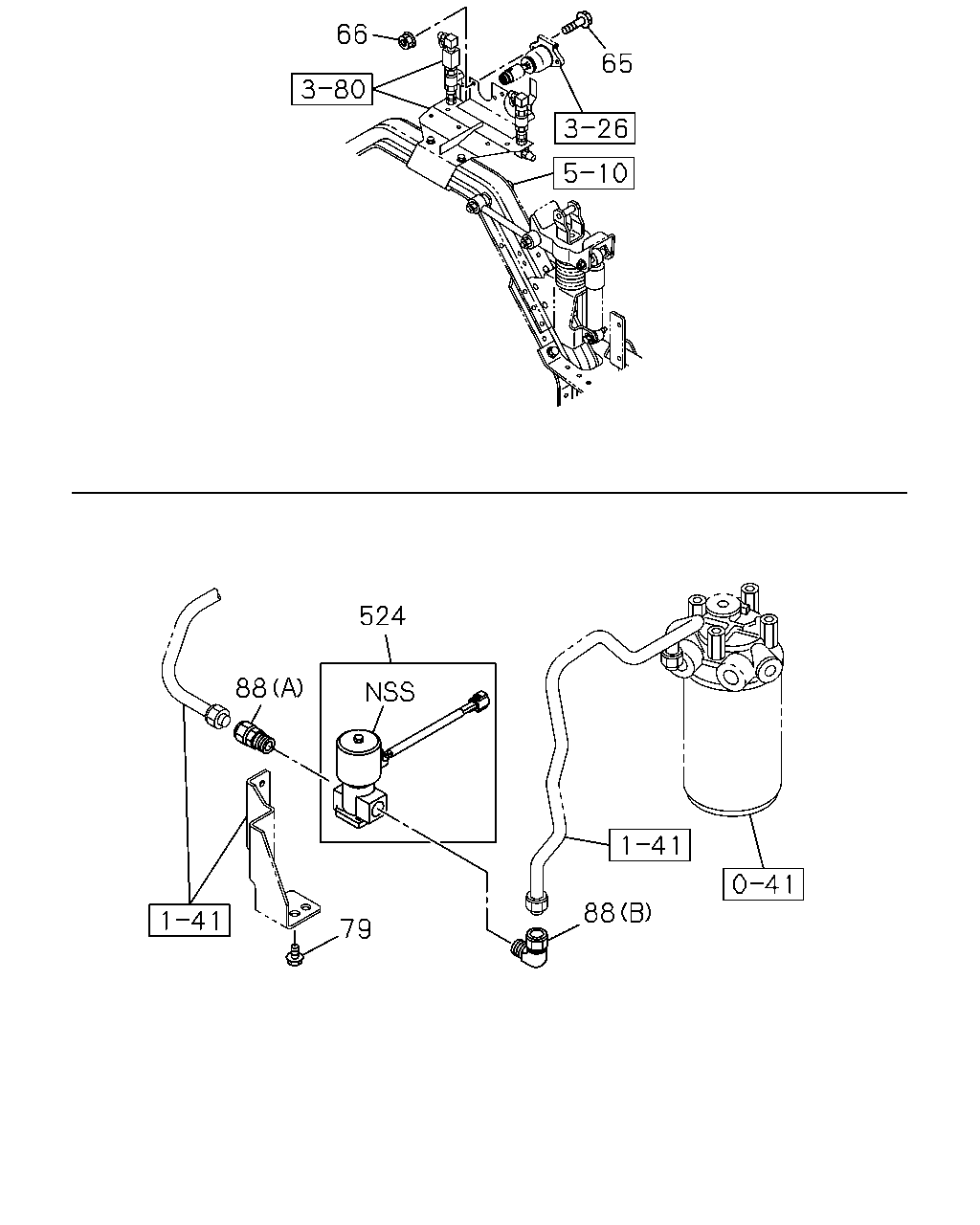

66
65
524
88
79
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
65
BOLT; SOCKET FIX
M8X25 FLANGE THA
0-28650-825-0
02
1
1304-1304
66
NUT; SOCKET FIX
M8 FLANGE THA
0-91180-108-0
02
1
1304-1304
79
BOLT; MAG VLV
M8X16 THA
8-94139-492-0
02
1
1304-1304
79
BOLT; MAG VLV
M8X16 THA
8-98056-122-0
02
1
1305-
88
CONNECTOR; MAG VLV
(B) M16 ELBOW
8-97630-844-0
01
1
1304-
88
CONNECTOR; MAG VLV
(A) STRAIGHT
8-98163-158-0
01
1
1304-
524
VALVE; MAG,CNG
THA
8-98237-585-0
01
1
1304-
22
331
754
754
21
367
754
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
RELAY; TRAILER TAIL
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
1304-
22
RELAY; STOP LAMP
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
1304-
331
RELAY; A/C
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
1304-
367
RELAY; NEUTRAL
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
1304-
754
RELAY; TRAILER STOP
(A) 24V 10A MATSUSHITA
8-97173-035-1
01
1
1304-
754
RELAY; TRAILER STOP
(A) 24V 10A MATSUSHITA
8-97173-035-1
01
1
1304-
754
RELAY; TRAILER STOP
(B) 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
1304-

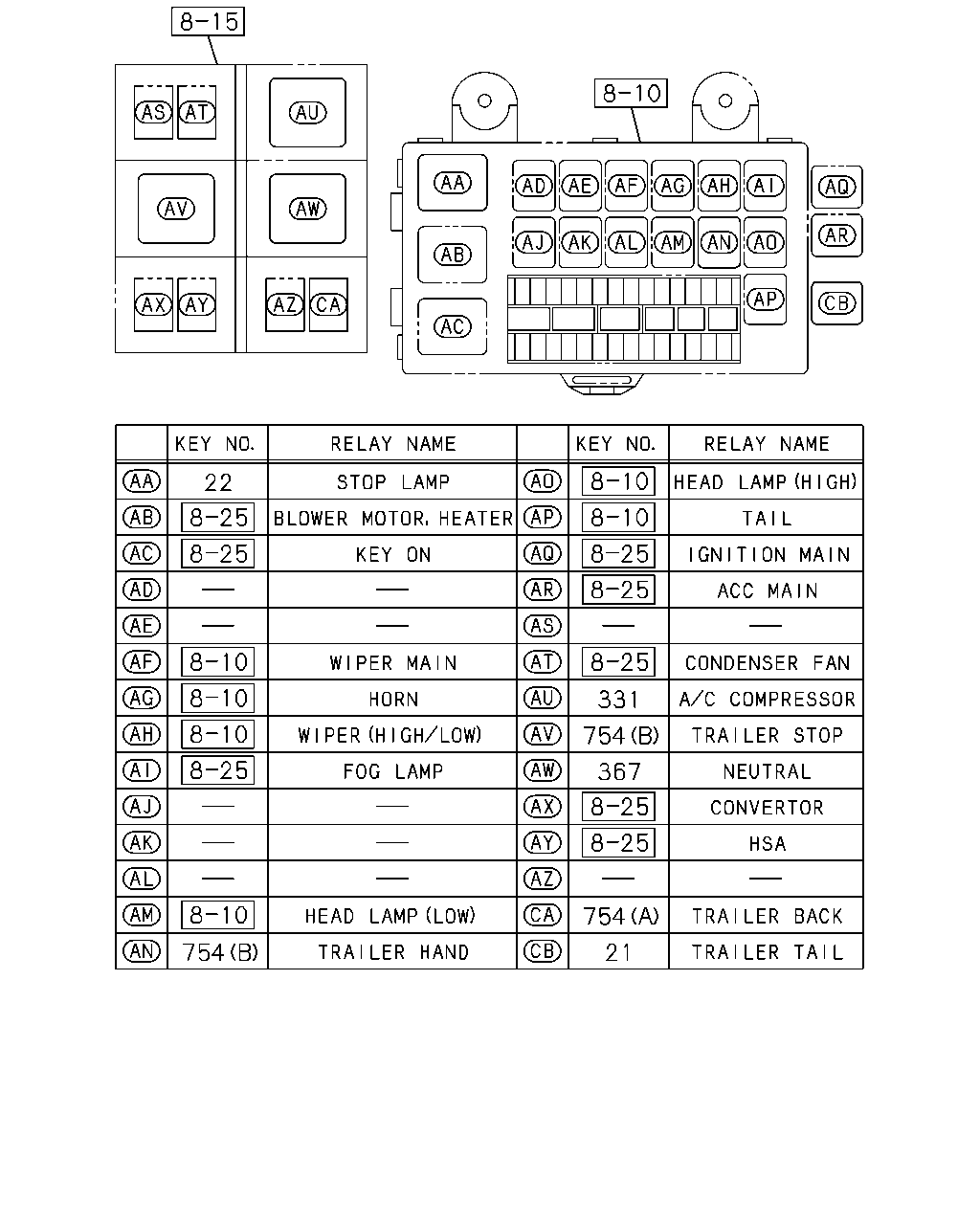

615
531
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
531
RELAY; MAIN
24V 30A JIDECO
8-97238-540-0
01
1
1304-1402
531
RELAY; MAIN
24V 30A MITSUBA
8-98259-779-0
01
1
1403-
615
RELAY; TRAILER
24V 30A JIDECO
8-97238-540-0
01
1
1304-1402
615
RELAY; TRAILER
24V 30A MITSUBA
8-98259-779-0
01
1
1403-
