◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#12208) — 113 parça

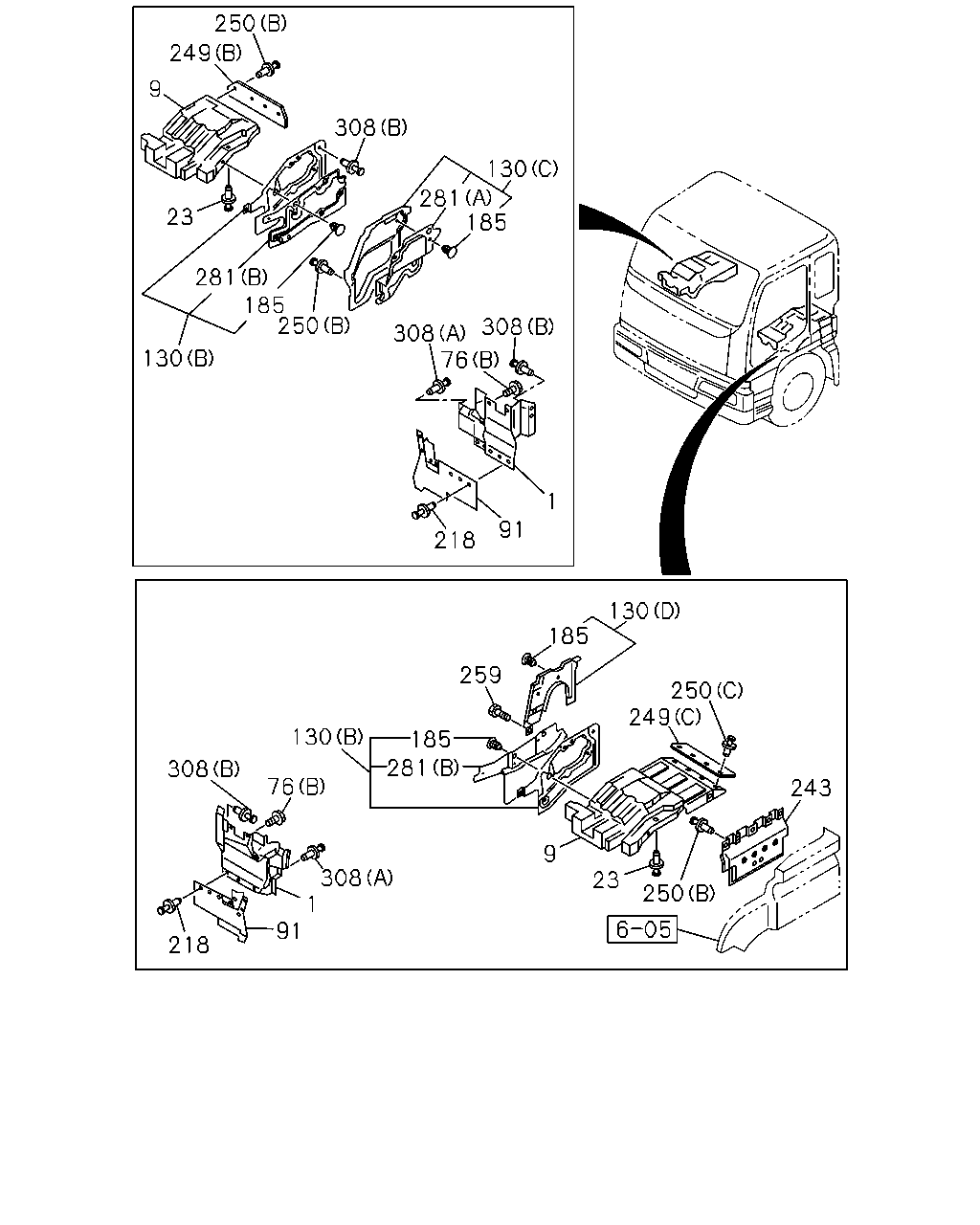

çizim 21197
250 249 9 308 130 281 185 23 281 185 250 308 308 76 130 1 91 218 130 185 259 250 249 130 185 281 308 76 243 9 308 1 23 250 91 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0105-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-893-4 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-892-4 01 1 0105-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0105-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
91 COVER; MUD,FRT 1-79931-200-1 01 1 0105-
91 COVER; MUD,FRT 1-79931-199-1 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-972-0 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 0105-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-917-4 01 1 0105-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 0105-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-1 01 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0203-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0105-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-902-3 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-975-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 0105-
259 BOLT; NOISE PANEL
M8X20 W/LK&PL WASHER 		8-94279-208-0 12 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-
281 INSULATOR; NOISE
(A) 		1-71907-166-0 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 0105-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0105-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0105-

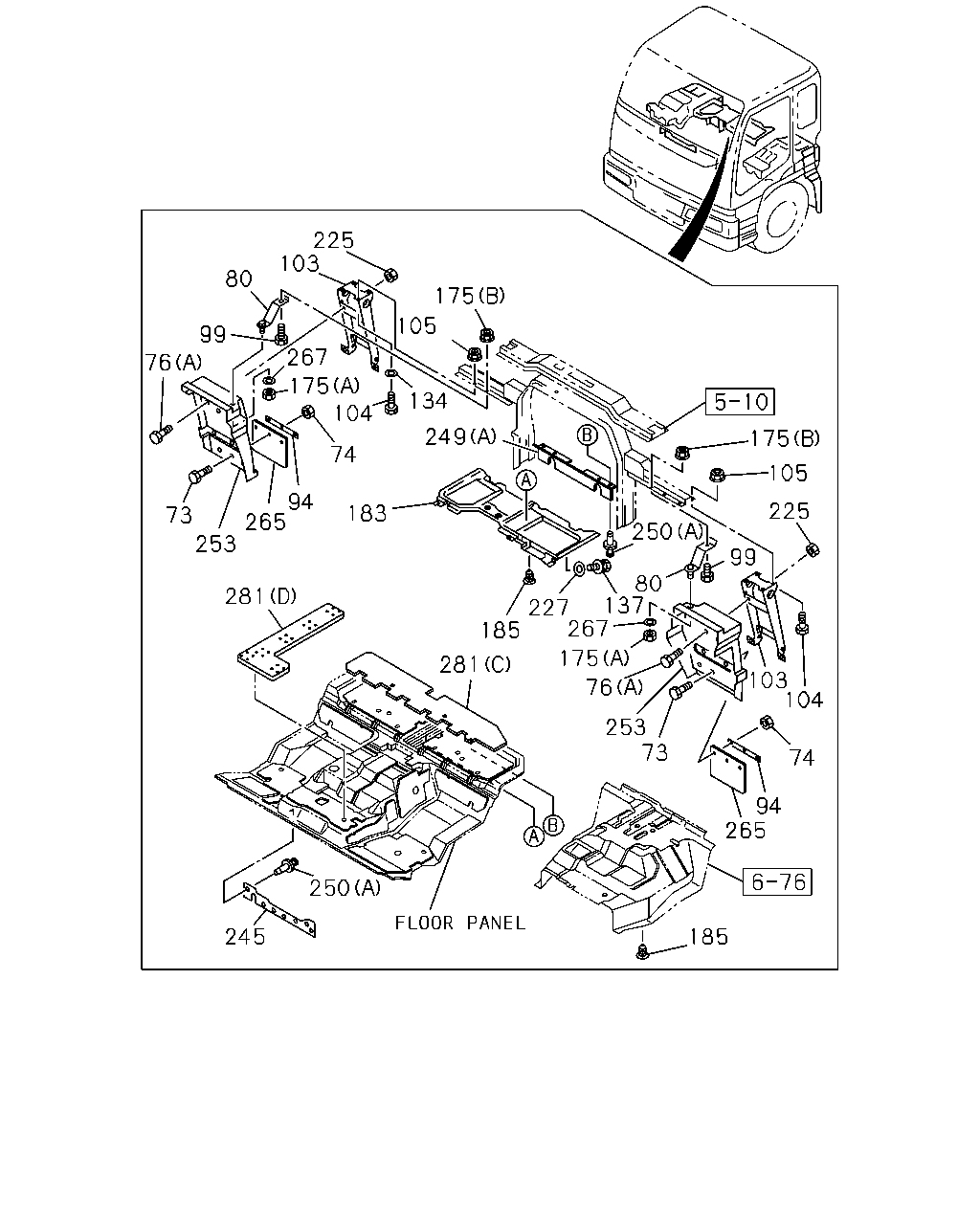

çizim 21198
225 103 80 175 105 99 267 76 134 175 104 249 175 74 105 94 265 253 225 183 73 250 99 80 227 137 185 267 281 175 281 103 104 76 253 73 74 94 265 250 245 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0105-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0105-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0105-
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 0105-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0105-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 0105-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 07 1 0105-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 07 1 0105-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0105-
137 BOLT
M8X20 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0105-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0203-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0105-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0105-
245 RUBBER; SHUTTER,RAD 1-79937-982-1 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-902-3 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-975-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 0105-
253 GUARD; MUD 1-79931-066-7 01 1 0105-
253 GUARD; MUD 1-79931-064-7 01 1 0105-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0105-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-
281 INSULATOR; NOISE
(A) 		1-71907-166-0 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 0105-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-

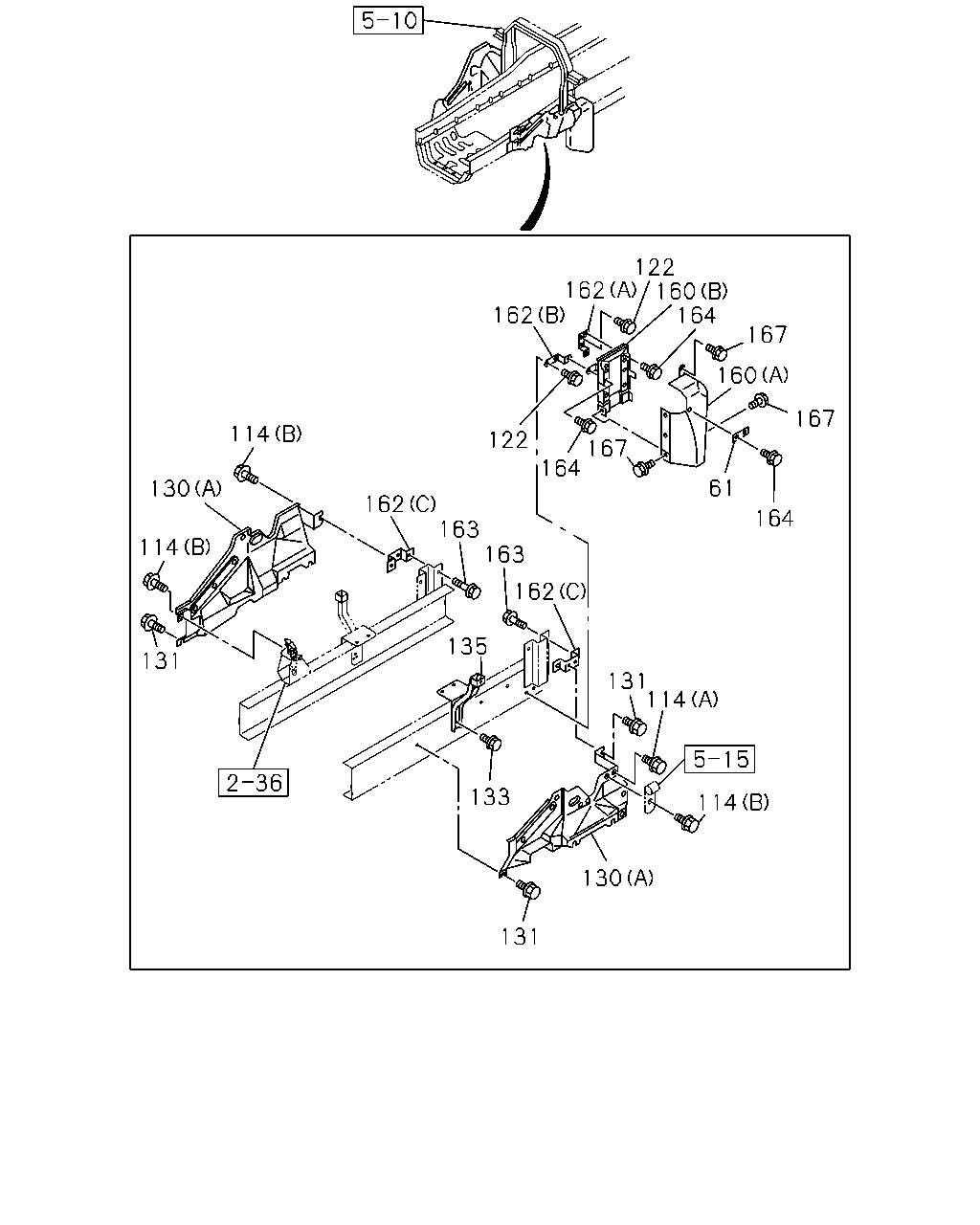

çizim 77276
122 160 164 162 162 167 160 167 114 167 164 122 61 130 162 163 163 164 114 162 135 131 131 114 133 114 130 131
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 02 1 0105-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0105-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 04 1 0105-
122 BOLT
M8X25 FLANGE 		0-28680-825-0 06 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-972-0 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 0105-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-917-4 01 1 0105-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 0105-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-1 01 1 0105-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0105-
133 BOLT; FRAME
EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 02 1 0105-
135 BRACKET; SIDE PANEL 1-53441-508-1 01 1 0105-
160 COVER ASM; EXH
(A) 		1-79931-063-1 01 1 0105-
160 COVER ASM; EXH
(B) 		1-79931-111-0 01 1 0105-
160 COVER ASM; EXH
(A) 		1-79931-061-1 01 1 0105-
160 COVER ASM; EXH
(B) 		1-79931-256-1 01 1 0105-
162 BRACKET
(C) 		1-53441-520-0 02 1 0105-
162 BRACKET
(B) 		1-53441-521-2 02 1 0105-
162 BRACKET
(A) 		1-53441-522-0 02 1 0105-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0105-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28680-820-0 10 1 0105-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 12 1 0105-
