◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11543 - GVR CNG(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#122077) — 242 parça
çizim 357271
178 538 530 224 224 1 178 596 208 48 14 16 48 16 14 217 49 225 16 48 48 14
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
ID=14 OD=18 L=60 		1-09337-030-0 03 1 1304-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 1304-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 1304-
14 CLIP; BAND,HARNESS
(D) L=140 		8-97122-360-0 01 1 1304-
14 CLIP; BAND,HARNESS
(B) L=180 		8-98216-427-0 08 1 1304-
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 09 1 1304-
16 CLIP; HARNESS
(S) ID=21 L=47.5 		8-94178-108-0 01 1 1403-
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1304-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 1304-
16 CLIP; HARNESS
(H) ID=15 H=24 L=20 		1-09700-606-0 02 1 1304-1304
16 CLIP; HARNESS
(O) ID=14 H=50 L=20 		1-09700-843-0 02 1 1304-
16 CLIP; HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(Q) ID=25 H=30 L=35 		1-09700-944-0 01 1 1304-
16 CLIP; HARNESS
(J) ID=19 L=32 		1-09701-235-0 04 1 1304-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 1304-
16 CLIP; HARNESS
(R) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304-1304
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1304-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 1304-
16 CLIP; HARNESS
(F) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(N) L=40.6 THA 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1304-
48 CLIP; FRAME HARNESS
(N) ID=11 L=41 		1-09700-403-0 01 1 1305-
48 CLIP; FRAME HARNESS
(G) ID=19 H=70 L=25 		1-09700-773-0 01 1 1304-
48 CLIP; FRAME HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1304-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-1304
48 CLIP; FRAME HARNESS
(K) ID=13-18 L=26 		1-09709-293-0 01 1 1305-
48 CLIP; FRAME HARNESS
(D) ID=25 L=50 		1-09701-019-0 01 1 1304-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1304-
48 CLIP; FRAME HARNESS
(M) L=300 		1-09707-001-1 01 1 1304-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 03 1 1304-1304
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 03 1 1304-1304
48 CLIP; FRAME HARNESS
(J) ID=13-18 L=22 		1-09709-292-0 01 1 1304-1304
48 CLIP; FRAME HARNESS
(K) ID=13-18 L=26 		1-09709-293-0 01 1 1304-1304
48 CLIP; FRAME HARNESS
(K) ID=13-18 L=26 		1-09709-293-0 01 1 1304-1304
48 CLIP; FRAME HARNESS
(L) L=250 		5-09707-030-1 04 1 1304-1304
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 03 1 1305-
48 CLIP; FRAME HARNESS
(H) L=140 THA 		8-97920-656-0 02 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 1304-
48 CLIP; FRAME HARNESS
(K) ID=13-18 L=22 		1-09709-292-0 03 1 1304-
49 CLIP; GEN HARNESS
(A) ID=19 L=20 		0-95235-836-0 04 1 1304-
49 CLIP; GEN HARNESS
(B) L=250 		5-09707-030-1 01 1 1304-
178 GROMMET; HARNESS
(A) 		9-09575-625-0 01 1 1304-1304
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 02 1 1304-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1304-
224 SLEEVE; RUBBER,HARNESS
(B) ID=23 OD=27 L=40 		1-09337-015-0 01 1 1304-
224 SLEEVE; RUBBER,HARNESS
(A) ID=10 OD=14 L=30 		9-09956-682-0 01 1 1304-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 1304-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306-1309
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 1310-
530 SEAL; HARNESS
180X40 		1-72498-019-1 19 1 1304-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306-1309
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1304-
596 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1304-

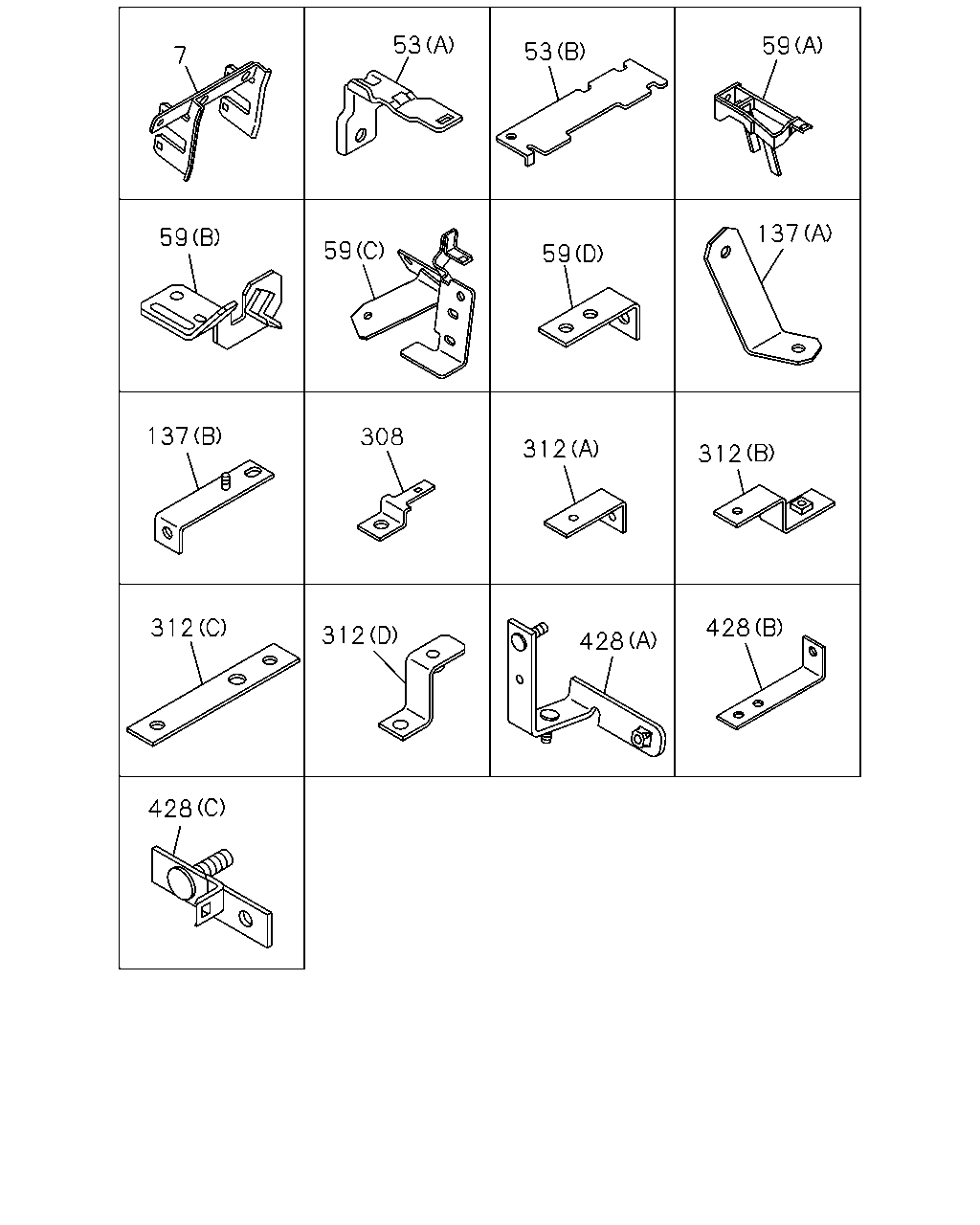

çizim 357396
7 53 53 59 137 59 59 59 137 308 312 312 428 428 312 312 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1304-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1304-
53 BRACKET; HARNESS
(B) 		8-98127-093-0 01 1 1304-
59 BRACKET; FRAME HARNESS
(D) 		1-21464-170-2 01 1 1304-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1304-
59 BRACKET; FRAME HARNESS
(B) 		8-97616-305-0 01 1 1304-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 1304-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1304-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1304-
308 BRACKET; CLIP,ENG HARNESS 8-97602-870-1 01 1 1304-
312 BRACKET; CLIP HARNESS
(A) L=55 		1-47475-304-0 01 1 1304-
312 BRACKET; CLIP HARNESS
(C) L=100 		1-47477-620-1 01 1 1304-
312 BRACKET; CLIP HARNESS
(B) 		8-97609-110-1 01 1 1304-
312 BRACKET; CLIP HARNESS
(D) THA 		8-98133-253-0 01 1 1304-
428 BRACKET
(B) THA 		1-82699-630-1 01 1 1304-
428 BRACKET
(A) 		8-98220-123-0 01 1 1304-
428 BRACKET
(C) 		8-98220-124-0 01 1 1304-

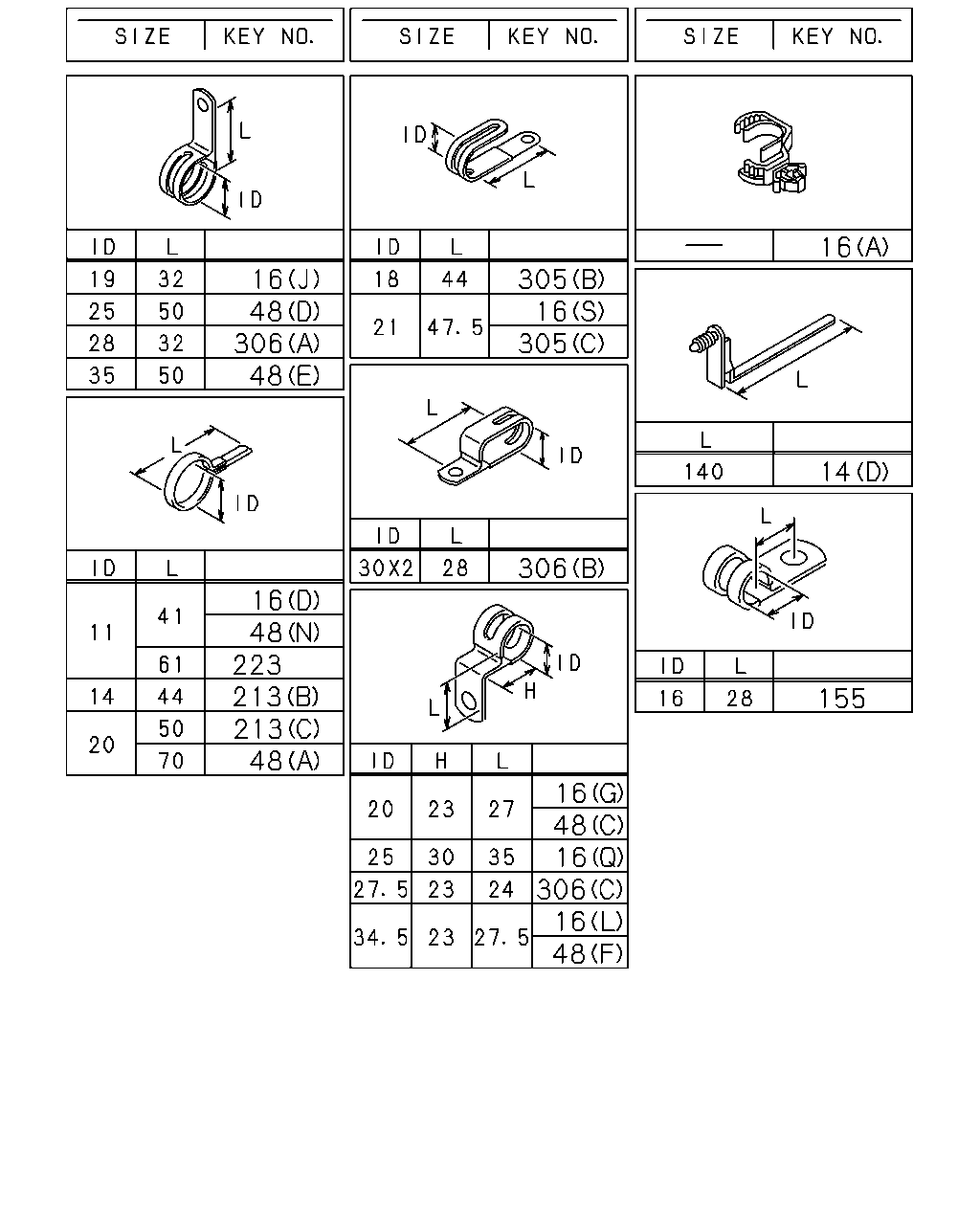

çizim 357466
16 16 16 16 16 16 16 14 48 48 48 48 48 48 306 305 305 306 306 155 213 223 213
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 1304-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 1304-
14 CLIP; BAND,HARNESS
(D) L=140 		8-97122-360-0 01 1 1304-
14 CLIP; BAND,HARNESS
(B) L=180 		8-98216-427-0 08 1 1304-
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 09 1 1304-
16 CLIP; HARNESS
(S) ID=21 L=47.5 		8-94178-108-0 01 1 1403-
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1304-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 1304-
16 CLIP; HARNESS
(H) ID=15 H=24 L=20 		1-09700-606-0 02 1 1304-1304
16 CLIP; HARNESS
(O) ID=14 H=50 L=20 		1-09700-843-0 02 1 1304-
16 CLIP; HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(Q) ID=25 H=30 L=35 		1-09700-944-0 01 1 1304-
16 CLIP; HARNESS
(J) ID=19 L=32 		1-09701-235-0 04 1 1304-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 1304-
16 CLIP; HARNESS
(R) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304-1304
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1304-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 1304-
16 CLIP; HARNESS
(F) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(N) L=40.6 THA 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1304-
48 CLIP; FRAME HARNESS
(N) ID=11 L=41 		1-09700-403-0 01 1 1305-
48 CLIP; FRAME HARNESS
(G) ID=19 H=70 L=25 		1-09700-773-0 01 1 1304-
48 CLIP; FRAME HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1304-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-1304
48 CLIP; FRAME HARNESS
(K) ID=13-18 L=26 		1-09709-293-0 01 1 1305-
48 CLIP; FRAME HARNESS
(D) ID=25 L=50 		1-09701-019-0 01 1 1304-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1304-
48 CLIP; FRAME HARNESS
(M) L=300 		1-09707-001-1 01 1 1304-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 03 1 1304-1304
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 03 1 1304-1304
48 CLIP; FRAME HARNESS
(J) ID=13-18 L=22 		1-09709-292-0 01 1 1304-1304
48 CLIP; FRAME HARNESS
(K) ID=13-18 L=26 		1-09709-293-0 01 1 1304-1304
48 CLIP; FRAME HARNESS
(K) ID=13-18 L=26 		1-09709-293-0 01 1 1304-1304
48 CLIP; FRAME HARNESS
(L) L=250 		5-09707-030-1 04 1 1304-1304
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 03 1 1305-
48 CLIP; FRAME HARNESS
(H) L=140 THA 		8-97920-656-0 02 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 1304-
48 CLIP; FRAME HARNESS
(K) ID=13-18 L=22 		1-09709-292-0 03 1 1304-
155 CLIP; STARTER EARTH CABLE
ID=16 L=28 		1-09700-872-0 01 1 1403-
213 CLIP; END CROSS HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 1304-
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 03 1 1304-
213 CLIP; END CROSS HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 1304-
223 CLIP; AIR TANK HARNESS
ID=11 L=61 		1-09700-484-0 01 1 1304-
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1304-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1304-1402
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1304-
306 CLIP; HARNESS,ELEC GOV
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1304-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1304-
306 CLIP; HARNESS,ELEC GOV
(B) ID=30X2 L=28 		1-09701-266-0 01 1 1304-

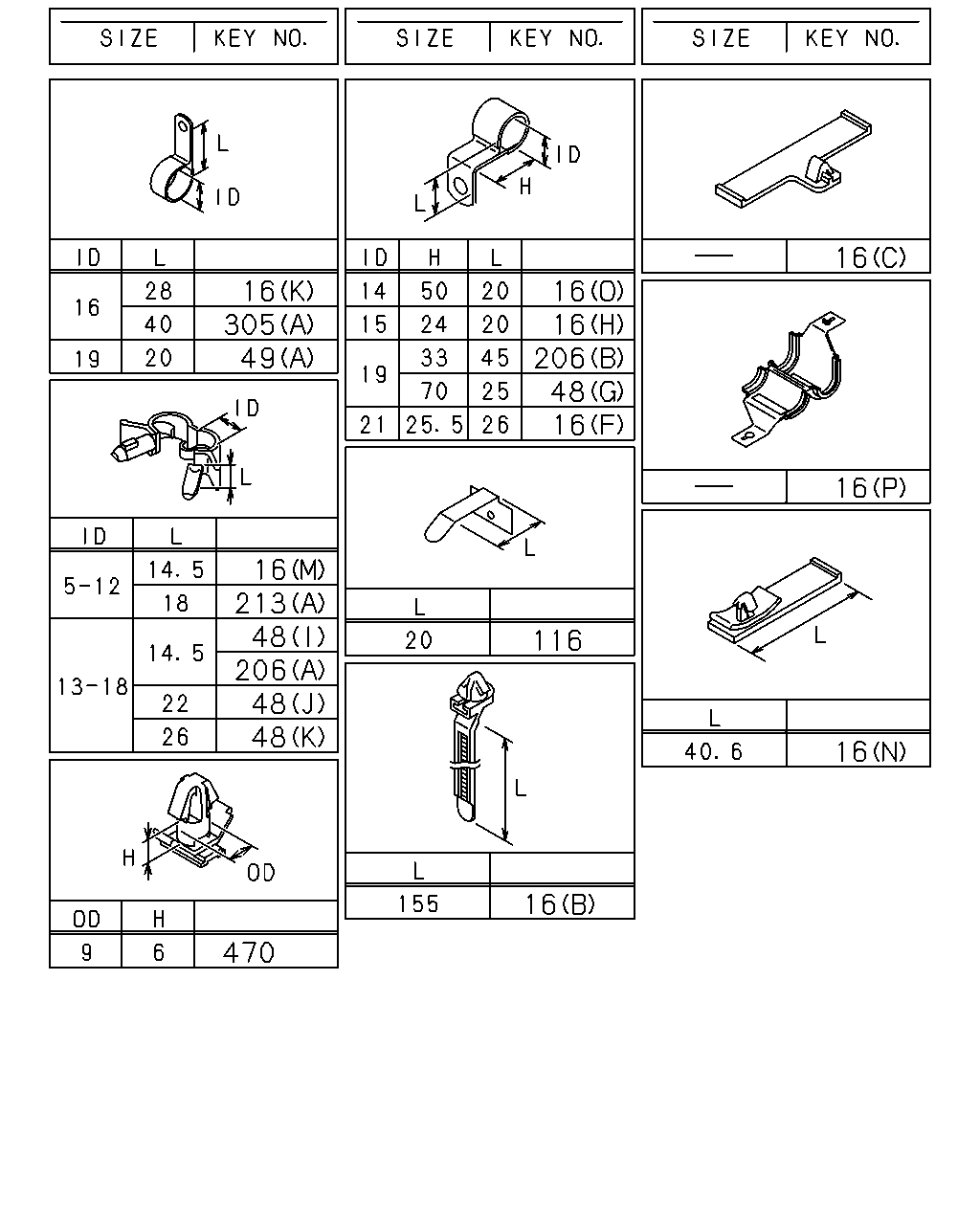

çizim 357612
16 305 49 16 213 48 206 48 48 470 16 16 206 48 16 116 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(S) ID=21 L=47.5 		8-94178-108-0 01 1 1403-
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1304-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 1304-
16 CLIP; HARNESS
(H) ID=15 H=24 L=20 		1-09700-606-0 02 1 1304-1304
16 CLIP; HARNESS
(O) ID=14 H=50 L=20 		1-09700-843-0 02 1 1304-
16 CLIP; HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1304-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(Q) ID=25 H=30 L=35 		1-09700-944-0 01 1 1304-
16 CLIP; HARNESS
(J) ID=19 L=32 		1-09701-235-0 04 1 1304-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 1304-
16 CLIP; HARNESS
(R) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 1304-1304
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1304-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 1304-
16 CLIP; HARNESS
(F) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(N) L=40.6 THA 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1304-
48 CLIP; FRAME HARNESS
(N) ID=11 L=41 		1-09700-403-0 01 1 1305-
48 CLIP; FRAME HARNESS
(G) ID=19 H=70 L=25 		1-09700-773-0 01 1 1304-
48 CLIP; FRAME HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1304-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-1304
48 CLIP; FRAME HARNESS
(K) ID=13-18 L=26 		1-09709-293-0 01 1 1305-
48 CLIP; FRAME HARNESS
(D) ID=25 L=50 		1-09701-019-0 01 1 1304-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1304-
48 CLIP; FRAME HARNESS
(M) L=300 		1-09707-001-1 01 1 1304-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 03 1 1304-1304
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 03 1 1304-1304
48 CLIP; FRAME HARNESS
(J) ID=13-18 L=22 		1-09709-292-0 01 1 1304-1304
48 CLIP; FRAME HARNESS
(K) ID=13-18 L=26 		1-09709-293-0 01 1 1304-1304
48 CLIP; FRAME HARNESS
(K) ID=13-18 L=26 		1-09709-293-0 01 1 1304-1304
48 CLIP; FRAME HARNESS
(L) L=250 		5-09707-030-1 04 1 1304-1304
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 03 1 1305-
48 CLIP; FRAME HARNESS
(H) L=140 THA 		8-97920-656-0 02 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 1304-
48 CLIP; FRAME HARNESS
(K) ID=13-18 L=22 		1-09709-292-0 03 1 1304-
49 CLIP; GEN HARNESS
(A) ID=19 L=20 		0-95235-836-0 04 1 1304-
49 CLIP; GEN HARNESS
(B) L=250 		5-09707-030-1 01 1 1304-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 1304-
206 CLIP; FUEL TANK HARNESS
(B) ID=19 H=33 L=45 		1-09701-045-0 01 1 1304-
206 CLIP; FUEL TANK HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 1304-
213 CLIP; END CROSS HARNESS
(A) ID=5-12 L=18 		1-09709-287-0 01 1 1304-
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 03 1 1304-
213 CLIP; END CROSS HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 1304-
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1304-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1304-1402
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1304-
çizim 358724
239 139 304 38 371 38 304 38 127 38 386 38 242 38 139 150 313 139 150 313 139 313 38 139 139 38 184 524 219 294 525 294 377 38
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(E) M8X16 FLANGE THA 		0-28050-816-0 02 1 1304-
38 BOLT; CLIP,HARNESS
(E) M8X16 FLANGE THA 		0-28050-816-0 06 1 1304-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 1304-1304
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 1305-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 1305-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE THA 		0-28050-820-0 03 1 1304-1304
38 BOLT; CLIP,HARNESS
(I) M8X30 FLANGE THA 		0-28050-830-0 01 1 1304-
38 BOLT; CLIP,HARNESS
(F) M10X25 FLANGE THA 		0-28151-025-0 01 1 1304-
38 BOLT; CLIP,HARNESS
(H) M12X20 FLANGE 		0-28151-220-0 01 1 1304-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1304-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1304-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1304-
38 BOLT; CLIP,HARNESS
(G) M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1304-1304
38 BOLT; CLIP,HARNESS
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 04 1 1304-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1304-
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 1304-
139 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
139 BOLT; BRKT
(E) M8X35 FLANGE THA 		0-28650-835-0 01 1 1304-
139 BOLT; BRKT
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1304-
139 BOLT; BRKT
(F) M10X35 FLANGE THA 		0-28651-035-0 01 1 1304-
150 BOLT; CLIP
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1304-
150 BOLT; CLIP
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1403-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1304-
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1304-
219 NUT
M8 FLANGE THA 		0-91180-108-0 03 1 1304-1304
219 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1304-
219 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1304-
239 BOLT; GRAND
M6X10 FLANGE THA 		0-28050-610-0 01 1 1403-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE THA 		0-28650-820-0 01 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1304-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1304-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1304-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE THA 		0-28050-812-0 02 1 1304-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE THA 		0-28050-820-0 01 1 1304-
313 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1304-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304-
313 BOLT; BRKT
(C) M8X35 FLANGE THA 		0-28650-835-0 02 1 1304-
371 BOLT; GEN HARNESS
M8X16 FLANGE THA 		0-28050-816-0 04 1 1304-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1304-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1304-
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1304-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1304-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1304-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
