6-31 — FRONT DOOR GLASS AND REGULATOR (#12205) — 168 parça

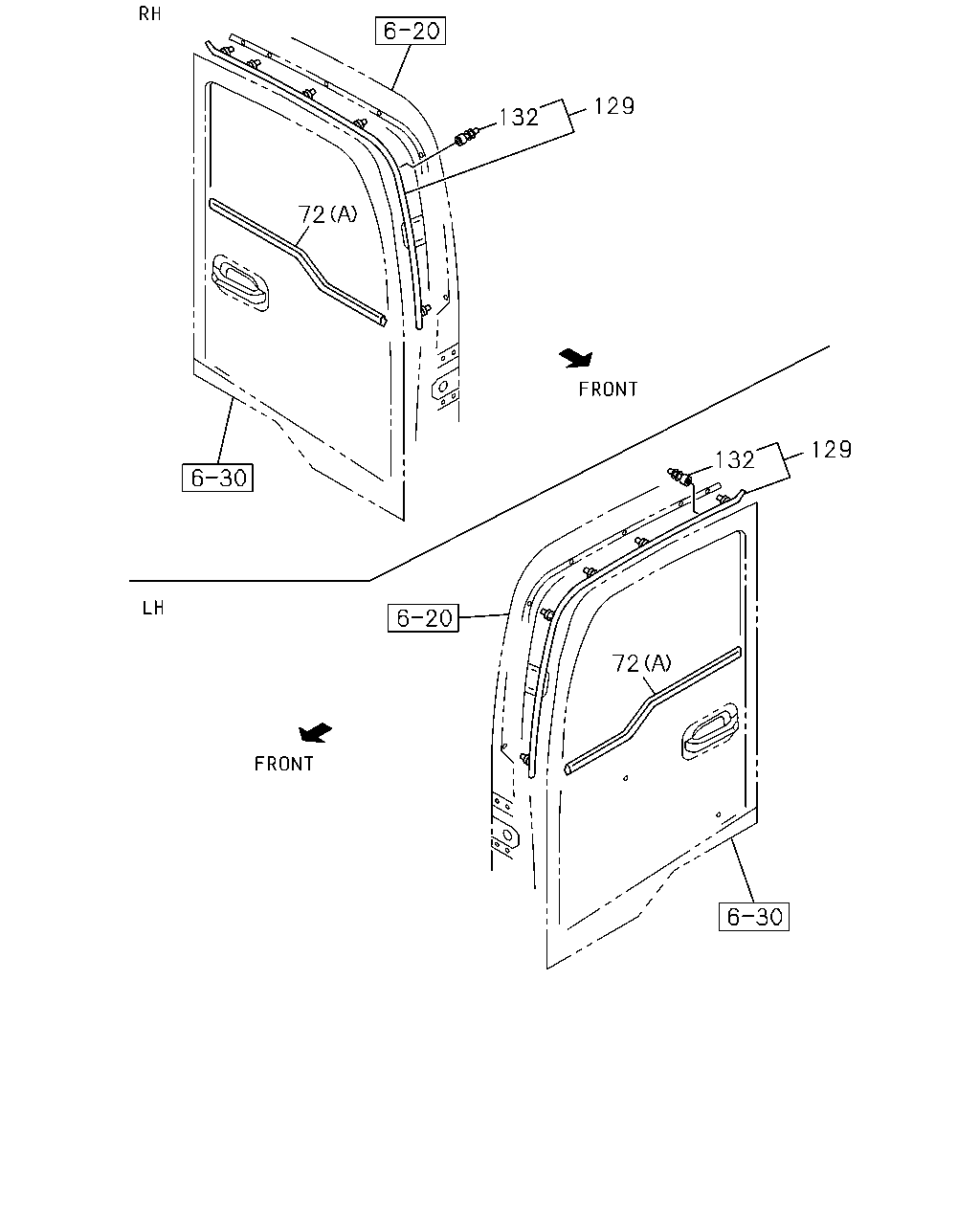

129 132 72 129 132 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0105-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0105-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0105-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0105-
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0105-
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0105-
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0105-
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0105-

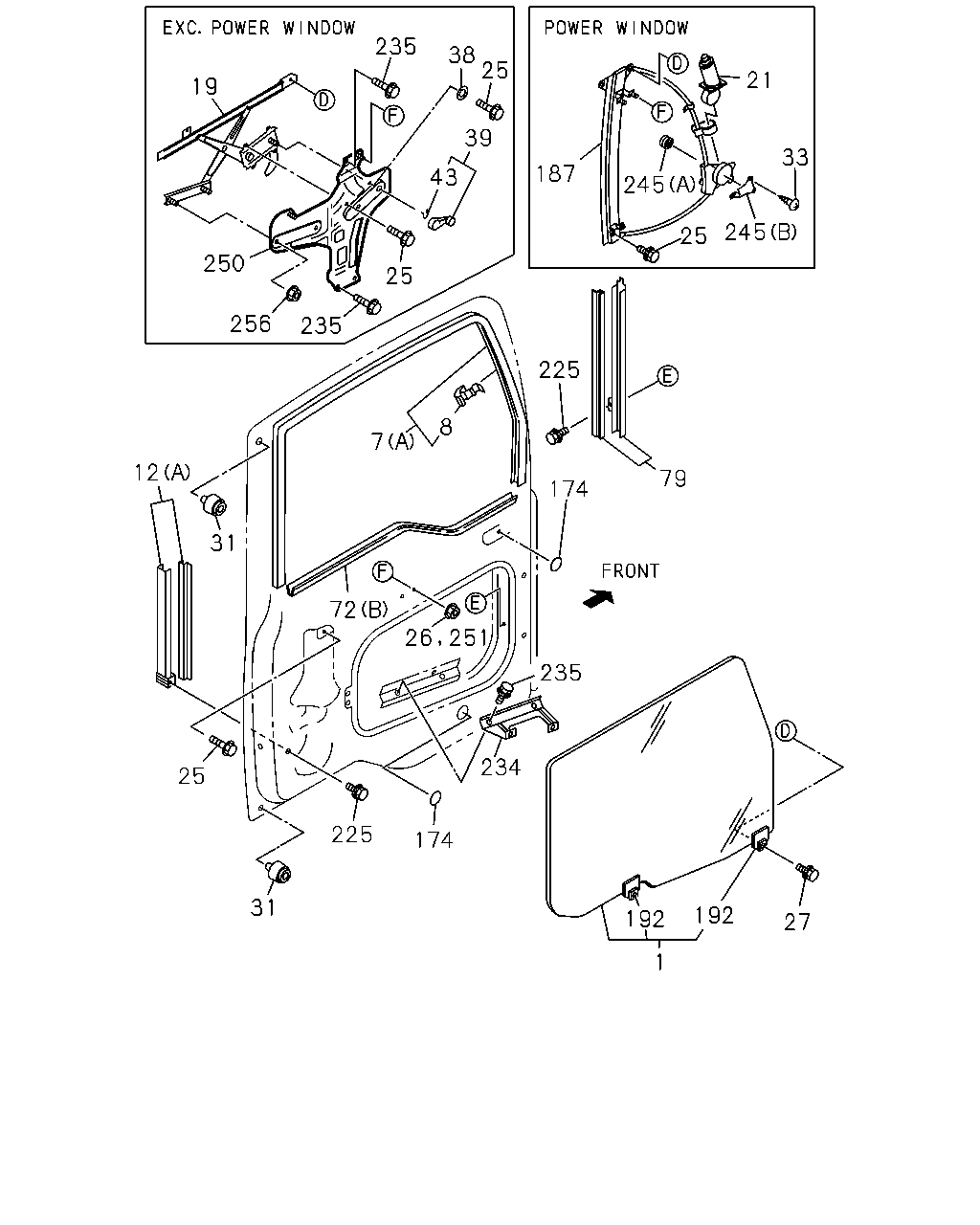

19 235 38 25 39 43 25 250 256 235 187 21 33 245 25 245 235 26 251 72 7 8 225 174 79 234 174 225 31 25 31 12 1 192 192 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-095-2	01	1	0105-
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0105-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0105-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0105-
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	0105-
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	0105-
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-042-0	01	1	0105-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0105-
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-3	01	1	0105-
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-3	01	1	0105-
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-036-0	01	1	0105-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-134-5	01	1	0105-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-144-5	01	1	0105-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-177-0	01	1	0105-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0105-
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0105-
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0105-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	10	1	0601-0710
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X10 FLANGE	0-28050-610-0	10	1	0711-
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	06	1	0105-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0105-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0105-
33	SCREW; REG MOTOR POWER WINDOW<A30>	8-98099-646-0	03	1	1204-
33	SCREW; REG MOTOR POWER WINDOW<A30>	8-98099-646-0	03	1	1204-
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0105-
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> BLACK	8-94371-427-0	02	1	0105-
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0105-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0105-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0105-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0105-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0105-
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-3	01	1	0105-
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-068-3	01	1	0105-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	12	1	0105-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	14	1	0301-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	14	1	0105-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	16	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	20	1	0105-0212
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	22	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=52 BLACK	1-76798-041-0	02	1	0105-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-179-3	01	1	0105-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-3	01	1	0105-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0105-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0105-
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0105-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0105-0512
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	0601-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0105-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0105-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-0710
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X10 FLANGE	0-28050-610-0	08	1	0711-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0105-0405
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0105-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74417-074-0	01	1	0105-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74417-074-0	01	1	0105-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74418-181-0	01	1	0105-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74418-180-0	01	1	0105-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-148-0	01	1	0105-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-149-0	01	1	0105-
251	NUT; BRKT EXC. POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	04	1	0105-
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0105-

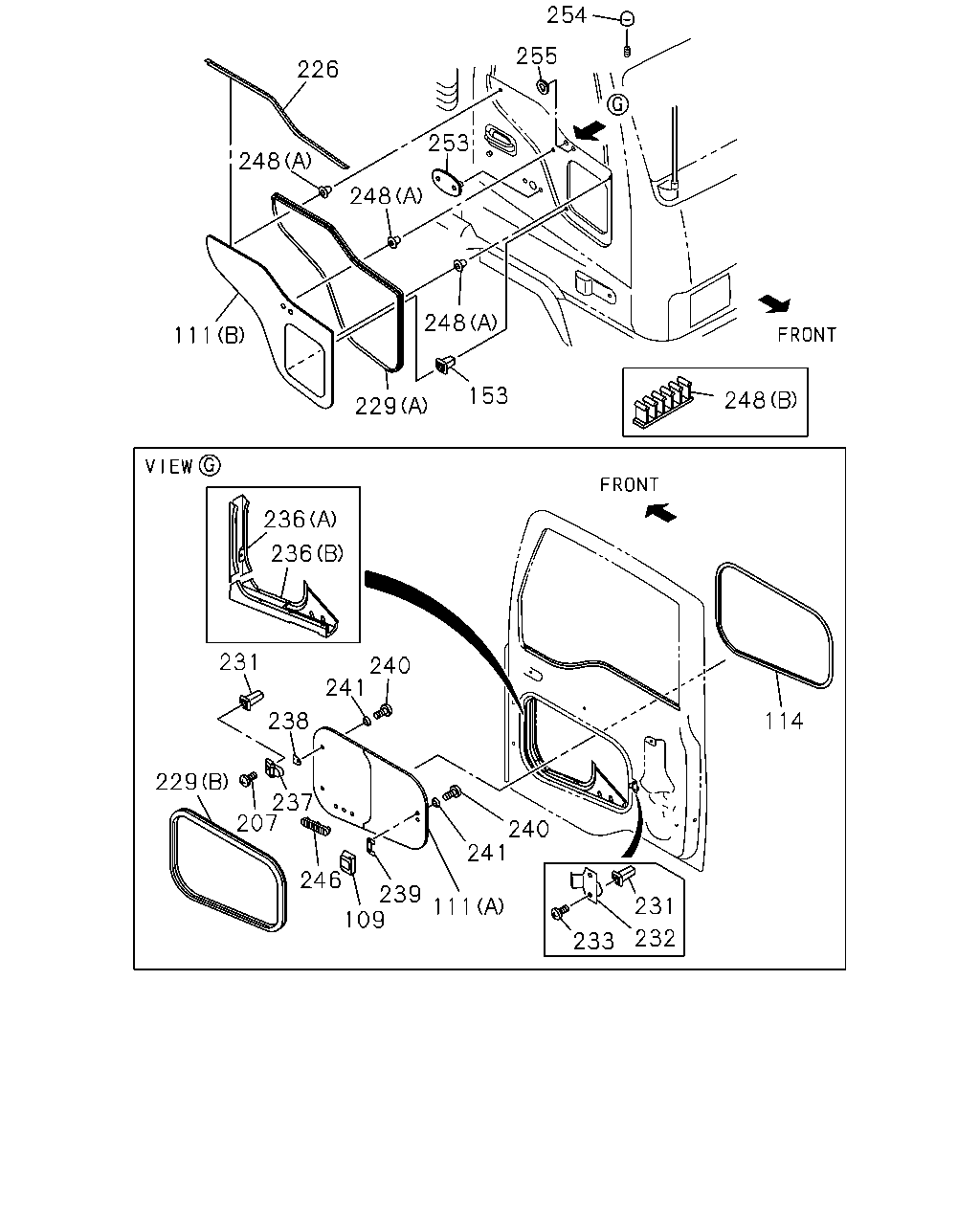

254 255 226 253 248 248 248 111 153 248 229 236 236 231 240 241 238 114 229 237 207 240 241 246 239 109 231 111 232 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
109	LOCK ASM; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-052-0	01	1	0105-
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76148-081-4	01	1	0105-
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8> (A)	8-97893-167-1	01	1	0105-
114	MOLDING; OK WINDOW,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-71538-037-2	01	1	0105-
153	GROMMET; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	01	1	0105-
207	SCREW; DOOR GLASS DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0105-
226	FINISHER; OK WINDOW,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76738-156-1	01	1	0105-
229	SEAL; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (A) OUTER	1-76738-160-4	01	1	0105-
229	SEAL; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (B) INNER	1-76738-161-1	01	1	0105-
231	GROMMET; SCREW DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	0105-
232	STRIKER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-055-1	01	1	0105-0805
232	STRIKER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	8-98048-053-0	01	1	0806-
233	SCREW; STRIKER DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0105-
236	COVER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73338-461-2	01	1	0105-
236	COVER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73338-462-0	01	1	0105-
237	HINGE; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-050-1	02	1	0105-
238	SHEET; HINGE DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-051-0	02	1	0105-
239	SHEET; LOCK DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-053-0	01	1	0105-
240	SCREW; HINGE & LOCK DOOR WITH UNDER VIEW WINDOW<YD8> M6X12	8-94279-346-0	04	1	0105-
241	GASKET; HINGE & LOCK DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-054-0	04	1	0105-
246	GRILLE; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-74298-002-1	01	1	0105-
248	FASTENER DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-072-1	01	1	0105-
248	FASTENER DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8	1-09989-019-0	03	1	0105-
253	COVER; CONNECTOR DOOR WITH UNDER VIEW WINDOW<YD8>	8-97865-049-0	01	1	0105-
254	CAP; MIRROR STAY DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	8-94276-413-1	02	1	0105-
255	GROMMET; MIRROR DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> OD=25	8-94225-442-0	02	1	0105-

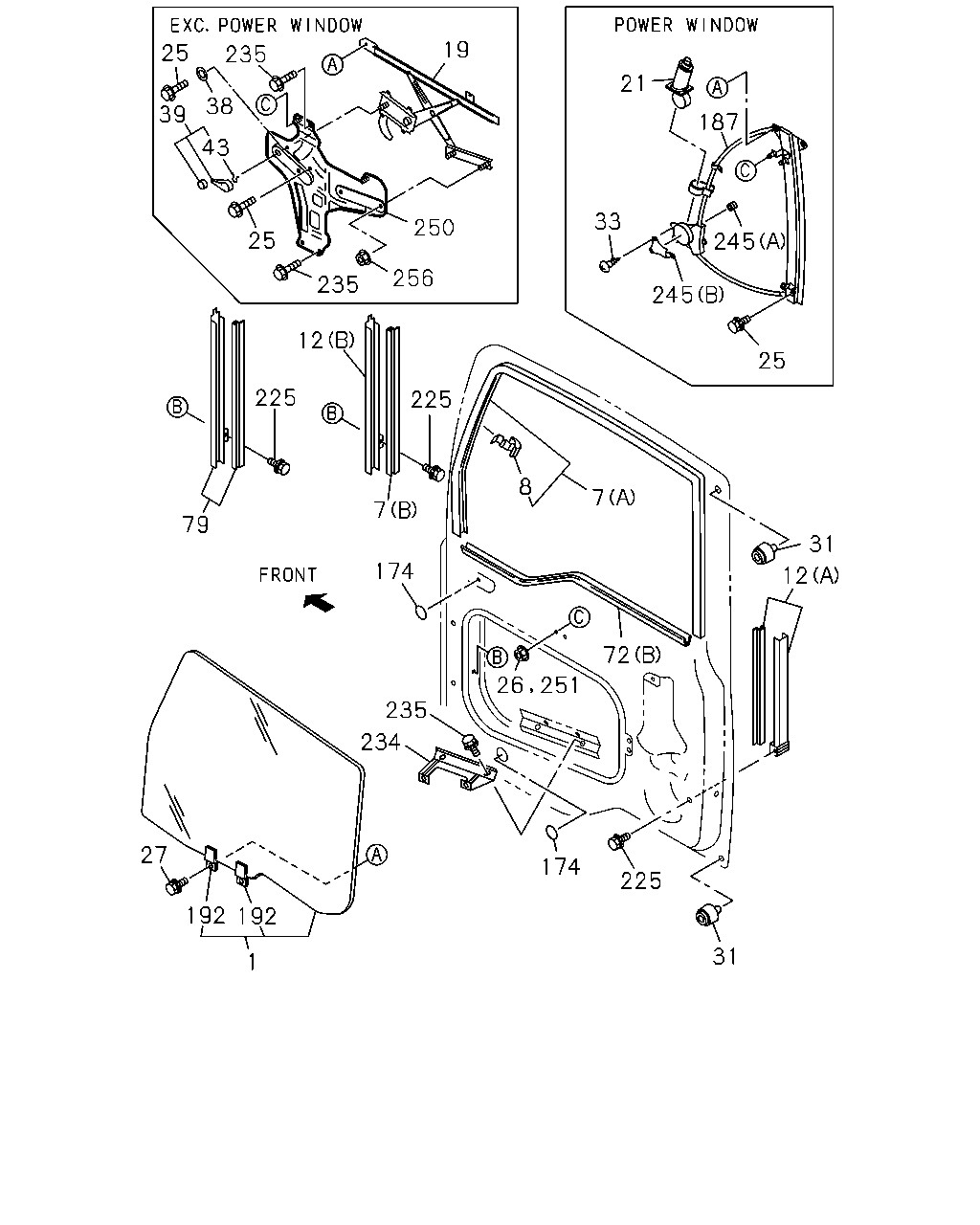

25 19 235 38 39 25 43 250 256 235 21 33 187 245 245 12 225 225 7 79 174 8 31 7 72 26 251 235 174 31 225 234 192 192 27 12 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-095-2	01	1	0105-
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0105-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0105-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0105-
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	0105-
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	0105-
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-042-0	01	1	0105-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0105-
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-3	01	1	0105-
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-3	01	1	0105-
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-036-0	01	1	0105-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-134-5	01	1	0105-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-144-5	01	1	0105-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-177-0	01	1	0105-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0105-
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0105-
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0105-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	10	1	0601-0710
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X10 FLANGE	0-28050-610-0	10	1	0711-
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	06	1	0105-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0105-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0105-
33	SCREW; REG MOTOR POWER WINDOW<A30>	8-98099-646-0	03	1	1204-
33	SCREW; REG MOTOR POWER WINDOW<A30>	8-98099-646-0	03	1	1204-
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0105-
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> BLACK	8-94371-427-0	02	1	0105-
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0105-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0105-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0105-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0105-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0105-
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-3	01	1	0105-
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-068-3	01	1	0105-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	12	1	0105-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	14	1	0301-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	14	1	0105-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	16	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	20	1	0105-0212
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	22	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=52 BLACK	1-76798-041-0	02	1	0105-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-179-3	01	1	0105-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-3	01	1	0105-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0105-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0105-
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0105-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0105-0512
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	0601-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0105-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0105-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-0710
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X10 FLANGE	0-28050-610-0	08	1	0711-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0105-0405
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0105-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74417-074-0	01	1	0105-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74417-074-0	01	1	0105-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74418-181-0	01	1	0105-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74418-180-0	01	1	0105-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-148-0	01	1	0105-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-149-0	01	1	0105-
251	NUT; BRKT EXC. POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	04	1	0105-
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
