Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11492 - FVZ(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#122046) — 46 parça
◀

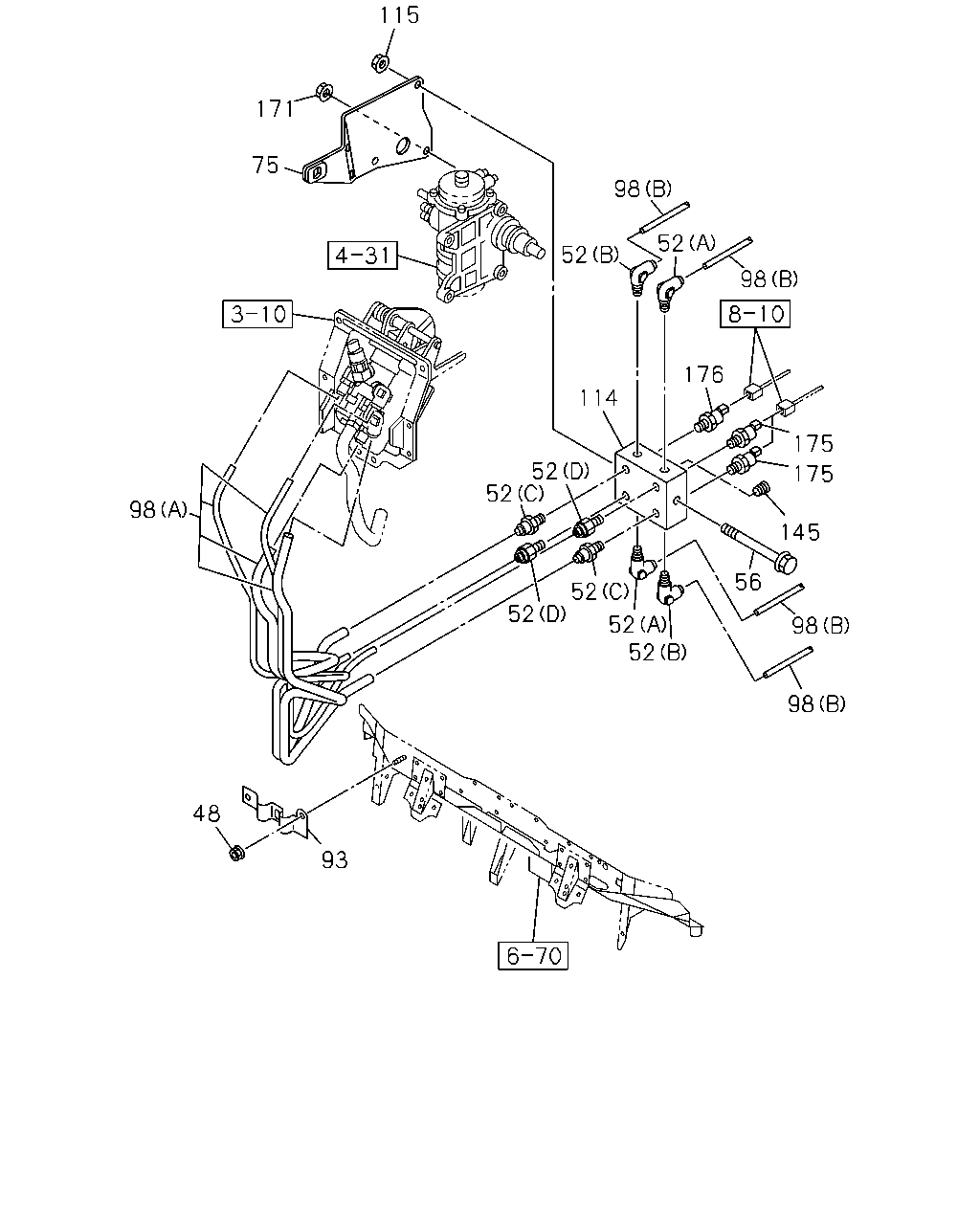

[375A] CAB UNDER (19 parça)

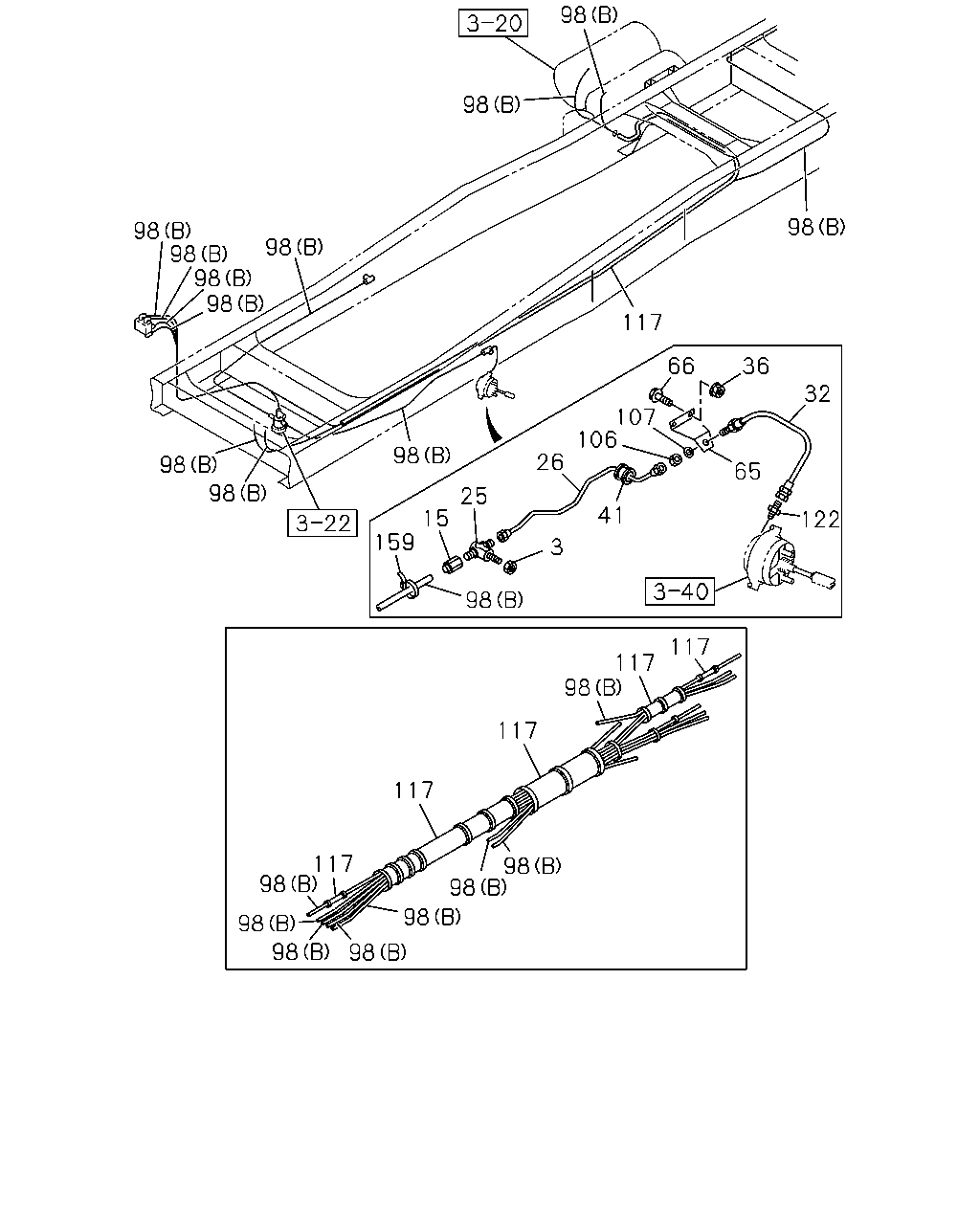

[375A] FRAME SIDE (27 parça)
▶
115
171
75
98
52
52
114
176
175
175
145
56
98
98
52
52
52
52
52
52
93
48
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
NUT; UNION BRKT
M6 FLANGE THA
0-91180-106-0
02
1
1304-
52
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
1304-
52
CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW
1-09660-958-0
02
1
1304-
52
CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT
1-09660-967-0
02
1
1304-
52
CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
1304-
56
BOLT; UNION BRKT
M8X100 FLANGE THA
0-28050-800-0
01
1
1304-
75
BRACKET; UNION
8-98099-485-1
01
1
1304-
93
BRACKET; UNION,TUBE
8-98044-013-0
01
1
1304-
98
TUBE; NYLON
(A) THA
8-98091-308-0
01
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA
1-87411-009-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA
1-87411-010-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 THA
1-87411-014-0
AR
1
1304-
114
UNION; NYLON TUBE
8-98057-394-1
01
1
1304-
115
NUT; TUBE UNION
M8 FLANGE THA
0-91180-108-0
01
1
1304-
145
PLUG
PT1/4
9-99204-513-0
01
1
1304-
171
NUT; BRACKET
M10 FLANGE THA
0-91180-210-0
02
1
1304-
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1304-
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
1304-
98
32
122
65
36
66
117
107
106
41
3
26
25
15
98
159
98
98
98
98
98
98
98
98
98
98
117
98
117
117
117
98
98
98
98
117
98
98
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
NUT; PIPE UNION
M12
0-91111-512-0
02
1
1304-
15
CONNECTOR; AIR PIPE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1304-
25
UNION; AIR PIPE
M16
1-09654-148-1
02
1
1304-
26
PIPE; AIR,UNION TO FLEX HOSE
L=500 THA
8-98047-734-0
01
1
1304-
26
PIPE; AIR,UNION TO FLEX HOSE
L=661 THA
8-98085-122-0
01
1
1304-
32
HOSE; FLEX,FRT
1-09363-892-1
02
1
1304-
36
NUT; HOSE BRKT
M8 FLANGE THA
0-91180-108-0
04
1
1304-
41
GROMMET; AIR PIPE
ID=28 OD=35 T=17
9-09956-256-2
02
1
1304-
65
BRACKET; FLEX HOSE
1-47476-210-0
01
1
1304-
65
BRACKET; FLEX HOSE
1-47476-211-0
01
1
1304-
66
BOLT; HOSE BRKT
M8X30 FLANGE THA
0-28650-830-0
04
1
1304-
98
TUBE; NYLON
(A) THA
8-98091-308-0
01
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA
1-87411-009-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA
1-87411-010-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 THA
1-87411-014-0
AR
1
1304-
106
NUT; FLEX HOSE
M16 THA
0-91111-516-0
02
1
1304-
107
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA
1-87411-019-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA
1-87411-022-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87411-025-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 THA
1-87411-027-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 THA
1-87411-029-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA
1-87411-031-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 THA
1-87411-034-0
AR
1
1304-
122
CONNECTOR; FLEX HOSE
M16 & PT3/8 STRAIGHT
1-09650-179-1
02
1
1304-
159
CLIP; NYLON TUBE
L=350
1-09707-183-0
01
1
1304-
