Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11492 - FVZ(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#122041) — 17 parça
◀

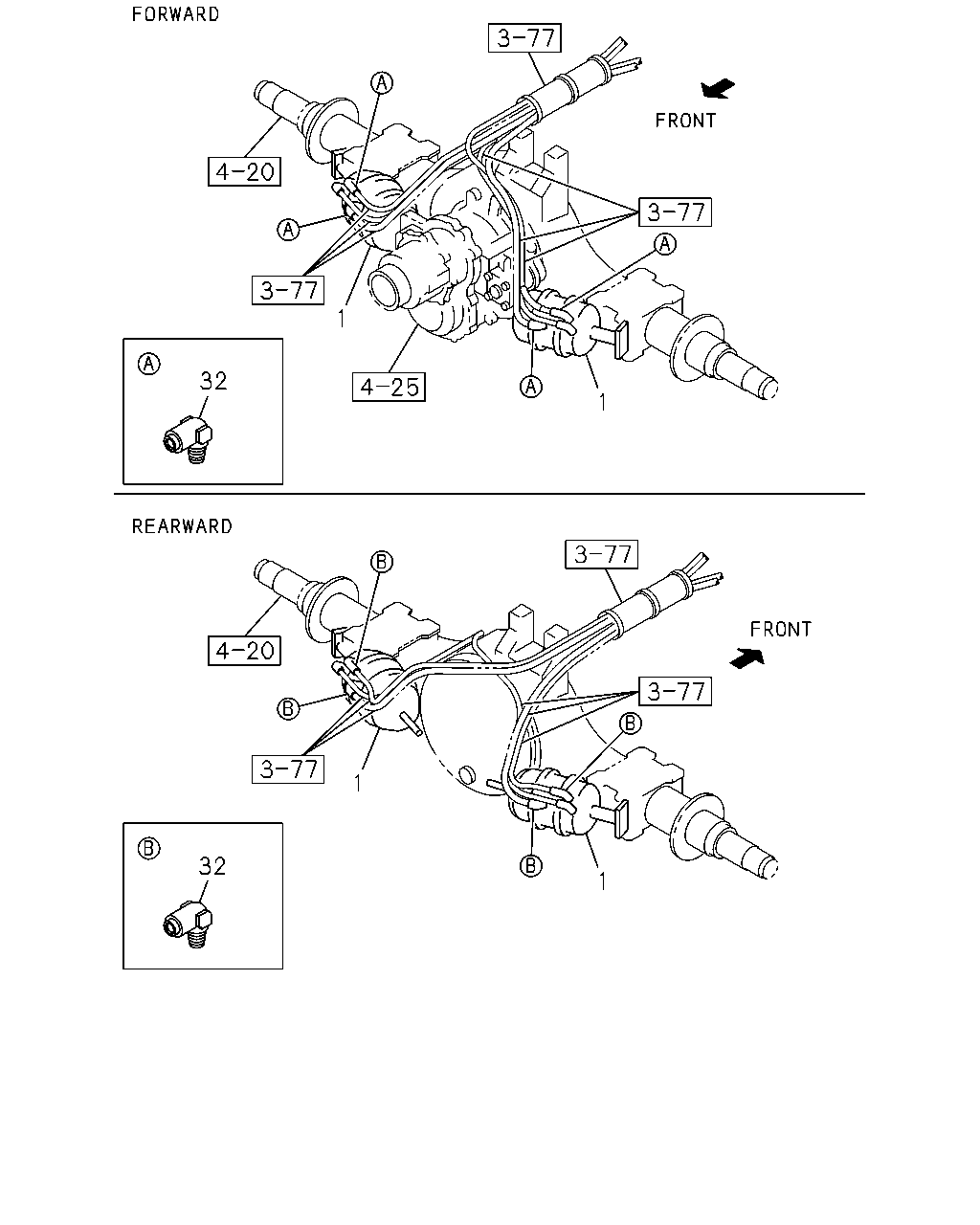

[341A] CONNECTOR (3 parça)

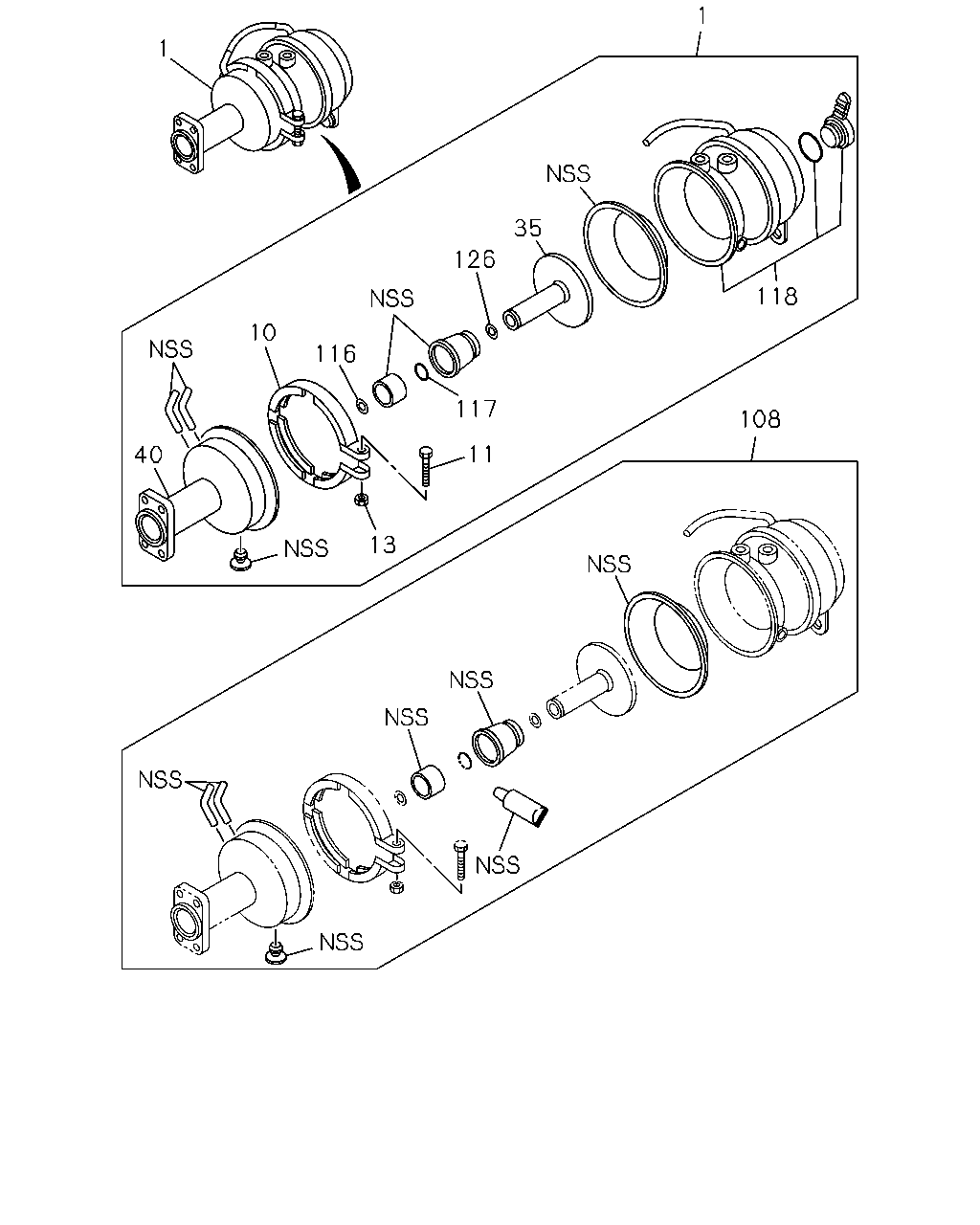

[341A] COMPONENT AND REPAIR KIT (14 parça)
▶
1
1
32
1
1
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-87412-097-0
02
1
1304-
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-87412-098-0
02
1
1304-
32
CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW
1-09660-959-0
08
1
1304-
1
1
35
126
117
11
118
108
116
13
10
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH
1-87412-097-0
02
1
1304-
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH
1-87412-098-0
02
1
1304-
10
RING; CLAMP,SPR CHAMBER
THA
1-48269-256-0
04
1
1304-
11
BOLT; CLAMP RING
THA
1-48269-257-0
04
1
1304-
13
NUT; CLAMP RING
THA
1-48269-147-0
04
1
1304-
35
PLATE; ROD END,SPR CHAMBER
THA
8-98146-974-0
04
1
1304-
40
COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH THA
1-48251-140-1
02
1
1304-
40
COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH THA
1-48251-141-1
02
1
1304-
108
REPAIR KIT; SPR CHAMBER
THA
8-98146-982-0
04
1
1304-
116
GUIDE; SPR CHAMBER
THA
8-98146-963-0
04
1
1304-
117
RING; SPR CHAMBER
THA
8-98146-966-0
04
1
1304-
118
CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH THA
1-87412-113-0
02
1
1304-
118
CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH THA
1-87412-114-0
02
1
1304-
126
SHIM
THA
8-98146-965-0
AR
1
1304-
