Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11492 - FVZ(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#122036) — 59 parça
◀

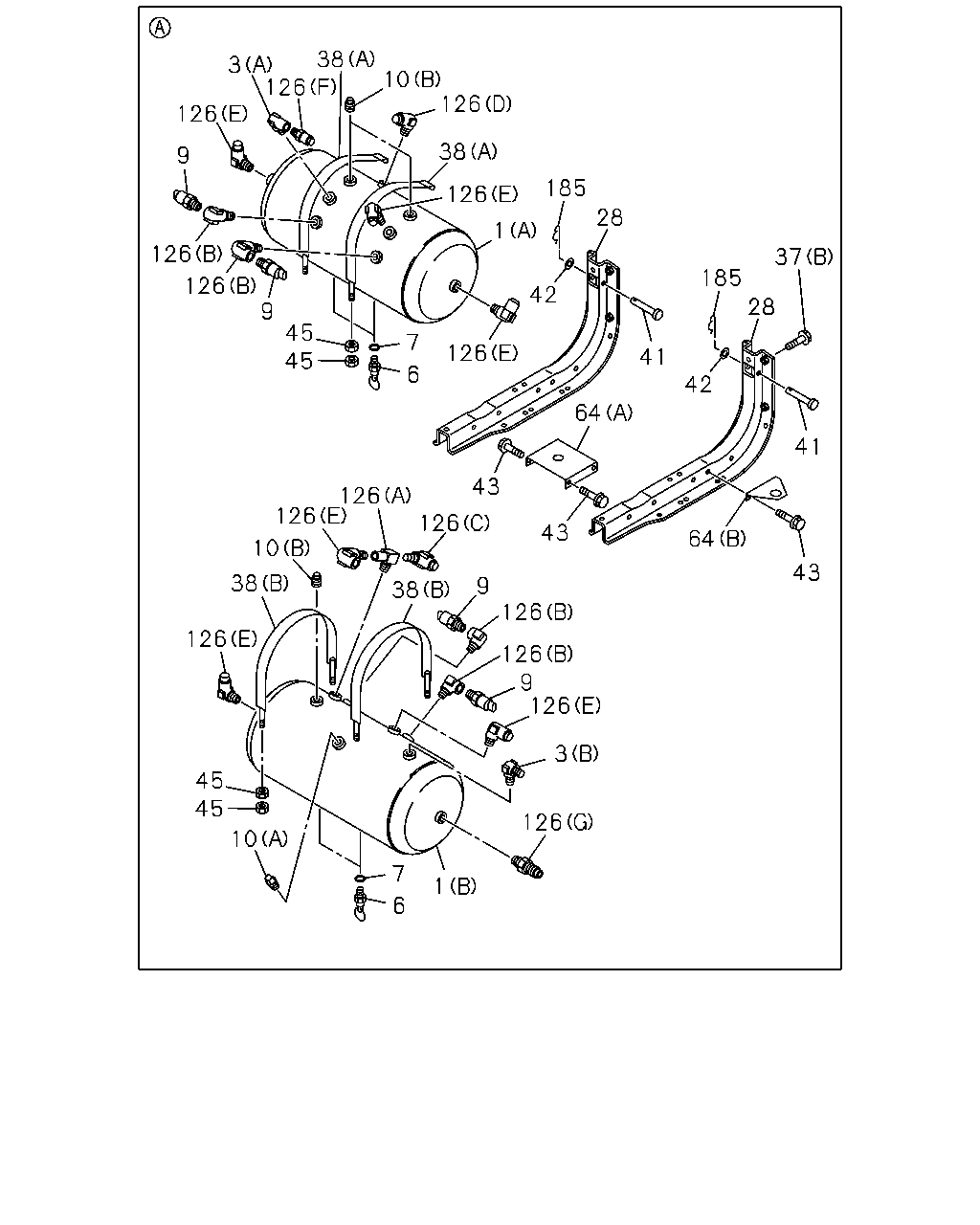

[320A] COMPONENT;MAIN AIR TANK (30 parça)

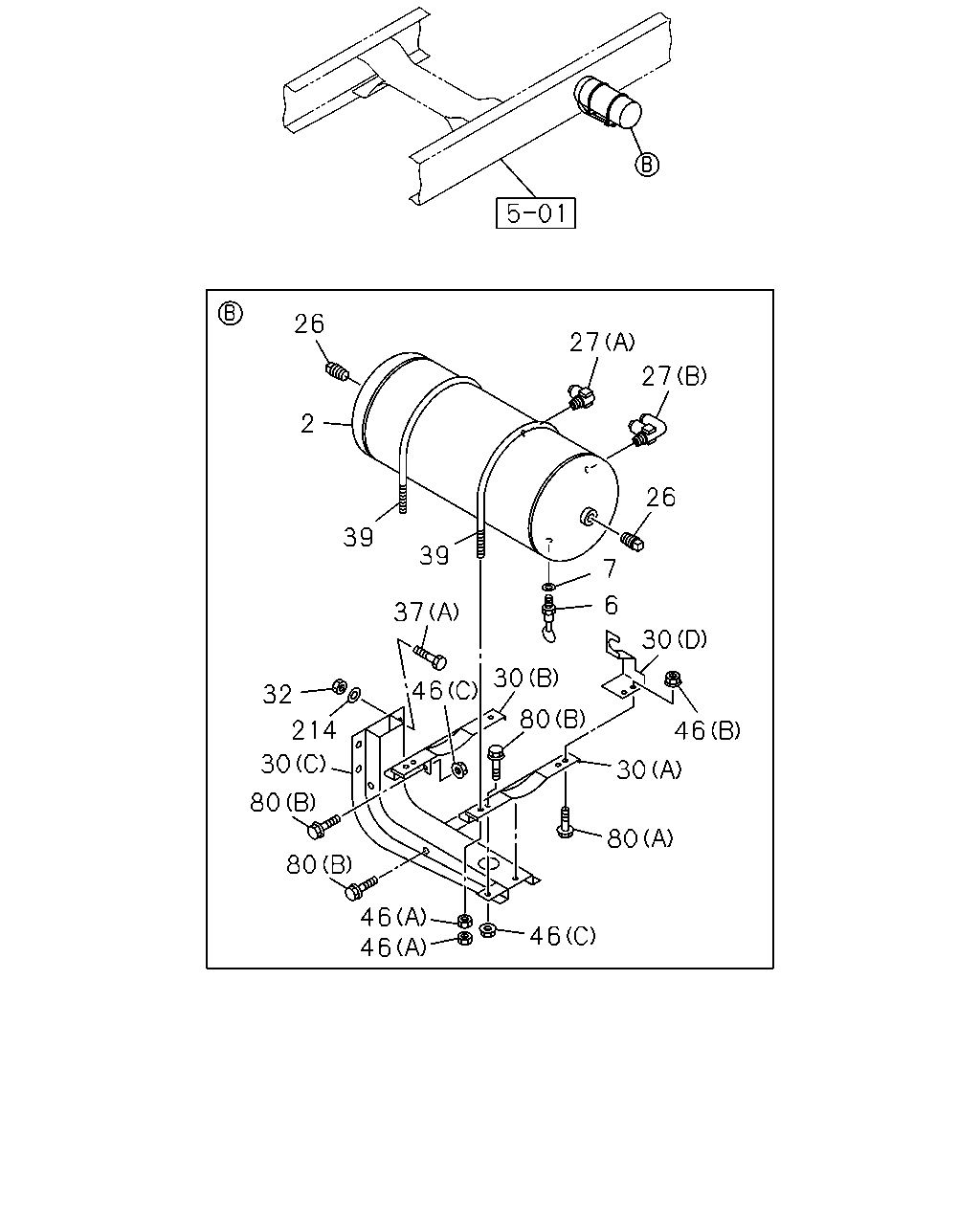

[320A] COMPONENT;SUB AIR TANK (24 parça)
[320A] CAB SIDE (1 parça)

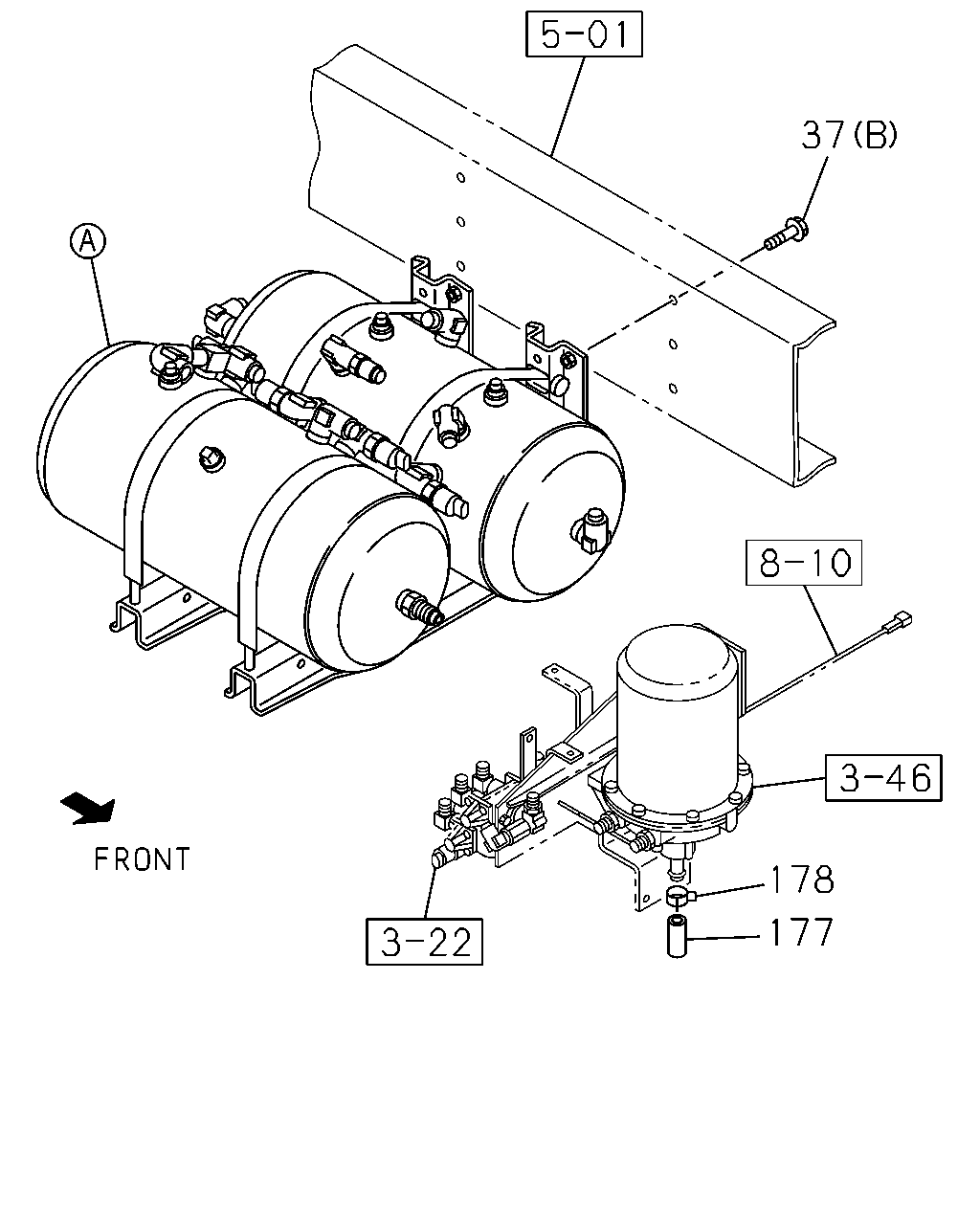

[320A] FIXING;MAIN AIR TANK (4 parça)
▶
1
42
126
7
6
45
45
9
126
126
9
126
3
126
38
10
126
38
126
185
28
185
37
28
41
42
41
64
43
34
43
43
126
126
126
10
38
126
45
45
10
6
7
1
126
3
126
9
126
126
9
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
(A) THA
8-98202-945-0
01
1
1304-
1
TANK ASM; AIR
(B) THA
8-98202-946-0
01
1
1304-
3
VALVE; CHECK,AIR TANK
(A)
1-48320-031-1
01
1
1304-
3
VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW
1-48410-412-0
01
1
1304-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1304-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
04
1
1304-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1304-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
04
1
1304-
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5
8-97609-249-0
04
1
1304-
10
PLUG; AIR TANK
(A) PT3/8
9-09204-517-0
01
1
1304-
10
PLUG; AIR TANK
(B) PT3/4
9-09204-526-0
03
1
1304-
28
BRACKET; AIR TANK
1-48317-601-5
02
1
1304-
37
BOLT; AIR TANK
(B) M12X40 FLANGE
0-28651-240-0
08
1
1304-
37
BOLT; AIR TANK
(A) M14X50 FLANGE
0-28851-450-0
04
1
1304-
38
BAND; AIR TANK
(A)
1-48317-108-2
02
1
1304-
38
BAND; AIR TANK
(B)
1-48317-109-2
02
1
1304-
41
PIN; BAND FIX
OD=10 L=60
0-82254-060-0
02
1
1304-
42
WASHER; PL
ID=10.5
0-91614-510-0
02
1
1304-
43
BOLT; STAY,AIR TANK,MAIN
M8X25 FLANGE THA
0-28650-825-0
06
1
1304-
45
NUT; AIR TANK,MAIN
M8
0-91110-508-0
12
1
1304-
64
STAY; AIR TANK,MAIN
(A)
1-48317-607-0
01
1
1304-
64
STAY; AIR TANK,MAIN
(B)
1-48317-691-0
01
1
1304-
126
CONNECTOR; ELBOW
(G)
1-09650-283-1
01
1
1304-
126
CONNECTOR; ELBOW
(B) PT1/4 2WAY
1-09660-693-0
04
1
1304-
126
CONNECTOR; ELBOW
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1304-
126
CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1304-
126
CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW
1-09660-959-0
06
1
1304-
126
CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1304-
126
CONNECTOR; ELBOW
(A)
8-98166-127-0
01
1
1304-
185
PIN; SNAP
L=32.6
8-98062-280-0
02
1
1304-
7
6
30
46
30
80
46
46
46
80
80
30
214
32
80
30
46
37
39
39
2
26
26
27
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
TANK; AIR
8-98219-013-0
01
1
1304-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1304-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
04
1
1304-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1304-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
04
1
1304-
26
PLUG; SUB AIR TANK
PT3/8
9-09204-517-0
02
1
1304-
27
UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1304-
27
UNION; ELBOW,AIR TANK
(B) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
1304-
30
BRACKET; AIR TANK,SUB
(C)
1-48316-024-3
01
1
1304-
30
BRACKET; AIR TANK,SUB
(A)
1-48317-994-2
01
1
1304-
30
BRACKET; AIR TANK,SUB
(B)
8-98182-085-0
01
1
1304-
30
BRACKET; AIR TANK,SUB
(D)
8-98218-960-0
01
1
1304-
32
NUT; BRKT TO FRAME
M14 THA
0-91110-514-0
04
1
1304-
37
BOLT; AIR TANK
(B) M12X40 FLANGE
0-28651-240-0
08
1
1304-
37
BOLT; AIR TANK
(A) M14X50 FLANGE
0-28851-450-0
04
1
1304-
39
U-BOLT; AIR TANK
L=253
1-48317-248-1
02
1
1304-1306
39
U-BOLT; AIR TANK
L=253 THA
8-97948-475-0
02
1
1307-1307
39
U-BOLT; AIR TANK
L=253
1-48317-248-1
02
1
1307-
46
NUT; U-BOLT
(A) M8
0-91110-508-0
08
1
1304-
46
NUT; U-BOLT
(B) M8 FLANGE THA
0-91180-108-0
01
1
1304-
46
NUT; U-BOLT
(C) M12 FLANGE THA
0-91180-212-0
01
1
1304-
80
BOLT; BRKT
(A) M8X25 FLANGE THA
0-28650-825-0
01
1
1304-
80
BOLT; BRKT
(B) M12X30 FLANGE THA
0-28651-230-0
04
1
1304-
214
WASHER; LK,BRKT TO FRAME
ID=14.2
0-91510-514-0
04
1
1304-

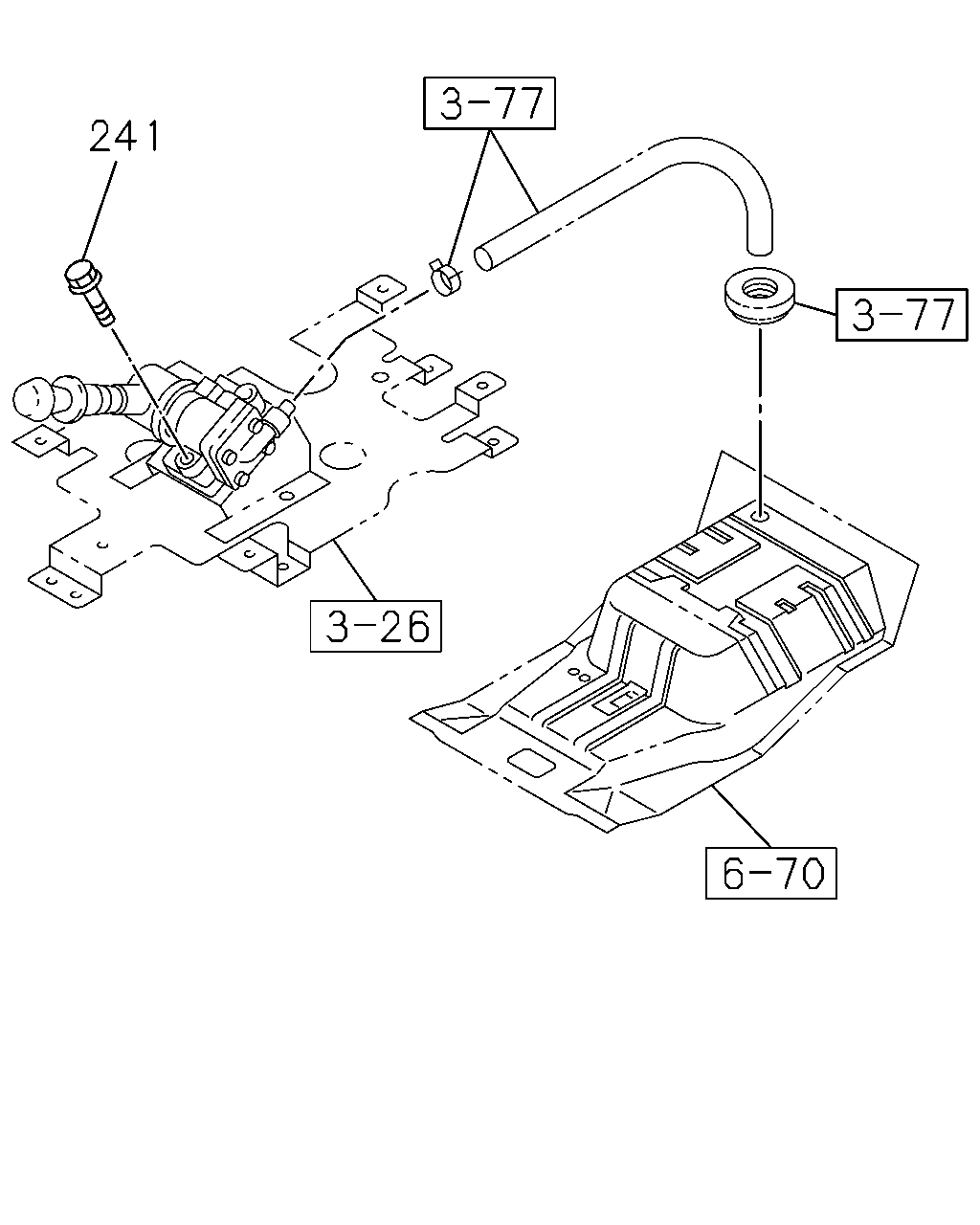

241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
BOLT; SET,CONT VLV
M8X70 FLANGE THA
0-28050-870-0
02
1
1304-
37
178
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; AIR TANK
(B) M12X40 FLANGE
0-28651-240-0
08
1
1304-
37
BOLT; AIR TANK
(A) M14X50 FLANGE
0-28851-450-0
04
1
1304-
177
HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000
0-03566-300-0
01
1
1304-
178
CLIP; HOSE
ID=21
8-94242-034-0
01
1
1304-
