Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11492 - FVZ(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

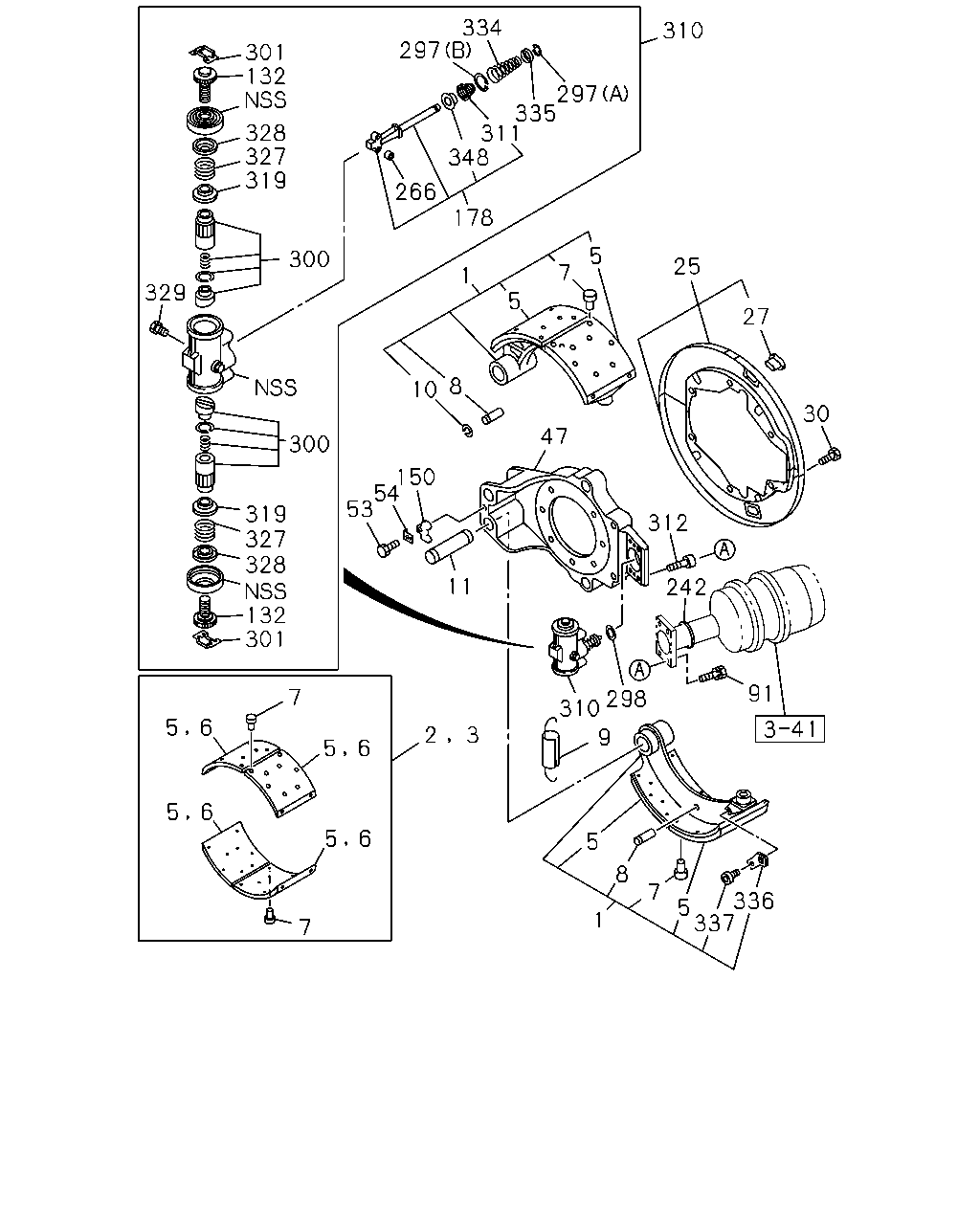

3-05 — REAR WHEEL BRAKE
(#122033) — 59 parça
◀
[305A] REPAIR KIT (13 parça)
[305A] COMPONENT (46 parça)
▶
346
301
328
327
319
297
334
297
335
311
348
329
319
327
328
301
347
301
301
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
297
RING; SNAP
(A) THA
1-47649-031-0
04
1
1304-
297
RING; SNAP
(B) THA
1-47649-034-1
04
1
1304-
301
CLIP; ANTI LOTATION
THA
1-47621-017-0
08
1
1304-
311
BOOT; WEDGE
THA
1-47649-042-0
04
1
1304-
319
RING; DRIVE
THA
1-47629-200-0
08
1
1304-
327
SPRING; ADJ
THA
1-47629-196-0
08
1
1304-
328
CAGE; SPRING
THA
1-47629-192-0
08
1
1304-
329
SCREW; LOCATING
THA
1-47619-149-1
08
1
1304-
334
SPRING; ROD
THA
1-47649-041-0
04
1
1304-
335
RETAINER; SPRING
THA
1-47649-020-0
04
1
1304-
346
REPAIR KIT; EXPANDER
THA
1-85576-403-0
04
1
1304-
347
REPAIR KIT; BOOT,EXPANDER
THA
1-85576-404-0
04
1
1304-
348
CAP; EXPANDER
THA
1-47649-044-0
04
1
1304-
336
337
5
7
8
5
1
9
298
310
242
312
25
27
30
47
7
5
5
1
178
266
348
311
335
297
310
334
297
301
132
328
327
319
300
329
300
10
8
150
54
53
11
91
3
2
6
5
7
6
5
5
6
7
5
6
301
132
328
327
319
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
LEADING THA
1-47170-324-0
02
1
1304-
1
SHOE; BRK,RR
TRAILING THA
1-47170-325-0
02
1
1304-
1
SHOE; BRK,RR
LEADING THA
1-47170-326-0
02
1
1304-
1
SHOE; BRK,RR
TRAILING THA
1-47170-327-0
02
1
1304-
2
LINING SET; RR BRK,STANDARD
1-88310-775-1
04
1
1304-
3
LINING SET; RR BRK,OVER SIZE
1-88310-776-1
04
1
1304-
5
LINING; RR BRK SHOE,STANDARD
THA
1-47126-093-0
16
1
1304-
6
LINING; RR BRK SHOE,OVER SIZE
THA
1-47126-094-0
16
1
1304-
7
RIVET; LINING,RR BRK
L=15.5 THA
1-09732-053-0
AR
1
1304-
8
PIN; RETURN SPRING,RR BRK SHOE
TRAILING THA
1-47119-136-0
04
1
1304-
8
PIN; RETURN SPRING,RR BRK SHOE
LEADING THA
1-47119-172-0
04
1
1304-
9
SPRING; RETURN,BRK SHOE
THA
1-09583-365-1
04
1
1304-
10
RING; SNAP,SPR PIN
ID=10
0-91805-510-0
04
1
1304-
11
PIN; ANCHOR,RR WHEEL BRK
L=138.5 THA
1-47131-045-0
08
1
1304-
25
COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH
1-47151-808-0
02
1
1304-1309
25
COVER SET; RR BRK DRUM
1-47151-878-0
04
1
1310-
25
COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH
1-47151-809-0
02
1
1304-1309
27
COVER; CHECK HOLE,DRUM COVER
THA
1-09333-151-0
08
1
1304-
30
BOLT; DRUM COVER
M10X12 THA
1-47159-187-0
24
1
1304-
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
1-47137-472-0
04
1
1304-1306
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
THA
8-98091-253-1
04
1
1307-
53
BOLT; LOCK PLATE
M10X16 THA
1-47139-173-0
04
1
1304-
54
WASHER; LK,ANCHOR PIN,RR BRK
THA
1-47133-011-0
04
1
1304-
91
BOLT; CHAMBER
M10X53 THA
1-47139-148-0
16
1
1304-
132
SCREW; ADJ,RR BRK
THA
1-47623-035-2
08
1
1304-
150
PLATE; LK,ANCHOR PIN
THA
1-47133-010-0
04
1
1304-
178
WEDGE; RR WHEEL CYL
THA
1-47640-012-0
04
1
1304-
242
SEAL
THA
1-47159-186-0
08
1
1304-
266
ROLLER; WEDGE
THA
1-47643-007-0
08
1
1304-
297
RING; SNAP
(A) THA
1-47649-031-0
04
1
1304-
297
RING; SNAP
(B) THA
1-47649-034-1
04
1
1304-
298
GASKET
THA
1-48259-231-0
04
1
1304-
300
SLEEVE
THA
1-47629-247-1
08
1
1304-
301
CLIP; ANTI LOTATION
THA
1-47621-017-0
08
1
1304-
310
EXPANDER
THA
1-47601-087-0
04
1
1304-
311
BOOT; WEDGE
THA
1-47649-042-0
04
1
1304-
312
BOLT; EXPANDER
THA
1-47634-008-0
08
1
1304-
319
RING; DRIVE
THA
1-47629-200-0
08
1
1304-
327
SPRING; ADJ
THA
1-47629-196-0
08
1
1304-
328
CAGE; SPRING
THA
1-47629-192-0
08
1
1304-
329
SCREW; LOCATING
THA
1-47619-149-1
08
1
1304-
334
SPRING; ROD
THA
1-47649-041-0
04
1
1304-
335
RETAINER; SPRING
THA
1-47649-020-0
04
1
1304-
336
PLATE; PIVOT
THA
1-47119-152-0
08
1
1304-
337
BOLT; PLATE
THA
1-47119-153-0
08
1
1304-
348
CAP; EXPANDER
THA
1-47649-044-0
04
1
1304-
