◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#12203) — 138 parça

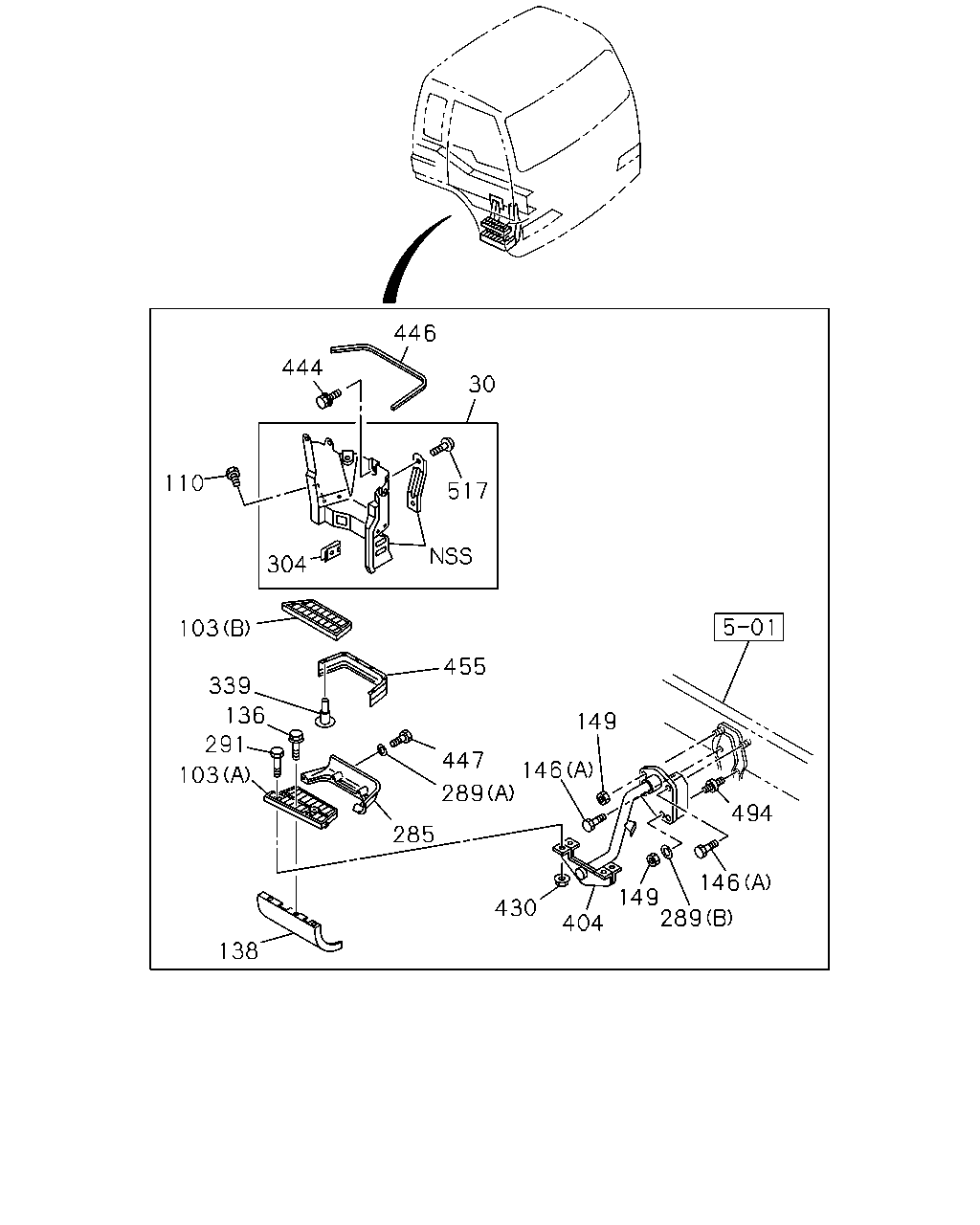

çizim 138831
446 444 30 110 517 304 103 455 339 136 149 291 447 146 103 289 494 285 146 149 289 430 404 138
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0105-0910
30 CLOSING; SIDE STEP 8-98156-824-0 01 1 0911-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0105-0910
30 CLOSING; SIDE STEP 8-98156-823-0 01 1 0911-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0105-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0105-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0105-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0105-
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0105-0204
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 0105-
138 FENDER; OVER 1-79931-264-0 01 1 0105-
138 FENDER; OVER 1-79931-263-0 01 1 0105-
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 0105-0512
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 0601-
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28081-270-0 04 1 0105-0512
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28051-270-0 04 1 0601-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 03 1 0105-0602
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 03 1 0603-
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 0105-
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 0105-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 0105-0605
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		0-91610-706-0 08 1 0606-
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 01 1 0105-1201
289 WASHER; PL,STEP
(B) ID=15 		8-98010-627-1 01 1 1202-
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 0105-0112
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28080-835-0 08 1 0201-0512
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28050-835-0 08 1 0601-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0105-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0105-
404 BRACKET 1-53414-201-0 01 1 0105-
404 BRACKET 1-53414-200-0 01 1 0105-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 0105-0602
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0603-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0105-0904
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0105-
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 0105-0512
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0601-
455 PROTECTOR; STEP 1-71907-187-2 01 1 0105-
455 PROTECTOR; STEP 1-71907-186-2 01 1 0105-
494 STUD; BRKT
M12X35,M14X45 L=100 		1-09029-075-0 01 1 0105-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0105-0604
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0605-

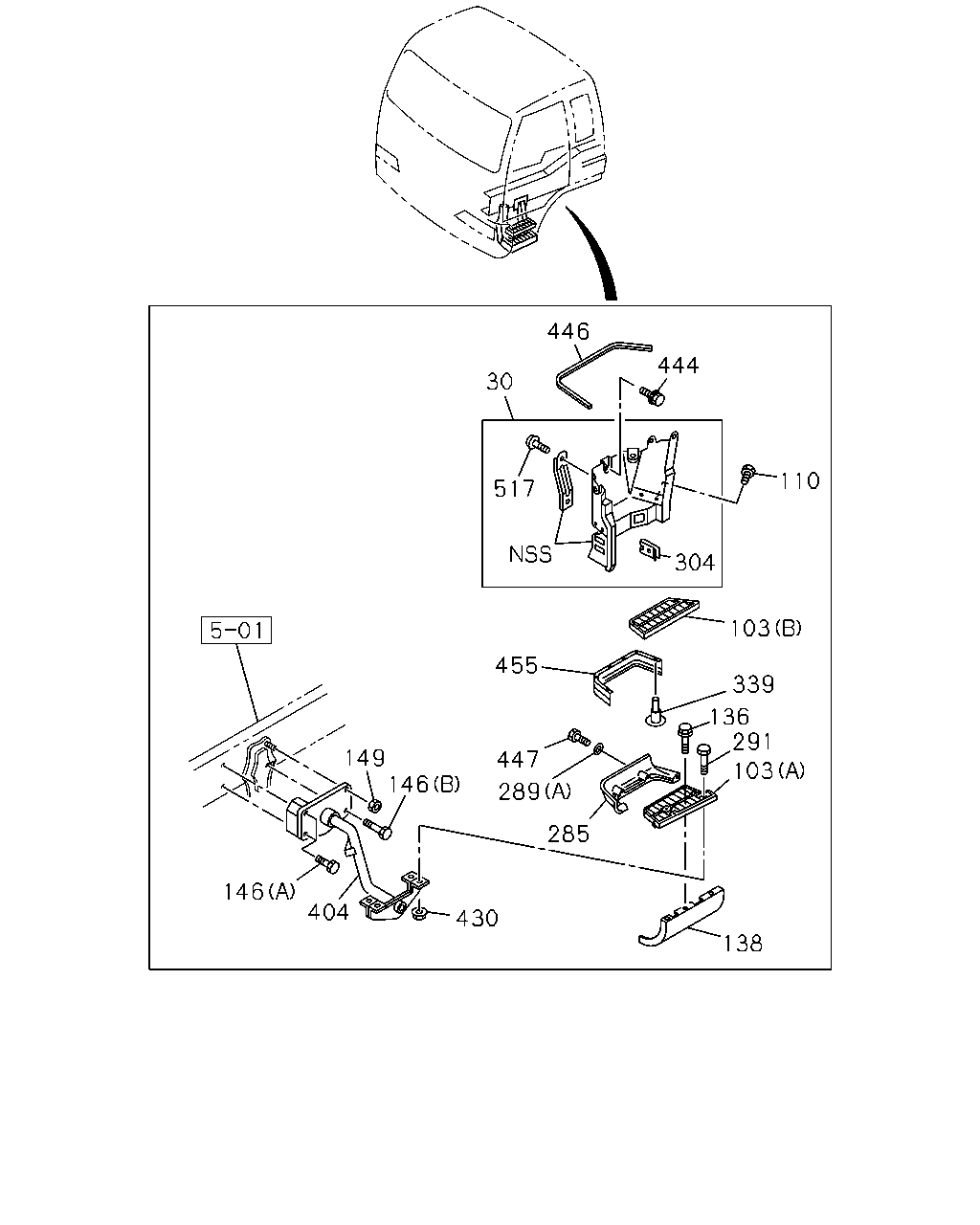

çizim 138872
446 444 30 110 517 304 103 455 339 136 291 149 146 447 103 289 285 146 404 430 138
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0105-0910
30 CLOSING; SIDE STEP 8-98156-824-0 01 1 0911-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0105-0910
30 CLOSING; SIDE STEP 8-98156-823-0 01 1 0911-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0105-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0105-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0105-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0105-
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0105-0204
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 0105-
138 FENDER; OVER 1-79931-264-0 01 1 0105-
138 FENDER; OVER 1-79931-263-0 01 1 0105-
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28081-230-0 01 1 0105-0512
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 0601-
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28081-270-0 04 1 0105-0512
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28051-270-0 04 1 0601-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 03 1 0105-0602
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 03 1 0603-
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 0105-
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 0105-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 0105-0605
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		0-91610-706-0 08 1 0606-
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 01 1 0105-1201
289 WASHER; PL,STEP
(B) ID=15 		8-98010-627-1 01 1 1202-
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 0105-0112
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28080-835-0 08 1 0201-0512
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28050-835-0 08 1 0601-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0105-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0105-
404 BRACKET 1-53414-201-0 01 1 0105-
404 BRACKET 1-53414-200-0 01 1 0105-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 0105-0602
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0603-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0105-0904
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0105-
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 0105-0512
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0601-
455 PROTECTOR; STEP 1-71907-187-2 01 1 0105-
455 PROTECTOR; STEP 1-71907-186-2 01 1 0105-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0105-0604
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0605-

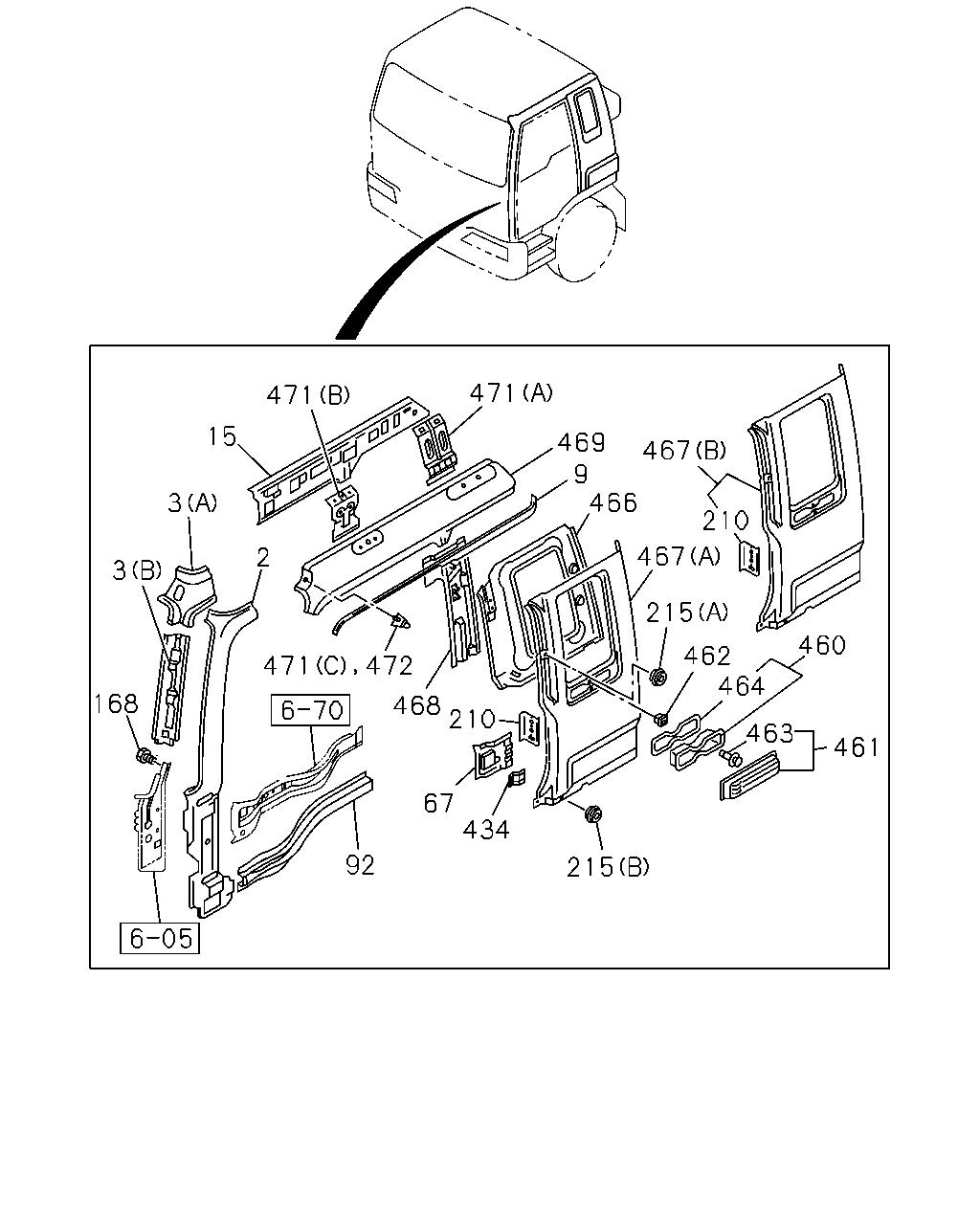

çizim 138878
471 471 15 469 9 466 467 3 210 467 2 3 215 460 462 464 168 468 210 463 461 67 434 92 215 471 472
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-410-2 01 1 0105-
2 PILLAR; FRT 1-61281-409-2 01 1 0105-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 0105-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 0105-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 0105-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 0105-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-792-4 01 1 0105-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-791-4 01 1 0105-
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-281-5 01 1 0105-
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-280-5 01 1 0105-
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0105-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0105-
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0105-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0105-
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0105-
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0105-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0105-0512
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601-
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0105-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0105-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0105-
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0105-
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0105-
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0105-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0105-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0105-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0105-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0105-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0105-
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0105-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0105-
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) 		1-61281-478-3 01 1 0105-0306
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) 		1-61281-478-5 01 1 0307-
467 PANEL; OUTER,BACK CORNER
(B) 		1-61281-203-4 01 1 0105-
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) (B) 		1-61270-773-1 01 1 0105-0306
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) (B) 		1-61270-773-3 01 1 0307-
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) BAGGAGE BOX CAB RR SIDE<TBM> (B) 		1-61270-939-0 01 1 0105-0306
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), COLOMBIA EQUIPMENT(WJ2),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) BAGGAGE BOX CAB RR SIDE<TBM> (B) 		1-61270-939-2 01 1 0307-
467 PANEL; OUTER,BACK CORNER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), BAGGAGE BOX CAB RR SIDE<TBM>,TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2) (B) 		1-61281-204-2 01 1 0105-0306
467 PANEL; OUTER,BACK CORNER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), BAGGAGE BOX CAB RR SIDE<TBM>,COLOMBIA EQUIPMENT(WJ2), TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) (B) 		1-61281-204-4 01 1 0307-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0105-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0105-
469 ROOF; SIDE 1-61281-199-8 01 1 0105-
469 ROOF; SIDE 1-61281-198-8 01 1 0105-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 0105-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 0105-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0105-
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0105-0812
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 0901-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0105-
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0105-
