Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11492 - FVZ(THAI)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶
2-20 — MANUAL TRANSMISSION ASM AND CASE
(#122022) — 107 parça
◀
[220A] CASE AND OTHER PARTS (27 parça)
[220A] COVER (23 parça)
[220A] HOUSING (47 parça)
[220A] NYLON TUBE AND CLIP (8 parça)
[220A] ASM (2 parça)
▶

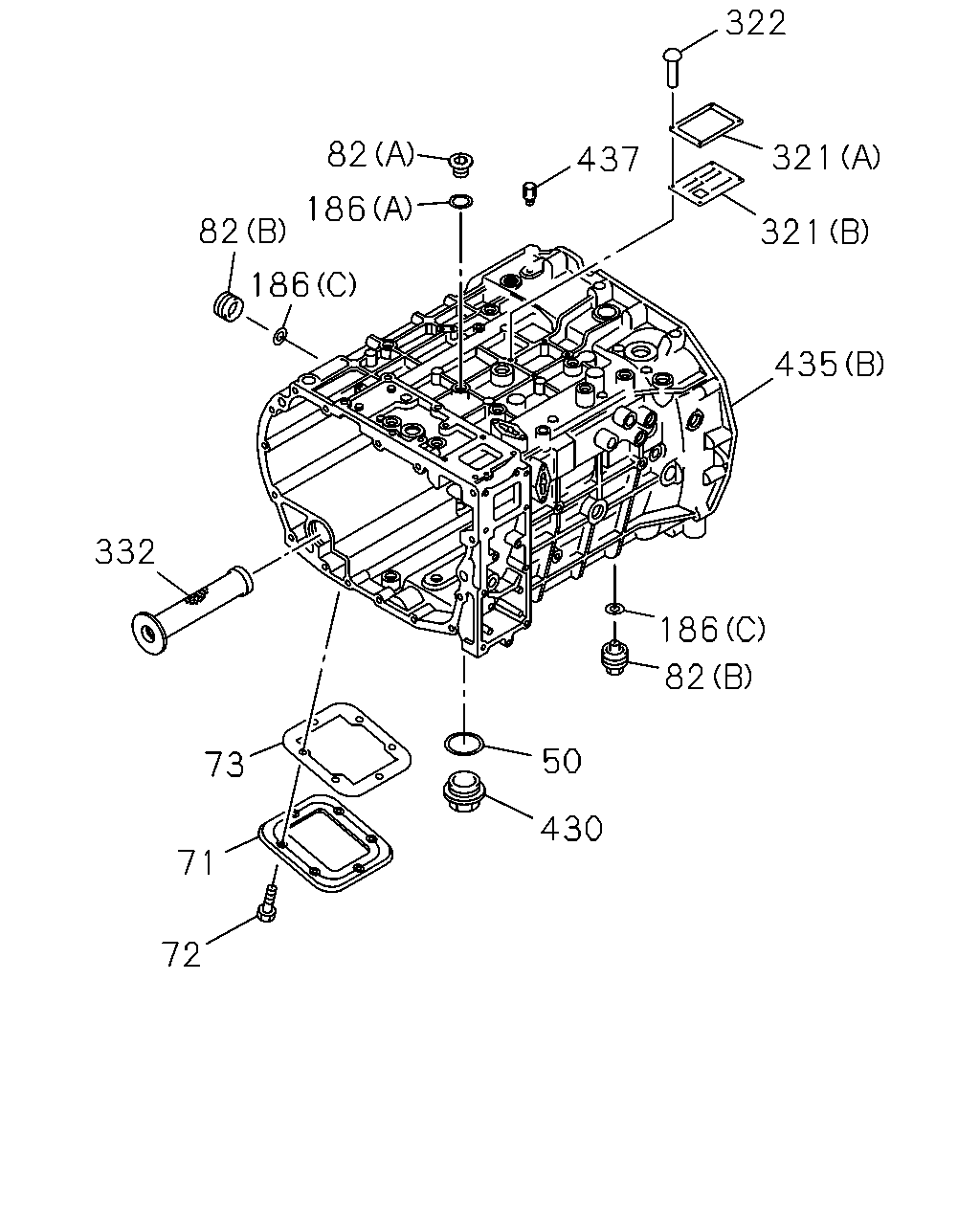

332
73
71
72
50
430
186
82
435
321
321
322
437
186
82
82
186
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
GASKET; DRAIN PLUG
THA
1-33119-293-0
01
1
1304-
71
COVER; SIDE,TRANS CASE
1-33119-407-0
01
1
1304-1305
71
COVER; SIDE,TRANS CASE
THA
1-33119-622-0
01
1
1306-
72
BOLT; SIDE COVER
M10X22
1-36129-014-1
06
1
1304-1305
72
BOLT; SIDE COVER
M10X22 THA
1-33119-592-0
06
1
1306-
73
GASKET; SIDE COVER TO TRANS CASE
THA
1-33119-237-0
01
1
1304-
82
PLUG; SCREW,CASE
(A)
1-33119-171-0
01
1
1304-1305
82
PLUG; SCREW,CASE
(A) THA
1-33119-619-0
01
1
1306-
82
PLUG; SCREW,CASE
(B)
1-33119-268-0
02
1
1304-1305
82
PLUG; SCREW,CASE
(B) THA
1-33119-620-0
02
1
1306-
82
PLUG; SCREW,CASE
(C)
1-33119-285-0
02
1
1304-1305
82
PLUG; SCREW,CASE
(C) THA
1-33119-618-0
02
1
1306-
186
RING; SEAL
(A) THA
1-33119-249-0
01
1
1304-
186
RING; SEAL
(B) THA
1-33119-286-0
02
1
1304-
186
RING; SEAL
(C) THA
1-33119-435-0
02
1
1304-
321
PLATE; NAME
(A) THA
1-33119-519-0
01
1
1304-
321
PLATE; NAME
(B) THA
1-33119-520-0
01
1
1304-
322
RIVET; NAME PLATE
1-33119-556-0
04
1
1304-1305
322
RIVET; NAME PLATE
THA
1-33119-617-0
04
1
1306-
332
FILTER; OIL
THA
1-33119-437-0
01
1
1304-
430
PLUG; OIL DRAIN
1-33119-156-0
01
1
1304-1305
430
PLUG; OIL DRAIN
THA
1-33119-621-0
01
1
1306-
435
CASE; TRANS
(B) THA
1-33111-372-0
01
1
1304-
435
CASE; TRANS
(A)
1-33111-373-0
01
1
1304-1305
435
CASE; TRANS
(A) THA
1-33111-380-0
01
1
1306-
437
BREATHER; TRANS
1-36122-004-0
01
1
1304-1305
437
BREATHER; TRANS
THA
1-36122-006-0
01
1
1306-

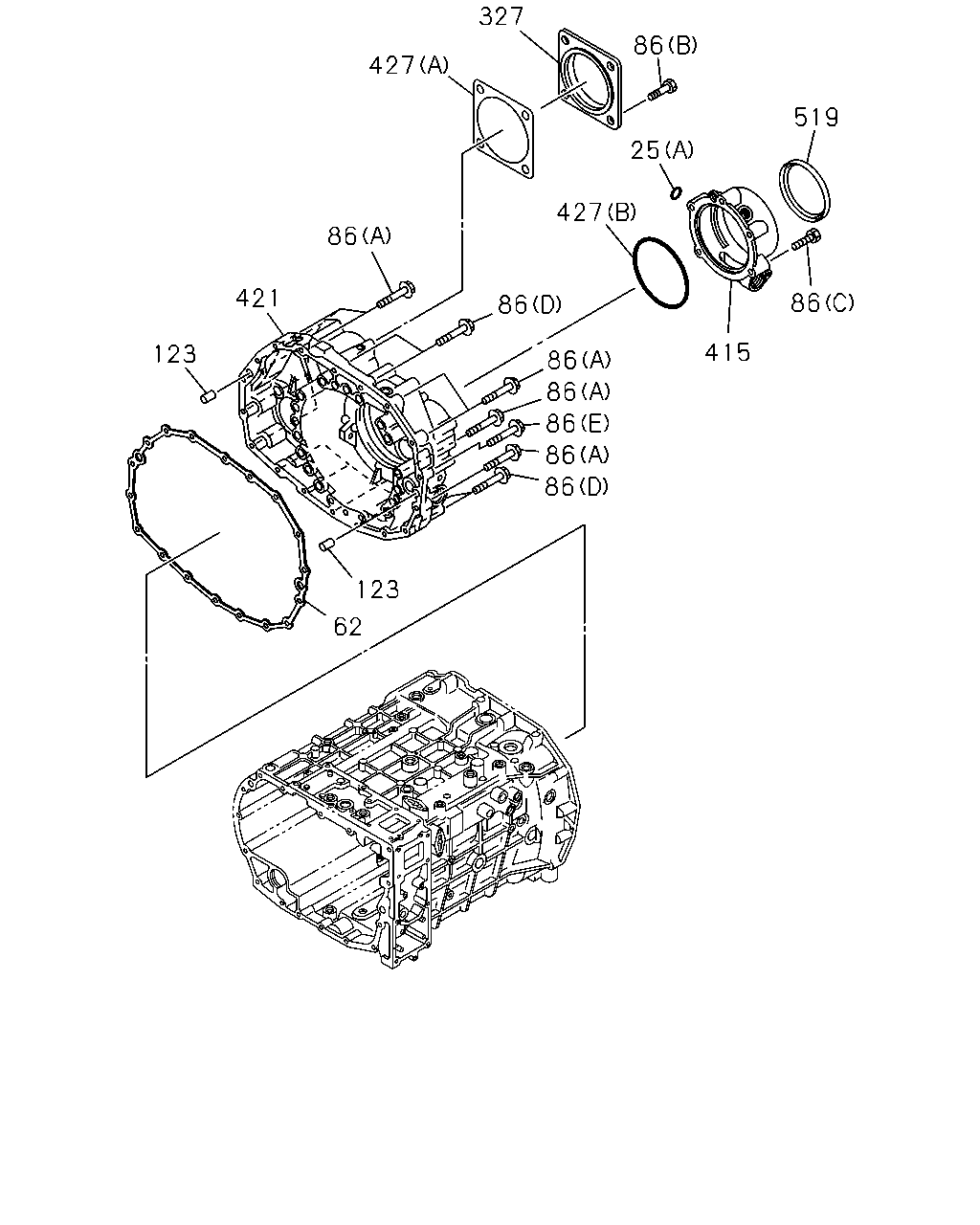

123
421
86
86
86
86
86
86
86
123
62
415
86
427
25
86
519
327
427
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
GASKET; COVER
(A) THA
1-33139-060-0
01
1
1304-
25
GASKET; COVER
(B)
8-98138-241-0
01
1
1304-
62
GASKET; RR COVER
THA
1-33132-087-0
01
1
1304-
86
BOLT; RR COVER
(A) M10X70
1-33119-522-0
12
1
1304-1305
86
BOLT; RR COVER
(A) M10X70 THA
1-33119-616-0
12
1
1306-
86
BOLT; RR COVER
(D) M10X110
1-33139-057-0
05
1
1304-1305
86
BOLT; RR COVER
(D) M10X110 THA
1-33139-235-0
05
1
1306-
86
BOLT; RR COVER
(E) M10X50
1-33139-058-0
01
1
1304-1305
86
BOLT; RR COVER
(E) M10X50 THA
1-33139-236-0
01
1
1306-
86
BOLT; RR COVER
(C) M10X60
1-33139-118-0
05
1
1304-1305
86
BOLT; RR COVER
(C) M10X60 THA
1-33139-237-0
05
1
1306-
86
BOLT; RR COVER
EXC. PTO ZF TRANS RR<BDM> (B) M12X25 M12X25
1-33119-400-0
04
1
1304-1305
86
BOLT; RR COVER
EXC. PTO ZF TRANS RR<BDM> (B) M12X25 THA
1-33119-594-0
04
1
1306-
123
DOWEL; TRANS CASE
THA
1-33119-292-0
04
1
1304-
327
COVER; RR,COUNTER
EXC. PTO ZF TRANS RR<BDM>
1-33131-165-0
01
1
1304-1305
327
COVER; RR,COUNTER
EXC. PTO ZF TRANS RR<BDM> THA
1-33131-273-0
01
1
1306-
415
COVER; BRG
THA
1-33131-269-0
01
1
1304-
421
COVER; RR,TRANS
1-33131-261-0
01
1
1304-1305
421
COVER; RR,TRANS
THA
1-33131-275-0
01
1
1306-
427
GASKET; RR COVER
(A)
1-33132-078-0
01
1
1304-1305
427
GASKET; RR COVER
(A) THA
1-33132-088-0
01
1
1306-
427
GASKET; RR COVER
EXC. PTO ZF TRANS RR<BDM> (B) THA
1-33132-054-0
01
1
1304-
519
GASKET; SHAFT
THA
1-33139-059-0
01
1
1304-

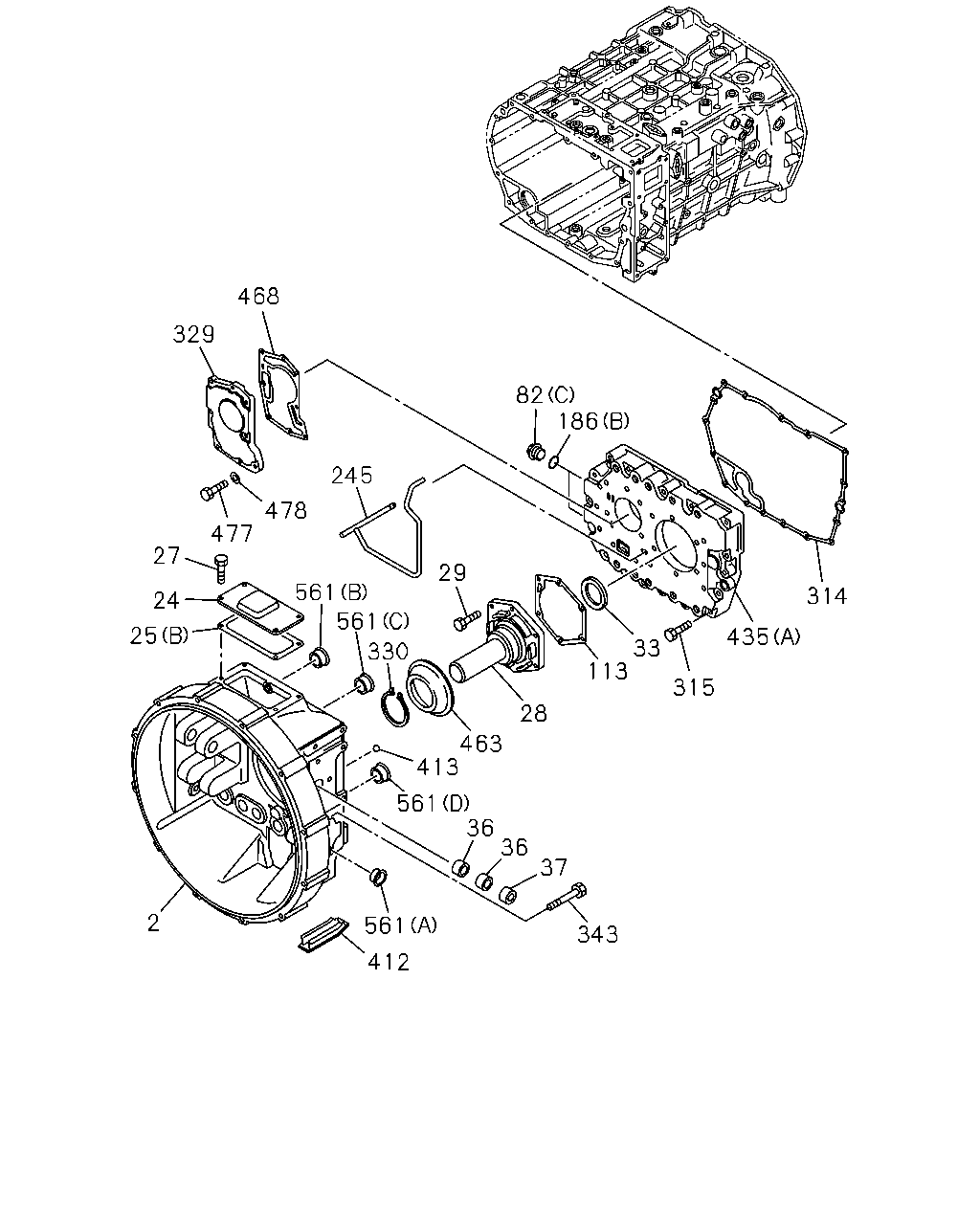

468
329
478
477
245
27
24
25
561
561
330
2
561
412
343
37
36
36
561
413
463
28
113
315
435
314
33
82
186
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; CLU
THA
1-31111-183-0
01
1
1304-
24
COVER; CHECK HOLE,DUST
1-31119-024-0
01
1
1304-1305
24
COVER; CHECK HOLE,DUST
THA
1-31119-059-0
01
1
1306-
25
GASKET; COVER
(A) THA
1-33139-060-0
01
1
1304-
25
GASKET; COVER
(B)
8-98138-241-0
01
1
1304-
27
BOLT; COVER TO CLU HSG
1-31119-025-0
04
1
1304-1305
27
BOLT; COVER TO CLU HSG
THA
1-31119-058-0
04
1
1306-
28
COVER; FRT,TRANS CASE
THA
1-33121-166-0
01
1
1304-
29
BOLT; FRT COVER
M8X30
1-33549-172-0
06
1
1304-1305
29
BOLT; FRT COVER
M8X30 THA
1-33549-581-0
06
1
1306-
33
SEAL; OIL,FRT COVER,T/M
THA
1-33219-321-0
01
1
1304-
36
BEARING; NEEDLE,CLU HSG
1-09811-396-0
04
1
1304-
37
SEAL; DUST,CLU HSG
1-09625-002-0
02
1
1304-
82
PLUG; SCREW,CASE
(A)
1-33119-171-0
01
1
1304-1305
82
PLUG; SCREW,CASE
(A) THA
1-33119-619-0
01
1
1306-
82
PLUG; SCREW,CASE
(B)
1-33119-268-0
02
1
1304-1305
82
PLUG; SCREW,CASE
(B) THA
1-33119-620-0
02
1
1306-
82
PLUG; SCREW,CASE
(C)
1-33119-285-0
02
1
1304-1305
82
PLUG; SCREW,CASE
(C) THA
1-33119-618-0
02
1
1306-
113
GASKET; FRT COVER TO TRANS CASE
THA
1-33122-024-0
01
1
1304-
186
RING; SEAL
(A) THA
1-33119-249-0
01
1
1304-
186
RING; SEAL
(B) THA
1-33119-286-0
02
1
1304-
186
RING; SEAL
(C) THA
1-33119-435-0
02
1
1304-
245
PIPE; OIL
THA
1-33119-517-0
01
1
1304-
314
GASKET; CASE
THA
1-33112-052-0
01
1
1304-
315
BOLT; CASE
M10X70
1-33119-522-0
17
1
1304-1305
315
BOLT; CASE
M10X70 THA
1-33119-616-0
17
1
1306-
329
PUMP ASM; OIL
1-34150-121-0
01
1
1304-1305
329
PUMP ASM; OIL
THA
1-34150-123-0
01
1
1306-
330
RING; RET
THA
1-33129-005-0
01
1
1304-
343
BOLT; CLU HSG TO PLATE
M10X75 FLANGE
8-94399-669-1
01
1
1304-
412
CAP; CLU HSG
THA
1-31119-026-0
01
1
1304-
413
BALL; CLU HSG
THA
1-31119-014-0
04
1
1304-
435
CASE; TRANS
(B) THA
1-33111-372-0
01
1
1304-
435
CASE; TRANS
(A)
1-33111-373-0
01
1
1304-1305
435
CASE; TRANS
(A) THA
1-33111-380-0
01
1
1306-
463
COVER; DUST,FRT COVER
1-33129-004-0
01
1
1304-1305
463
COVER; DUST,FRT COVER
THA
1-33129-018-0
01
1
1306-
468
GASKET; OIL PUMP
THA
1-34159-122-0
01
1
1304-
477
BOLT; OIL PUMP
M8X30
1-33549-172-0
08
1
1304-1305
477
BOLT; OIL PUMP
M8X30 THA
1-33549-581-0
08
1
1306-
478
WASHER; LK,OIL PUMP
1-36129-007-0
08
1
1304-1305
478
WASHER; LK,OIL PUMP
THA
1-33549-583-0
08
1
1306-
561
PLUG
(A) THA
1-31119-044-0
02
1
1304-
561
PLUG
(B) THA
1-31119-045-0
03
1
1304-
561
PLUG
(C) THA
1-31119-046-0
02
1
1304-
561
PLUG
(D) THA
1-31119-047-0
01
1
1304-

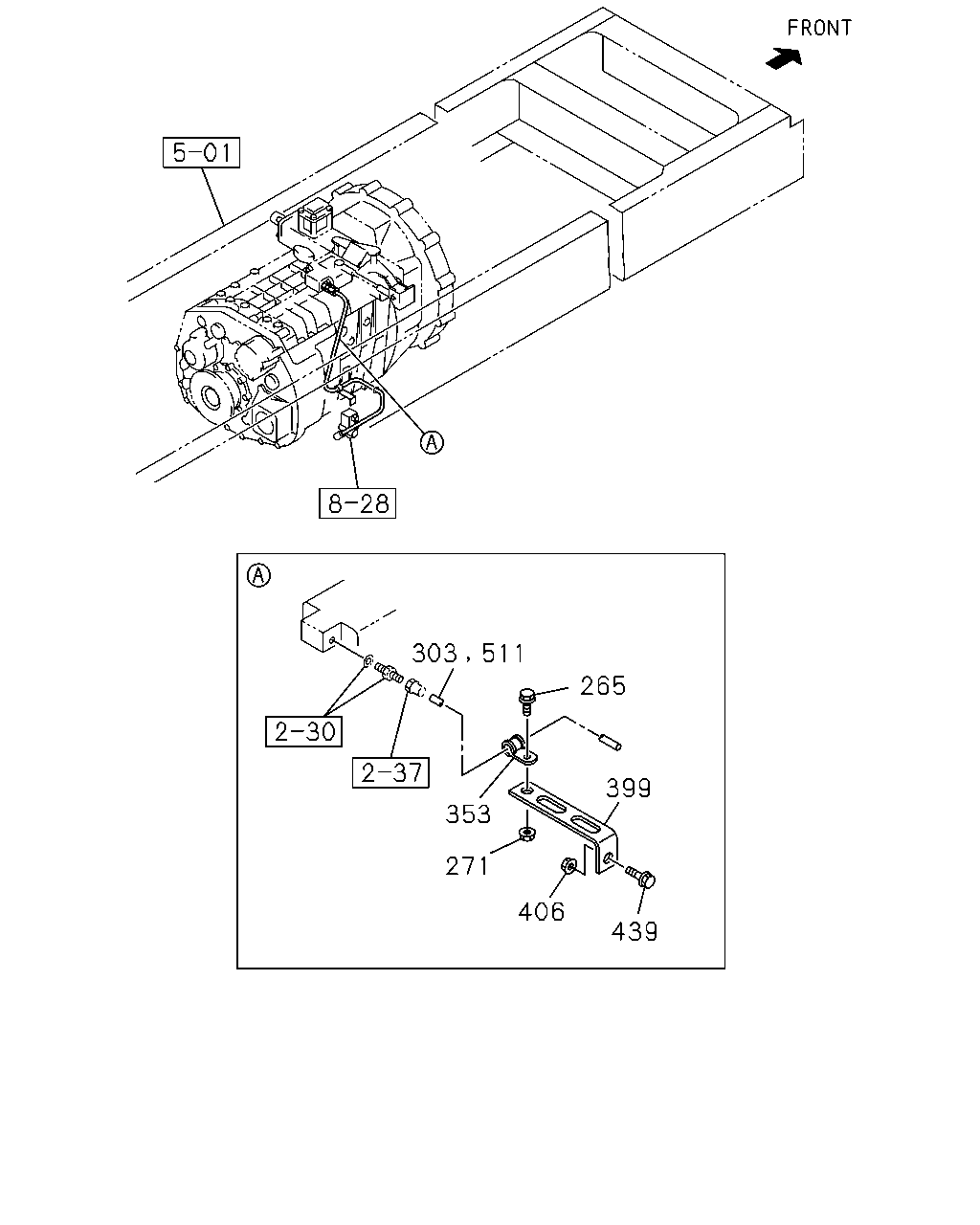

353
271
406
439
399
265
303
511
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
265
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
271
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1304-
303
TUBE; NYLON
SERVICED BY L=2000 OD=8 THA
1-87411-006-0
01
1
1304-
353
CLIP; NYLON TUBE
ID=18 L=28
1-09701-067-0
02
1
1304-
399
BRACKET; CLIP
1-47479-598-0
01
1
1304-
406
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1304-
439
BOLT; BRKT
M8X30 FLANGE THA
0-28650-830-0
01
1
1304-
511
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA
1-87411-019-0
01
1
1304-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

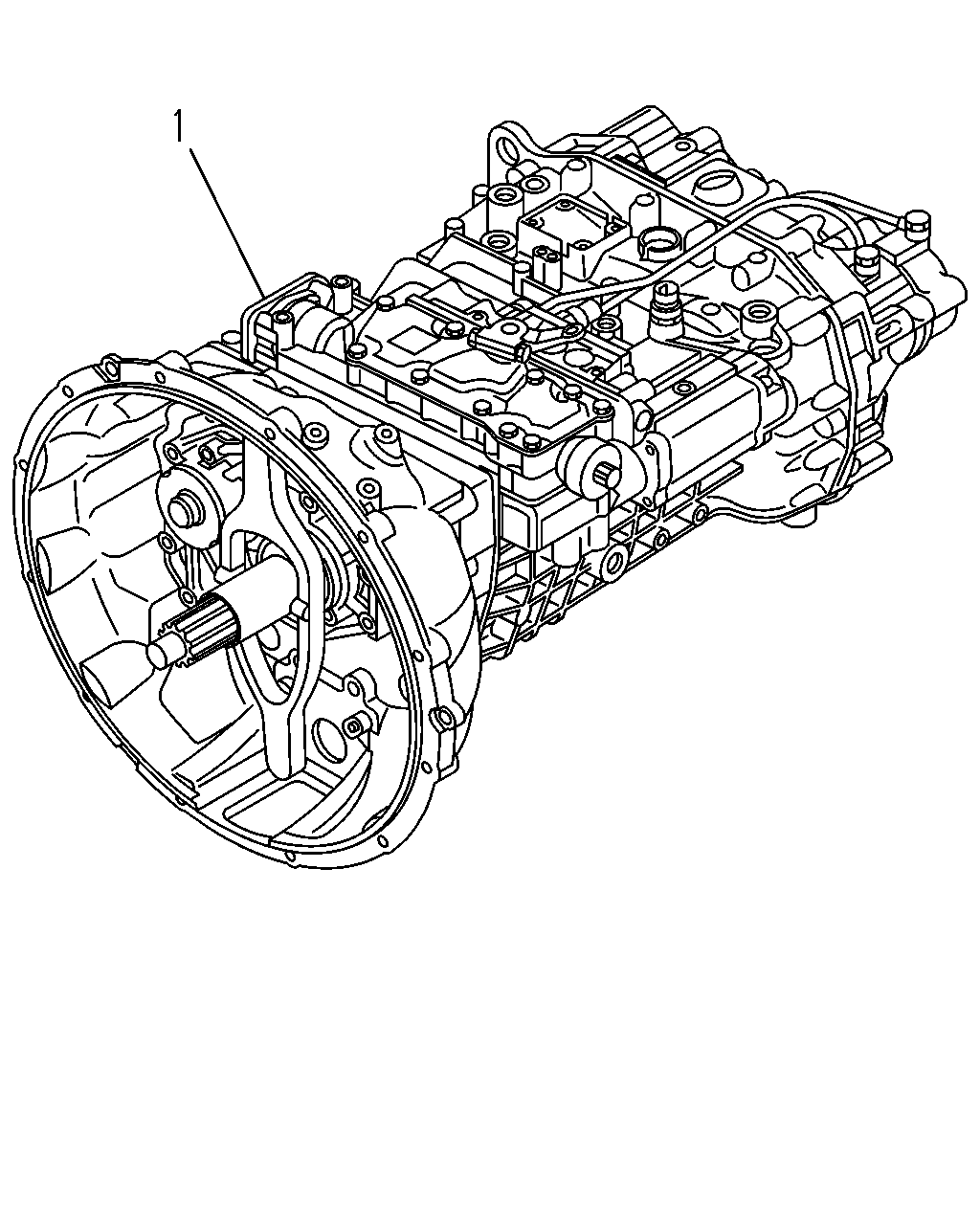

1
TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR<BDM> THA
8-98083-335-2
01
1
1304-
1
TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR<BDM> THA
8-98083-334-2
01
1
1304-
