Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11492 - FVZ(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#122002) — 49 parça
◀

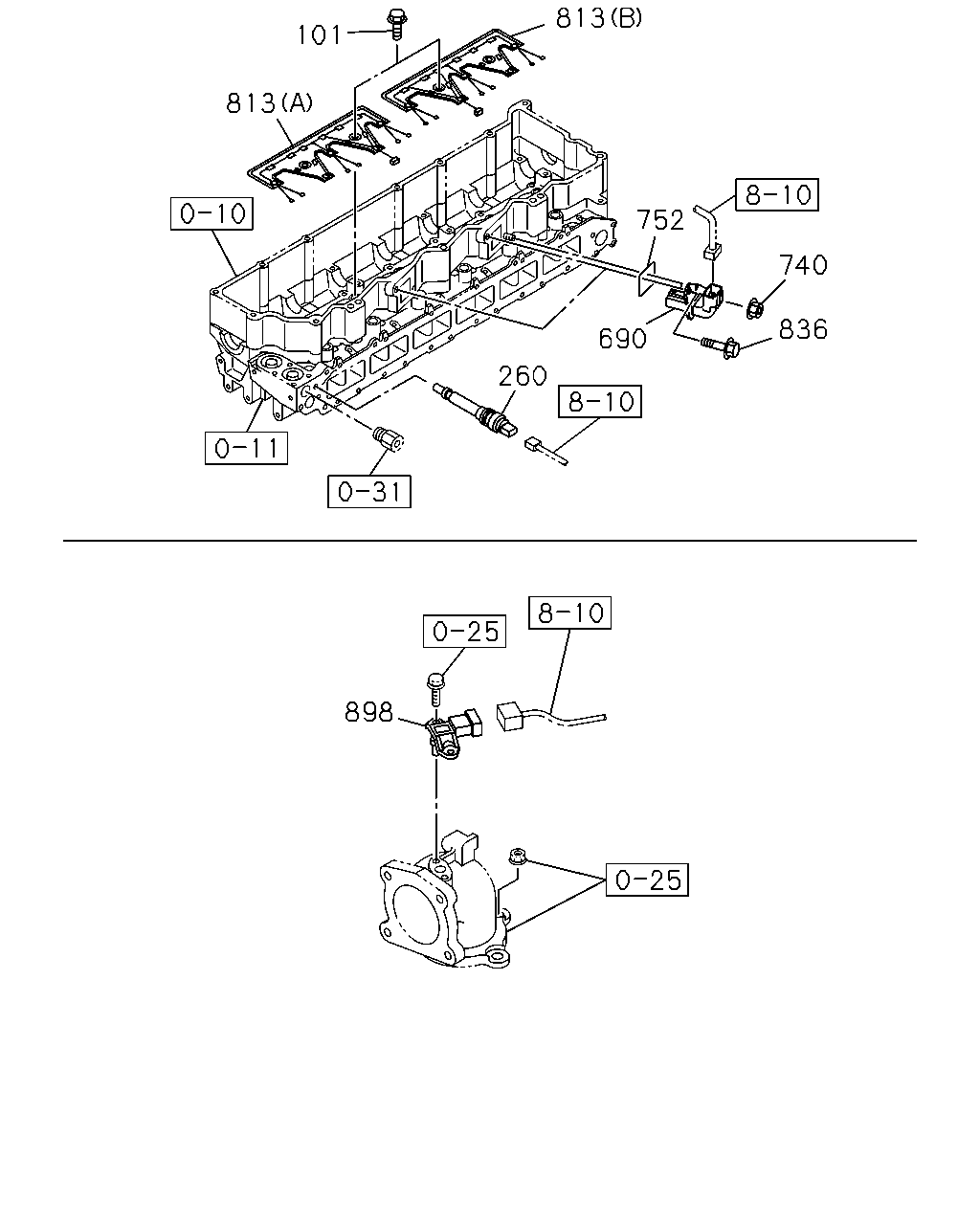

[060A] ENG SIDE (9 parça)

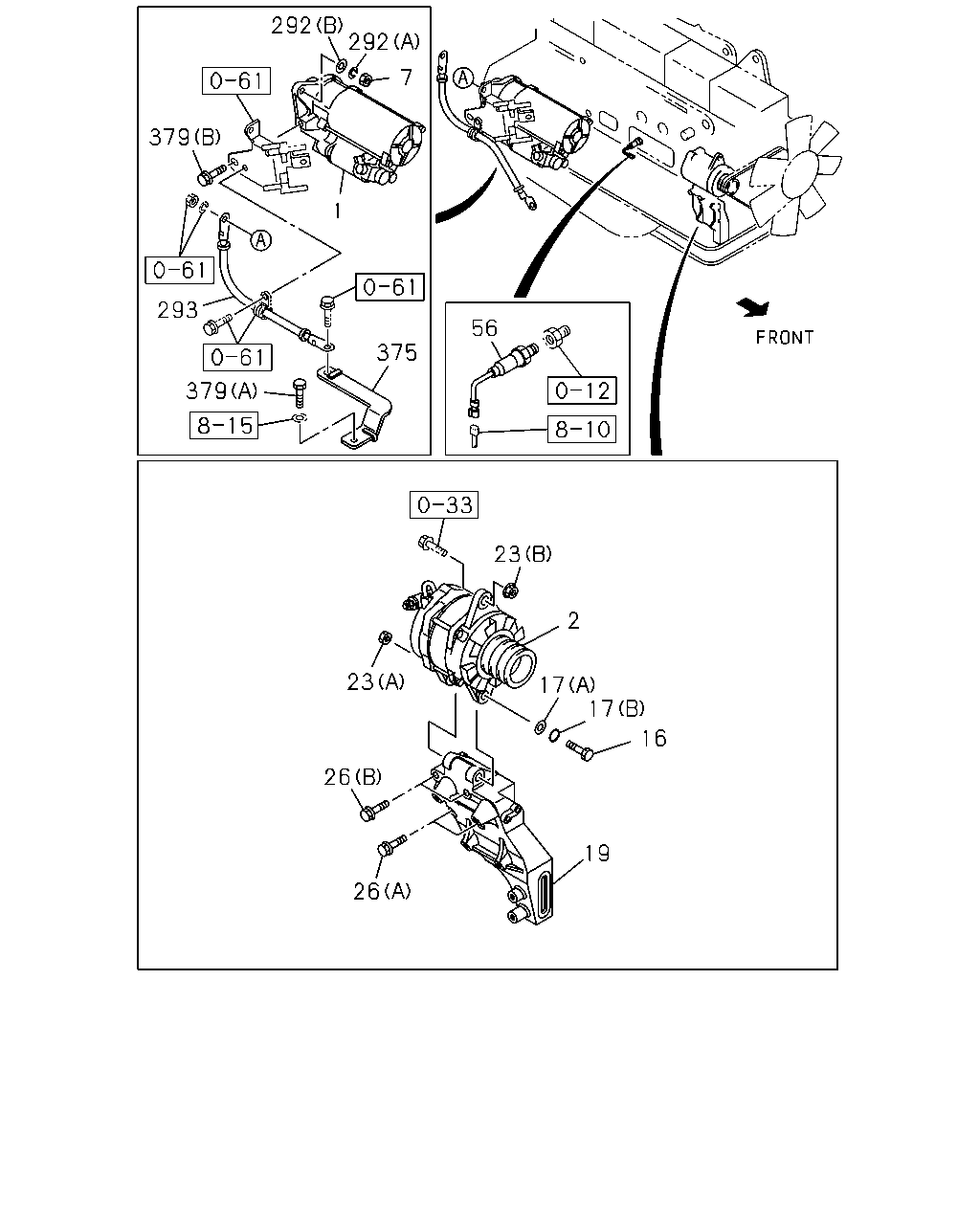

[060A] STARTER AND GENERATOR (24 parça)

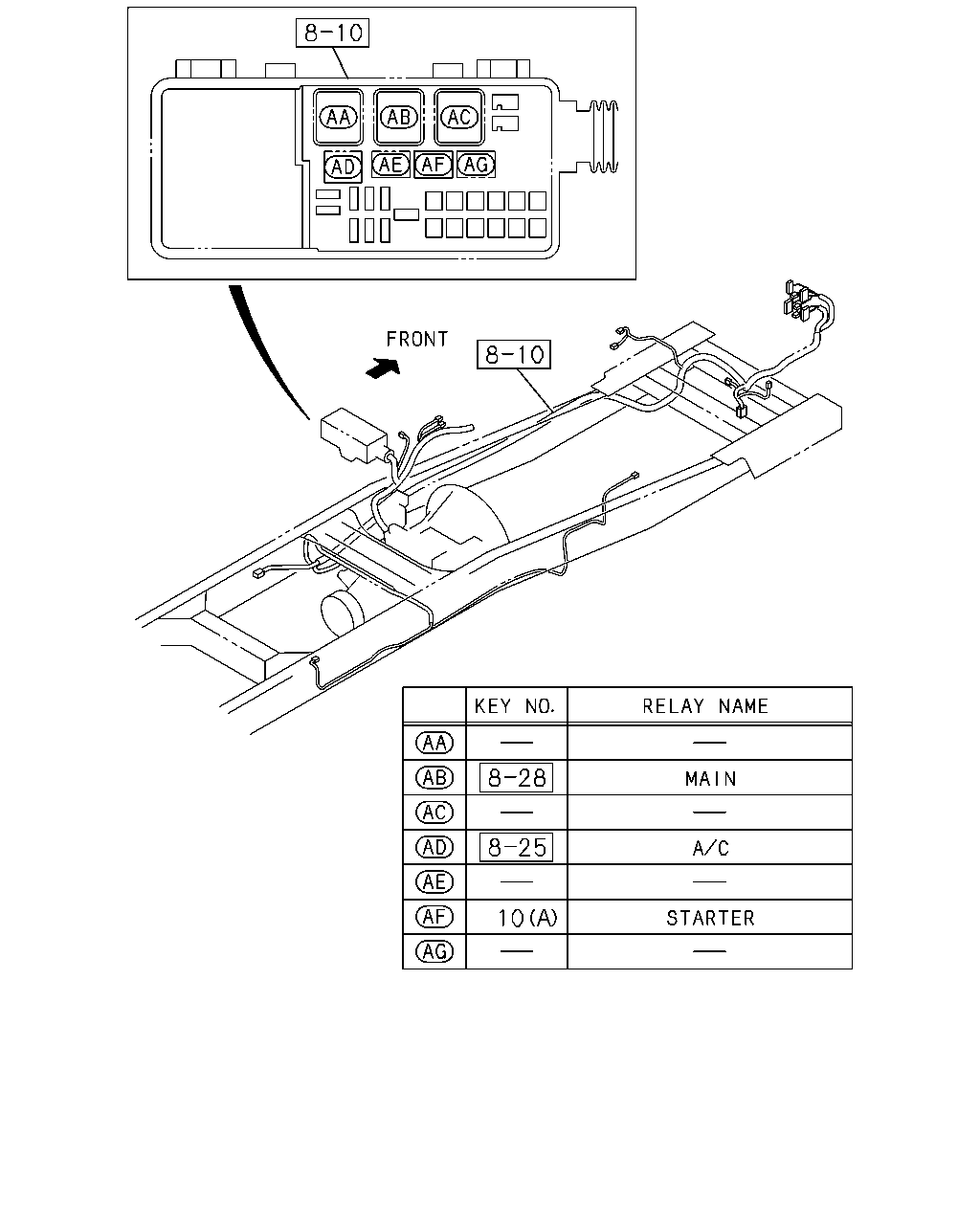

[060A] FRAME SIDE (2 parça)

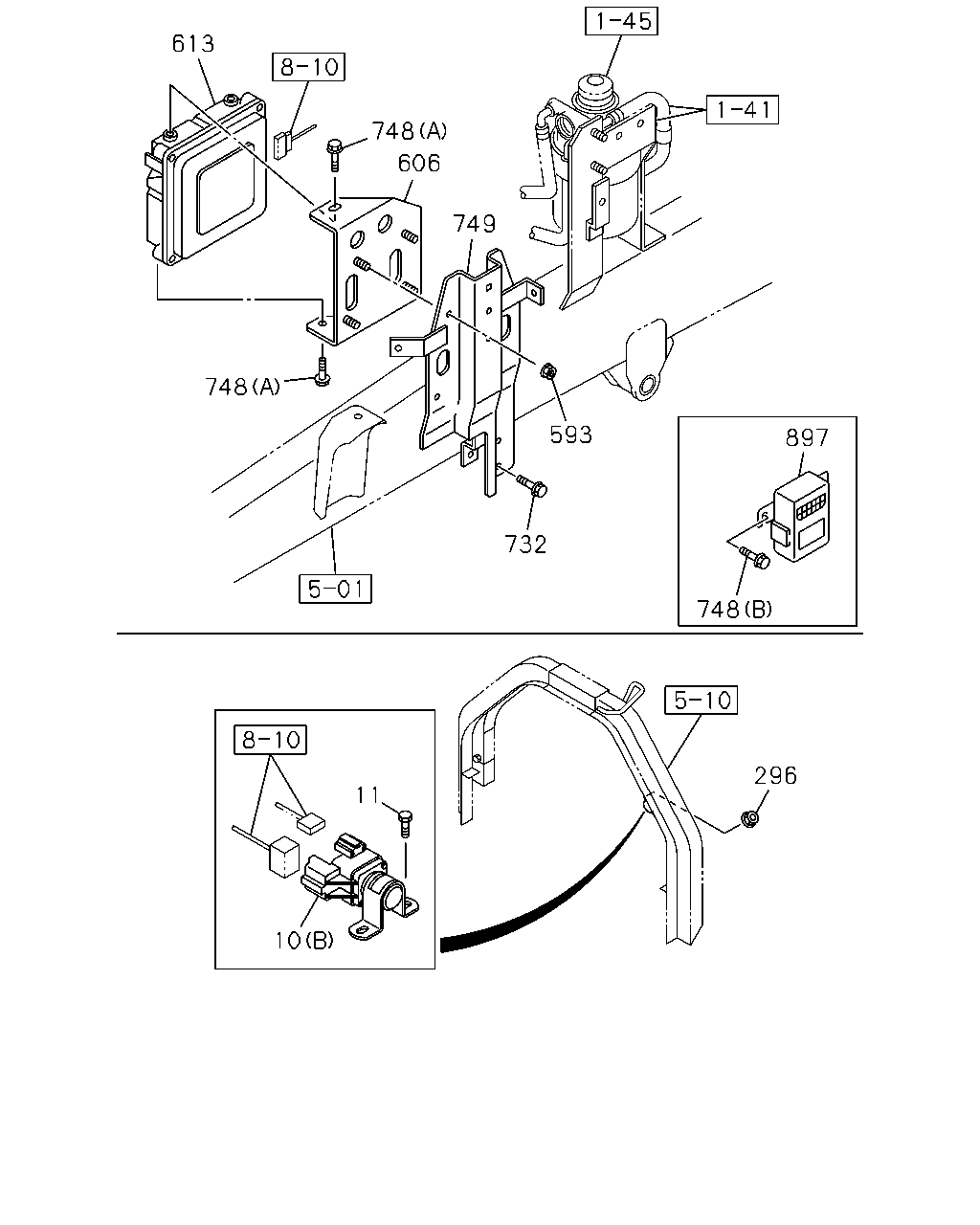

[060A] ENG CONTROL UNIT AND OTHER PARTS (14 parça)
▶
101
813
813
752
740
836
690
260
898
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; HARNESS
M8X40 FLANGE THA
0-28650-840-0
04
1
1304-
260
SENSOR; WATER TEMP
MITSUBISHI
8-98023-883-0
01
1
1304-
690
CONNECTOR
8-94390-858-1
02
1
1304-
740
NUT
M8 FLANGE THA
0-91180-108-0
02
1
1304-
752
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
02
1
1304-
813
HARNESS; INJECTOR
(A) FRONT
8-98204-717-0
01
1
1304-
813
HARNESS; INJECTOR
(B) REAR
8-98204-718-0
01
1
1304-
836
BOLT; CONNECTOR
M8X12 FLANGE THA
0-28050-812-0
02
1
1304-
898
SENSOR; BOOST
8-98009-418-0
01
1
1304-
379
293
379
375
1
7
292
292
56
23
2
17
17
16
23
26
26
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
8-98141-206-3
01
1
1304-1409
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
8-98261-669-0
01
1
1410-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A<K89> 24V 50A NIKKO
8-98013-461-3
01
1
1304-1402
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A<K89> 24V 50A NIKKO
8-98013-461-4
01
1
1403-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A<KG2> 24V 60A NIKKO
8-98013-462-3
01
1
1304-1402
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A<KG2> 24V 60A NIKKO
8-98013-462-4
01
1
1403-
7
NUT; STARTER
M14 THA
0-91110-514-0
02
1
1304-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
1304-
17
WASHER; PL,GEN
(B) ID=14.2
0-91510-514-0
01
1
1304-
17
WASHER; PL,GEN
(A) ID=15
0-91610-514-0
01
1
1304-
19
BRACKET; GEN
8-98082-615-1
01
1
1304-
23
NUT; GEN
(B) M12 FLANGE THA
0-91180-112-0
01
1
1304-
23
NUT; GEN
(A) M14 THA
0-91110-514-0
01
1
1304-
26
BOLT; GEN BRKT
(A) M10X40 FLANGE
0-28151-040-0
02
1
1304-
26
BOLT; GEN BRKT
(B) M10X80 FLANGE THA
0-28151-080-0
02
1
1304-1402
26
BOLT; GEN BRKT
(B) M10X80 FLANGE THA
0-28151-080-0
02
1
1403-
26
BOLT; GEN BRKT
(B) M10X80 FLANGE THA
0-28151-080-0
02
1
1403-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
1304-
292
WASHER; LK,STARTER
(B) ID=15
0-91610-514-0
01
1
1304-
292
WASHER; LK,STARTER
(A) ID=14.2
0-91510-514-0
01
1
1304-
293
CABLE; STARTER EARTH
L=420
8-98131-856-0
01
1
1304-
375
BRACKET
8-98131-726-0
01
1
1304-
379
BOLT; BRKT
(B) M10X20 FLANGE THA
0-28051-020-0
01
1
1304-
379
BOLT; BRKT
(A) M10X25 W/LK&PL WASHER
8-97087-205-0
01
1
1304-
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
1304-
10
RELAY; STARTER
(A) 24V 10A
8-98167-173-0
01
1
1304-
613
748
749
593
897
748
732
748
606
296
11
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
1304-
10
RELAY; STARTER
(A) 24V 10A
8-98167-173-0
01
1
1304-
11
BOLT; RELAY STARTER
M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
296
NUT; RELAY,STARTER
M8 FLANGE THA
0-91180-108-0
02
1
1304-
593
NUT; BRKT
M6 FLANGE THA
0-91180-106-0
04
1
1304-
606
BRACKET; CONT UNIT
1-53194-675-0
01
1
1304-
613
CONTROL UNIT; ENG
6HK1-TCS ENG<80L> THA
8-98225-398-1
01
1
1304-
613
CONTROL UNIT; ENG
6HK1-TCN ENG<82L> THA
8-98225-397-1
01
1
1304-
732
BOLT; BRKT
M10X30 FLANGE THA
0-28651-030-0
03
1
1304-
748
BOLT; CONT UNIT
(A) M6X12 FLANGE THA
0-28050-612-0
03
1
1304-
748
BOLT; CONT UNIT
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 FLANGE THA
0-28650-616-0
02
1
1304-
749
STAY; CONT UNIT
1-53194-595-3
01
1
1304-
897
DRM
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR>
8-98013-144-8
01
1
1304-1306
897
DRM
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> THA
8-97948-260-1
01
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
