Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11492 - FVZ(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#122001) — 31 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
◀

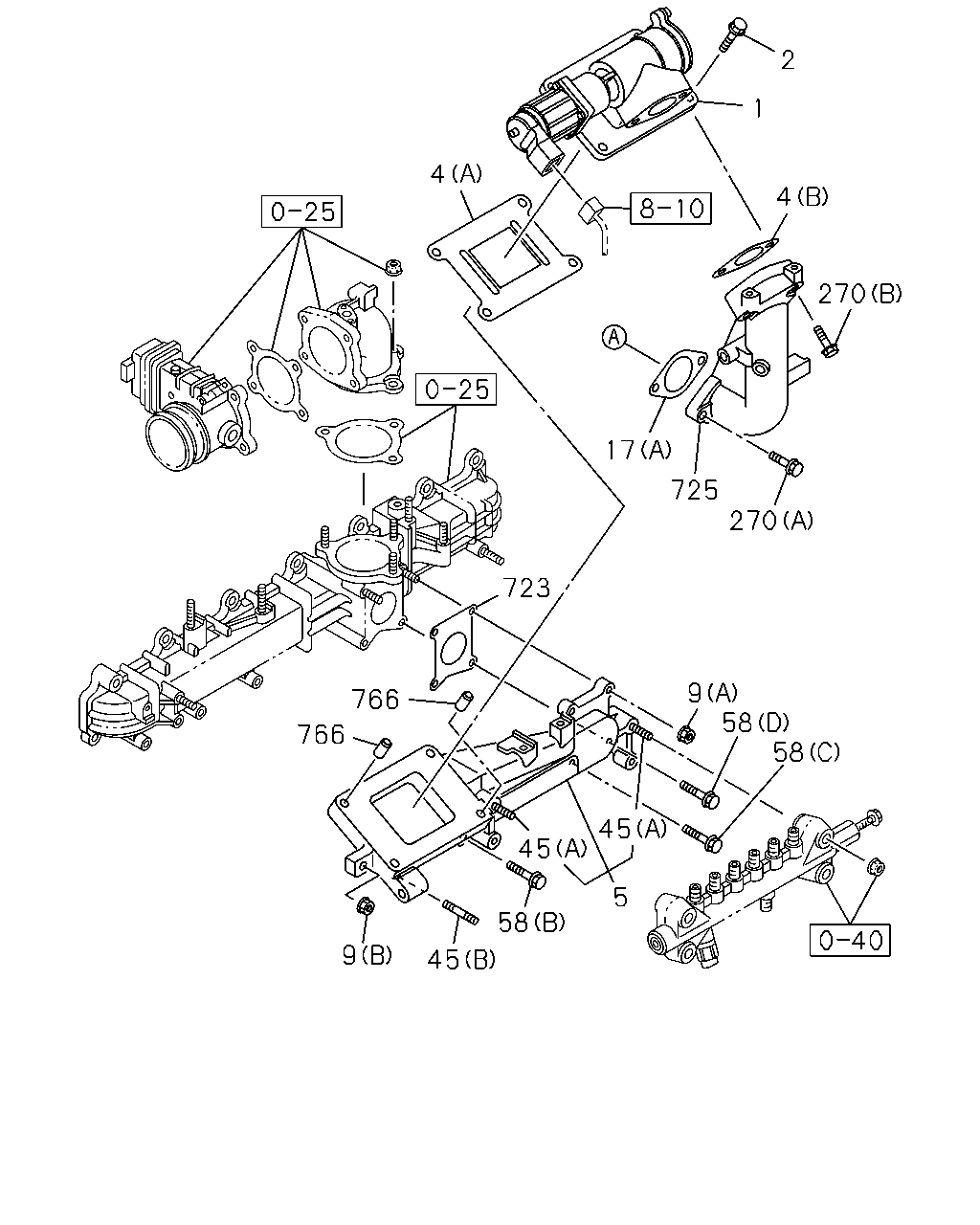

[057A] INLET MANIFOLD SIDE (22 parça)

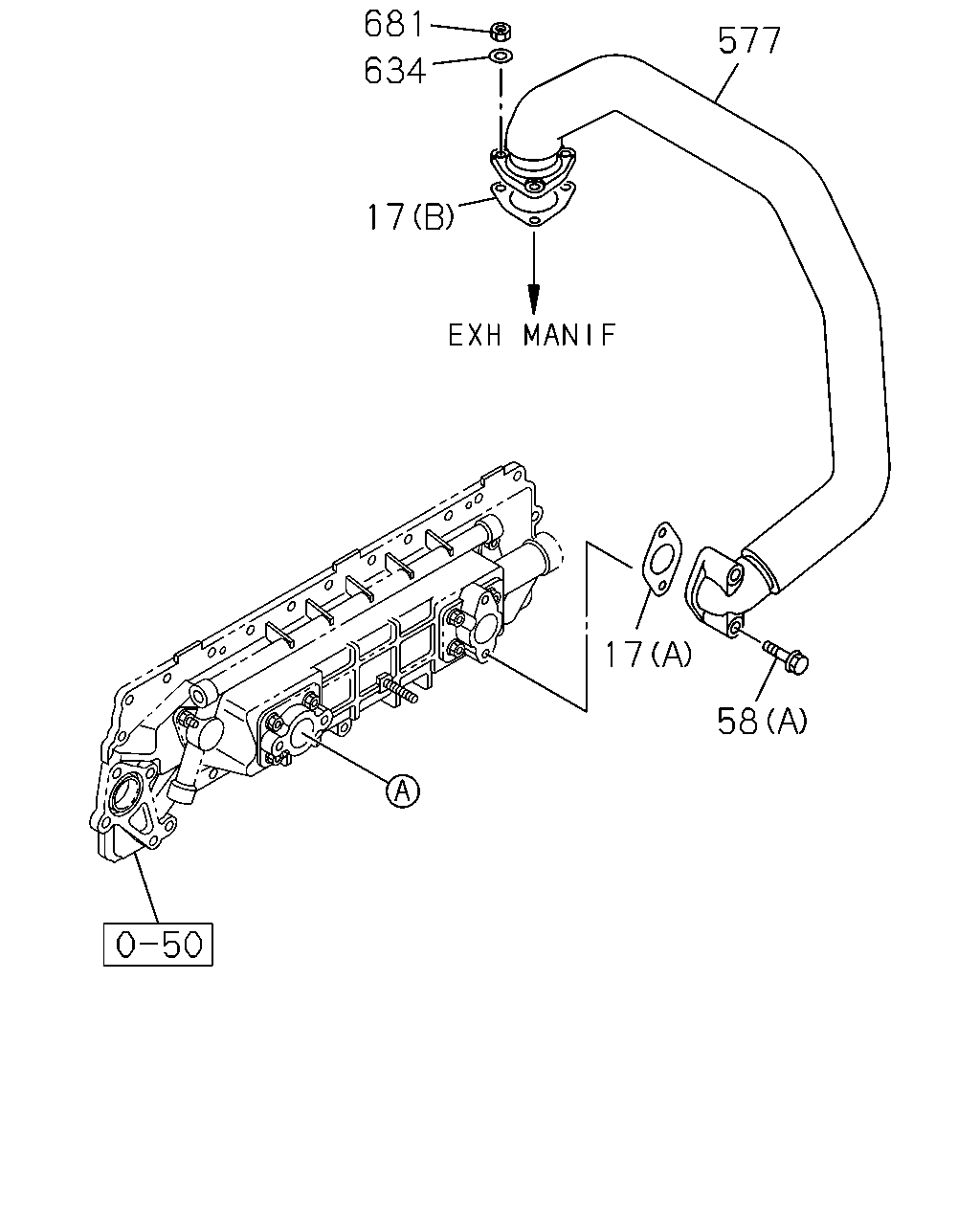

[057A] TURBOCHARGER SIDE (9 parça)
▶
58
58
9
45
45
5
58
45
9
766
766
723
17
725
270
270
4
1
2
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; EGR
8-97383-005-8
01
1
1304-
●
●
2
BOLT; EGR VLV
M10X35 FLANGE THA
0-28751-035-0
04
1
1304-
●
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97603-282-0
01
1
1304-
●
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97608-423-0
01
1
1304-
●
●
5
ADAPTER ASM
8-97606-201-3
01
1
1304-1305
●
●
5
ADAPTER ASM
8-98240-157-0
01
1
1306-
●
●
9
NUT; EGR ADAPTER
(A) M8 FLANGE THA
0-91180-108-0
02
1
1304-
●
●
9
NUT; EGR ADAPTER
(B) M10 FLANGE THA
0-91180-110-0
02
1
1304-
●
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97600-167-0
01
1
1304-
●
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97601-144-0
02
1
1304-
●
●
45
STUD; ADAPTER,EGR
(B) M10X30 L=45
0-44011-030-0
01
1
1304-
●
●
45
STUD; ADAPTER,EGR
(A) M10X50 L=65
0-44011-050-0
02
1
1304-
●
●
58
BOLT; PIPE
(A) M8X60 FLANGE THA
0-28050-860-0
02
1
1304-
●
●
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
01
1
1304-
●
●
58
BOLT; PIPE
(C) M8X30 FLANGE THA
0-28650-830-0
01
1
1304-
●
●
58
BOLT; PIPE
(D) M8X30 FLANGE
8-98034-764-0
01
1
1304-
●
●
270
BOLT
(A) M8X25 FLANGE THA
0-28050-825-0
02
1
1304-
●
●
270
BOLT
(B) M10X45 FLANGE THA
0-28151-045-0
02
1
1304-
●
●
723
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97605-995-0
01
1
1304-
●
●
725
DUCT; EGR VLV
8-97604-972-2
01
1
1304-1305
●
●
725
DUCT; EGR VLV
8-98240-120-0
01
1
1306-
●
●
766
DOWEL; EGR VLV
OD=14 L=10
9-11319-065-3
02
1
1304-
●
●
681
634
577
17
17
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97600-167-0
01
1
1304-
●
●
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97601-144-0
02
1
1304-
●
●
58
BOLT; PIPE
(A) M8X60 FLANGE THA
0-28050-860-0
02
1
1304-
●
●
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
01
1
1304-
●
●
58
BOLT; PIPE
(C) M8X30 FLANGE THA
0-28650-830-0
01
1
1304-
●
●
58
BOLT; PIPE
(D) M8X30 FLANGE
8-98034-764-0
01
1
1304-
●
●
577
PIPE; AIR,EGR
8-97603-452-2
01
1
1304-
●
●
634
WASHER; PL,EGR PIPE
ID=8.4 OD=16 THA
0-91610-508-0
03
1
1304-
●
●
681
NUT; EGR PIPE
M8
1-09400-118-1
03
1
1304-
●
●
