Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#1220) — 259 parça

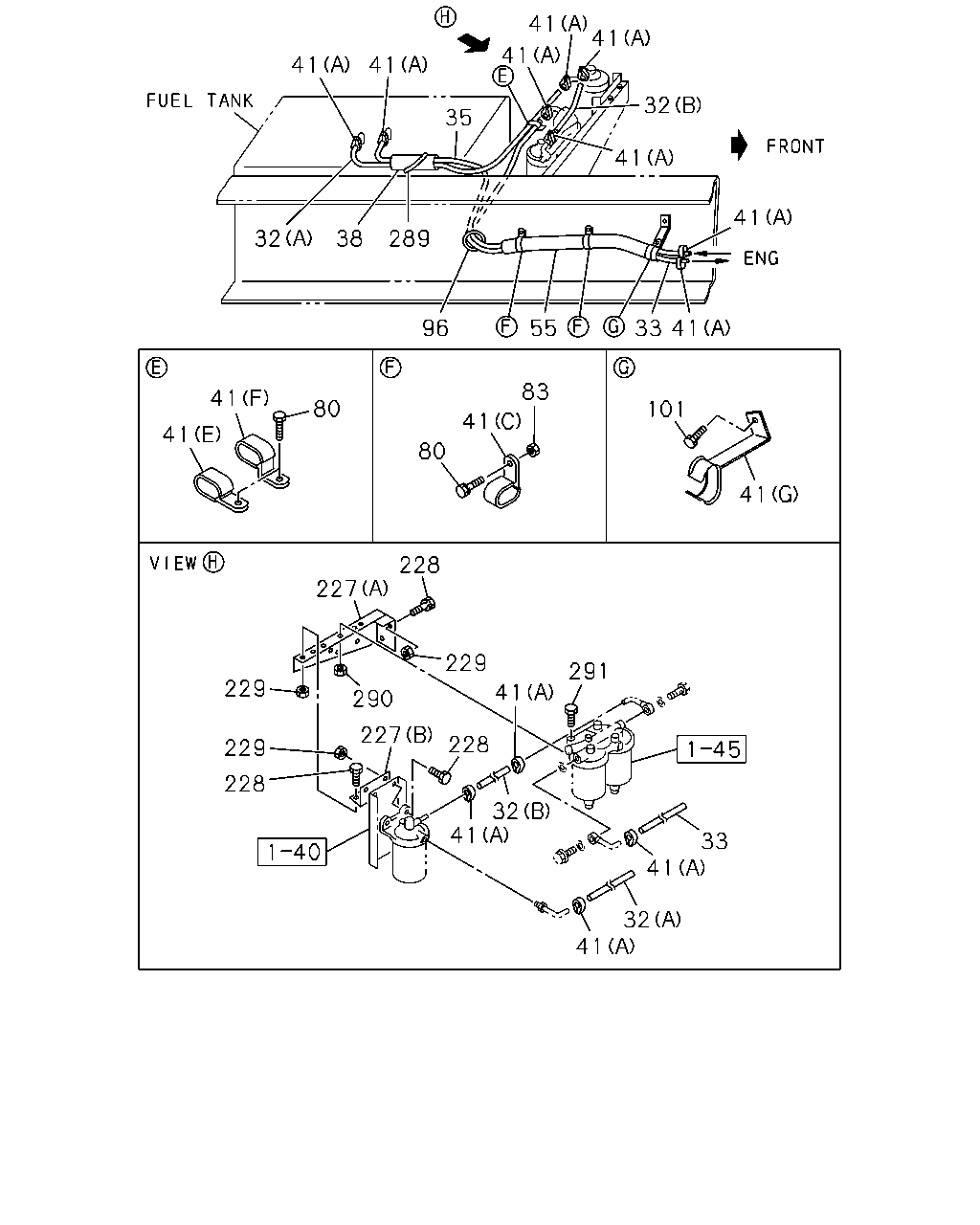

41 41 41 41 41 32 41 35 41 32 38 289 96 55 33 83 41 80 101 41 41 80 41 228 227 229 291 229 41 290 227 228 229 228 32 41 33 41 32 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(FVR6MC) (A) L=1050 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9205	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(FVR6MC) (A) L=1000 SERVICED BY L=10000	9-09914-701-0	01	1	9206-	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(FVR6MC) (B) L=400 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●
32	PIPE; DELIVERY,FUEL TANK MIDDLE CHASSIS(FVR6MF) (B) L=280 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=280 SERVICED BY L=10000	9-09914-701-0	01	1	9202-		●	●
32	PIPE; DELIVERY,FUEL TANK MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=800 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●
32	PIPE; DELIVERY,FUEL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=800 SERVICED BY L=10000	9-09914-701-0	01	1	9202-		●
32	PIPE; DELIVERY,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=850 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=970 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9202-			●
33	PIPE; VINYL,DELIVERY,PRE FILTER SHORT CHASSIS(FVR6MC) L=1930 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●
33	PIPE; VINYL,DELIVERY,PRE FILTER MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9205	●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9205			●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9206-			●
33	PIPE; VINYL,DELIVERY,PRE FILTER MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1350 SERVICED BY L=10000	9-09914-701-0	01	1	9206-	●
33	PIPE; VINYL,DELIVERY,PRE FILTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1350 SERVICED BY L=10000	9-09914-701-0	01	1	9206-		●
33	PIPE; VINYL,DELIVERY,PRE FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2200 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(FVR6MC) L=2410 SERVICED BY L=10000	1-09366-161-0	01	1	9202-	●
35	PIPE; FUEL TANK,RETURN MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1890 SERVICED BY L=10000	1-09366-161-0	01	1	9202-9205	●
35	PIPE; FUEL TANK,RETURN MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2050 SERVICED BY L=10000	1-09366-161-0	01	1	9206-	●
35	PIPE; FUEL TANK,RETURN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2050 SERVICED BY L=10000	1-09366-161-0	01	1	9206-		●
35	PIPE; FUEL TANK,RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2700 SERVICED BY L=10000	1-09366-161-0	01	1	9202-	●	●
35	PIPE; FUEL TANK,RETURN L=1700 SERVICED BY L=10000	1-09366-161-0	01	1	9202-			●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09369-006-1	01	1	9202-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=20	1-09700-781-1	03	1	9202-9211	●
41	CLIP; FUEL PIPE,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-09700-926-0	01	1	9202-9211	●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(FVR6MC) (E) ID=16X2 L=20	9-09535-535-0	01	1	9202-9209	●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(FVR6MC) (E) ID=16X2 L=20	9-09535-536-0	01	1	9210-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=16X2 L=20	9-09535-536-0	01	1	9210-			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15	9-09715-098-0	08	1	9202-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9202-9209			●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=25	1-09700-927-0	02	1	9202-			●
41	CLIP; FUEL PIPE,FUEL TANK (G)	1-15419-291-0	01	1	9202-			●
55	COVER; PIPE,FUEL TANK L=900	1-09360-622-1	01	1	9202-9211	●
55	COVER; PIPE,FUEL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=900	1-09360-622-1	01	1	9212-	●	●
55	COVER; PIPE,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1050	1-09360-184-1	01	1	9212-	●	●
55	COVER; PIPE,FUEL TANK L=800	1-09360-379-1	01	1	9202-			●
80	BOLT; CLIP,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	04	1	9202-9204	●
80	BOLT; CLIP,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	04	1	9205-9211	●
80	BOLT; CLIP,FUEL TANK SHORT CHASSIS(FVR6MC) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●
80	BOLT; CLIP,FUEL TANK SHORT CHASSIS(FVR6MC) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28010-816-0	01	1	9202-9204			●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28080-816-0	03	1	9205-			●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28010-825-0	03	1	9202-9204			●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28080-825-0	05	1	9205-			●
83	NUT; CLIP,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9202-9211	●
83	NUT; CLIP,FUEL TANK SHORT CHASSIS(FVR6MC) M8	9-09110-408-0	01	1	9202-	●
83	NUT; CLIP,FUEL TANK M8	9-09110-408-0	03	1	9202-			●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●
101	BOLT; CLIP,FUEL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9205-		●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(FVR6MC) M8X25 FLANGE	0-28080-825-0	04	1	9206-9210	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9211-9211	●
101	BOLT; CLIP,FUEL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	03	1	9212-	●	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-9205	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) M8X25 FLANGE	0-28080-825-0	03	1	9206-9210	●
101	BOLT; CLIP,FUEL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	06	1	9212-	●	●
101	BOLT; CLIP,FUEL PIPE M8X30 FLANGE	0-28080-830-0	01	1	9205-			●
227	BRACKET; FUEL SEDIMENTER SHORT CHASSIS(FVR6MC) (A)	1-22518-137-2	01	1	9202-	●
227	BRACKET; FUEL SEDIMENTER MIDDLE CHASSIS(FVR6MF) (A)	1-22518-106-1	01	1	9202-	●
227	BRACKET; FUEL SEDIMENTER (A)	1-22518-106-1	01	1	9202-		●
227	BRACKET; FUEL SEDIMENTER MIDDLE CHASSIS(FVR6MF) (B)	1-19755-108-1	01	1	9202-	●
227	BRACKET; FUEL SEDIMENTER (B)	1-19755-108-1	01	1	9202-		●	●
227	BRACKET; FUEL SEDIMENTER (A)	1-22518-124-1	01	1	9202-			●
228	BOLT; BRKT,SEDIMENTER SHORT CHASSIS(FVR6MC) M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-	●
228	BOLT; BRKT,SEDIMENTER MIDDLE CHASSIS(FVR6MF) M10X30 W/LK WASHER	0-50041-030-0	05	1	9202-9304	●
228	BOLT; BRKT,SEDIMENTER M10X30 W/LK WASHER	0-50041-030-0	05	1	9202-9304		●	●
228	BOLT; BRKT,SEDIMENTER MIDDLE CHASSIS(FVR6MF) M10X30 W/LK WASHER	0-50041-030-0	02	1	9305-	●
228	BOLT; BRKT,SEDIMENTER M10X30 W/LK WASHER	0-50041-030-0	02	1	9305-		●	●
228	BOLT; BRKT,SEDIMENTER MIDDLE CHASSIS(FVR6MF) M10X35 W/LK WASHER	0-50041-035-0	03	1	9305-	●
228	BOLT; BRKT,SEDIMENTER M10X35 W/LK WASHER	0-50041-035-0	03	1	9305-		●	●
228	BOLT; BRKT,SEDIMENTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9202-	●	●	●
229	NUT; BRKT,FUEL FILTER SHORT CHASSIS(FVR6MC) M10	9-09110-510-0	04	1	9202-	●
229	NUT; BRKT,FUEL FILTER MIDDLE CHASSIS(FVR6MF) M10	9-09110-510-0	05	1	9202-	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	05	1	9202-		●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9202-	●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-0	01	1	9202-	●	●	●
290	NUT; FILTER TO BRKT M10	9-09110-510-0	02	1	9202-	●	●	●
291	BOLT; FILER TO BRKT M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9202-	●	●	●

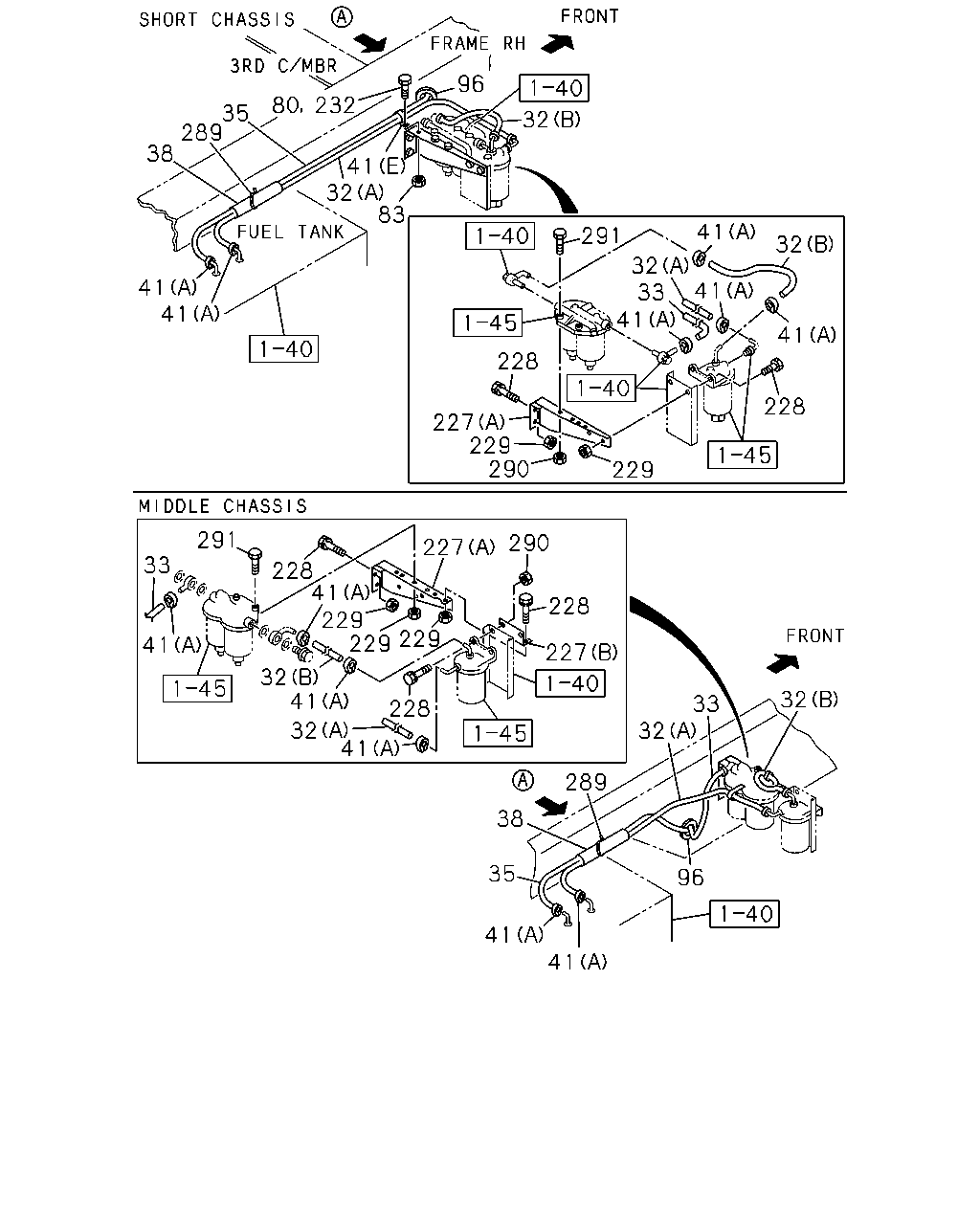

96 80 232 35 289 38 32 41 32 83 41 291 32 32 33 41 41 41 41 41 228 228 227 229 290 229 291 290 227 33 228 41 229 229 229 228 41 227 32 41 32 33 32 228 32 41 289 38 35 96 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(FVR6MC) (A) L=1050 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9205	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(FVR6MC) (A) L=1000 SERVICED BY L=10000	9-09914-701-0	01	1	9206-	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(FVR6MC) (B) L=400 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●
32	PIPE; DELIVERY,FUEL TANK MIDDLE CHASSIS(FVR6MF) (B) L=280 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=280 SERVICED BY L=10000	9-09914-701-0	01	1	9202-		●	●
32	PIPE; DELIVERY,FUEL TANK MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=800 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●
32	PIPE; DELIVERY,FUEL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=800 SERVICED BY L=10000	9-09914-701-0	01	1	9202-		●
32	PIPE; DELIVERY,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=850 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=970 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9202-			●
33	PIPE; VINYL,DELIVERY,PRE FILTER SHORT CHASSIS(FVR6MC) L=1930 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●
33	PIPE; VINYL,DELIVERY,PRE FILTER MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9205	●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9205			●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9206-			●
33	PIPE; VINYL,DELIVERY,PRE FILTER MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1350 SERVICED BY L=10000	9-09914-701-0	01	1	9206-	●
33	PIPE; VINYL,DELIVERY,PRE FILTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1350 SERVICED BY L=10000	9-09914-701-0	01	1	9206-		●
33	PIPE; VINYL,DELIVERY,PRE FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2200 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(FVR6MC) L=2410 SERVICED BY L=10000	1-09366-161-0	01	1	9202-	●
35	PIPE; FUEL TANK,RETURN MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1890 SERVICED BY L=10000	1-09366-161-0	01	1	9202-9205	●
35	PIPE; FUEL TANK,RETURN MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2050 SERVICED BY L=10000	1-09366-161-0	01	1	9206-	●
35	PIPE; FUEL TANK,RETURN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2050 SERVICED BY L=10000	1-09366-161-0	01	1	9206-		●
35	PIPE; FUEL TANK,RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2700 SERVICED BY L=10000	1-09366-161-0	01	1	9202-	●	●
35	PIPE; FUEL TANK,RETURN L=1700 SERVICED BY L=10000	1-09366-161-0	01	1	9202-			●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09369-006-1	01	1	9202-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=20	1-09700-781-1	03	1	9202-9211	●
41	CLIP; FUEL PIPE,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-09700-926-0	01	1	9202-9211	●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(FVR6MC) (E) ID=16X2 L=20	9-09535-535-0	01	1	9202-9209	●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(FVR6MC) (E) ID=16X2 L=20	9-09535-536-0	01	1	9210-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=16X2 L=20	9-09535-536-0	01	1	9210-			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15	9-09715-098-0	08	1	9202-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9202-9209			●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=25	1-09700-927-0	02	1	9202-			●
41	CLIP; FUEL PIPE,FUEL TANK (G)	1-15419-291-0	01	1	9202-			●
80	BOLT; CLIP,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	04	1	9202-9204	●
80	BOLT; CLIP,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	04	1	9205-9211	●
80	BOLT; CLIP,FUEL TANK SHORT CHASSIS(FVR6MC) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●
80	BOLT; CLIP,FUEL TANK SHORT CHASSIS(FVR6MC) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28010-816-0	01	1	9202-9204			●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28080-816-0	03	1	9205-			●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28010-825-0	03	1	9202-9204			●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28080-825-0	05	1	9205-			●
83	NUT; CLIP,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9202-9211	●
83	NUT; CLIP,FUEL TANK SHORT CHASSIS(FVR6MC) M8	9-09110-408-0	01	1	9202-	●
83	NUT; CLIP,FUEL TANK M8	9-09110-408-0	03	1	9202-			●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●	●	●
227	BRACKET; FUEL SEDIMENTER SHORT CHASSIS(FVR6MC) (A)	1-22518-137-2	01	1	9202-	●
227	BRACKET; FUEL SEDIMENTER MIDDLE CHASSIS(FVR6MF) (A)	1-22518-106-1	01	1	9202-	●
227	BRACKET; FUEL SEDIMENTER (A)	1-22518-106-1	01	1	9202-		●
227	BRACKET; FUEL SEDIMENTER MIDDLE CHASSIS(FVR6MF) (B)	1-19755-108-1	01	1	9202-	●
227	BRACKET; FUEL SEDIMENTER (B)	1-19755-108-1	01	1	9202-		●	●
227	BRACKET; FUEL SEDIMENTER (A)	1-22518-124-1	01	1	9202-			●
228	BOLT; BRKT,SEDIMENTER SHORT CHASSIS(FVR6MC) M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-	●
228	BOLT; BRKT,SEDIMENTER MIDDLE CHASSIS(FVR6MF) M10X30 W/LK WASHER	0-50041-030-0	05	1	9202-9304	●
228	BOLT; BRKT,SEDIMENTER M10X30 W/LK WASHER	0-50041-030-0	05	1	9202-9304		●	●
228	BOLT; BRKT,SEDIMENTER MIDDLE CHASSIS(FVR6MF) M10X30 W/LK WASHER	0-50041-030-0	02	1	9305-	●
228	BOLT; BRKT,SEDIMENTER M10X30 W/LK WASHER	0-50041-030-0	02	1	9305-		●	●
228	BOLT; BRKT,SEDIMENTER MIDDLE CHASSIS(FVR6MF) M10X35 W/LK WASHER	0-50041-035-0	03	1	9305-	●
228	BOLT; BRKT,SEDIMENTER M10X35 W/LK WASHER	0-50041-035-0	03	1	9305-		●	●
228	BOLT; BRKT,SEDIMENTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9202-	●	●	●
229	NUT; BRKT,FUEL FILTER SHORT CHASSIS(FVR6MC) M10	9-09110-510-0	04	1	9202-	●
229	NUT; BRKT,FUEL FILTER MIDDLE CHASSIS(FVR6MF) M10	9-09110-510-0	05	1	9202-	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	05	1	9202-		●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9202-	●	●	●
232	BOLT; CLIP,PIPE SHORT CHASSIS(FVR6MC) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-0	01	1	9202-	●	●	●
290	NUT; FILTER TO BRKT M10	9-09110-510-0	02	1	9202-	●	●	●
291	BOLT; FILER TO BRKT M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9202-	●	●	●

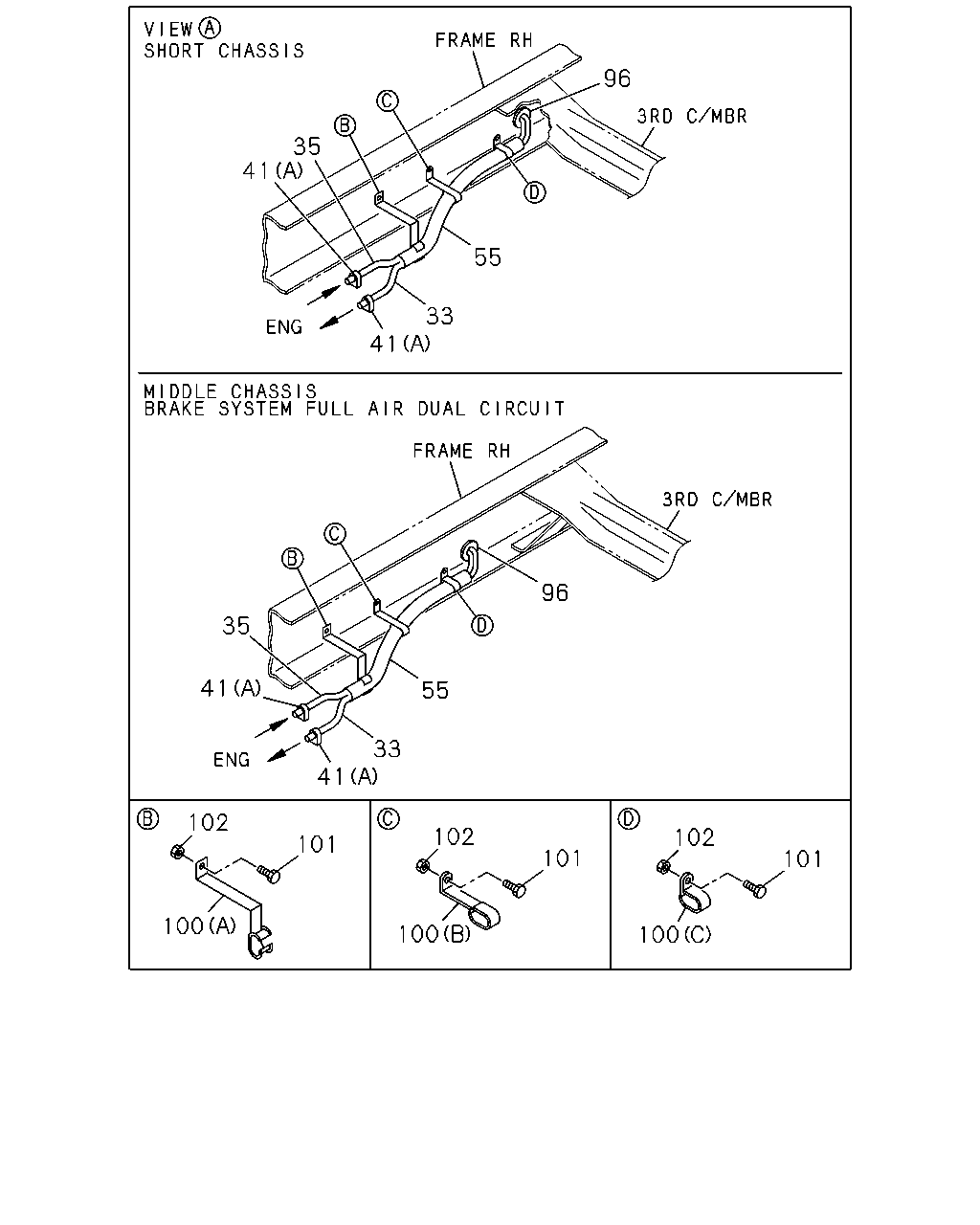

80 83 80 41 96 83 101 100 102 41 55 35 41 80 80 83 33 83 41 100 100 102 101 100 96 35 41 55 101 102 33 100 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	PIPE; VINYL,DELIVERY,PRE FILTER SHORT CHASSIS(FVR6MC) L=1930 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●
33	PIPE; VINYL,DELIVERY,PRE FILTER MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9205	●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9205			●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9206-			●
33	PIPE; VINYL,DELIVERY,PRE FILTER MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1350 SERVICED BY L=10000	9-09914-701-0	01	1	9206-	●
33	PIPE; VINYL,DELIVERY,PRE FILTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1350 SERVICED BY L=10000	9-09914-701-0	01	1	9206-		●
33	PIPE; VINYL,DELIVERY,PRE FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2200 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(FVR6MC) L=2410 SERVICED BY L=10000	1-09366-161-0	01	1	9202-	●
35	PIPE; FUEL TANK,RETURN MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1890 SERVICED BY L=10000	1-09366-161-0	01	1	9202-9205	●
35	PIPE; FUEL TANK,RETURN MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2050 SERVICED BY L=10000	1-09366-161-0	01	1	9206-	●
35	PIPE; FUEL TANK,RETURN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2050 SERVICED BY L=10000	1-09366-161-0	01	1	9206-		●
35	PIPE; FUEL TANK,RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2700 SERVICED BY L=10000	1-09366-161-0	01	1	9202-	●	●
35	PIPE; FUEL TANK,RETURN L=1700 SERVICED BY L=10000	1-09366-161-0	01	1	9202-			●
41	CLIP; FUEL PIPE,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=20	1-09700-781-1	03	1	9202-9211	●
41	CLIP; FUEL PIPE,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-09700-926-0	01	1	9202-9211	●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(FVR6MC) (E) ID=16X2 L=20	9-09535-535-0	01	1	9202-9209	●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(FVR6MC) (E) ID=16X2 L=20	9-09535-536-0	01	1	9210-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=16X2 L=20	9-09535-536-0	01	1	9210-			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15	9-09715-098-0	08	1	9202-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9202-9209			●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=25	1-09700-927-0	02	1	9202-			●
41	CLIP; FUEL PIPE,FUEL TANK (G)	1-15419-291-0	01	1	9202-			●
55	COVER; PIPE,FUEL TANK L=900	1-09360-622-1	01	1	9202-9211	●
55	COVER; PIPE,FUEL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=900	1-09360-622-1	01	1	9212-	●	●
55	COVER; PIPE,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1050	1-09360-184-1	01	1	9212-	●	●
55	COVER; PIPE,FUEL TANK L=800	1-09360-379-1	01	1	9202-			●
80	BOLT; CLIP,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	04	1	9202-9204	●
80	BOLT; CLIP,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	04	1	9205-9211	●
80	BOLT; CLIP,FUEL TANK SHORT CHASSIS(FVR6MC) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●
80	BOLT; CLIP,FUEL TANK SHORT CHASSIS(FVR6MC) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28010-816-0	01	1	9202-9204			●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28080-816-0	03	1	9205-			●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28010-825-0	03	1	9202-9204			●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28080-825-0	05	1	9205-			●
83	NUT; CLIP,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9202-9211	●
83	NUT; CLIP,FUEL TANK SHORT CHASSIS(FVR6MC) M8	9-09110-408-0	01	1	9202-	●
83	NUT; CLIP,FUEL TANK M8	9-09110-408-0	03	1	9202-			●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●	●	●
100	CLIP; FUEL PIPE (A)	1-15419-210-1	01	1	9202-9205	●
100	CLIP; FUEL PIPE (C) L=25	1-09700-927-0	02	1	9206-9211	●
100	CLIP; FUEL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=25	1-09700-927-0	02	1	9212-	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(FVR6MC) (C) L=25	1-09700-927-0	01	1	9202-9205	●
100	CLIP; FUEL PIPE MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=25	1-09700-927-0	01	1	9202-9205	●
100	CLIP; FUEL PIPE MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=25	1-09700-927-0	02	1	9202-9205	●
100	CLIP; FUEL PIPE (B)	1-09700-926-0	01	1	9202-	●	●
100	CLIP; FUEL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=25	1-09700-927-0	05	1	9212-	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●
101	BOLT; CLIP,FUEL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9205-		●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(FVR6MC) M8X25 FLANGE	0-28080-825-0	04	1	9206-9210	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9211-9211	●
101	BOLT; CLIP,FUEL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	03	1	9212-	●	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-9205	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) M8X25 FLANGE	0-28080-825-0	03	1	9206-9210	●
101	BOLT; CLIP,FUEL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	06	1	9212-	●	●
101	BOLT; CLIP,FUEL PIPE M8X30 FLANGE	0-28080-830-0	01	1	9205-			●
102	NUT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) M8	9-09110-408-0	03	1	9202-9205	●
102	NUT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) M8	9-09110-408-0	02	1	9206-9210	●
102	NUT; CLIP,FUEL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	03	1	9211-9211	●
102	NUT; CLIP,FUEL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	06	1	9212-	●	●
102	NUT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9202-9205	●

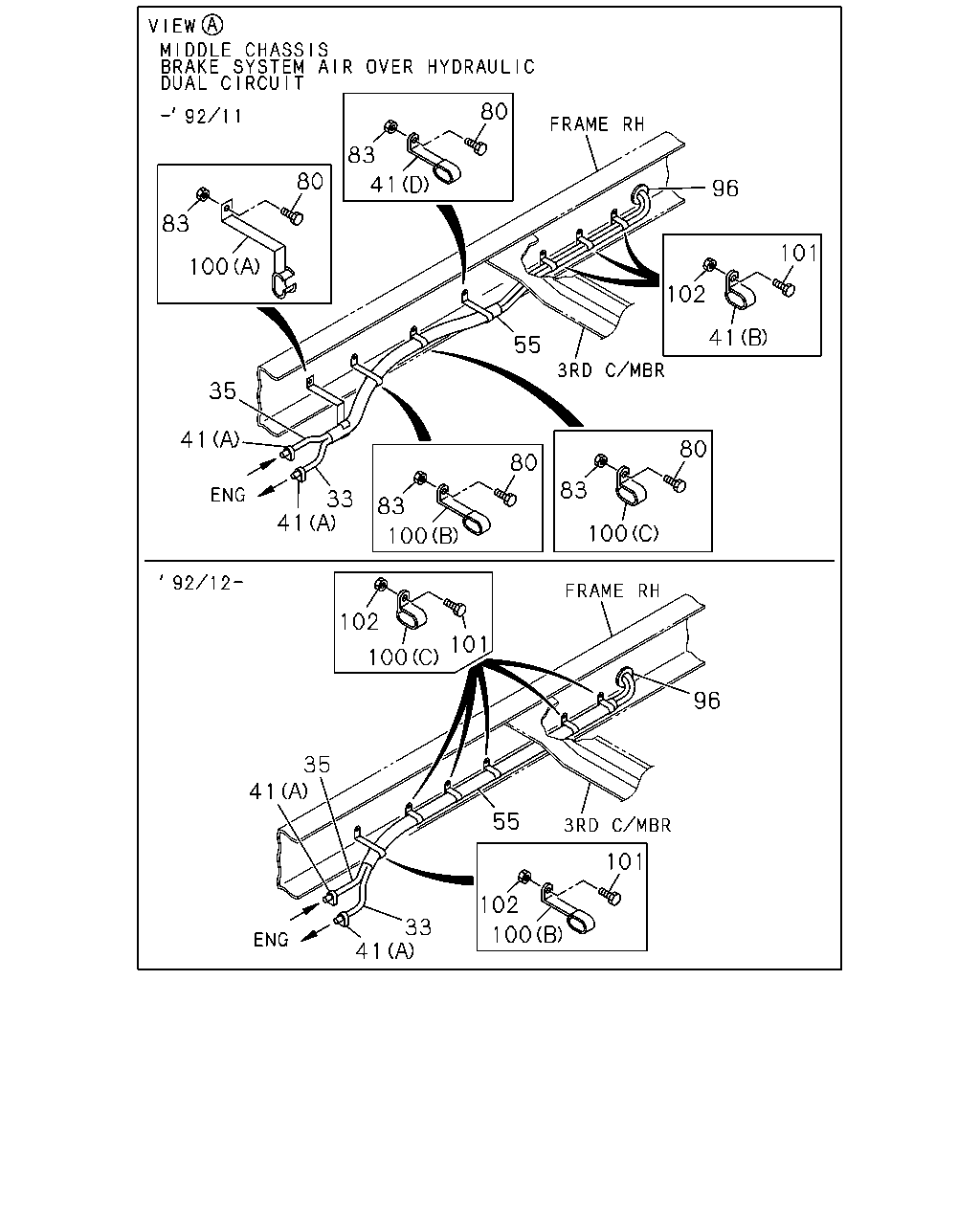

96 35 41 55 33 41 96 35 41 55 33 41 102 102 102 101 101 101 100 100 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	PIPE; VINYL,DELIVERY,PRE FILTER SHORT CHASSIS(FVR6MC) L=1930 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●
33	PIPE; VINYL,DELIVERY,PRE FILTER MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9205	●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9205			●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9206-			●
33	PIPE; VINYL,DELIVERY,PRE FILTER MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1350 SERVICED BY L=10000	9-09914-701-0	01	1	9206-	●
33	PIPE; VINYL,DELIVERY,PRE FILTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1350 SERVICED BY L=10000	9-09914-701-0	01	1	9206-		●
33	PIPE; VINYL,DELIVERY,PRE FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2200 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(FVR6MC) L=2410 SERVICED BY L=10000	1-09366-161-0	01	1	9202-	●
35	PIPE; FUEL TANK,RETURN MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1890 SERVICED BY L=10000	1-09366-161-0	01	1	9202-9205	●
35	PIPE; FUEL TANK,RETURN MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2050 SERVICED BY L=10000	1-09366-161-0	01	1	9206-	●
35	PIPE; FUEL TANK,RETURN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2050 SERVICED BY L=10000	1-09366-161-0	01	1	9206-		●
35	PIPE; FUEL TANK,RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2700 SERVICED BY L=10000	1-09366-161-0	01	1	9202-	●	●
35	PIPE; FUEL TANK,RETURN L=1700 SERVICED BY L=10000	1-09366-161-0	01	1	9202-			●
41	CLIP; FUEL PIPE,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=20	1-09700-781-1	03	1	9202-9211	●
41	CLIP; FUEL PIPE,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-09700-926-0	01	1	9202-9211	●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(FVR6MC) (E) ID=16X2 L=20	9-09535-535-0	01	1	9202-9209	●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(FVR6MC) (E) ID=16X2 L=20	9-09535-536-0	01	1	9210-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=16X2 L=20	9-09535-536-0	01	1	9210-			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15	9-09715-098-0	08	1	9202-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9202-9209			●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=25	1-09700-927-0	02	1	9202-			●
41	CLIP; FUEL PIPE,FUEL TANK (G)	1-15419-291-0	01	1	9202-			●
55	COVER; PIPE,FUEL TANK L=900	1-09360-622-1	01	1	9202-9211	●
55	COVER; PIPE,FUEL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=900	1-09360-622-1	01	1	9212-	●	●
55	COVER; PIPE,FUEL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1050	1-09360-184-1	01	1	9212-	●	●
55	COVER; PIPE,FUEL TANK L=800	1-09360-379-1	01	1	9202-			●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●	●	●
100	CLIP; FUEL PIPE (A)	1-15419-210-1	01	1	9202-9205	●
100	CLIP; FUEL PIPE (C) L=25	1-09700-927-0	02	1	9206-9211	●
100	CLIP; FUEL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=25	1-09700-927-0	02	1	9212-	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(FVR6MC) (C) L=25	1-09700-927-0	01	1	9202-9205	●
100	CLIP; FUEL PIPE MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=25	1-09700-927-0	01	1	9202-9205	●
100	CLIP; FUEL PIPE MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=25	1-09700-927-0	02	1	9202-9205	●
100	CLIP; FUEL PIPE (B)	1-09700-926-0	01	1	9202-	●	●
100	CLIP; FUEL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=25	1-09700-927-0	05	1	9212-	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●
101	BOLT; CLIP,FUEL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9205-		●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(FVR6MC) M8X25 FLANGE	0-28080-825-0	04	1	9206-9210	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9211-9211	●
101	BOLT; CLIP,FUEL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	03	1	9212-	●	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-9205	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) M8X25 FLANGE	0-28080-825-0	03	1	9206-9210	●
101	BOLT; CLIP,FUEL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	06	1	9212-	●	●
101	BOLT; CLIP,FUEL PIPE M8X30 FLANGE	0-28080-830-0	01	1	9205-			●
102	NUT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) M8	9-09110-408-0	03	1	9202-9205	●
102	NUT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) M8	9-09110-408-0	02	1	9206-9210	●
102	NUT; CLIP,FUEL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	03	1	9211-9211	●
102	NUT; CLIP,FUEL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	06	1	9212-	●	●
102	NUT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9202-9205	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
