Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11492 - FVZ(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶

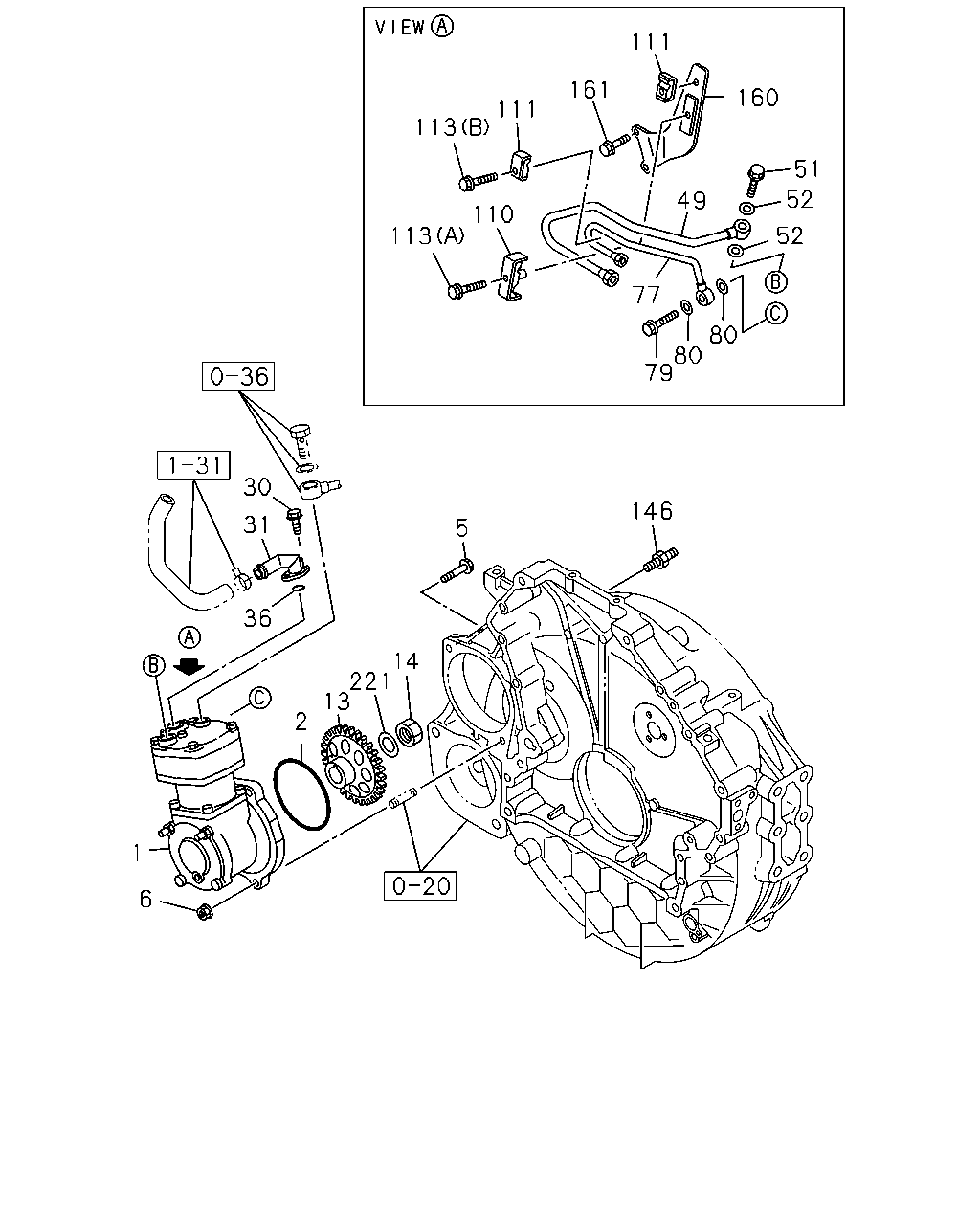

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#121994) — 23 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
146
5
14
221
13
2
1
6
36
31
30
79
80
80
52
52
51
160
49
77
110
113
113
111
161
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98187-301-0
01
1
1304-
●
●
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6
1-09623-570-0
01
1
1304-
●
●
5
BOLT; AIR CMPR FIX
M12X70 FLANGE
0-28151-270-0
02
1
1304-
●
●
6
NUT; AIR CMPR
M12 FLANGE THA
0-91180-212-0
01
1
1304-
●
●
13
GEAR; AIR CMPR DRIVE
Z=49
8-94394-511-4
01
1
1304-
●
●
14
NUT; GEAR
M20
0-91110-520-0
01
1
1304-
●
●
30
BOLT; PIPE CLIP
M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
●
●
31
PIPE; AIR,AIR CMPR SUCTION
8-97620-948-0
01
1
1304-
●
●
36
GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
1304-
●
●
49
PIPE; AIR,CHARGE
8-97618-723-0
01
1
1304-
●
●
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-2
01
1
1304-
●
●
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
1304-
●
●
77
PIPE; AIR,GOV
8-97618-725-0
01
1
1304-
●
●
79
BOLT; EYE,AIR PIPE TO CMPR
M10X23
8-98037-824-0
01
1
1304-
●
●
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2
1-09630-083-0
02
1
1304-
●
●
110
CLIP; AIR PIPE
8-94393-037-0
01
1
1304-
●
●
111
CLIP; AIR PIPE
8-98029-953-1
02
1
1304-
●
●
113
BOLT; CLIP,AIR PIPE
(A) M6X40 FLANGE
0-28050-640-0
01
1
1304-
●
●
113
BOLT; CLIP,AIR PIPE
(B) M6X40 FLANGE
0-28650-640-0
01
1
1304-
●
●
146
STUD; AIR CMPR
M10X16,M12X70 L=97.7
1-09049-038-1
01
1
1304-
●
●
160
BRACKET; AIR PIPE
8-98074-255-0
01
1
1304-
●
●
161
BOLT; BRKT,AIR PIPE
M8X16 FLANGE THA
0-28050-816-0
02
1
1304-
●
●
221
WASHER; PL,GEAR
ID=21
0-91610-520-0
01
1
1304-
●
●
