Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11492 - FVZ(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#121992) — 40 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
◀

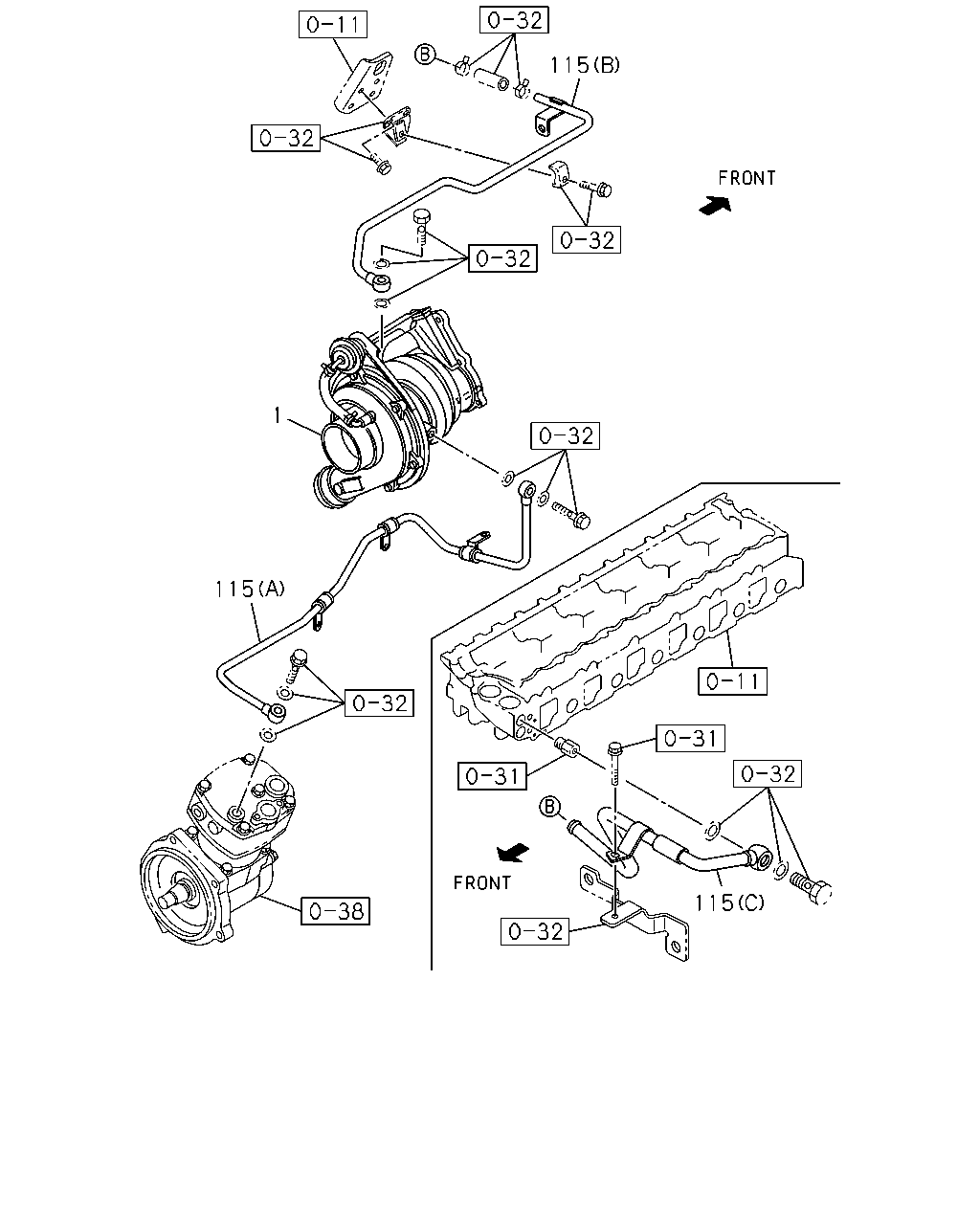

[036A] PIPING;WATER PIPE (4 parça)
[036A] FIXING;TURBOCHARGER (36 parça)
▶
115
1
115
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97602-926-2
01
1
1304-
●
●
115
PIPE; WATER,TURBOCHARGER OUT
(B)
8-94392-950-0
01
1
1304-
●
●
115
PIPE; WATER,TURBOCHARGER OUT
(C)
8-94395-454-4
01
1
1304-
●
●
115
PIPE; WATER,TURBOCHARGER OUT
(A)
8-97618-807-0
01
1
1304-
●
●
2
12
212
10
11
212
11
12
1
13
94
17
122
17
162
275
217
265
275
217
162
17
16
388
20
20
79
79
398
398
20
398
398
488
398
398
92
92
143
143
98
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97602-926-2
01
1
1304-
●
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-044-0
01
1
1304-
●
●
10
WASHER; LK,TURBOCHARGER
T=2.2
1-09556-015-0
02
1
1304-
●
●
11
NUT; TURBOCHARGER
M10
1-09420-005-0
04
1
1304-
●
●
12
STUD; TURBOCHARGER
(A)
9-04130-825-0
01
1
1304-
●
●
12
STUD; TURBOCHARGER
(B)
9-04731-080-0
02
1
1304-
●
●
13
STUD; EXH PIPE
M12X103 L=123
8-94394-656-0
01
1
1304-
●
●
16
ADAPTER; EXH PIPE
8-94395-767-0
01
1
1304-
●
●
17
WASHER; PL,ADAPTER
T=1.9
5-09500-012-0
06
1
1304-
●
●
20
PIPE; INL,TURBOCHARGER OUT
(A)
8-97606-675-1
01
1
1304-
●
●
20
PIPE; INL,TURBOCHARGER OUT
(B)
8-97618-726-2
01
1
1304-1408
●
●
20
PIPE; INL,TURBOCHARGER OUT
(B)
8-98251-577-0
01
1
1409-
●
●
20
PIPE; INL,TURBOCHARGER OUT
(C)
8-97618-734-0
01
1
1304-
●
●
28
PROTECTOR; HEAT,HOSE,AIR DUCT
8-94393-182-0
01
1
1304-
●
●
79
CLIP; RUBBER HOSE
ID=58-79
1-09707-136-0
02
1
1304-
●
●
92
BOLT; INL PIPE
(B) M8X35 FLANGE THA
0-28650-835-0
01
1
1304-
●
●
92
BOLT; INL PIPE
(A) M8X40 FLANGE THA
0-28650-840-0
01
1
1304-
●
●
94
GASKET; INL PIPE
8-98053-830-0
01
1
1304-1402
●
●
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-797-1
01
1
1304-1408
●
●
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-98245-240-0
01
1
1409-
●
●
122
NUT; ADAPTER
M8
1-09400-118-1
01
1
1304-
●
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79
8-94126-771-0
02
1
1304-
●
●
162
BOLT; ADAPTER
M8X57
5-09000-275-0
05
1
1304-
●
●
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
1304-
●
●
217
BOLT; BRKT
M12X30
8-94394-324-0
03
1
1304-
●
●
265
BRACKET; EXH PIPE
8-94395-764-2
01
1
1304-
●
●
275
WASHER; PL
ID=12.2
1-09503-008-0
03
1
1304-
●
●
388
GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94394-248-2
01
1
1304-
●
●
398
MOUNTING
(F)
8-94160-177-0
01
1
1304-
●
●
398
MOUNTING
(C)
8-94390-551-1
01
1
1304-
●
●
398
MOUNTING
(D)
8-94394-504-0
01
1
1304-
●
●
398
MOUNTING
(E)
8-94394-529-0
01
1
1304-
●
●
398
MOUNTING
(A)
8-94395-766-0
01
1
1304-
●
●
398
MOUNTING
(B) OD=23
8-97105-689-6
01
1
1304-
●
●
488
HOSE; RUBBER
1-09360-797-1
01
1
1304-1408
●
●
488
HOSE; RUBBER
8-98245-240-0
01
1
1409-
●
●
