◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11491 - FVM(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#121969) — 19 parça

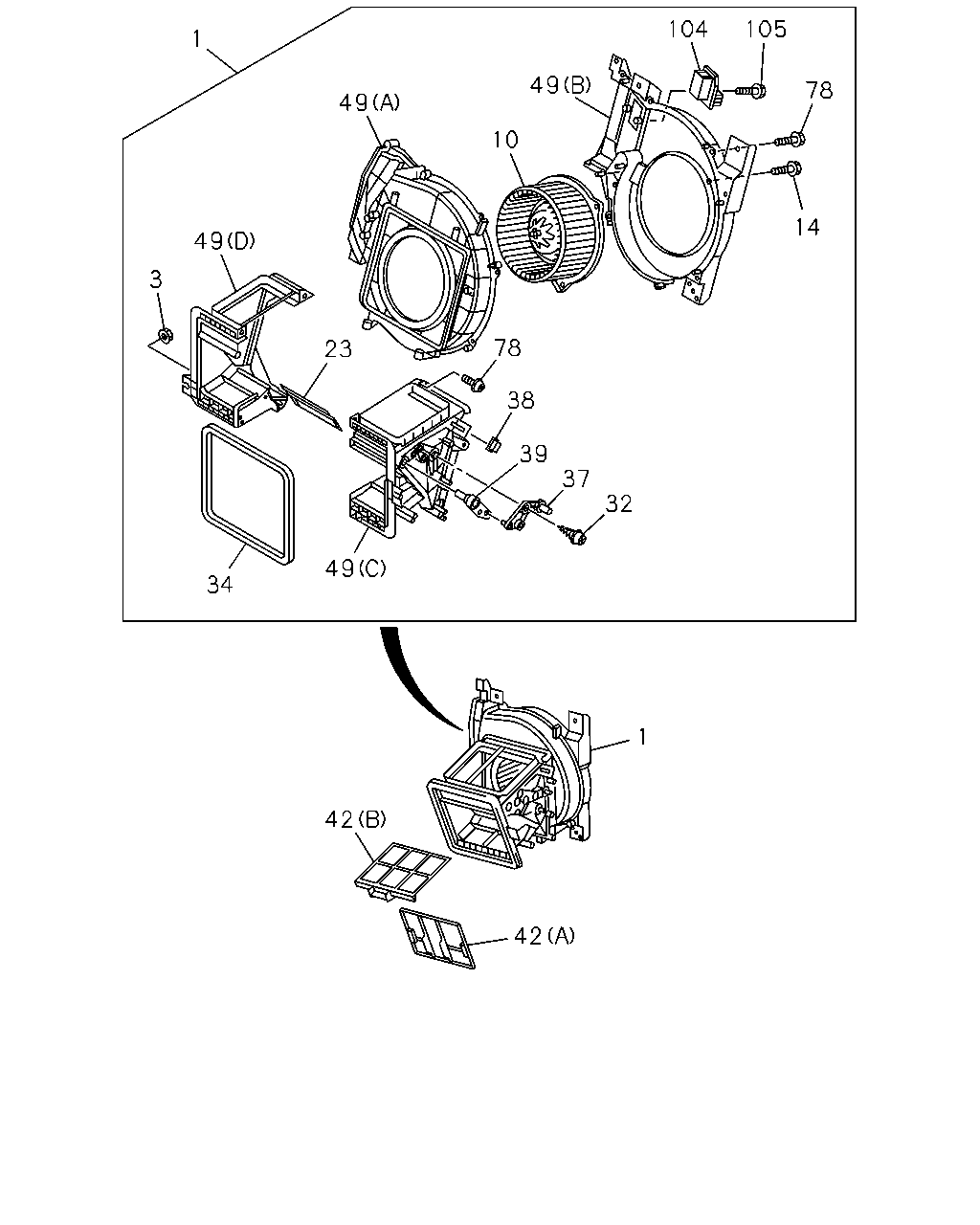

çizim 357287
1 3 49 49 10 49 104 105 78 14 23 34 49 78 38 39 37 32 1 42 42
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98171-720-0 01 1 1304-
3 NUT; CASE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 THA 		1-83539-354-0 02 1 1304-
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98183-924-0 01 1 1304-
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5X16 		8-98047-448-0 03 1 1304-
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98171-863-0 01 1 1304-
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 		8-98047-416-0 01 1 1304-
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98096-453-0 01 1 1304-
37 LEVER; MODE LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-436-0 01 1 1304-
38 CLIP; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-417-0 01 1 1304-
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-435-0 01 1 1304-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 		8-98025-006-1 01 1 1304-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98041-327-0 01 1 1304-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 		8-98047-440-0 01 1 1304-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98047-441-0 01 1 1304-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (D) 		8-98077-413-0 01 1 1304-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) 		8-98077-414-0 01 1 1304-
78 SCREW; CASE TO CASE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 15 1 1304-
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-113-0 01 1 1304-
105 SCREW; RESISTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 02 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
