Isuzu WW
▶
TRUCKS
▶
FVM
▶
11491 - FVM(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶

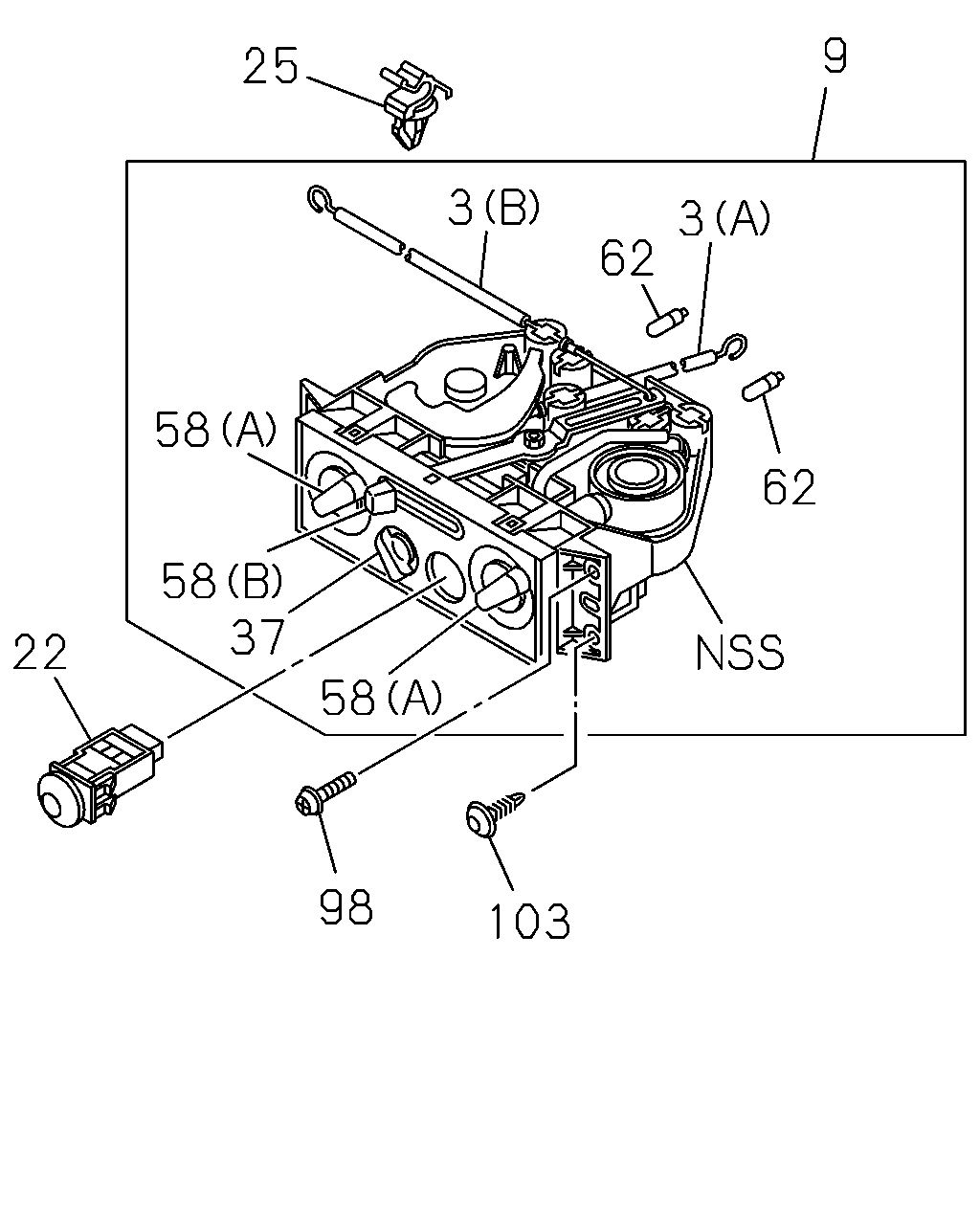

8-65 — CONTROL LEVER; HEATER AND AIR CON
(#121967) — 11 parça
103
98
22
58
58
37
62
62
3
3
9
25
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) MODE
8-98041-503-1
01
1
1304-
3
CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) R/F
8-98041-505-2
01
1
1304-
9
LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98060-396-1
01
1
1304-
22
SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98021-982-0
01
1
1304-
25
CLIP; CABLE,CONT LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=4.8
8-94128-483-0
03
1
1304-
37
KNOB; SW,HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-98037-368-0
01
1
1304-
58
KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)
8-98037-369-0
02
1
1304-
58
KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)
8-98037-370-0
01
1
1304-
62
BULB; HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 24V 1.1W
8-98037-371-0
02
1
1304-
98
SCREW; CONT PANEL
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> T25 M5X20 TAPPING HEXALOBULAR
0-72180-520-0
01
1
1304-
103
CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> DARK GRAY
8-97098-326-0
01
1
1304-
