Isuzu WW
▶
TRUCKS
▶
FVM
▶
11491 - FVM(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#121964) — 28 parça
◀

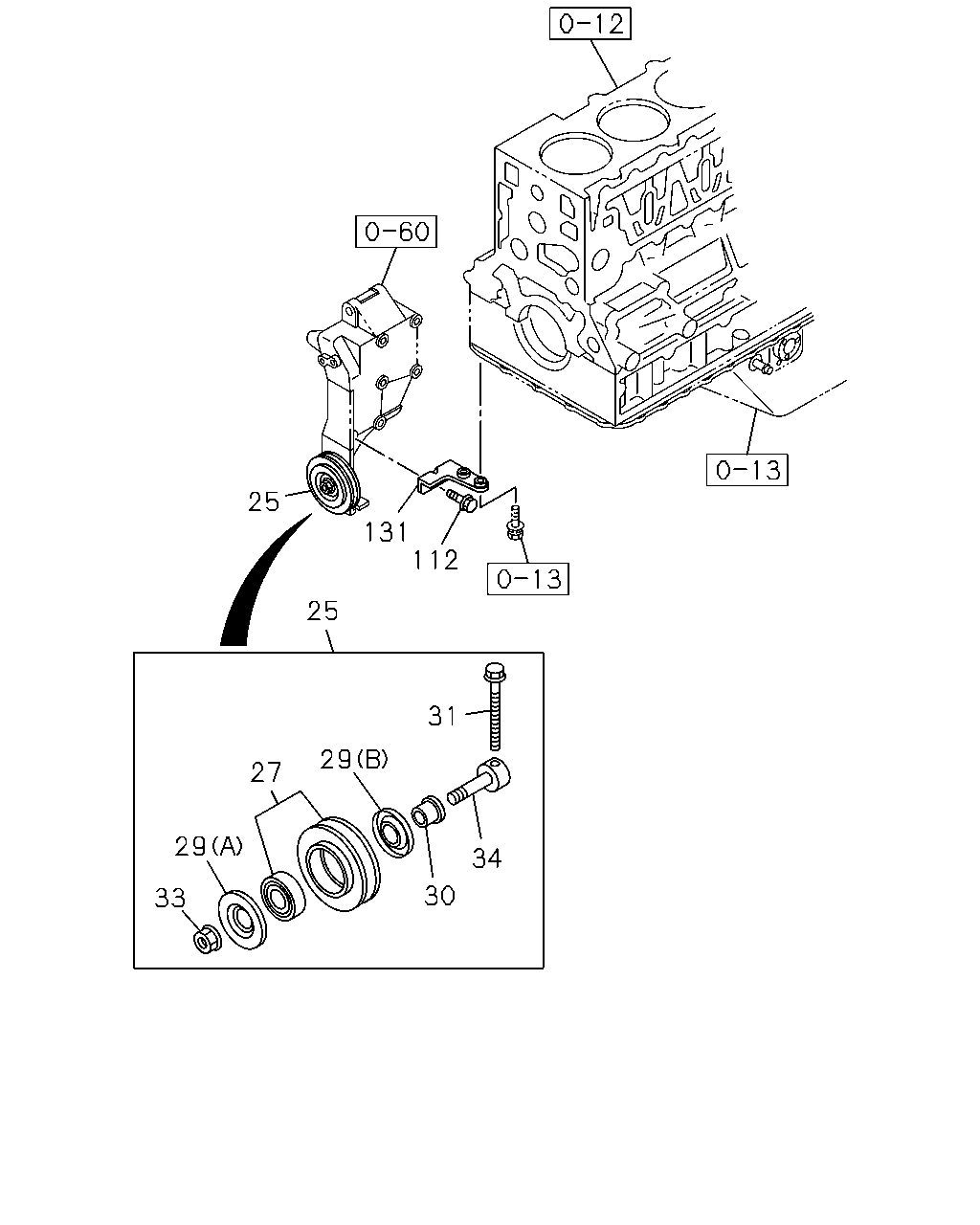

[850A] A/C CMPR FIXING AND IDLE PULLEY (19 parça)

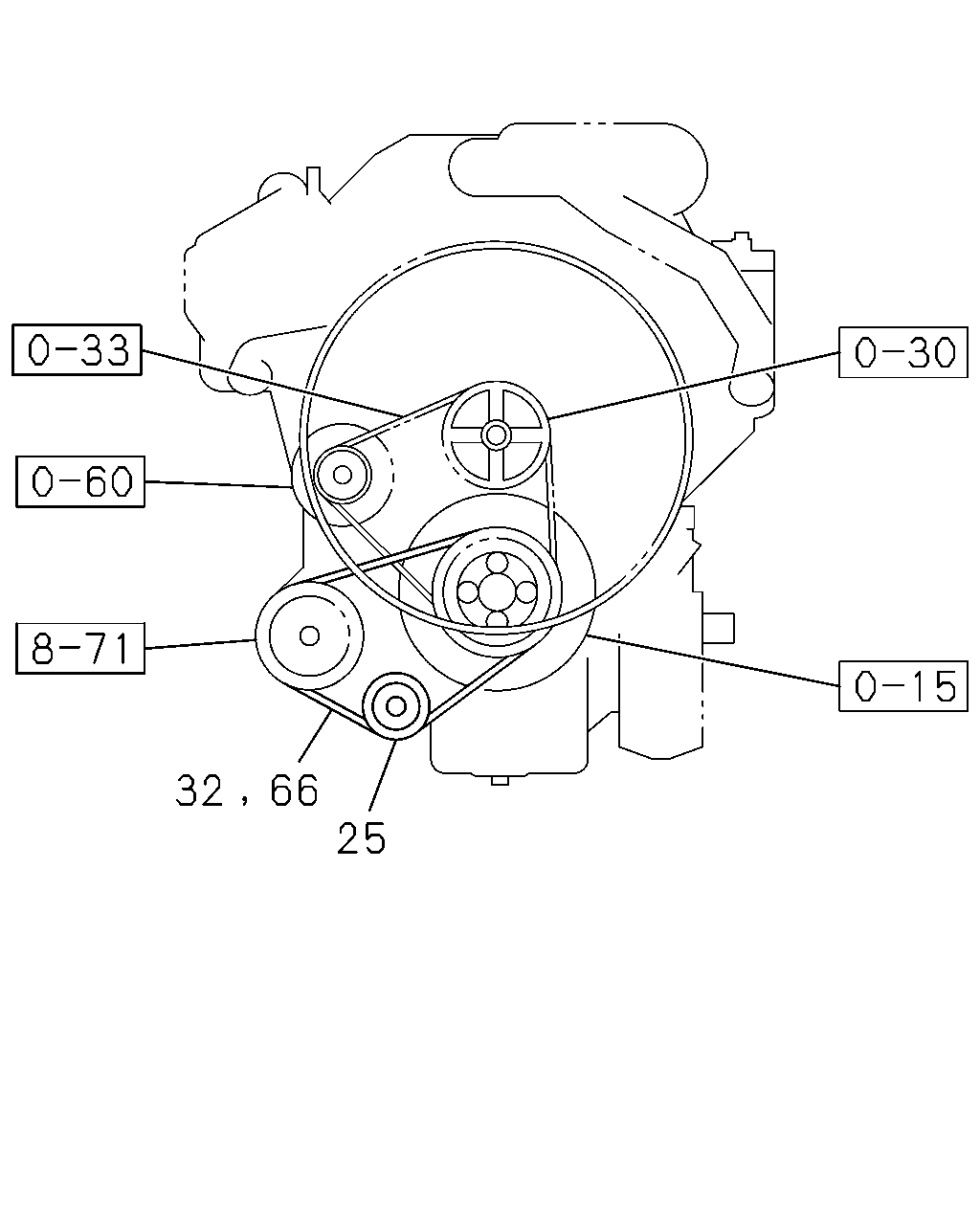

[850A] A/C CMPR BELT (6 parça)
[850A] DRAIN HOSE AND HOSE CLIP (3 parça)
▶
112
131
25
25
31
29
27
29
33
30
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
PULLEY ASM; IDLER,CMPR
8-97605-079-0
01
1
1304-1402
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-079-0
01
1
1403-
27
PULLEY; IDLE,A/C
8-97605-323-0
01
1
1304-1402
27
PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-323-0
01
1
1403-
29
COVER; DUST,IDLE PULLEY
(A)
8-97605-329-0
01
1
1304-1402
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)
8-97605-329-0
01
1
1403-
29
COVER; DUST,IDLE PULLEY
(B)
8-97605-330-0
01
1
1304-1402
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)
8-97605-330-0
01
1
1403-
30
COLLAR; IDLE PULLEY
8-97605-328-0
01
1
1304-1402
30
COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-328-0
01
1
1403-
31
BOLT; ADJ,IDLE PULLEY
8-97605-325-0
01
1
1304-1402
31
BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-325-0
01
1
1403-
33
NUT; IDLER PULLEY
8-97605-326-0
01
1
1304-1402
33
NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-326-0
01
1
1403-
34
SHAFT; IDLE PULLEY
8-97605-327-0
01
1
1304-1402
34
SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-327-0
01
1
1403-
112
BOLT; STAY
M8X16 FLANGE THA
0-28050-816-0
02
1
1304-1402
112
BOLT; STAY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X16 FLANGE THA
0-28050-816-0
02
1
1403-
131
STAY; CMPR BRKT
8-94393-451-0
01
1
1304-
32
66
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
PULLEY ASM; IDLER,CMPR
8-97605-079-0
01
1
1304-1402
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97605-079-0
01
1
1403-
32
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> BEST VALUE PARTS
1-87610-104-0
01
1
1403-
32
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=1114
8-97605-102-0
01
1
1403-
66
BELT; A/C CMPR
BEST VALUE PARTS
1-87610-104-0
01
1
1304-1402
66
BELT; A/C CMPR
L=1114
8-97605-102-0
01
1
1304-1402
378
378
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
201
CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-94423-042-0
01
1
1304-
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)
8-98041-428-0
01
1
1304-
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)
8-98204-846-0
01
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
