◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11491 - FVM(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#121958) — 9 parça

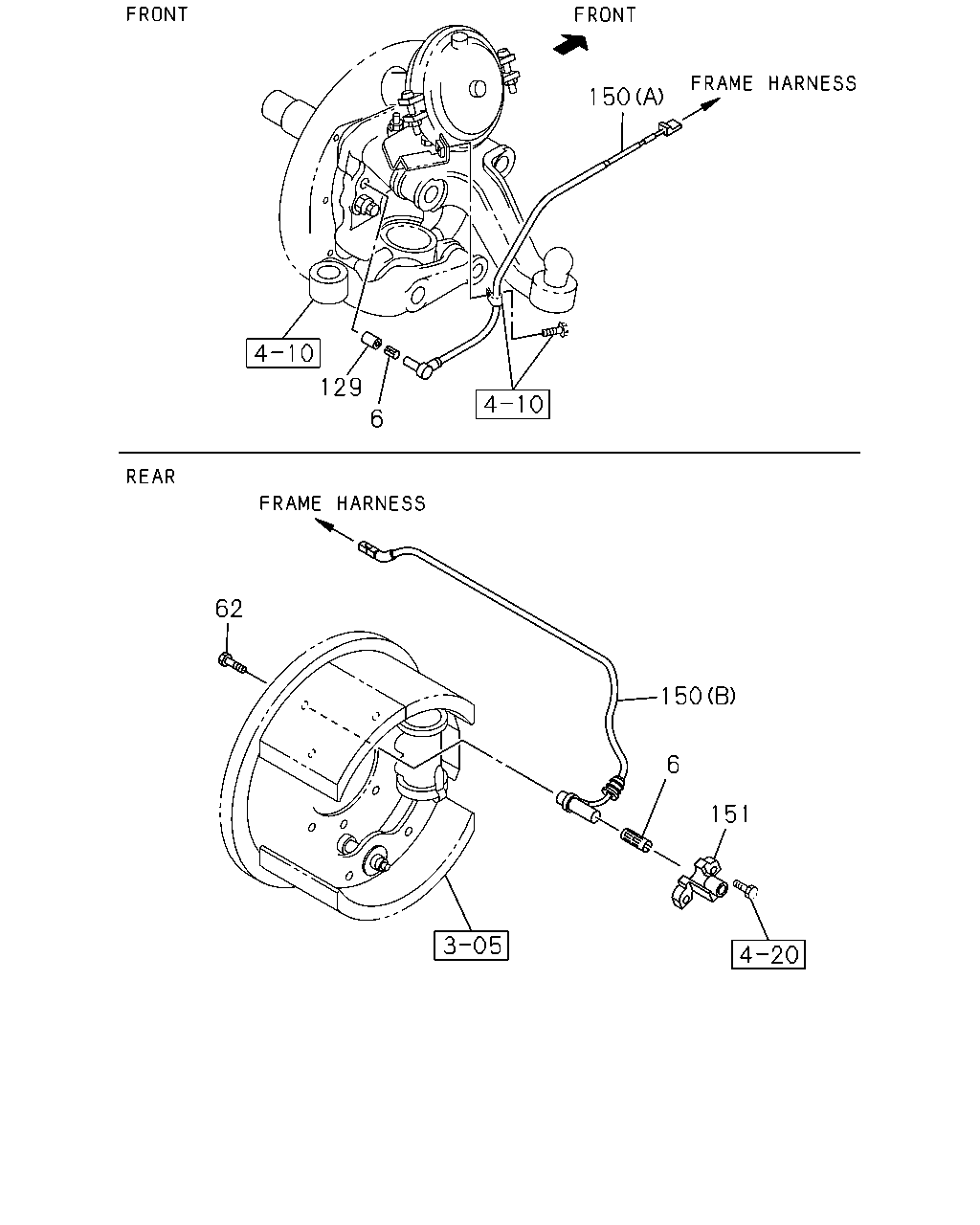

çizim 357538
150 129 6 62 150 6 151
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 1304-
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 1304-
62 BOLT; SENSOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X16 HEX SOCKET 		0-58330-816-0 02 1 1304-
129 COLLAR
ANTI LOCK BRAKE<JE5> 		1-83129-471-0 02 1 1304-
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> (A) 		1-83227-024-1 02 1 1304-
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		8-98040-694-1 01 1 1304-
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		8-98040-695-1 01 1 1304-
151 BRACKET; SPD SENSOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-83129-403-0 01 1 1304-
151 BRACKET; SPD SENSOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-83129-404-0 01 1 1304-
