6-20 — SIDE PANEL AND STEP (#121925) — 110 parça

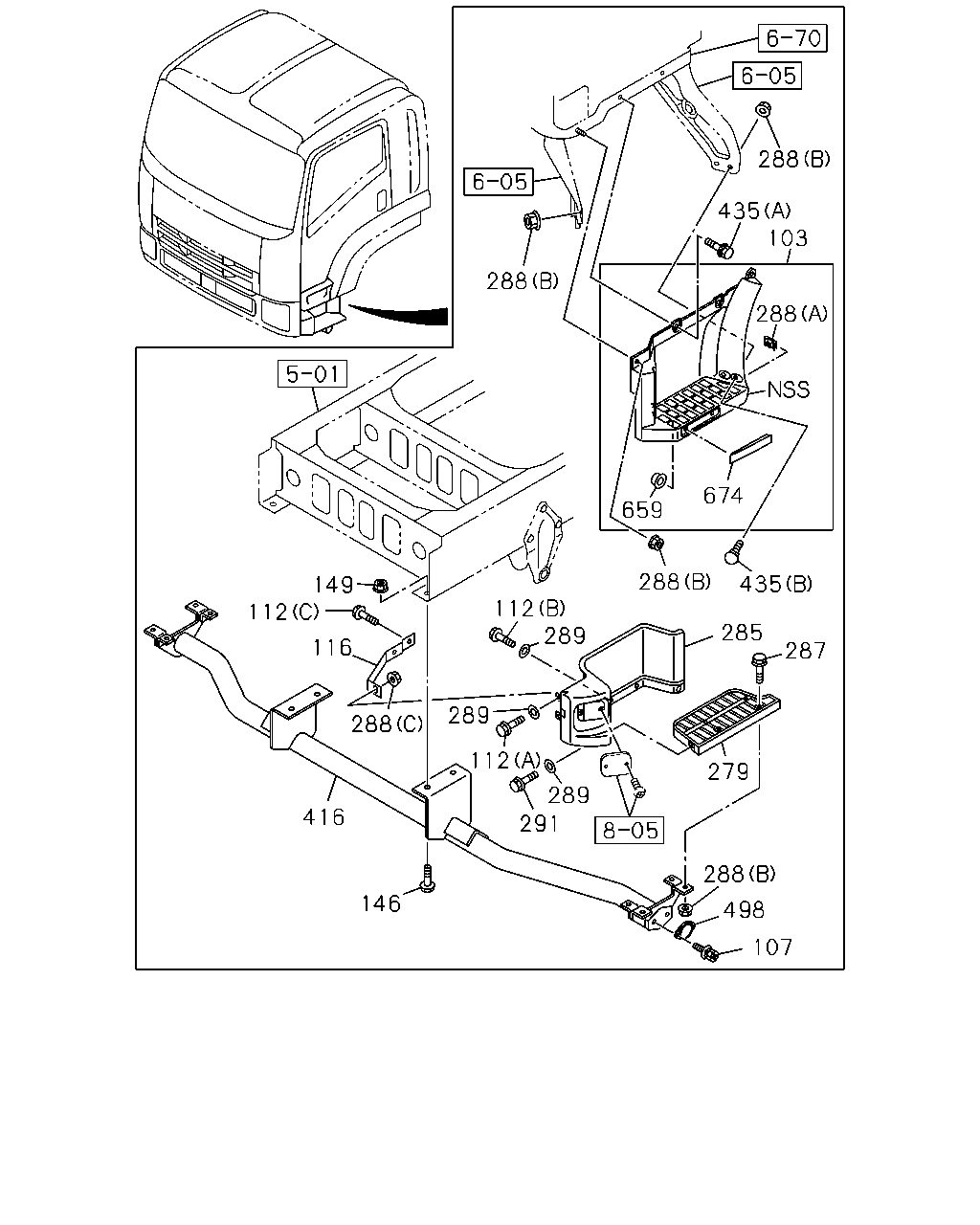

çizim 356756
288 288 435 288 103 674 435 287 285 288 659 112 289 149 112 116 288 289 112 289 291 279 288 498 107 146 416
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98069-977-2 01 1 1304-
103 PLATE; STEP 8-98069-976-2 01 1 1304-
107 BOLT; SIDE STEP
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1304-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1304-
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1304-
112 BOLT; 1ST STEP
(C) M8X12 FLANGE THA 		0-28050-812-0 04 1 1304-
116 STAY; 1ST STEP,FRT
THA 		8-98196-756-0 02 1 1304-
146 BOLT; STEP BRKT
M14X45 FLANGE THA 		0-28851-445-0 04 1 1304-
149 NUT; STEP BRKT
M14 FLANGE THA 		0-91180-214-0 04 1 1304-
279 BOARD; STEP 1ST
THA 		8-97924-110-0 01 1 1304-
279 BOARD; STEP 1ST
THA 		8-97924-109-0 01 1 1304-
285 PLATE; STEP,1ST STEP
THA 		8-97924-703-1 01 1 1304-
285 PLATE; STEP,1ST STEP
THA 		8-97924-704-1 01 1 1304-
287 BOLT; BOARD STEP
M8X35 FLANGE THA 		0-28650-835-0 08 1 1304-
288 NUT; STEP
(C) M6 FLANGE THA 		0-91180-106-0 02 1 1304-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 08 1 1304-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 1304-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1304-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1304-
291 BOLT; STEP PLATE
M6X12 FLANGE THA 		0-28050-612-0 06 1 1304-
416 BRACKET; ASSIST STEP
THA 		8-98167-277-2 01 1 1304-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1304-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1304-
498 REFLECTOR 1-82290-011-1 02 1 1304-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1304-
674 COVER; REFLECTOR 8-98092-734-0 01 1 1304-
674 COVER; REFLECTOR 8-98092-733-0 01 1 1304-

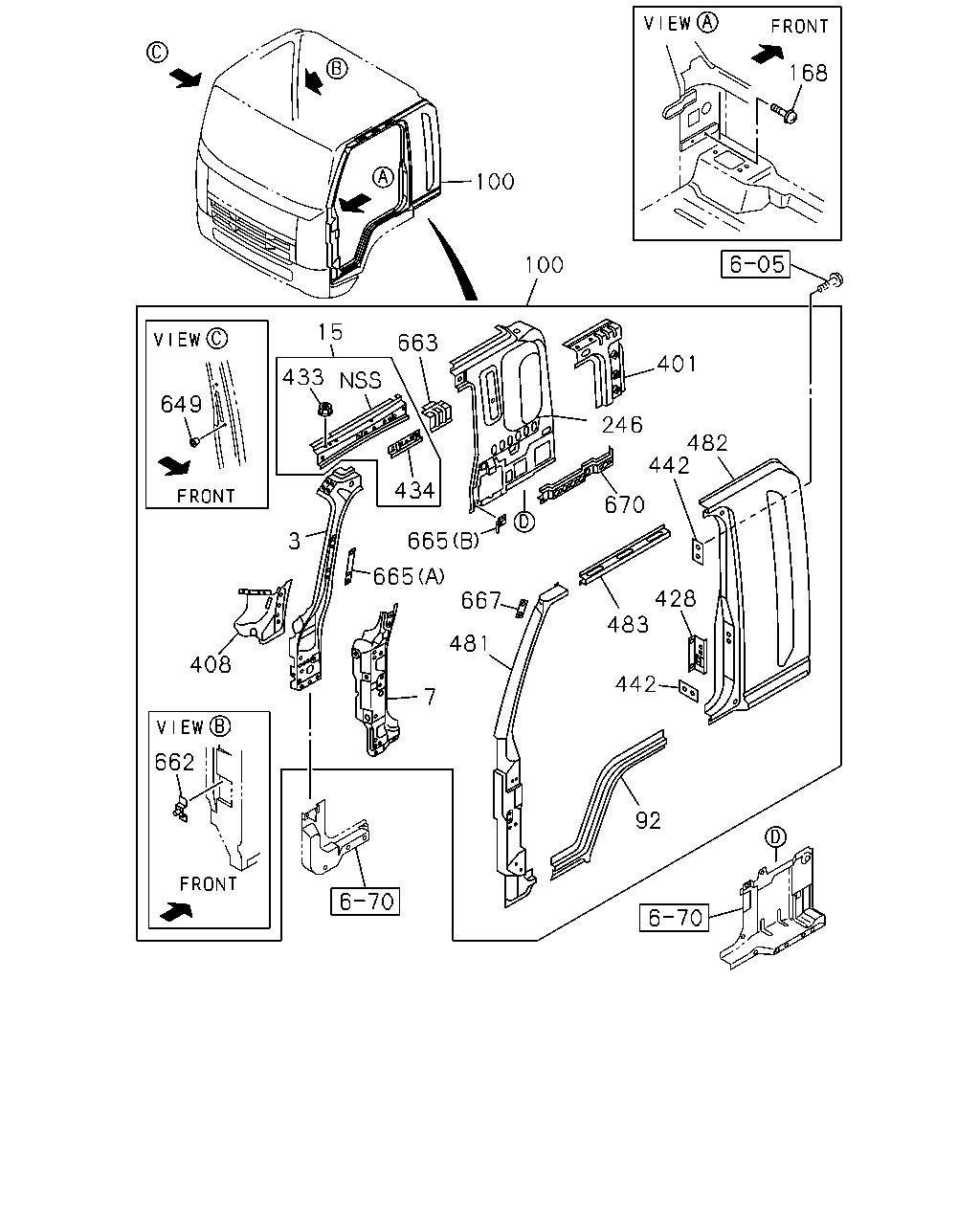

çizim 357012
100 100 168 15 663 433 649 434 3 665 665 408 662 7 481 667 246 401 482 442 670 428 483 442 92
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1312-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1401-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1304-1310
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1304-1310
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1312-
7 REINFORCEMENT; HINGE
THA 		8-97927-059-0 01 1 1401-
7 REINFORCEMENT; HINGE
THA 		8-97585-244-4 01 1 1304-1310
7 REINFORCEMENT; HINGE
THA 		8-97585-240-3 01 1 1304-1310
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1312-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1401-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1304-1310
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1304-1310
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1304-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1304-
100 PANEL ASM; BODY SIDE
THA 		8-98096-023-2 01 1 1304-1306
100 PANEL ASM; BODY SIDE
THA 		8-97948-576-1 01 1 1307-
100 PANEL ASM; BODY SIDE
THA 		8-98163-856-0 01 1 1304-1306
100 PANEL ASM; BODY SIDE
THA 		8-97948-562-1 01 1 1307-
168 BOLT; BODY SIDE PANEL
M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 1304-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 1312-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-158-5 01 1 1401-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-158-5 01 1 1304-1310
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 1304-1310
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 1312-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-161-2 01 1 1401-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-161-2 01 1 1304-1310
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 1304-1310
408 GUSSET; PILLAR 8-97586-193-3 01 1 1312-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1401-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1304-1310
408 GUSSET; PILLAR 8-97586-193-3 01 1 1304-1310
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1312-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1401-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1304-1310
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1304-1310
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1312-1312
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1401-
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1401-
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1304-1310
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1304-1310
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1312-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1401-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1304-1310
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1304-1310
442 PATCH
THA 		8-98096-158-0 02 1 1312-1312
442 PATCH
THA 		8-98096-158-0 02 1 1401-
442 PATCH
THA 		8-98096-158-0 02 1 1401-
442 PATCH
THA 		8-98096-158-0 02 1 1304-1310
442 PATCH
THA 		8-98096-158-0 02 1 1304-1310
481 PANEL; SIDE FRT PILLAR 8-98055-453-0 01 1 1304-
481 PANEL; SIDE FRT PILLAR 8-98055-471-0 01 1 1304-
482 PANEL; SIDE RR PILLAR 8-98103-378-0 01 1 1304-
482 PANEL; SIDE RR PILLAR 8-98103-377-0 01 1 1304-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1304-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1304-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1312-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1304-1310
662 BRACKET; DUCT
THA 		8-97948-248-0 01 1 1312-
662 BRACKET; DUCT 8-97584-611-1 01 1 1304-1306
662 BRACKET; DUCT
THA 		8-97948-248-0 01 1 1307-1310
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1312-
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1401-
663 BRACKET; AIR 8-97585-208-2 01 1 1304-1306
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1307-1310
663 BRACKET; AIR 8-97585-207-2 01 1 1304-1306
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1307-1310
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1311-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1311-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1311-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1311-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1304-1310
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1304-1310
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1304-1310
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1304-1310
667 BRACKET; MIRROR 8-98109-948-0 02 1 1312-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1401-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1304-1310
667 BRACKET; MIRROR 8-98109-948-0 02 1 1304-1310
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1312-1312
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1401-
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1401-
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1304-1310
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1304-1310
