5-01 — FRAME AND OTHER PARTS (#12192) — 73 parça

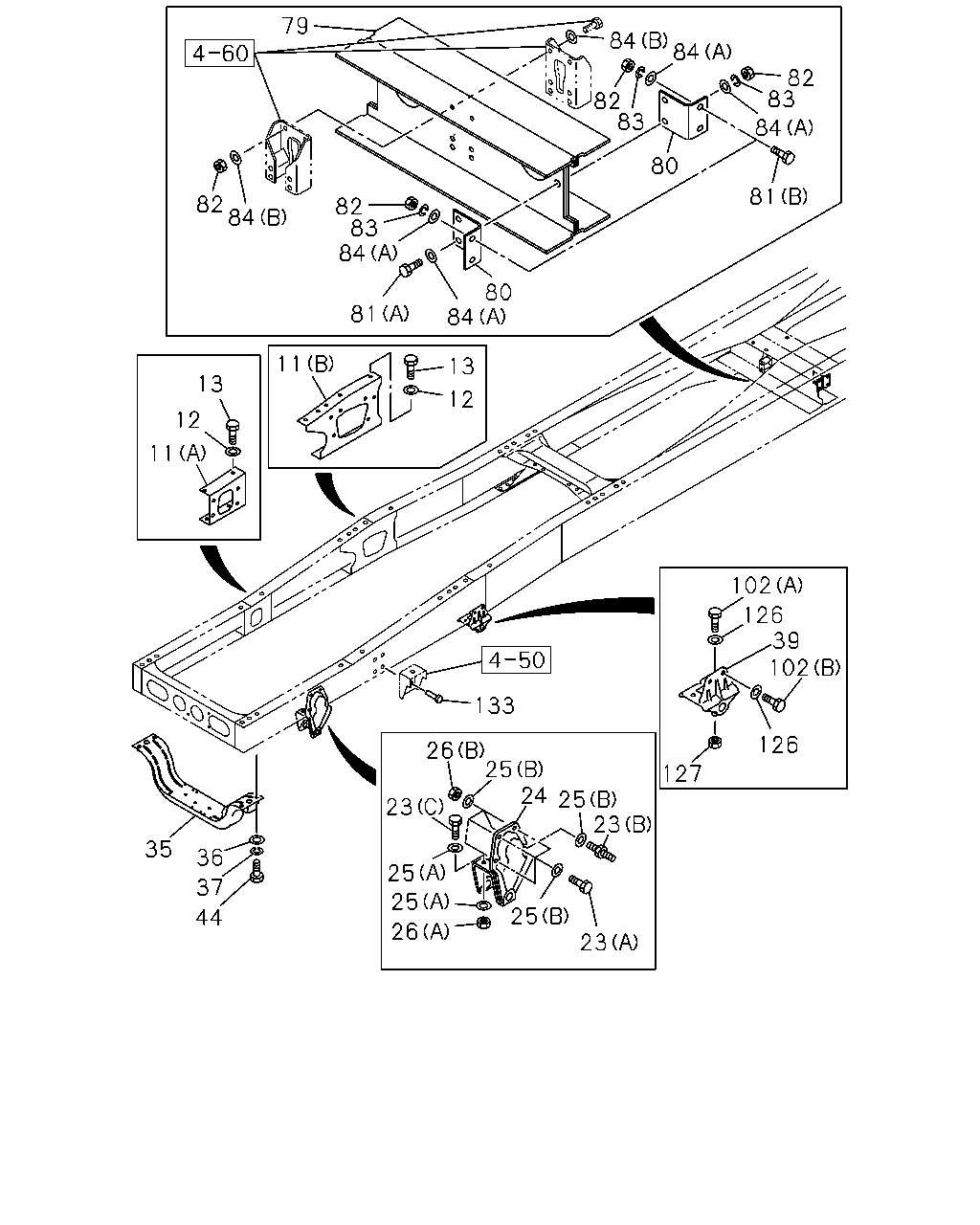

çizim 138868
79 84 84 82 83 82 83 84 80 81 82 84 82 83 84 80 84 81 11 13 13 12 12 11 102 126 39 102 133 126 26 25 24 127 25 23 23 35 36 25 37 25 25 44 26 23
BalonParca AdiParca NoAdetTipApplied Date
11 BRACKET; ENG MTG
(A) 		1-53219-778-1 01 1 0105-
11 BRACKET; ENG MTG
(B) 		1-53219-942-1 01 1 0105-
11 BRACKET; ENG MTG
(A) 		1-53219-777-1 01 1 0105-
11 BRACKET; ENG MTG
(B) 		1-53219-941-0 01 1 0105-
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 AR 1 0105-1201
12 WASHER; PL,BRKT,ENG MTG
ID=15 		8-98010-627-1 AR 1 1202-
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 AR 1 0105-0512
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 AR 1 0601-
23 BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100 		1-09029-075-0 AR 1 0105-
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 AR 1 0105-0512
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 AR 1 0601-
23 BOLT; BRKT,SPR
(C) M16X50 		9-92061-650-0 AR 1 0105-0512
23 BOLT; BRKT,SPR
(C) M16X50 		0-20951-650-0 AR 1 0601-
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 0105-
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 0105-
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 AR 1 0105-
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 AR 1 0105-1201
25 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 AR 1 1202-
26 NUT; BRKT,SPR
(A) M16 		9-99110-516-0 AR 1 0105-0512
26 NUT; BRKT,SPR
(A) M16 		0-91110-516-0 AR 1 0601-
26 NUT; BRKT,SPR
(B) M14 		9-99110-514-0 AR 1 0105-0512
26 NUT; BRKT,SPR
(B) M14 		0-91110-514-0 AR 1 0601-
35 MEMBER; UNDER 1-53174-263-2 01 1 0105-
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 AR 1 0105-
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 AR 1 0105-0603
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 AR 1 0604-
39 BRACKET; FRT SPR,RR 1-53352-147-0 01 1 0105-
39 BRACKET; FRT SPR,RR 1-53352-146-0 01 1 0105-
44 BOLT; UNDER MBR
M16X45 		9-92061-645-0 AR 1 0105-
44 BOLT; UNDER MBR
M16X45 		0-20951-645-0 04 1 1403-
79 MEMBER; CROSS,TRUNNION ASM 1-53181-923-0 01 1 0105-
80 BRACKET; C/MBR 1-53167-610-0 04 1 0105-
81 BOLT; BRKT
(A) M14X55 		9-91066-455-0 AR 1 0105-
81 BOLT; BRKT
(B) M14X38 		9-92061-438-0 AR 1 0105-0312
81 BOLT; BRKT
(B) M14X40 		9-92061-440-0 AR 1 0401-0512
81 BOLT; BRKT
(B) M14X40 		0-20951-440-0 AR 1 0601-
82 NUT; BRKT
M14 		9-99110-514-0 AR 1 0105-0512
82 NUT; BRKT
M14 		0-91110-514-0 AR 1 0601-
83 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 AR 1 0105-0603
83 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 AR 1 0604-
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		9-09164-514-0 AR 1 0105-1104
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		0-91614-514-0 AR 1 1105-
84 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 AR 1 0105-1201
84 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 AR 1 1202-
102 BOLT; BRKT,RR SPR
(B) M14X40 		9-92061-440-0 AR 1 0105-0512
102 BOLT; BRKT,RR SPR
(B) M14X40 		0-20951-440-0 AR 1 0601-
102 BOLT; BRKT,RR SPR
(A) M14X50 		9-92061-450-0 AR 1 0105-0512
102 BOLT; BRKT,RR SPR
(A) M14X50 		0-20951-450-0 AR 1 0601-
126 WASHER; PL,BRKT
ID=15 		9-09651-069-0 AR 1 0105-1201
126 WASHER; PL,BRKT
ID=15 		8-98010-627-1 AR 1 1202-
127 NUT; BRKT
M14 		9-99110-514-0 AR 1 0105-0512
127 NUT; BRKT
M14 		0-91110-514-0 AR 1 0601-
133 RIVET; BRKT
D13X36 PLATED TAPER END 		9-06771-336-0 08 1 0105-0607
133 RIVET; BRKT
D13X36 PLATED TAPER END 		0-67901-336-0 08 1 0608-

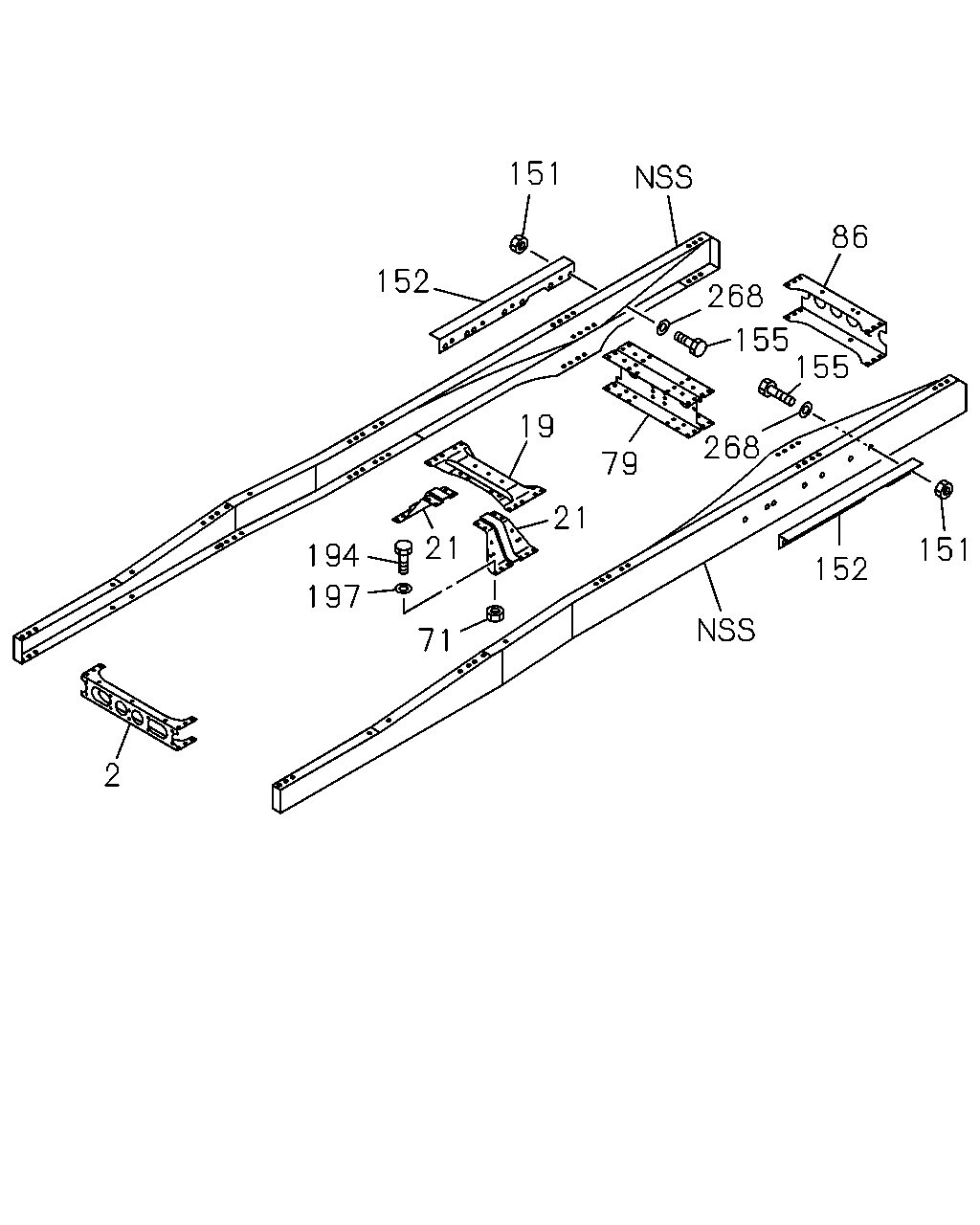

çizim 138869
151 86 152 268 155 155 268 19 79 21 21 151 194 197 152 71 2
BalonParca AdiParca NoAdetTipApplied Date
2 MEMBER; CROSS,1ST 1-53181-526-5 01 1 0105-
19 MEMBER; CROSS,2ND 1-53174-231-1 01 1 0105-
21 GUSSET; 2ND CROSS 1-53164-227-1 01 1 0105-
21 GUSSET; 2ND CROSS 1-53164-226-1 01 1 0105-
71 NUT; 2ND C/MBR
M14 		9-99110-514-0 AR 1 0105-0512
71 NUT; 2ND C/MBR
M14 		0-91110-514-0 AR 1 0601-
79 MEMBER; CROSS,TRUNNION ASM 1-53181-923-0 01 1 0105-
86 MEMBER; CROSS,RR SUSP RR 1-53171-651-5 01 1 0105-
151 NUT; OUTRIGGER
M16 		9-99110-516-0 AR 1 0105-0512
151 NUT; OUTRIGGER
M16 		0-91110-516-0 AR 1 0601-
152 OUTRIGGER 1-53456-356-1 01 1 0105-
152 OUTRIGGER 1-53456-355-1 01 1 0105-
155 BOLT; OUTRIGGER
M16X50 		9-92061-650-0 AR 1 0105-0512
155 BOLT; OUTRIGGER
M16X50 		0-20951-650-0 AR 1 0601-
194 BOLT; 2ND C/MBR
M14X50 		9-92061-450-0 AR 1 0105-0512
194 BOLT; 2ND C/MBR
M14X50 		0-20951-450-0 AR 1 0601-
197 WASHER; PL,2ND C/MBR
ID=15 		9-09651-069-0 AR 1 0105-1201
197 WASHER; PL,2ND C/MBR
ID=15 		8-98010-627-1 AR 1 1202-
268 WASHER; PL,OUTRIGGER
ID=17 OD=30 		9-09851-935-0 AR 1 0105-
