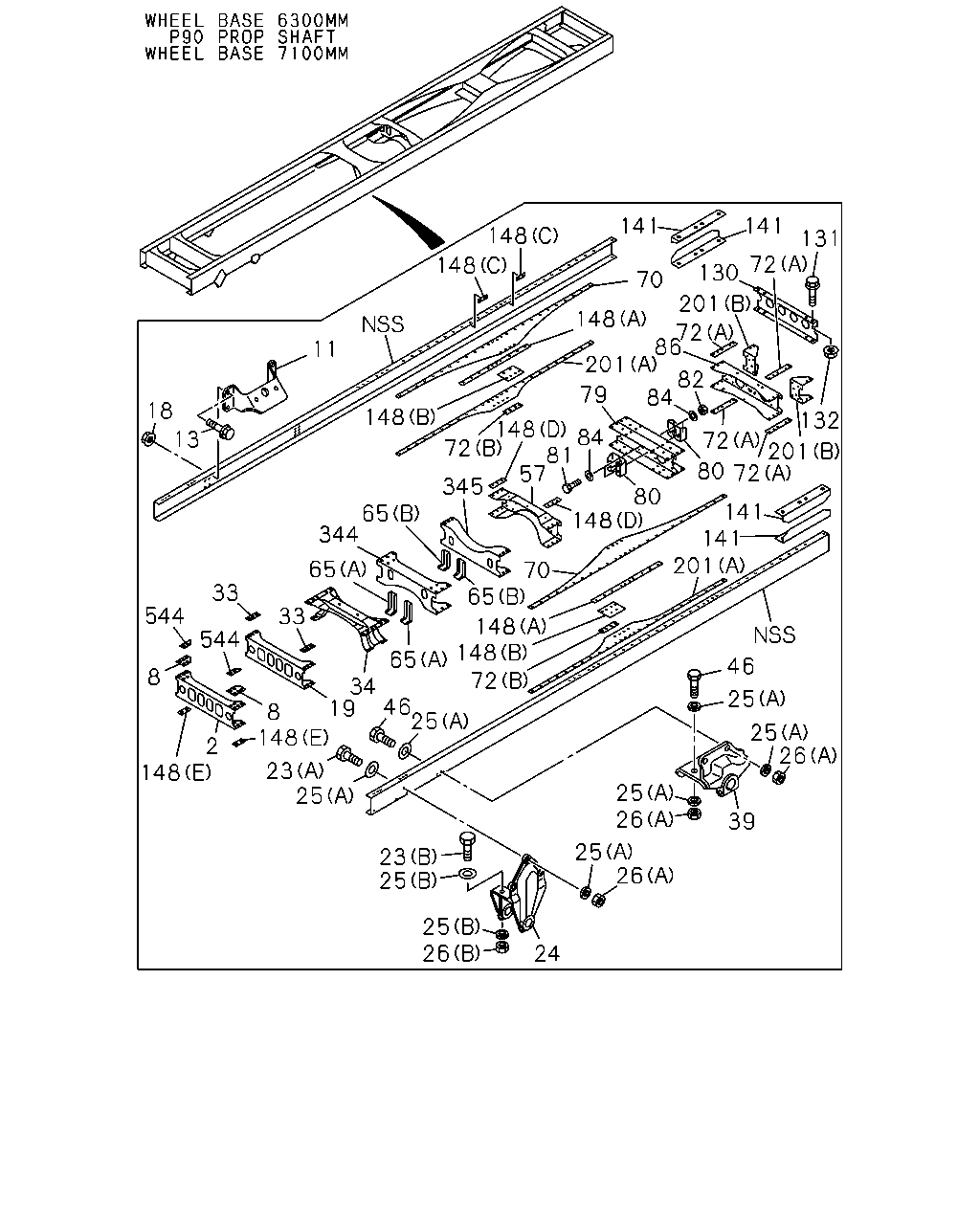

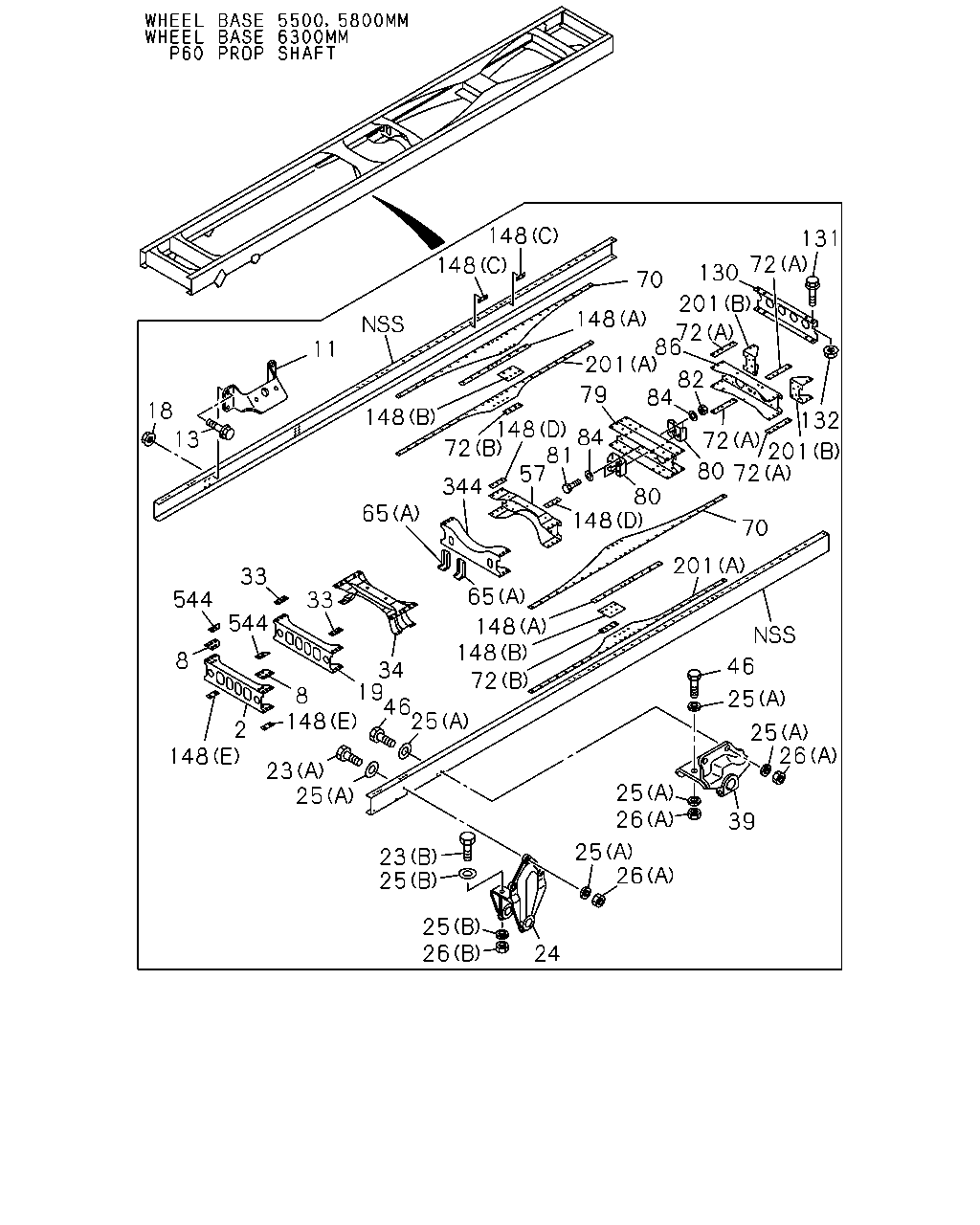

5-01 — FRAME AND OTHER PARTS (#121916) — 139 parça

18 13 11 148 148 148 141 141 131 72 130 70 148 201 72 86 201 132 82 84 72 201 72 80 79 148 84 81 80 141 141 201 46 25 25 26 39 26 25 26 25 23 25 25 24 26 25 23 25 46 72 148 65 34 19 148 2 148 8 544 33 544 33 8 65 344 65 345 72 57 148 70 65 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	8-97610-852-6	01	1	1304-1307	●	●	●	●
2	MEMBER; CROSS,1ST THA	8-97948-166-0	01	1	1308-	●	●	●	●
8	GUSSET; 1ST C/MBR THA	8-97611-027-0	02	1	1304-1307	●	●	●	●
8	GUSSET; 1ST C/MBR THA	8-97948-167-0	02	1	1308-	●	●	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1304-	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE	0-28661-240-0	08	1	1304-	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE THA	0-91180-212-0	08	1	1304-	●	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-4	01	1	1304-1307	●	●	●	●
19	MEMBER; CROSS,2ND THA	8-97948-169-0	01	1	1308-	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1304-	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1304-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1304-1307	●	●	●	●
24	BRACKET; FRT SPR,FRT THA	8-97948-158-0	01	1	1308-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1304-1307	●	●	●	●
24	BRACKET; FRT SPR,FRT THA	8-97948-160-0	01	1	1308-	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1304-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1304-	●	●	●	●
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	14	1	1304-	●	●	●	●
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	04	1	1304-	●	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1304-1307	●	●	●	●
33	SPACER; 2ND C/MBR,UPR THA	8-97948-140-0	02	1	1308-	●	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1304-1307	●	●	●	●
34	MEMBER; CROSS,3RD THA	8-97948-172-0	01	1	1308-	●	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-625-0	01	1	1304-	●	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-626-0	01	1	1304-	●	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1304-	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT THA	8-97612-103-1	01	1	1304-	●	●	●	●
65	BRACKET; CENTER BRG P60 PROP SHAFT<C2M> (A)	8-97622-644-0	02	1	1304-	●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (A)	8-97622-646-0	02	1	1304-	●
65	BRACKET; CENTER BRG (A)	8-97614-139-0	02	1	1304-		●
65	BRACKET; CENTER BRG P60 PROP SHAFT<C2M> (A)	8-97614-150-0	02	1	1304-			●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (A)	8-97612-486-0	02	1	1304-			●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (B)	8-97614-125-0	02	1	1304-			●
65	BRACKET; CENTER BRG (B)	8-97614-132-0	02	1	1304-				●
65	BRACKET; CENTER BRG (A)	8-97614-133-0	02	1	1304-				●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	1304-	●	●	●	●
72	SPACER; TRUNNION (B) THA	8-97922-399-0	02	1	1304-	●	●	●	●
72	SPACER; TRUNNION (A)	8-97612-110-0	04	1	1304-1307	●	●	●	●
72	SPACER; TRUNNION (A) THA	8-97948-182-0	04	1	1308-	●	●	●	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97612-104-0	01	1	1304-	●	●	●	●
80	BRACKET; C/MBR THA	1-53363-068-0	02	1	1304-1307	●	●	●	●
80	BRACKET; C/MBR THA	8-97948-138-0	02	1	1308-	●	●	●	●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	1304-	●	●	●	●
82	NUT; BRKT M14 THA	0-91110-514-0	02	1	1304-	●	●	●	●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1304-	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR THA	8-97924-655-0	01	1	1304-	●	●	●	●
130	MEMBER; CROSS,END THA	8-97916-031-0	01	1	1304-	●	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER THA	0-50541-230-0	04	1	1304-	●	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1304-	●	●	●	●
141	STIFFENER THA	8-97926-003-1	04	1	1304-				●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1304-1307	●	●	●	●
148	SPACER; C/MBR (E) THA	8-97948-168-0	02	1	1308-	●	●	●	●
148	SPACER; C/MBR (D) THA	8-97612-109-0	02	1	1304-	●	●	●	●
148	SPACER; C/MBR (C)	8-97612-111-0	04	1	1304-1307	●	●	●	●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	1304-	●	●	●	●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1304-	●	●	●	●
201	GUSSET; C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> P60 PROP SHAFT<C2M> (A)	8-97640-348-1	01	1	1304-	●
201	GUSSET; C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> P60 PROP SHAFT<C2M> (A)	8-97640-712-1	01	1	1304-	●
201	GUSSET; C/MBR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> P60 PROP SHAFT<C2M> (A)	8-97622-841-2	02	1	1304-	●
201	GUSSET; C/MBR P90 PROP SHAFT<C5T> (A)	8-97618-439-2	02	1	1304-	●
201	GUSSET; C/MBR (B) THA	8-97612-108-2	02	1	1304-	●	●	●	●
201	GUSSET; C/MBR (A)	8-97618-438-2	02	1	1304-		●
201	GUSSET; C/MBR P60 PROP SHAFT<C2M> (A)	8-97637-133-1	02	1	1304-			●
201	GUSSET; C/MBR P90 PROP SHAFT<C5T> (A)	8-97612-107-3	02	1	1304-			●
201	GUSSET; C/MBR (A)	8-97635-951-1	02	1	1304-				●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1304-1307	●	●	●	●
344	MEMBER; CROSS,4TH THA	8-97948-180-0	01	1	1308-	●	●	●	●
345	MEMBER; CROSS,5TH P90 PROP SHAFT<C5T>	8-97611-238-1	01	1	1304-1307			●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1304-1307				●
345	MEMBER; CROSS,5TH P90 PROP SHAFT<C5T> THA	8-97948-180-0	01	1	1308-			●
345	MEMBER; CROSS,5TH THA	8-97948-180-0	01	1	1308-				●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1304-1307	●	●	●	●
