Isuzu WW
▶
TRUCKS
▶
FVM
▶
11491 - FVM(THAI)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

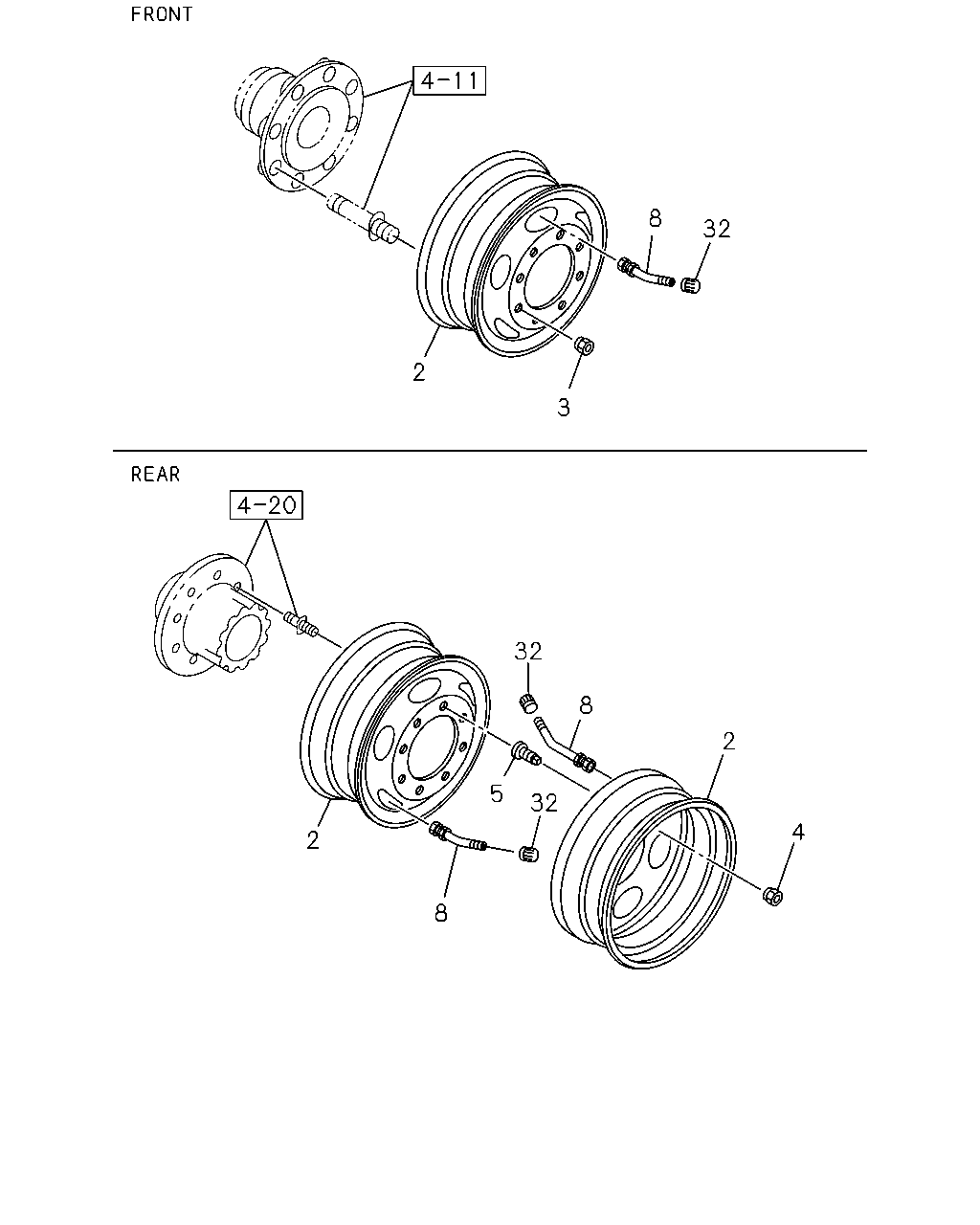

4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#121915) — 16 parça
3
2
8
32
4
2
8
32
32
5
8
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> FRONT
1-42350-758-0
02
1
1304-
2
WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> REAR
1-42350-758-0
08
1
1304-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> SPARE
1-42350-758-0
01
1
1304-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE
1-42350-667-0
01
1
1304-
2
WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT
1-42350-667-0
02
1
1304-
2
WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR
1-42350-667-0
08
1
1304-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD THA
8-97916-064-0
08
1
1304-
3
NUT; WHEEL,FRT AXLE
M24 THA
8-97916-063-0
08
1
1304-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD THA
8-97916-121-0
16
1
1304-
4
NUT; WHEEL,RR AXLE
M30 THA
8-97916-066-0
16
1
1304-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA
8-97916-676-0
16
1
1304-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA
8-97916-065-0
16
1
1304-
8
VALVE; TIRE
FRONT
1-42370-020-3
02
1
1304-
8
VALVE; TIRE
REAR
1-42370-020-3
08
1
1304-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR<R46> SPARE
1-42370-020-3
01
1
1304-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL REAR<R46>
1-42374-001-0
11
1
1304-
