◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11491 - FVM(THAI)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#121914) — 13 parça

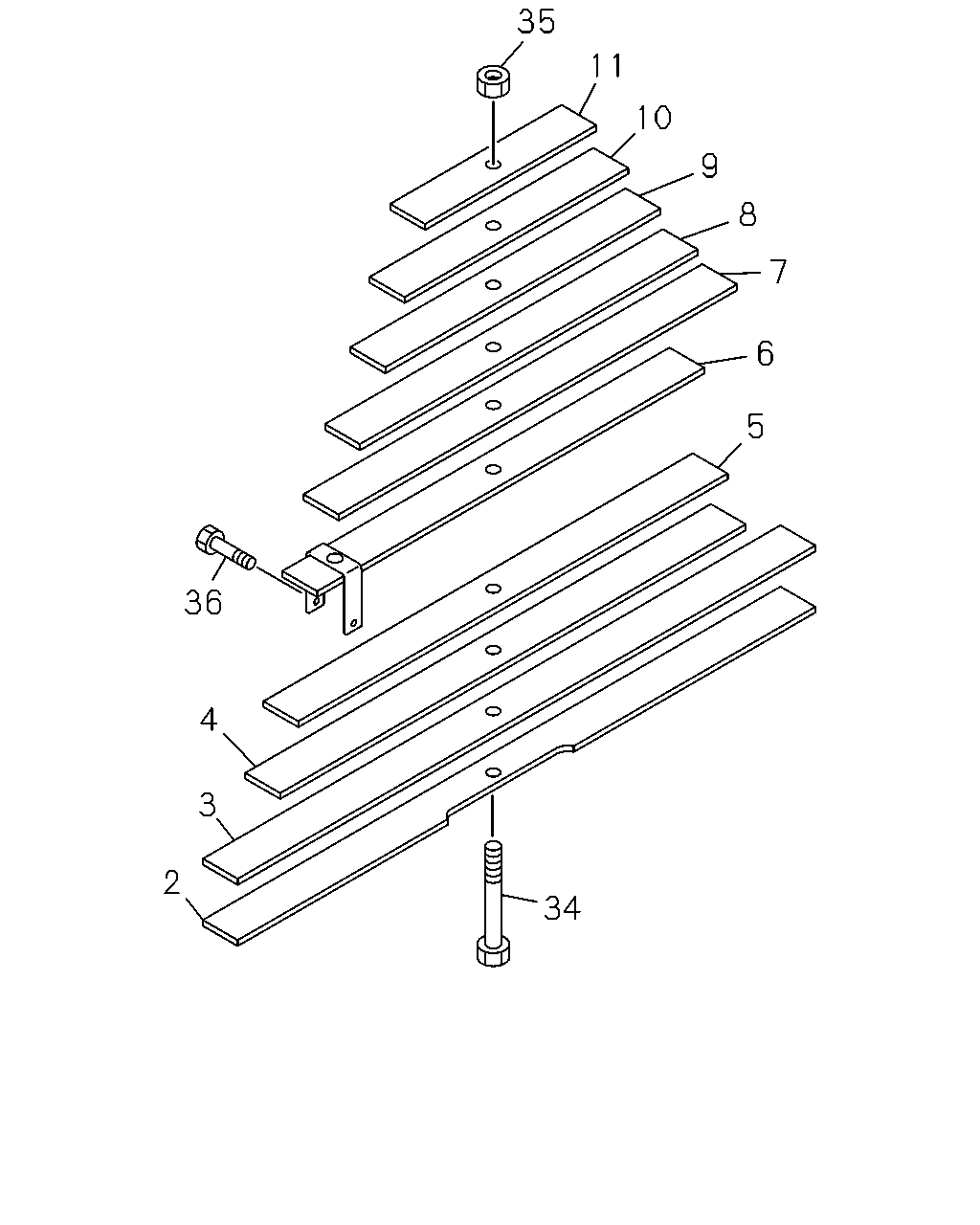

çizim 356597
3 2 34 4 36 5 6 7 8 9 10 11 35
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: A = 8-98017-567-1 		8-98040-768-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: A = 8-98017-567-1 		8-98040-769-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: A = 8-98017-567-1 		8-98040-770-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: A = 8-98017-567-1 		8-98040-771-1 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
THA ASM PART: A = 8-98017-567-1 		8-98040-772-1 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
THA ASM PART: A = 8-98017-567-1 		8-98040-773-1 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
THA ASM PART: A = 8-98017-567-1 		8-98040-774-1 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
THA ASM PART: A = 8-98017-567-1 		8-98040-775-1 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
THA ASM PART: A = 8-98017-567-1 		8-98040-776-1 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
THA ASM PART: A = 8-98017-567-1 		8-98040-777-1 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=200, THA ASM PART: A = 8-98017-567-1 		1-51356-270-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16, THA ASM PART: A = 8-98017-567-1 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
THA ASM PART: A = 8-98017-567-1 		1-09000-326-0 01 1 -
