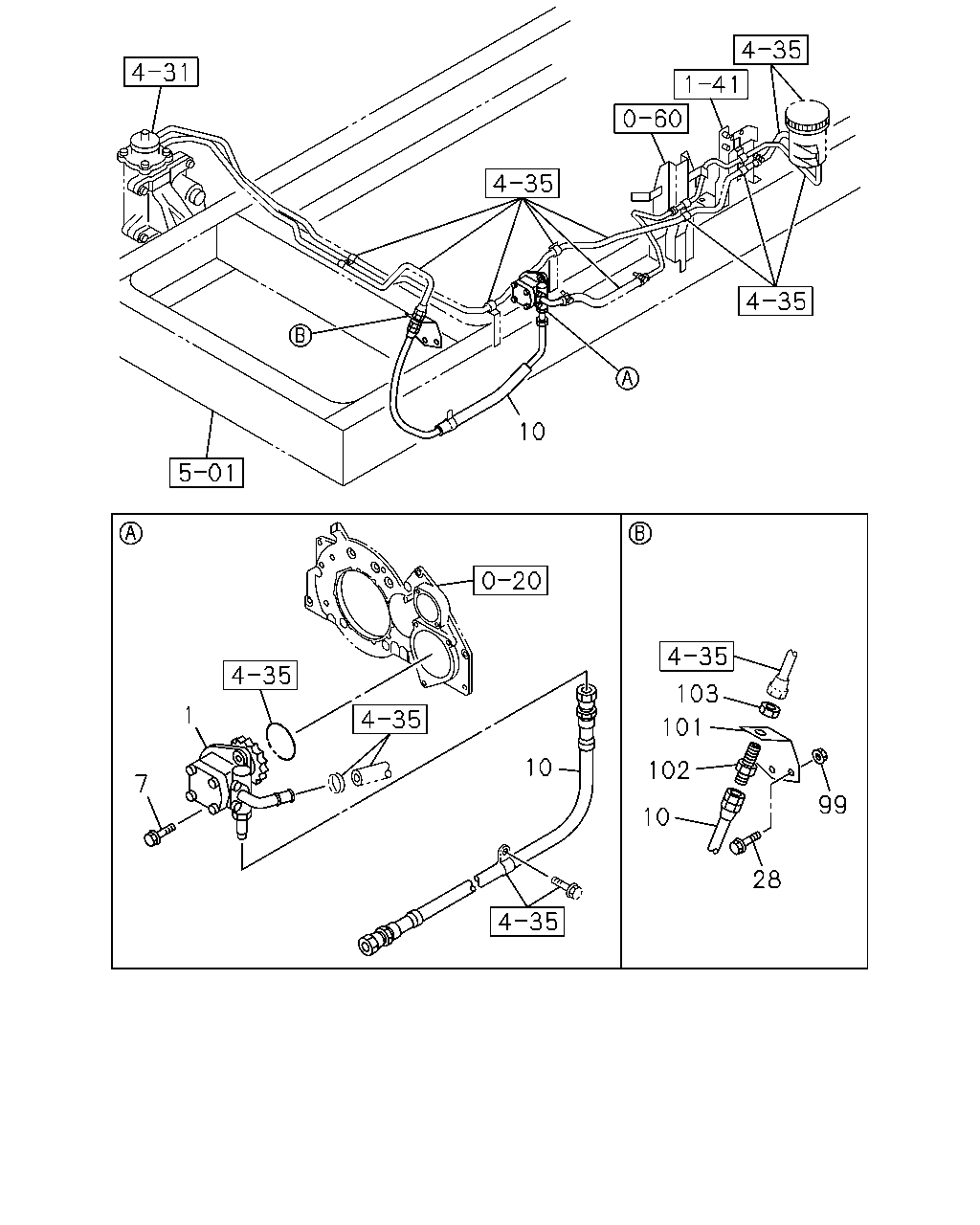

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#121908) — 9 parça

1 7 10 103 101 102 10 99 28 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-629-1	01	1	1304-
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-97365-449-0	02	1	1304-
10	HOSE; FLEX,P/S OIL PUMP,INL 6HK1-TCN ENG<82L>	8-98076-172-0	01	1	1304-
10	HOSE; FLEX,P/S OIL PUMP,INL 6HK1-TCS ENG<80L>	8-98060-231-2	01	1	1304-
28	BOLT; BRKT,FLEX HOSE,P/S M8X20 FLANGE THA	0-28650-820-0	02	1	1304-
99	NUT; BRKT,FLEX HOSE,P/S M8 FLANGE THA	0-91180-108-0	02	1	1304-
101	BRACKET; UNION	8-98052-888-1	01	1	1304-
102	UNION M20 & M22 STRAIGHT	1-09654-167-1	01	1	1304-
103	NUT; UNION M22	0-91111-522-0	01	1	1304-
