4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#121907) — 73 parça

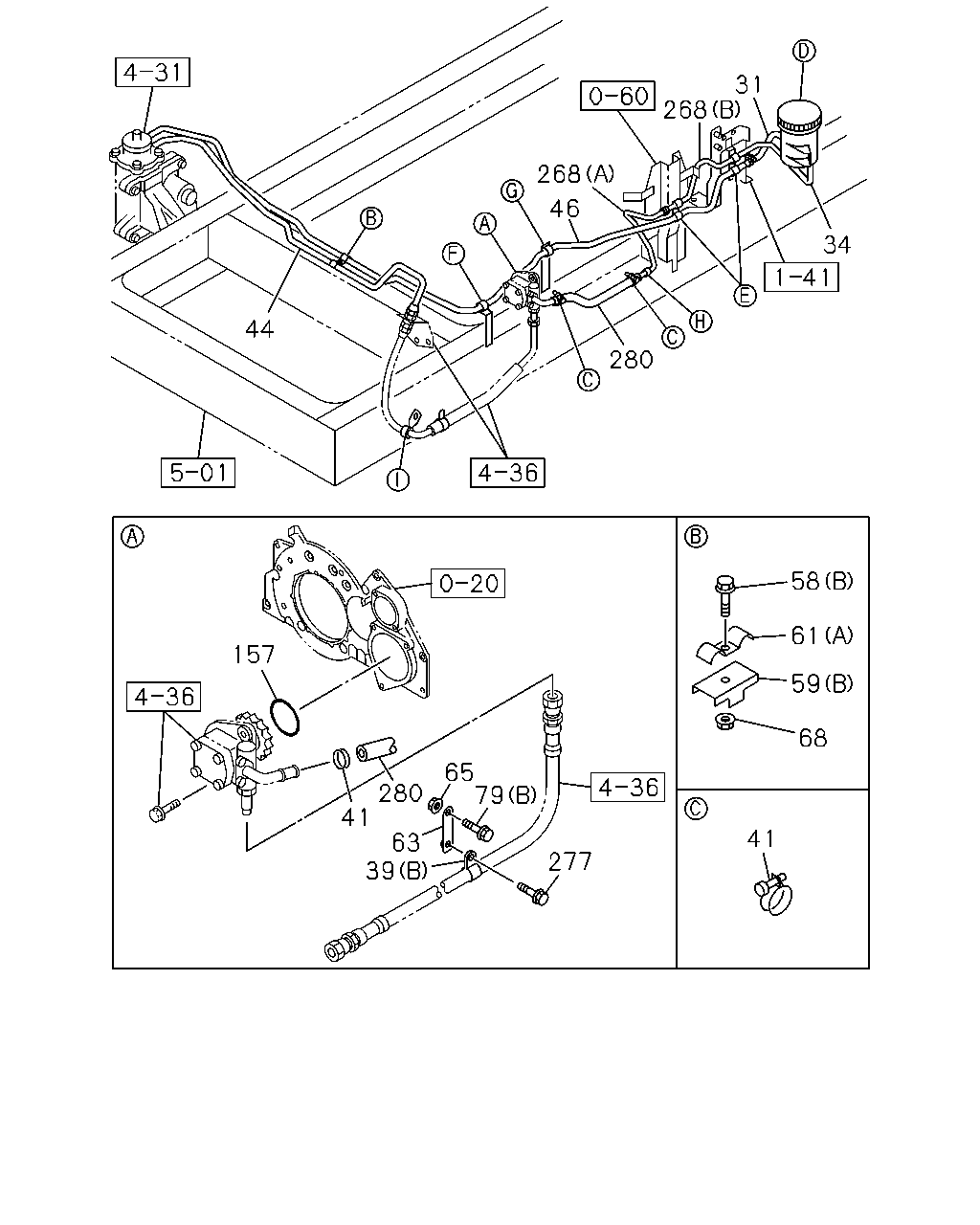

31 268 268 46 34 58 61 59 68 41 277 79 65 280 63 39 41 157 44 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1304-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1304-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1304-
39	CLIP; FLEX HOSE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) ID=19 L=58	1-09700-733-1	01	1	1304-
39	CLIP; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=19 L=58	1-09700-733-1	01	1	1304-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1304-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98075-632-1	01	1	1304-1306
44	PIPE; OIL,P/S UNIT TO NIPPLE THA	8-97948-229-0	01	1	1307-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2771 THA	8-98123-973-0	01	1	1304-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1304-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1304-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1304-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1304-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1304-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	1304-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1304-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1304-
63	BRACKET; CLIP,P/S BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47476-396-1	01	1	1304-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1304-
65	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1304-
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1304-
79	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1304-
79	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1304-
79	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1304-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1304-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	1304-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	1304-
277	BOLT; HOSE CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
277	BOLT; HOSE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
277	BOLT; HOSE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X16 FLANGE THA	0-28050-816-0	01	1	1304-
280	HOSE; P/S OIL PUMP,INL	8-98081-190-0	01	1	1304-

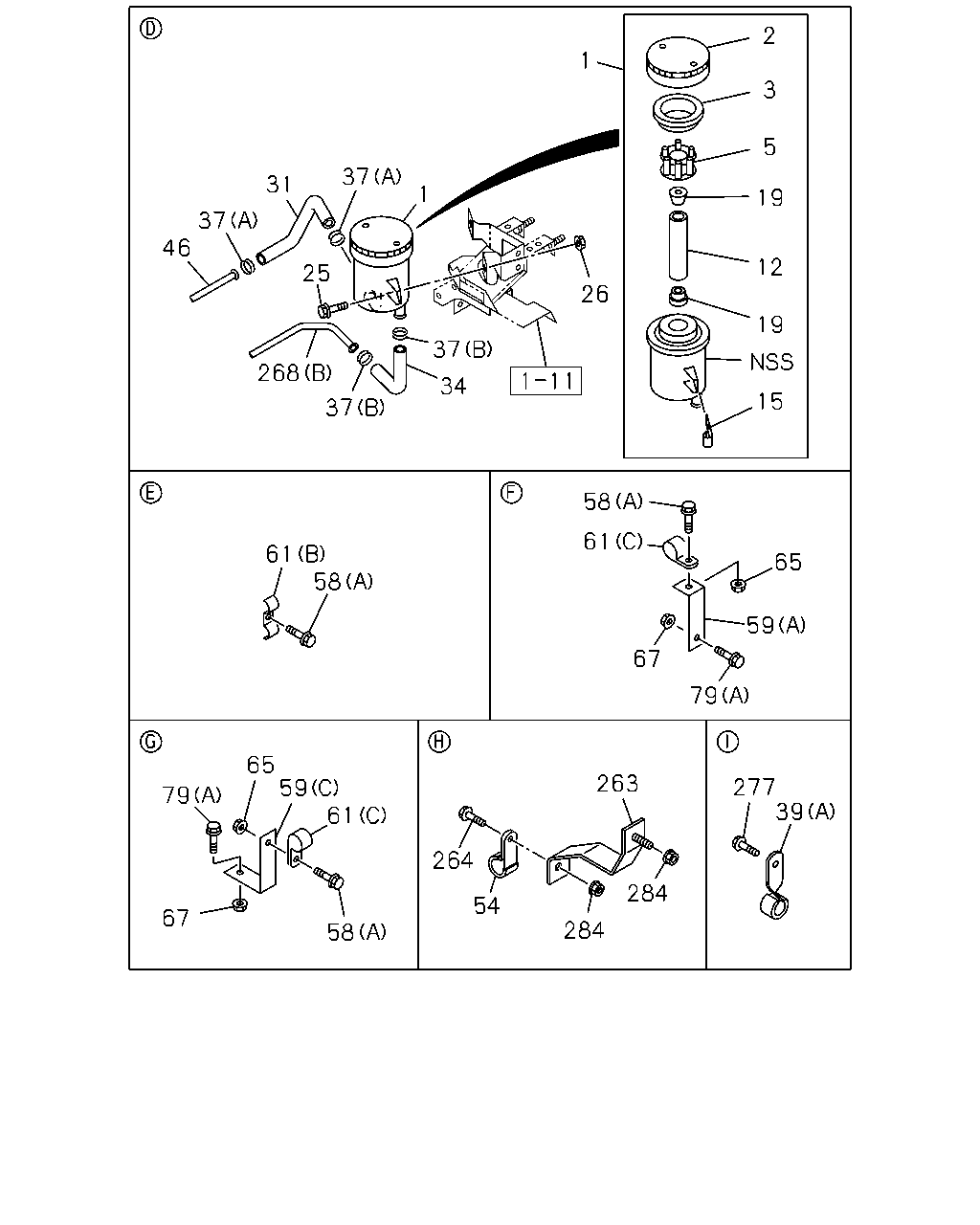

58 61 65 59 79 67 15 19 12 19 5 3 2 1 26 277 39 263 284 284 54 264 58 61 59 61 65 79 67 58 34 37 1 25 37 31 268 37 37 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1304-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1304-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1304-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1304-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1304-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1304-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1304-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1304-
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	02	1	1304-
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1304-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1304-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1304-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1304-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1304-
39	CLIP; FLEX HOSE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) ID=19 L=58	1-09700-733-1	01	1	1304-
39	CLIP; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=19 L=58	1-09700-733-1	01	1	1304-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2771 THA	8-98123-973-0	01	1	1304-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1304-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1304-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1304-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1304-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1304-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1304-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	1304-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1304-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1304-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1304-
65	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1304-
67	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	02	1	1304-
79	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1304-
79	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1304-
79	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1304-
263	BRACKET; P/S PIPE	8-98081-189-0	01	1	1304-
264	BOLT; PIPE BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1304-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	1304-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	1304-
277	BOLT; HOSE CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
277	BOLT; HOSE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
277	BOLT; HOSE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X16 FLANGE THA	0-28050-816-0	01	1	1304-
284	NUT; PIPE M8 FLANGE THA	0-91180-108-0	02	1	1304-
