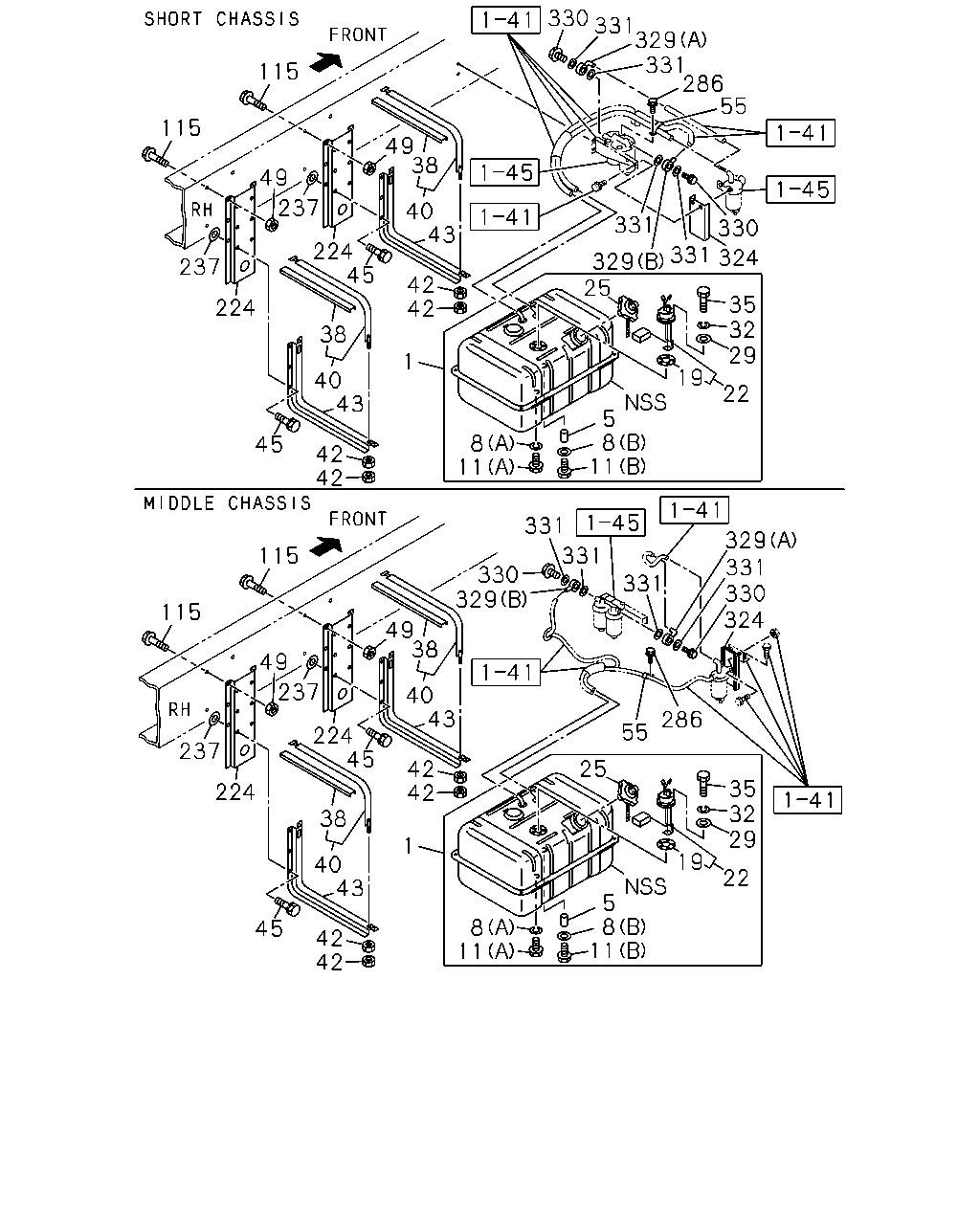

1-40 — FUEL TANK (#1219) — 82 parça

330 331 329 331 286 55 115 115 49 38 49 331 237 40 43 330 224 45 331 329 25 324 237 42 42 35 32 29 224 38 1 19 40 43 22 5 8 11 8 11 45 42 42 331 329 331 330 324 115 331 331 330 329 115 49 38 49 237 40 43 286 224 45 55 237 25 42 42 35 32 29 224 38 1 19 40 43 22 5 8 11 8 11 45 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL 720X610X496 200L	1-22400-571-4	01	1	9202-	●	●	●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9202-9402	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A)	1-22416-001-0	01	1	9202-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9202-	●	●	●
11	PLUG; DRAIN,FUEL TANK (B)	1-09604-052-0	01	1	9202-	●	●	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9202-	●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9202-	●	●	●
22	UNIT; FUEL TANK	1-83141-056-0	01	1	9202-	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9202-	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9202-	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	9202-	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9202-	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9202-	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9202-9404	●	●	●
40	BELT; SUPPORT,FUEL TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) L=1030	1-22550-204-1	02	1	9405-			●
40	BELT; SUPPORT,FUEL TANK L=1040 L=1040	1-22550-194-2	02	1	9405-	●	●
40	BELT; SUPPORT,FUEL TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=1040 L=1040	1-22550-194-2	02	1	9405-			●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9202-	●	●	●
43	BRACKET; FUEL TANK	1-53461-309-1	02	1	9202-	●	●	●
45	BOLT; BRKT,FUEL TANK M12X40 W/LK WASHER	0-50041-240-0	12	1	9202-9307	●	●	●
45	BOLT; BRKT,FUEL TANK M12X40 FLANGE	0-28081-240-0	12	1	9308-9412	●	●	●
45	BOLT; BRKT,FUEL TANK M12X35 W/LK WASHER	0-50041-235-0	12	1	9501-9504	●	●	●
45	BOLT; BRKT,FUEL TANK M12X40 W/LK WASHER	0-50041-240-0	12	1	9505-	●	●	●
49	NUT; BRKT SHORT CHASSIS(FVR6MC) M12	9-99110-512-0	12	1	9202-9405	●
49	NUT; BRKT MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99110-512-0	12	1	9202-9405	●
49	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99110-512-0	12	1	9202-9405		●
49	NUT; BRKT MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99110-512-0	09	1	9202-9405	●
49	NUT; BRKT M12	9-99110-512-0	09	1	9202-9405			●
55	CLIP; FUEL PIPE SHORT CHASSIS(FVR6MC) ID=16X2 L=20	9-09535-535-0	01	1	9202-9209	●
55	CLIP; FUEL PIPE SHORT CHASSIS(FVR6MC) ID=16X2 L=20	9-09535-536-0	01	1	9210-	●
55	CLIP; FUEL PIPE MIDDLE CHASSIS(FVR6MF) ID=15	9-09521-565-0	01	1	9202-	●
55	CLIP; FUEL PIPE ID=15	9-09521-565-0	01	1	9202-		●
115	BOLT; BRKT M12X40 W/LK WASHER	0-50041-240-0	12	1	9202-9307	●	●	●
115	BOLT; BRKT M12X40 FLANGE	0-28081-240-0	12	1	9308-	●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME	1-53461-383-1	02	1	9202-	●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9202-	●	●	●
286	BOLT; CLIP M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●
286	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
324	PROTECTOR; FUEL SEDIMENTER	1-19759-012-0	01	1	9202-	●	●	●
329	JOINT ASM; EYE,FUEL PIPE (A)	5-15411-472-0	01	1	9202-	●	●	●
329	JOINT ASM; EYE,FUEL PIPE (A)	5-15411-472-0	01	1	9202-			●
329	JOINT ASM; EYE,FUEL PIPE (B)	5-09674-054-0	01	1	9202-	●	●
330	BOLT; EYE,JOINT M14X27 FLANGE	1-09675-086-0	02	1	9202-	●	●	●
331	GASKET; EYE JOINT ID=14.2 OD=19.2	1-09630-085-0	04	1	9202-	●	●	●

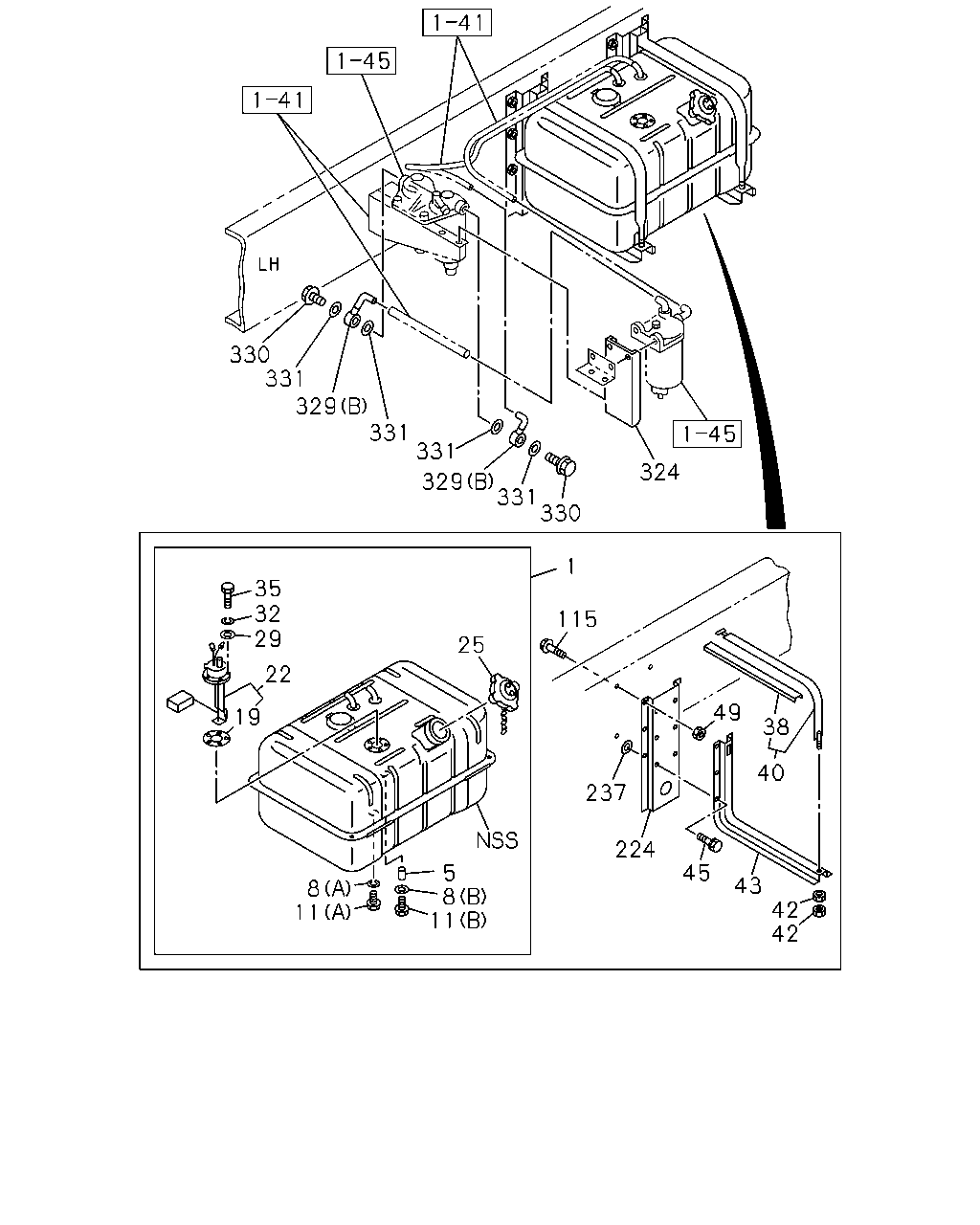

330 331 329 331 331 324 329 331 330 1 35 32 29 115 25 22 49 19 38 40 237 224 5 8 11 45 43 42 42 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL 720X610X496 200L	1-22400-571-4	01	1	9202-	●	●	●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9202-9402	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A)	1-22416-001-0	01	1	9202-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9202-	●	●	●
11	PLUG; DRAIN,FUEL TANK (B)	1-09604-052-0	01	1	9202-	●	●	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9202-	●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9202-	●	●	●
22	UNIT; FUEL TANK	1-83141-056-0	01	1	9202-	●	●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9202-	●	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9202-	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	9202-	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9202-	●	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9202-	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9202-9404	●	●	●
40	BELT; SUPPORT,FUEL TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINAEQUIPMENT(YT2) L=1030	1-22550-204-1	02	1	9405-			●
40	BELT; SUPPORT,FUEL TANK L=1040 L=1040	1-22550-194-2	02	1	9405-	●	●
40	BELT; SUPPORT,FUEL TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=1040 L=1040	1-22550-194-2	02	1	9405-			●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9202-	●	●	●
43	BRACKET; FUEL TANK	1-53461-309-1	02	1	9202-	●	●	●
45	BOLT; BRKT,FUEL TANK M12X40 W/LK WASHER	0-50041-240-0	12	1	9202-9307	●	●	●
45	BOLT; BRKT,FUEL TANK M12X40 FLANGE	0-28081-240-0	12	1	9308-9412	●	●	●
45	BOLT; BRKT,FUEL TANK M12X35 W/LK WASHER	0-50041-235-0	12	1	9501-9504	●	●	●
45	BOLT; BRKT,FUEL TANK M12X40 W/LK WASHER	0-50041-240-0	12	1	9505-	●	●	●
49	NUT; BRKT SHORT CHASSIS(FVR6MC) M12	9-99110-512-0	12	1	9202-9405	●
49	NUT; BRKT MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99110-512-0	12	1	9202-9405	●
49	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99110-512-0	12	1	9202-9405		●
49	NUT; BRKT MIDDLE CHASSIS(FVR6MF) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99110-512-0	09	1	9202-9405	●
49	NUT; BRKT M12	9-99110-512-0	09	1	9202-9405			●
115	BOLT; BRKT M12X40 W/LK WASHER	0-50041-240-0	12	1	9202-9307	●	●	●
115	BOLT; BRKT M12X40 FLANGE	0-28081-240-0	12	1	9308-	●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME	1-53461-383-1	02	1	9202-	●	●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9202-	●	●	●
324	PROTECTOR; FUEL SEDIMENTER	1-19759-012-0	01	1	9202-	●	●	●
329	JOINT ASM; EYE,FUEL PIPE (A)	5-15411-472-0	01	1	9202-	●	●	●
329	JOINT ASM; EYE,FUEL PIPE (A)	5-15411-472-0	01	1	9202-			●
329	JOINT ASM; EYE,FUEL PIPE (B)	5-09674-054-0	01	1	9202-	●	●
330	BOLT; EYE,JOINT M14X27 FLANGE	1-09675-086-0	02	1	9202-	●	●	●
331	GASKET; EYE JOINT ID=14.2 OD=19.2	1-09630-085-0	04	1	9202-	●	●	●
