1 |

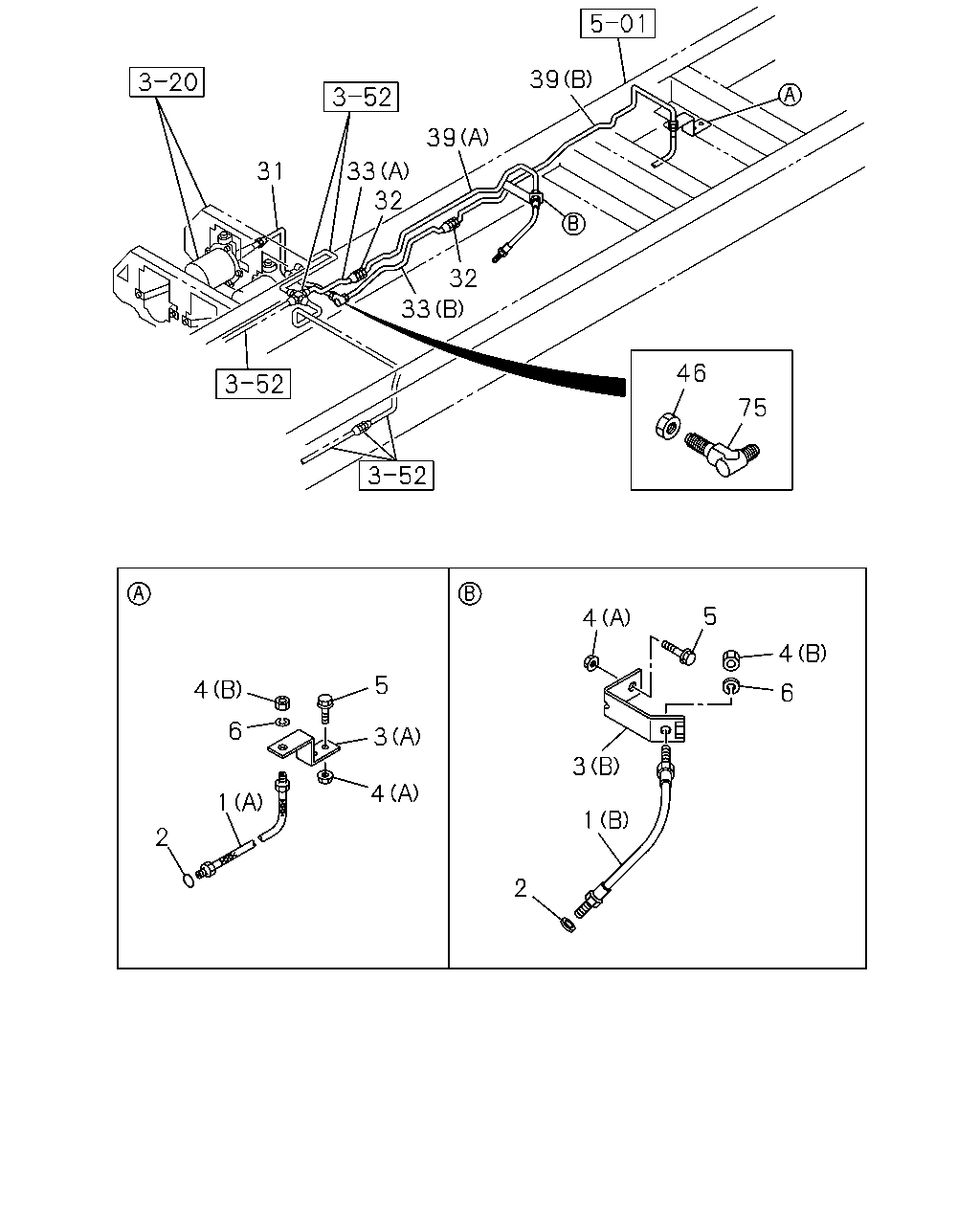

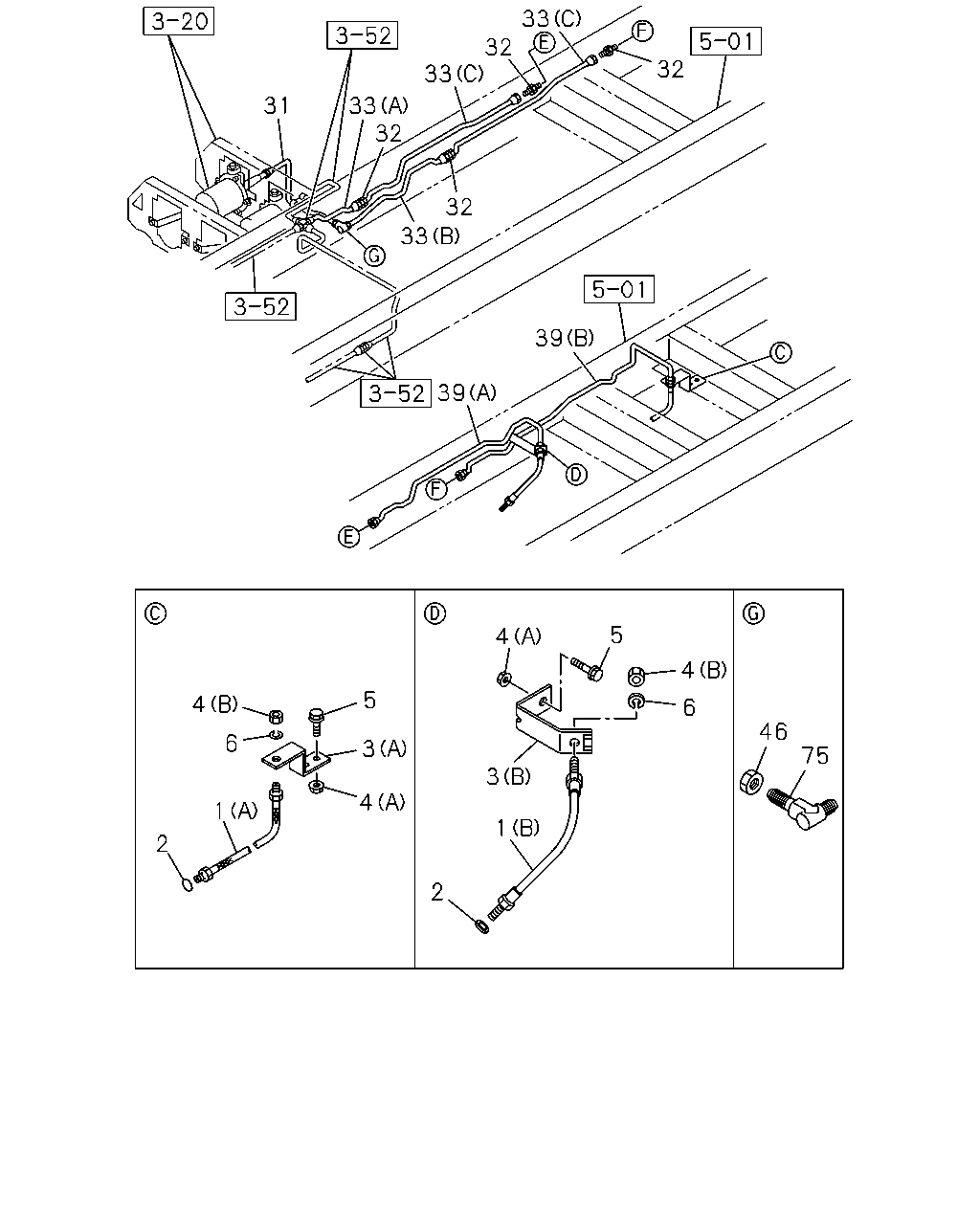

HOSE; FLEX,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(B)
L=525
|
1-09364-191-0 |
01 |
1 |
1304- |
| |
1 |
HOSE; FLEX,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(A)
L=675
|
1-09364-201-0 |
01 |
1 |
1304- |
| |
2 |
GASKET; FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
ID=9 OD=17
|
9-09920-472-0 |
02 |
1 |
1304- |
| |
3 |
BRACKET; FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(A)
|
1-47465-608-0 |
01 |
1 |
1304- |
| |
3 |
BRACKET; FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(B)
|
1-47475-357-2 |
01 |
1 |
1304- |
| |
4 |
NUT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(A)
M8 FLANGE
THA
|
0-91180-108-0 |
04 |
1 |
1304- |
| |
4 |
NUT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(B)
M12
|
9-09840-280-0 |
02 |
1 |
1304- |
| |
5 |
BOLT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
M8X30 FLANGE
THA
|
0-28650-830-0 |
04 |
1 |
1304- |
| |
6 |
WASHER; LK,FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
ID=12.2
|
0-91510-512-0 |
02 |
1 |
1304- |
| |
31 |
PIPE; OIL,AIR MASTER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
L=646
SERVICED BY L=650
|
1-47428-726-0 |
01 |
1 |
1304- |
| |
32 |
UNION; OIL PIPE
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>,
WHEELBASE 6300MM<63W>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
M12 L=40
|
0-92113-006-0 |
02 |
1 |
1304- |
| |
32 |
UNION; OIL PIPE
WHEEL BASE 7100MM<71W>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
M12 L=40
|
0-92113-006-0 |
04 |
1 |
1304- |
| |
33 |
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM<55W>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(A)
L=1580
SERVICED BY L=1620
|
1-47428-736-0 |
01 |
1 |
1304- |
| |
33 |
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM<55W>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(B)
L=1722
SERVICED BY L=1820
|
1-47428-738-0 |
01 |
1 |
1304- |
| |
33 |
PIPE; OIL,UNION TO UNION
WHEEL BASE 5800MM<58W>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(A)
L=1922
SERVICED BY L=2000
|
1-47428-739-0 |
01 |
1 |
1304- |
| |
33 |
PIPE; OIL,UNION TO UNION
WHEEL BASE 5800MM<58W>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(B)
L=2064
SERVICED BY L=2200
|
1-47428-740-0 |
01 |
1 |
1304- |
| |
33 |
PIPE; OIL,UNION TO UNION
WHEEL BASE 6300MM<63W>,WHEEL BASE 7100MM<71W>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(A)
L=2430
SERVICED BY L=2500
|
1-47428-742-0 |
01 |
1 |
1304- |
| |
33 |
PIPE; OIL,UNION TO UNION
WHEEL BASE 6300MM<63W>,WHEEL BASE 7100MM<71W>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(B)
L=2572
SERVICED BY L=2650
|
1-47428-743-0 |
01 |
1 |
1304- |
| |
33 |
PIPE; OIL,UNION TO UNION
WHEEL BASE 7100MM<71W>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(C)
L=743
SERVICED BY L=800
|
1-47428-728-0 |
02 |
1 |
1304- |
| |
39 |
PIPE; OIL,UNION TO RR FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(A)
L=856
SERVICED BY L=900
|
1-47428-729-0 |
01 |
1 |
1304- |
| |
39 |
PIPE; OIL,UNION TO RR FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
(B)
L=2401
SERVICED BY L=2500
|
1-47428-742-0 |
01 |
1 |
1304- |
| |
46 |
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
M12
|
9-09840-280-0 |
01 |
1 |
1304- |
| |
75 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
M12 ELBOW
|
0-92125-206-0 |
01 |
1 |
1304- |
