3-26 — TRAILER CONTROL (#121885) — 32 parça

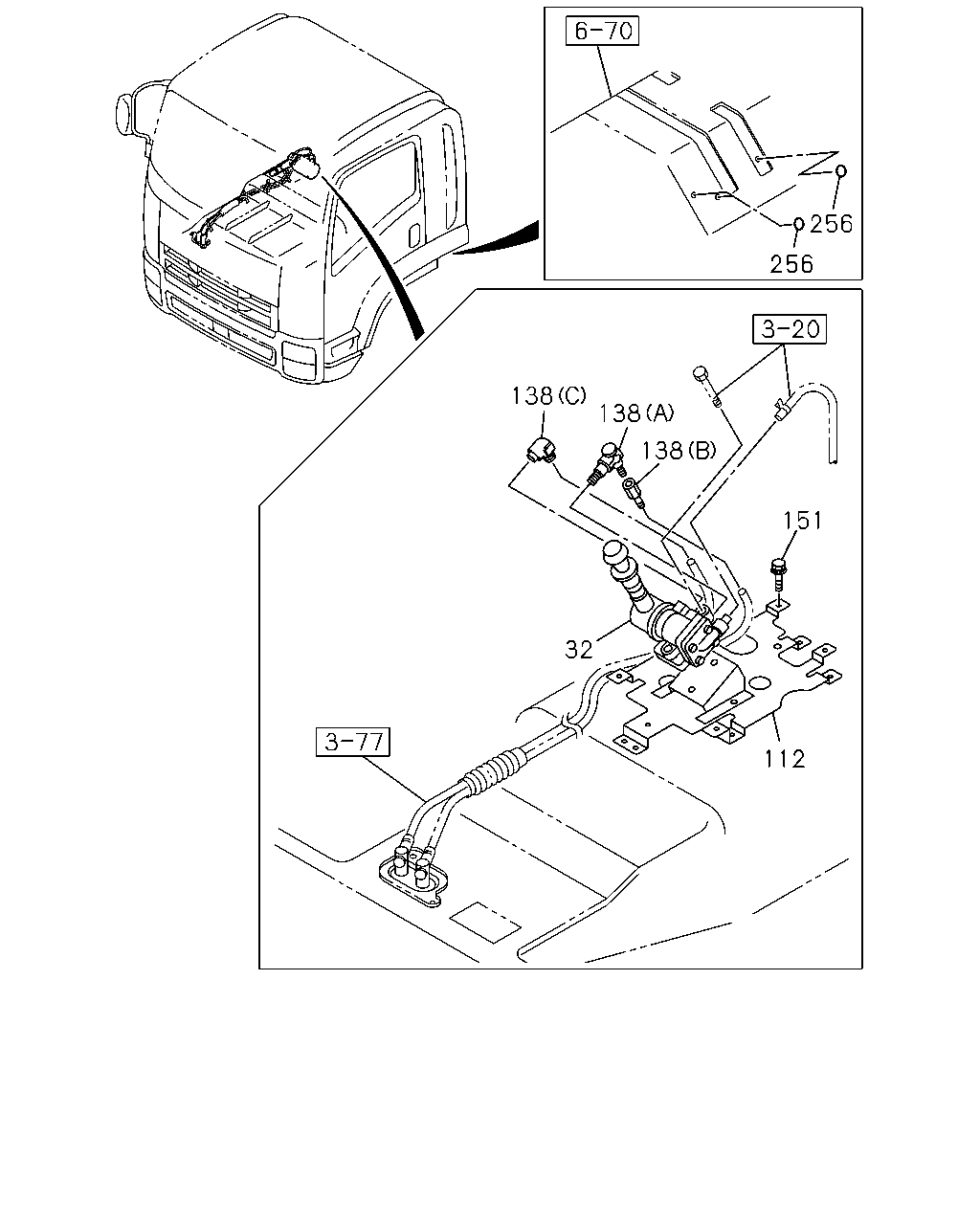

256 256 151 138 138 138 32 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48460-306-0	01	1	1304-
112	BRACKET; CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-73908-054-7	01	1	1304-
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-09650-240-1	01	1	1304-
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1304-
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
151	BOLT; VLV BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M6X16 THA	0-52000-616-0	04	1	1304-
256	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> OD=25 BLACK THA	1-76798-019-0	08	1	1304-

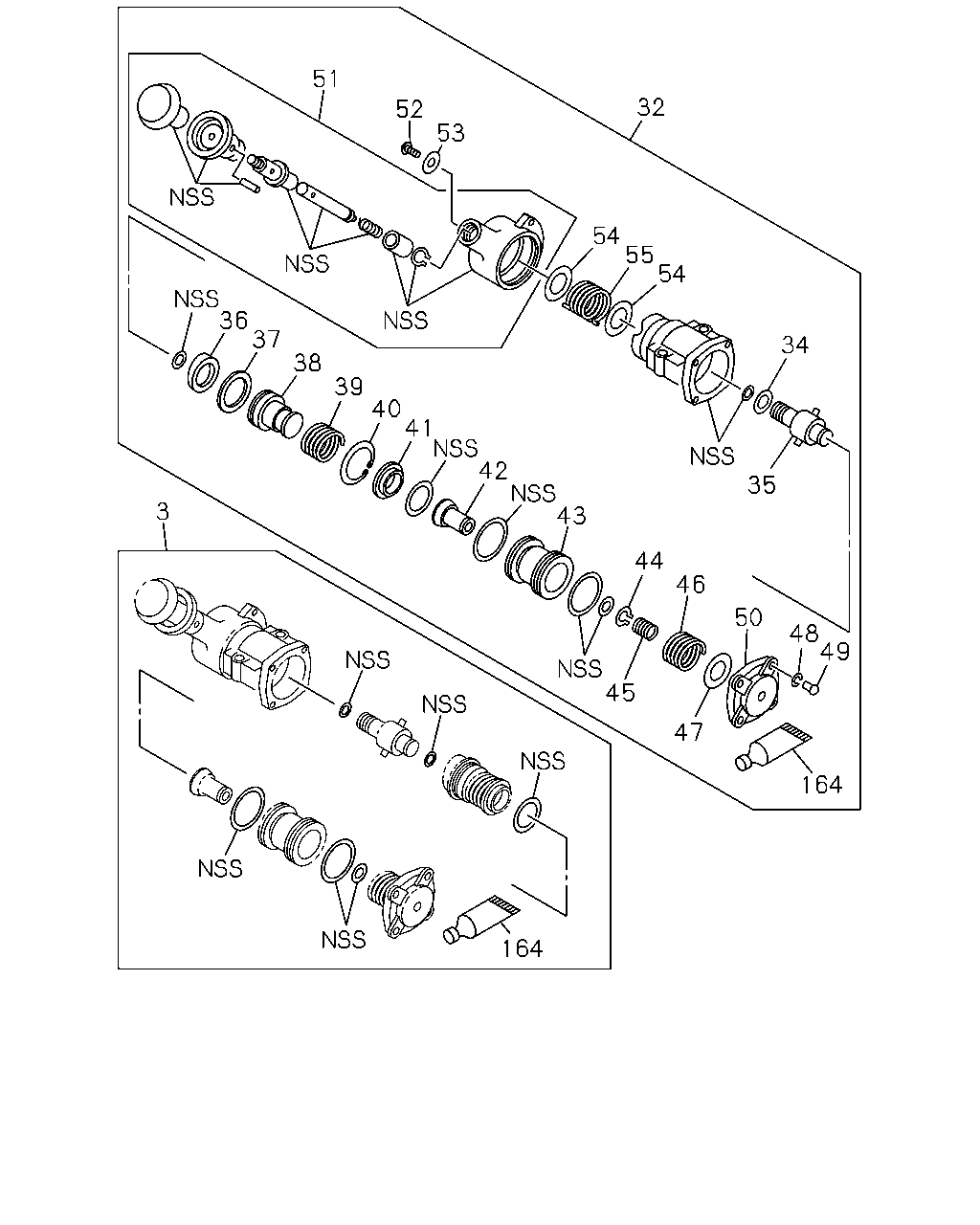

32 51 52 53 54 55 54 34 35 49 48 50 46 44 43 42 41 40 39 38 37 36 3 45 47 164 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-096-0	01	1	1304-
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48460-306-0	01	1	1304-
34	SHIM; CAM HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-055-0	AR	1	1304-
35	HOLDER; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-054-0	01	1	1304-
36	RING; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-056-0	01	1	1304-
37	GUIDE; CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-058-0	01	1	1304-
38	SEAT; EXH VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-057-0	01	1	1304-
39	SPRING; RETURN,CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-063-0	01	1	1304-
40	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-067-0	01	1	1304-
41	SEAT; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-066-0	01	1	1304-
42	VALVE; FEED BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-065-0	01	1	1304-
43	PISTON; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-064-0	01	1	1304-
44	RING; SNAP,FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-068-0	02	1	1304-
45	SPRING; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-070-0	01	1	1304-
46	SPRING; MAIN,PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-089-0	01	1	1304-
47	SHIM; MAIN SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-072-0	AR	1	1304-
48	WASHER; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-091-0	04	1	1304-
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-092-0	04	1	1304-
50	COVER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-090-0	01	1	1304-
51	HANDLE ASM; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-122-0	01	1	1304-
52	SCREW; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-062-0	01	1	1304-
53	WASHER; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-061-0	01	1	1304-
54	SEAT; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-082-0	02	1	1304-
55	SPRING; RETURN,HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-059-0	01	1	1304-
164	GREASE; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48469-084-0	01	1	1304-
