Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#121883) — 199 parça

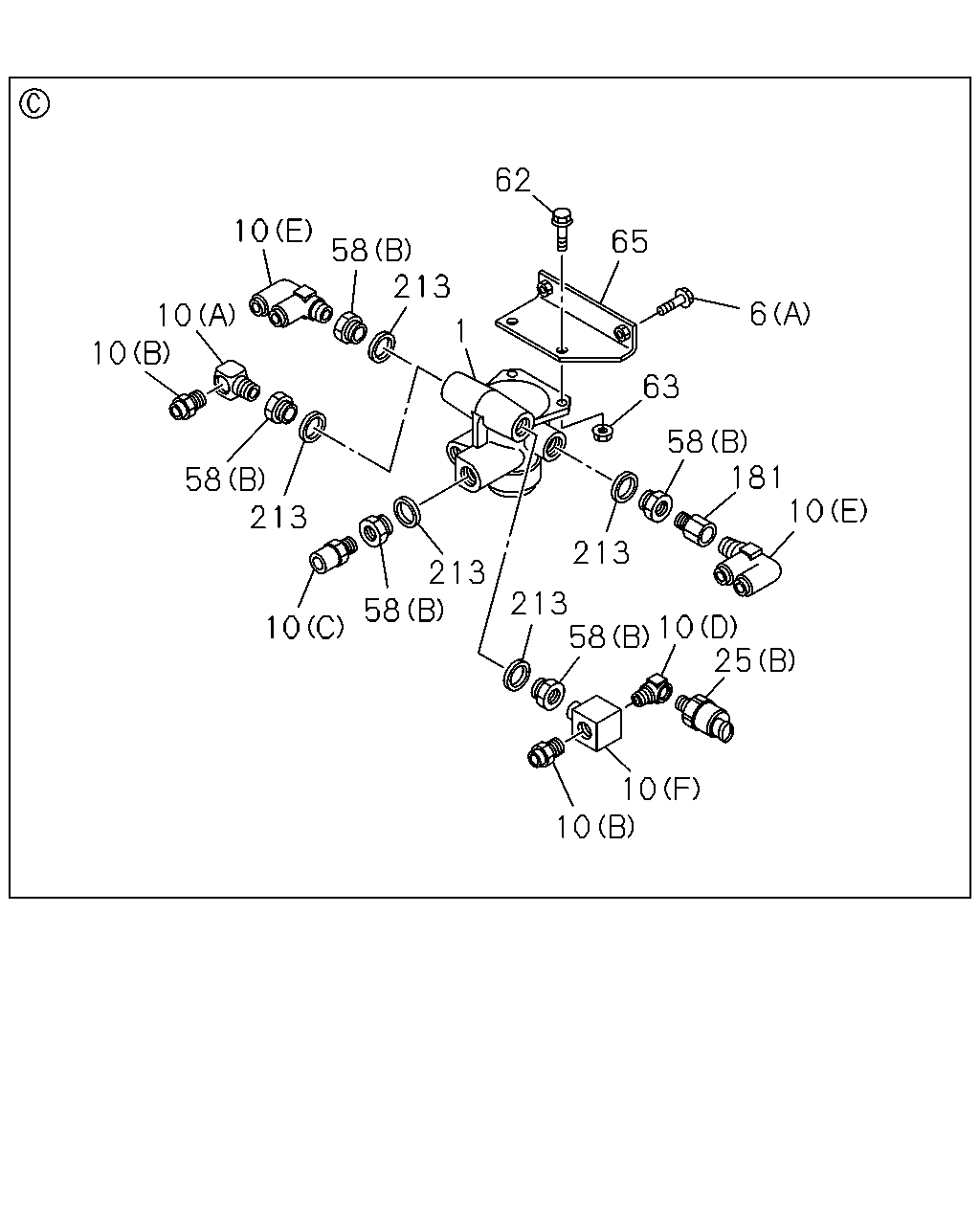

10 25 10 10 10 181 58 63 6 65 62 1 213 213 58 213 213 58 10 213 58 10 10 10 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48240-354-1	01	1	1304-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) M8X80 FLANGE THA	0-28050-880-0	04	1	1304-1410
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) M8X85 THA	1-09044-074-0	04	1	1411-
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F)	1-09656-708-0	01	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) PT1/4 2WAY	1-09660-693-0	01	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8 ELBOW	1-09660-696-0	01	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1304-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) STAMP 5.5	8-97609-249-0	01	1	1304-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98010-856-1	01	1	1304-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) INNER PT3/8,OUTER M22	1-09650-494-1	05	1	1304-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1304-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1304-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E)	8-98031-238-0	01	1	1304-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C)	8-98148-475-0	01	1	1304-
62	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	02	1	1304-
63	NUT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	02	1	1304-
65	BRACKET; RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47471-032-0	01	1	1304-
181	ADAPTER; PRESSURE SW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PT3/8	1-09664-210-0	01	1	1304-
213	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=22.5	9-09571-422-0	05	1	1304-

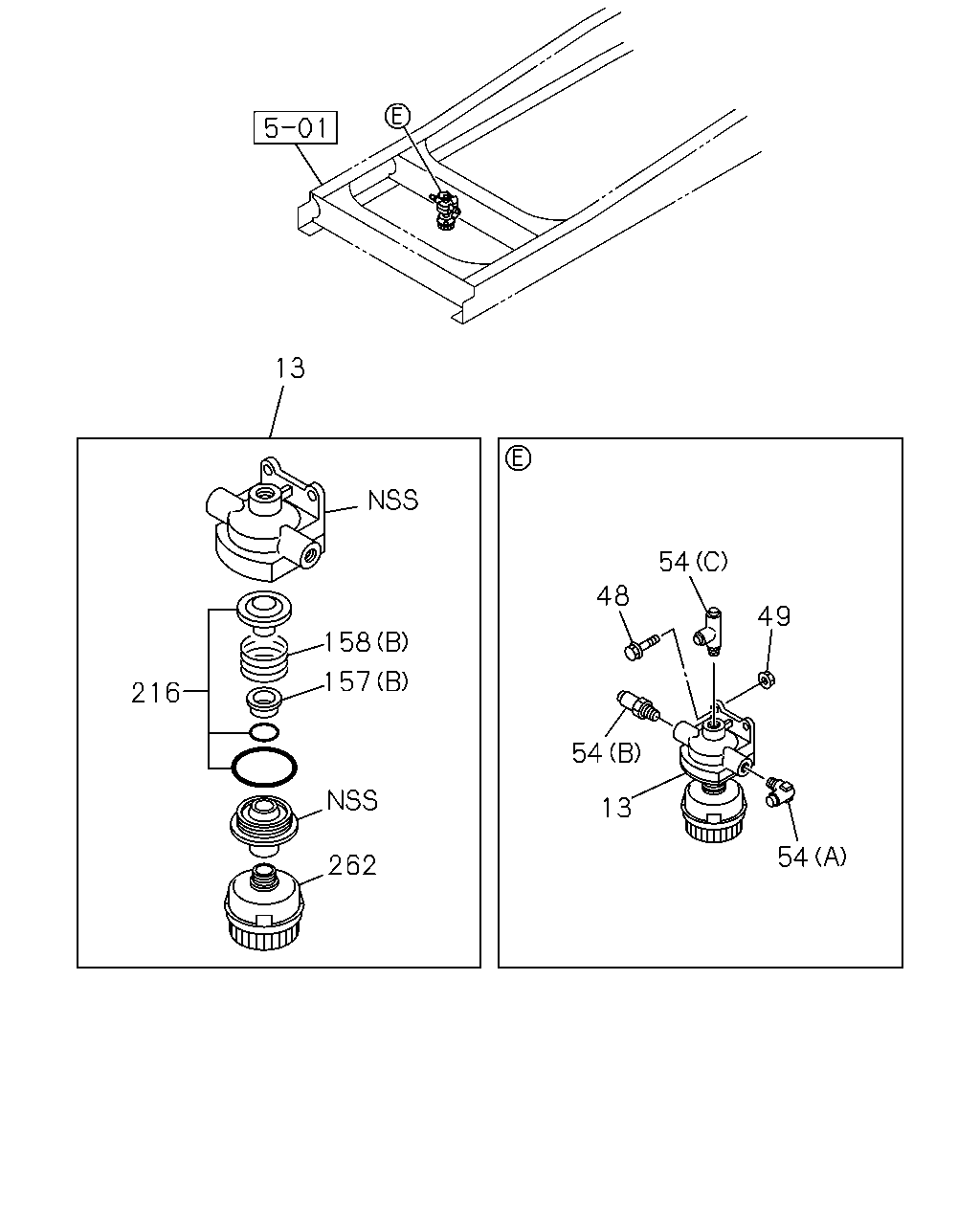

13 158 157 262 216 48 54 49 54 13 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-48410-726-1	01	1	1304-
48	BOLT; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X25 FLANGE THA	0-28650-825-0	02	1	1304-
49	NUT; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	1304-
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1304-
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (C)	1-09661-207-0	01	1	1304-
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48213-002-0	01	1	1304-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48213-002-0	02	1	1304-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B)	1-48419-020-0	01	1	1304-
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-47819-089-0	01	1	1304-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-47819-089-0	02	1	1304-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B)	9-48419-003-0	01	1	1304-
216	REPAIR KIT; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-85576-484-0	01	1	1304-
262	SILENCER; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-48219-149-0	01	1	1304-

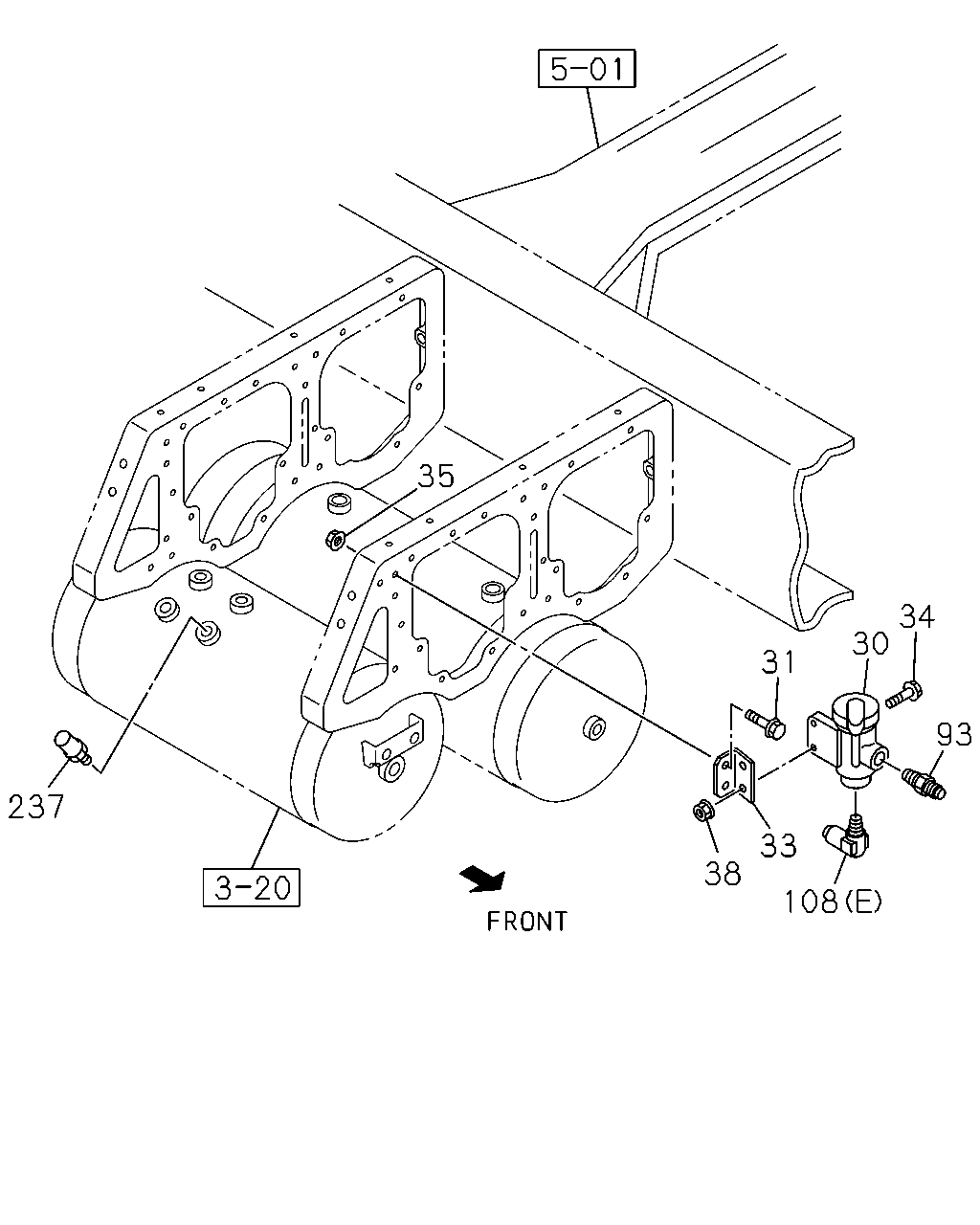

34 30 93 108 38 33 31 35 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	1304-
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	02	1	1304-
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	02	1	1304-
33	BRACKET; GOV,AIR CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	8-98120-459-1	01	1	1304-
34	BOLT; BRKT,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	02	1	1304-
35	NUT; GOV TO FRAME M8 FLANGE THA	0-91180-108-0	02	1	1304-
38	NUT; BRKT,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	02	1	1304-
93	CONNECTOR; GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1304-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/8 ELBOW	1-09660-696-0	01	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (C)	8-98179-708-0	01	1	1304-
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C)	8-98179-708-0	01	1	1304-
237	VALVE; SAFETY	1-48320-012-2	01	1	1304-

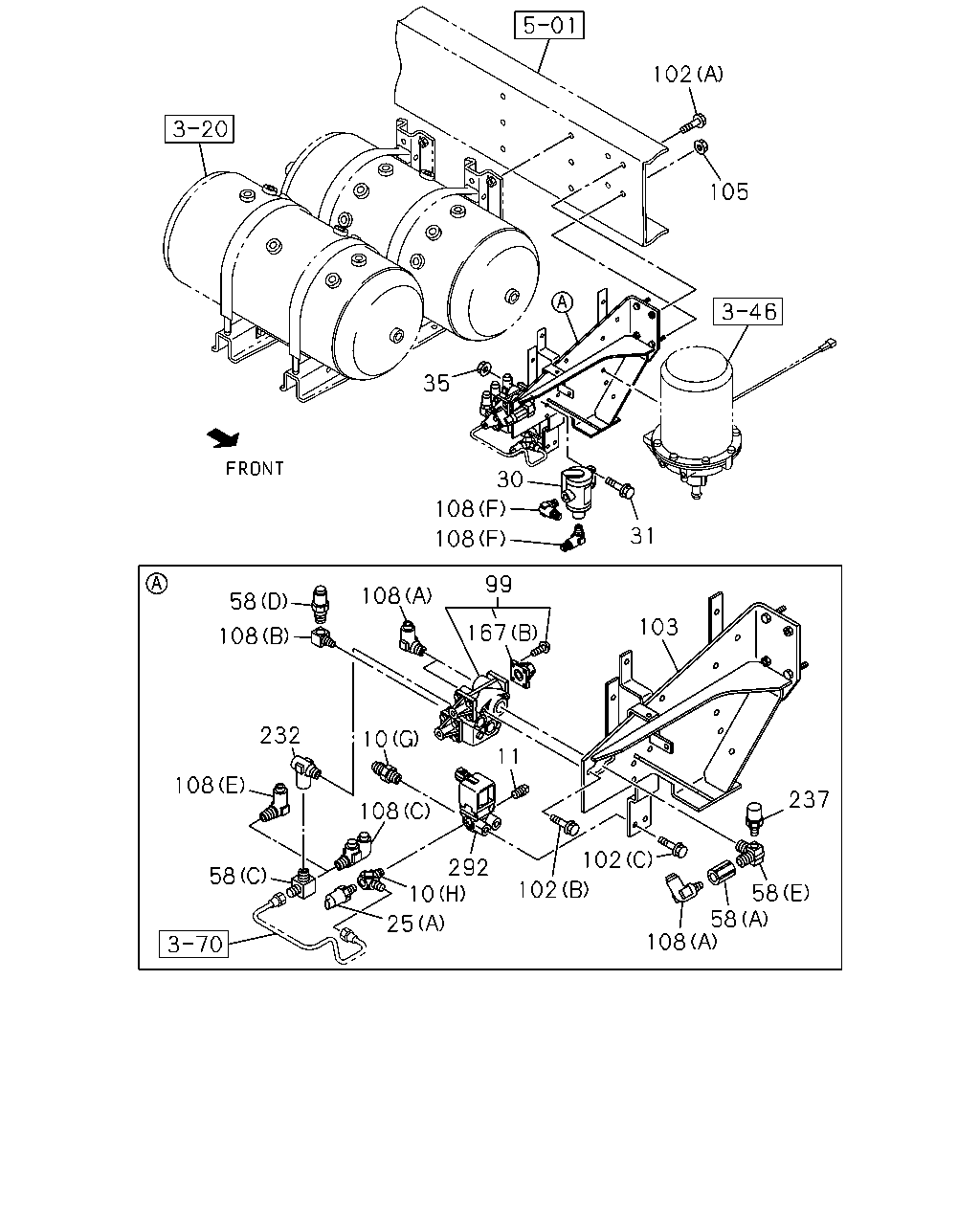

108 58 58 237 102 102 25 10 292 108 10 232 108 108 58 108 99 167 103 11 108 108 31 30 35 105 02 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F)	1-09656-708-0	01	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) PT1/4 2WAY	1-09660-693-0	01	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8 ELBOW	1-09660-696-0	01	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1304-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1304-
11	PLUG BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PT1/4	9-99204-513-0	01	1	1304-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) STAMP 5.5	8-97609-249-0	01	1	1304-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98010-856-1	01	1	1304-
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	1304-
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	02	1	1304-
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	02	1	1304-
35	NUT; GOV TO FRAME M8 FLANGE THA	0-91180-108-0	02	1	1304-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) INNER PT3/8,OUTER M22	1-09650-494-1	05	1	1304-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1304-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1304-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E)	8-98031-238-0	01	1	1304-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C)	8-98148-475-0	01	1	1304-
99	VALVE; PROTECTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48110-288-2	01	1	1304-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) M8X20 FLANGE THA	0-28650-820-0	02	1	1304-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M10X35 FLANGE THA	0-28651-035-0	02	1	1304-
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	8-98173-454-0	01	1	1304-
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	02	1	1304-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/8 ELBOW	1-09660-696-0	01	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (C)	8-98179-708-0	01	1	1304-
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C)	8-98179-708-0	01	1	1304-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-48119-625-0	04	1	1304-
167	COVER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48219-070-0	01	1	1304-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48219-070-0	02	1	1304-
232	VALVE; CHECK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98032-527-0	01	1	1304-
237	VALVE; SAFETY	1-48320-012-2	01	1	1304-
292	VALVE ASM; MAGNETIC BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-82563-871-2	01	1	1304-1306
292	VALVE ASM; MAGNETIC BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	8-97948-152-0	01	1	1307-

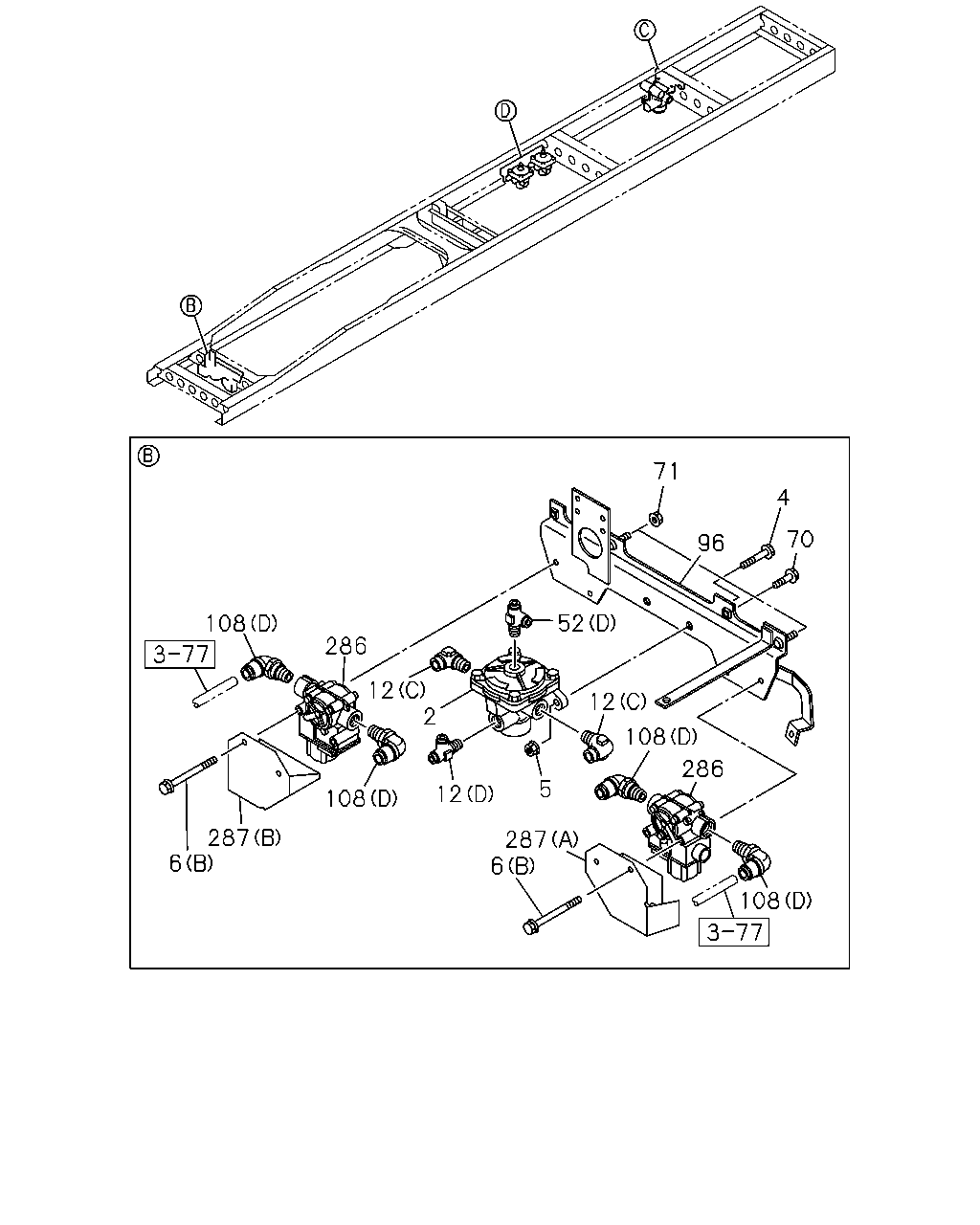

108 286 108 12 52 6 5 287 12 2 12 108 287 6 286 108 70 4 96 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	01	1	1304-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	02	1	1304-
4	BOLT; RELAY VLV TO BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	02	1	1304-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	04	1	1304-
5	NUT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	02	1	1304-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	04	1	1304-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) M8X80 FLANGE THA	0-28050-880-0	04	1	1304-1410
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) M8X85 THA	1-09044-074-0	04	1	1411-
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1304-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1304-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D)	1-09661-207-0	01	1	1304-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1304-
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1304-
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	1304-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1304-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B)	8-98203-578-0	02	1	1304-
70	BOLT; AIR VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	02	1	1304-
71	NUT; AIR VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	02	1	1304-
96	BRACKET ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98074-613-3	01	1	1304-1410
96	BRACKET ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98273-496-0	01	1	1411-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/8 ELBOW	1-09660-696-0	01	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (C)	8-98179-708-0	01	1	1304-
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C)	8-98179-708-0	01	1	1304-
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48240-115-0	02	1	1304-1410
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98215-454-0	02	1	1411-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-47479-611-1	01	1	1304-1410
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98273-493-0	01	1	1411-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98073-401-0	01	1	1304-1410
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	8-98273-494-0	01	1	1411-

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1304-

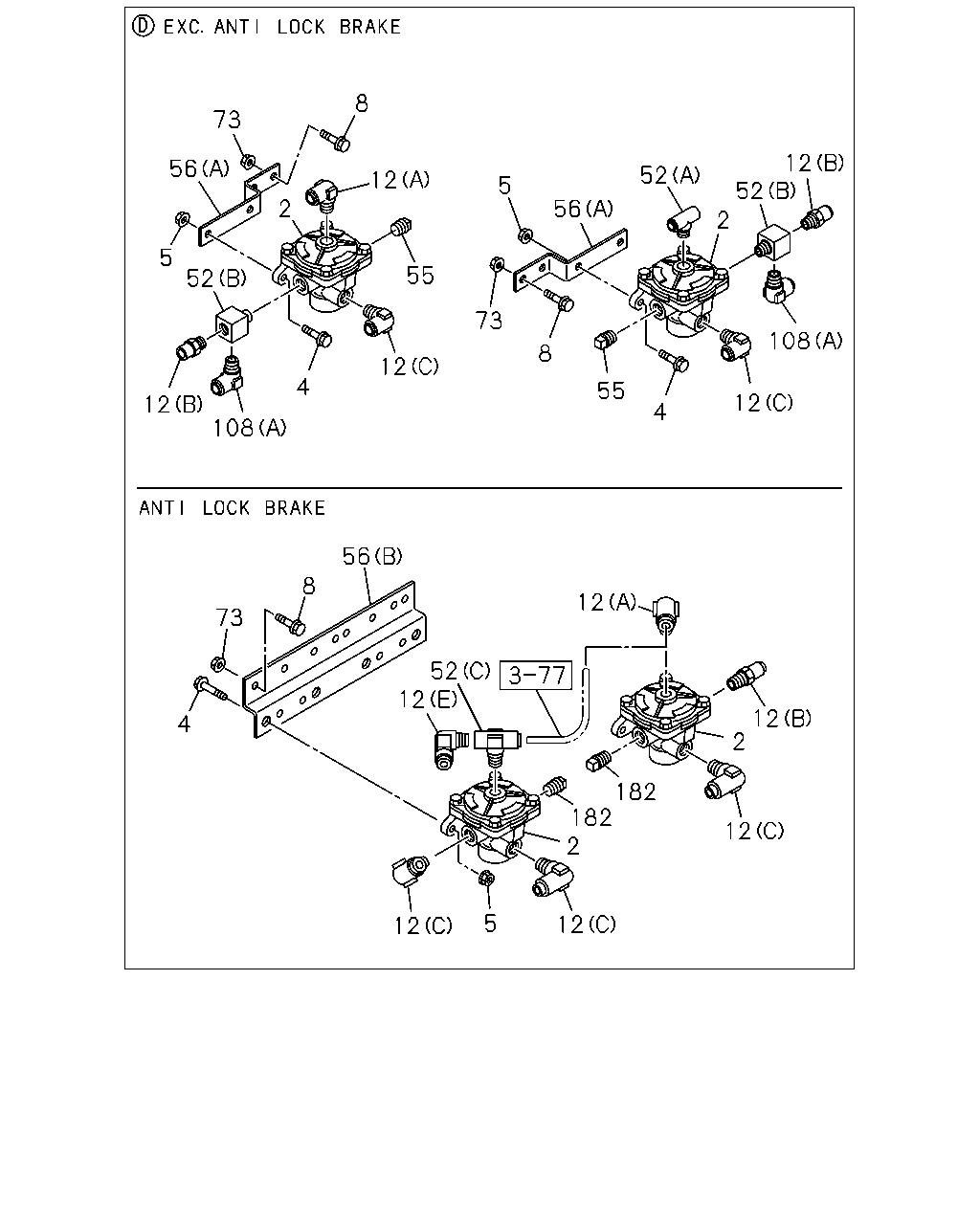

12 52 52 2 108 12 4 55 8 73 5 56 12 55 12 4 108 12 52 2 56 73 8 5 73 8 56 52 12 12 12 2 12 182 182 12 5 12 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	01	1	1304-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	02	1	1304-
4	BOLT; RELAY VLV TO BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	02	1	1304-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	04	1	1304-
5	NUT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	02	1	1304-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	04	1	1304-
8	BOLT; BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	03	1	1304-
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M10X30 FLANGE THA	0-28651-030-0	04	1	1304-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1304-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D)	1-09661-207-0	01	1	1304-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1304-
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1304-
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	1304-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1304-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B)	8-98203-578-0	02	1	1304-
55	PLUG; SUPPLY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> PT3/8	9-09204-517-0	02	1	1304-
56	BRACKET; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-47479-937-0	01	1	1304-
56	BRACKET; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	8-98094-850-0	02	1	1304-
73	NUT; BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	03	1	1304-
73	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M10 FLANGE THA	0-91180-210-0	04	1	1304-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/8 ELBOW	1-09660-696-0	01	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (C)	8-98179-708-0	01	1	1304-
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C)	8-98179-708-0	01	1	1304-
182	PLUG; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PT3/8	9-09204-517-0	02	1	1304-

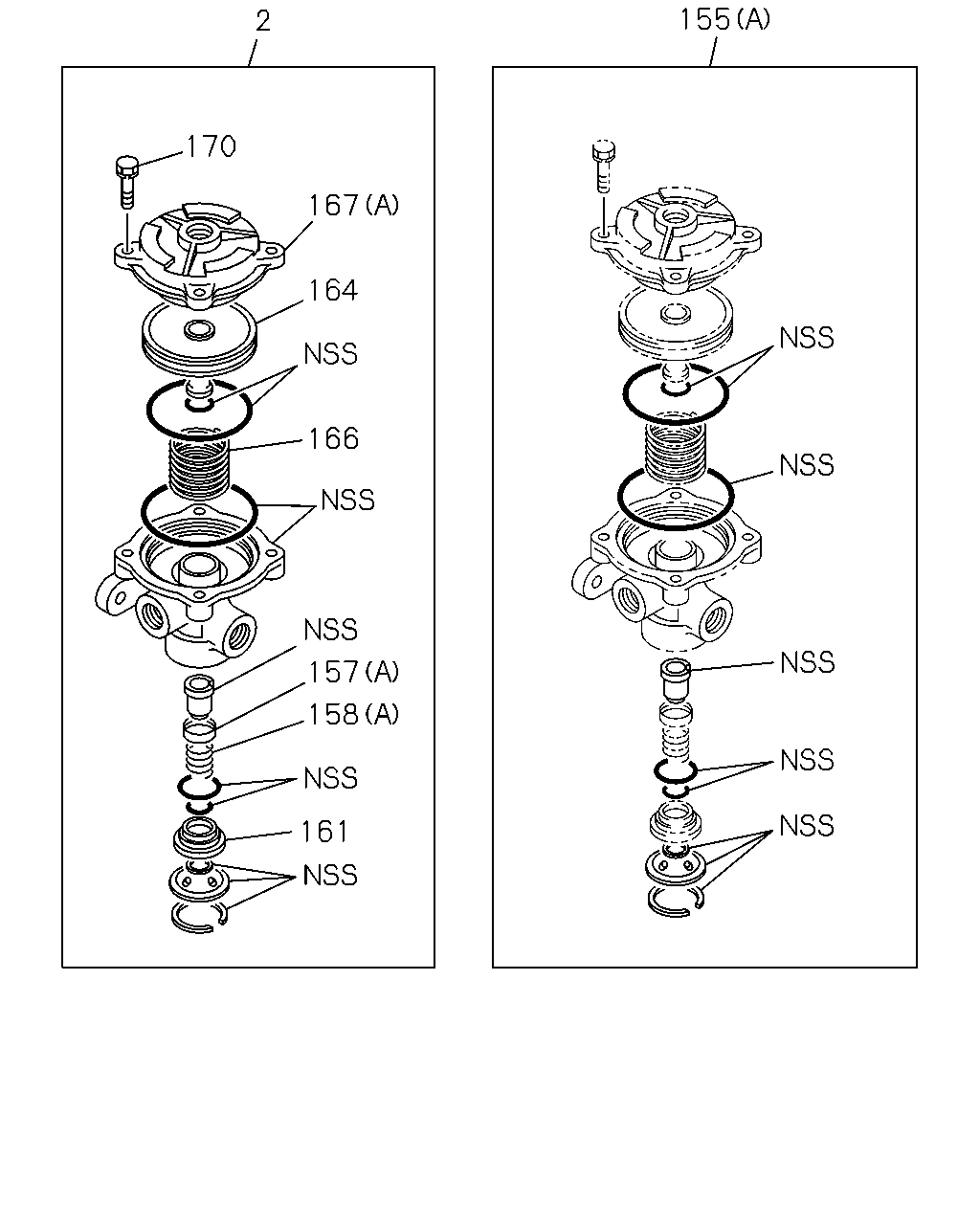

155 2 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	01	1	1304-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	02	1	1304-
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-85576-033-0	01	1	1304-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-85576-033-0	02	1	1304-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-85576-408-0	01	1	1304-
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48213-002-0	01	1	1304-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48213-002-0	02	1	1304-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B)	1-48419-020-0	01	1	1304-
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-47819-089-0	01	1	1304-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-47819-089-0	02	1	1304-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B)	9-48419-003-0	01	1	1304-
161	GUIDE; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48129-014-0	01	1	1304-
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48129-014-0	02	1	1304-
164	PISTON; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48219-071-0	01	1	1304-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48219-071-0	02	1	1304-
166	SPRING; PISTON ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47819-090-0	01	1	1304-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47819-090-0	02	1	1304-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-48119-625-0	04	1	1304-
167	COVER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48219-070-0	01	1	1304-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48219-070-0	02	1	1304-
170	SCREW; COVER TO BODY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48219-039-0	04	1	1304-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48219-039-0	08	1	1304-

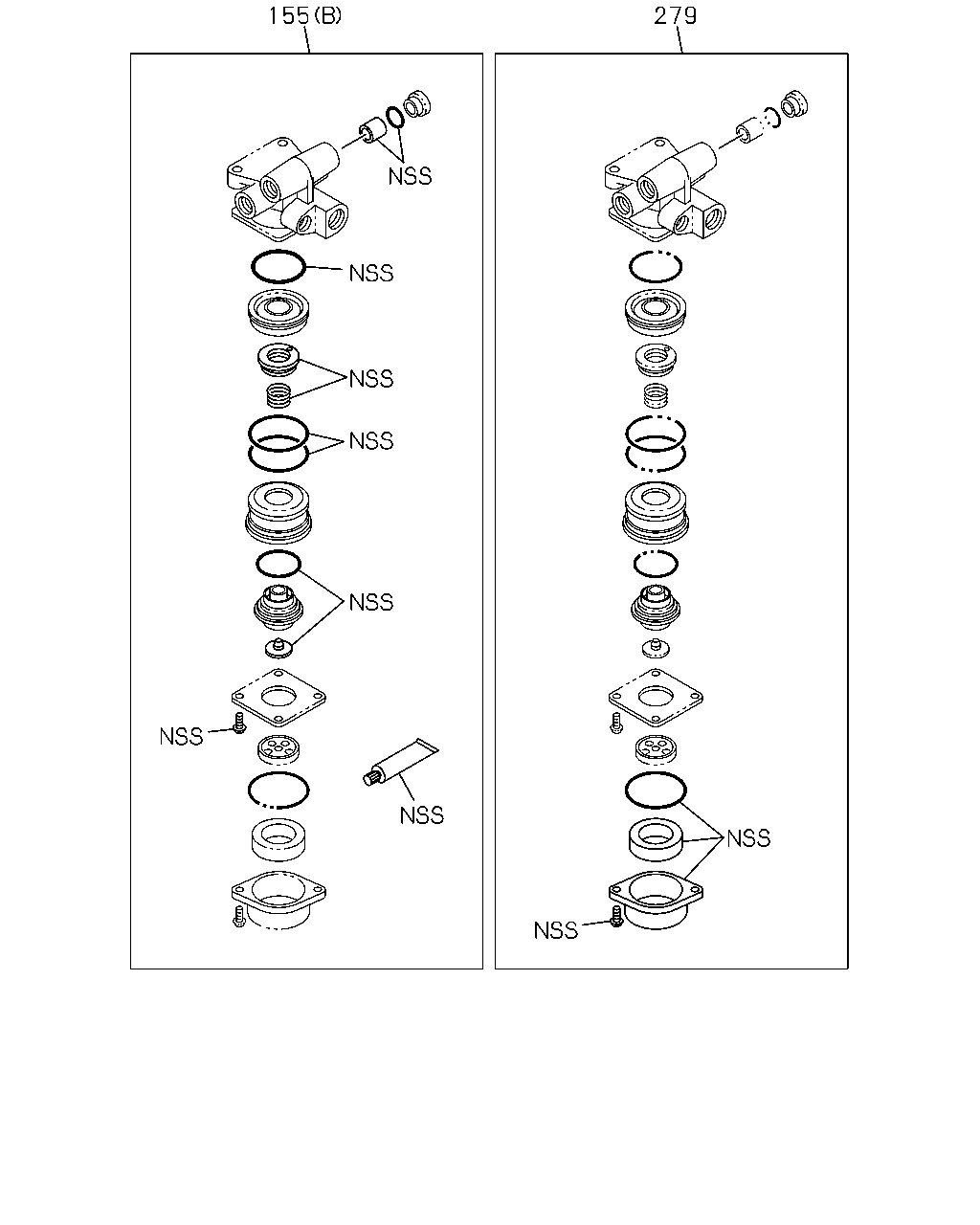

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-85576-033-0	01	1	1304-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-85576-033-0	02	1	1304-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-85576-408-0	01	1	1304-
279	REPAIR KIT; SILENCER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-85576-409-0	01	1	1304-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-85576-451-1	01	1	1304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
