2-26B — MANUAL TRANSMISSION GEAR (#121868) — 216 parça

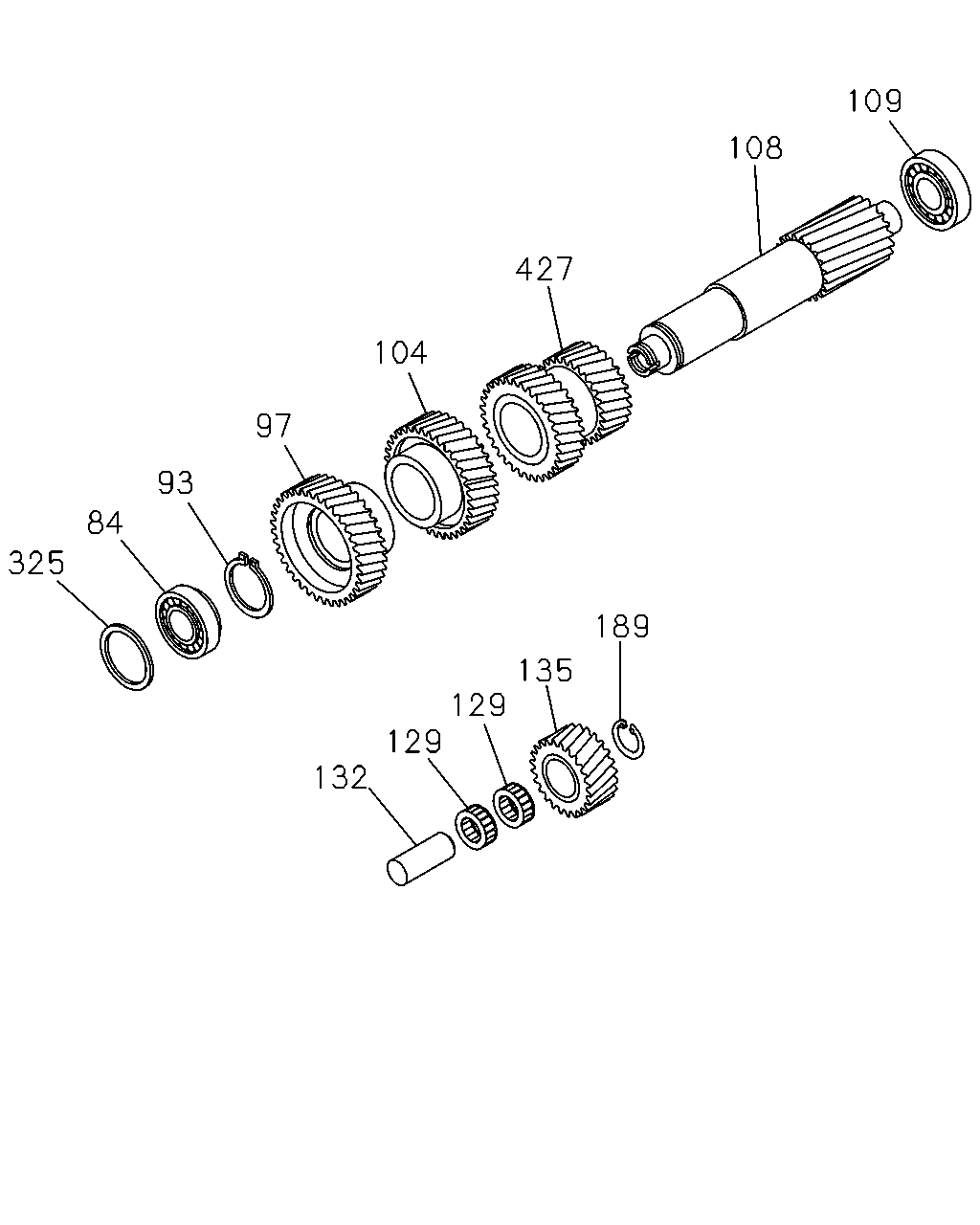

çizim 355542
189 135 129 129 132 325 84 93 97 104 427 108 109
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT
THA 		1-33312-016-0 01 1 1304-
93 RING; SNAP,COUNTER FRT BRG
T=2.6 THA 		1-33319-264-0 01 1 1306-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 THA 		1-33319-251-0 01 1 1304-
93 RING; SNAP,COUNTER FRT BRG
T=2.5 THA 		1-33319-252-0 01 1 1304-
93 RING; SNAP,COUNTER FRT BRG
T=2.4 THA 		1-33319-253-0 01 1 1304-
93 RING; SNAP,COUNTER FRT BRG
T=2.3 THA 		1-33319-254-0 01 1 1304-
93 RING; SNAP,COUNTER FRT BRG
T=2.2 THA 		1-33319-255-0 01 1 1304-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 THA 		1-33319-256-0 01 1 1304-
97 GEAR; 5TH,COUNTER
THA 		1-33338-398-0 01 1 1304-
104 GEAR; 4TH,COUNTER
THA 		1-33338-397-0 01 1 1304-
108 SHAFT; COUNTER
THA 		1-33311-347-0 01 1 1304-
109 BEARING; COUNTER SHAFT,RR
THA 		1-33312-006-0 01 1 1304-
129 BEARING; NEEDLE,IDLER
THA 		1-33369-026-0 02 1 1304-
132 SHAFT; REV
THA 		1-33351-024-0 01 1 1304-
135 GEAR; REV IDLER 1-33361-092-0 01 1 1304-1305
135 GEAR; REV IDLER
THA 		1-33361-096-0 01 1 1306-
189 RING; SNAP,REV,GEAR
THA 		1-44519-224-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.60 THA 		1-33389-047-0 01 1 1304-1305
325 SHIM; COUNTER SHAFT BRG
T=1.60 THA 		8-98080-572-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=1.55 THA 		1-33389-048-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.50 THA 		1-33389-049-0 01 1 1304-1305
325 SHIM; COUNTER SHAFT BRG
T=1.50 THA 		8-98080-571-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=2.00 THA 		1-33389-073-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.90 THA 		1-33389-074-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.80 THA 		1-33389-075-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.70 THA 		1-33389-076-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.65 THA 		1-33389-077-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.75 THA 		1-33389-078-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.85 THA 		1-33389-079-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.95 THA 		1-33389-080-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.05 THA 		1-33389-081-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.10 THA 		1-33389-082-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.15 THA 		1-33389-083-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.20 THA 		1-33389-084-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.40 THA 		1-33389-086-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.35 THA 		1-33389-087-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.30 THA 		1-33389-088-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.25 THA 		1-33389-089-0 01 1 1304-
427 GEAR; 2ND & 3RD,COUNTER 1-33332-131-0 01 1 1304-1305
427 GEAR; 2ND & 3RD,COUNTER
THA 		1-33332-132-0 01 1 1306-

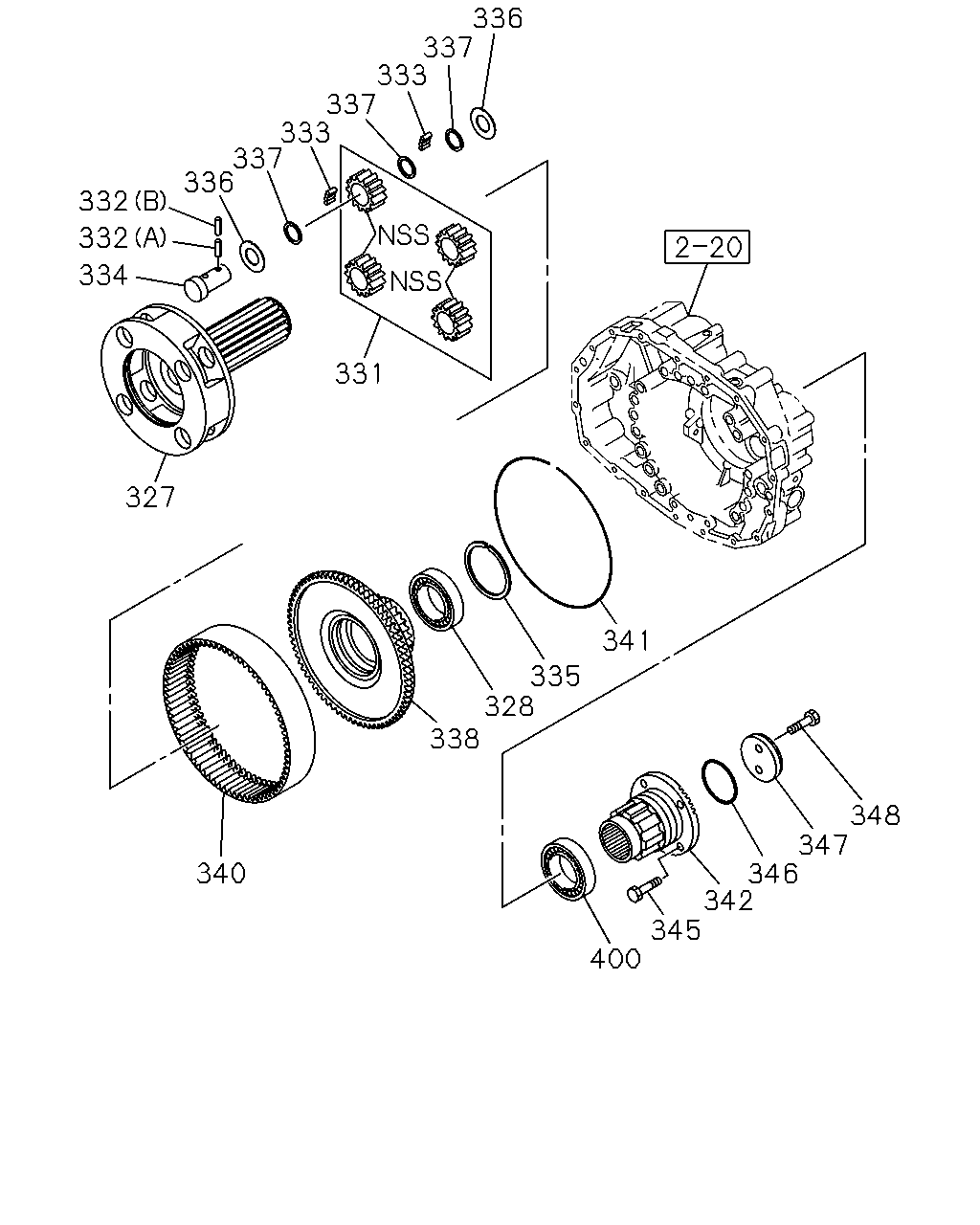

çizim 355543
348 347 346 342 345 400 340 338 328 335 341 331 327 334 332 332 336 337 333 337 333 337 336
BalonParca AdiParca NoAdetTipApplied Date
327 CARRIER; PLANETARY GEAR
THA 		1-33231-338-0 01 1 1304-
328 BEARING; CARRIER
THA 		1-33339-094-0 01 1 1304-
331 GEAR SET; PLANETARY
THA 		1-33239-350-0 01 1 1304-
332 PIN; LOCK,SHAFT
(A) THA 		1-33239-178-0 04 1 1304-
332 PIN; LOCK,SHAFT
(B) THA 		1-33239-179-0 04 1 1304-
333 ROLLER; PLANETARY GEAR
THA 		1-33239-232-0 AR 1 1304-
334 SHAFT; PLANETARY GEAR
THA 		1-33239-359-0 04 1 1304-
335 RING; SNAP,BEARING
T=2.50 THA 		1-33339-075-0 01 1 1304-
335 RING; SNAP,BEARING
T=2.40 THA 		1-33339-076-0 01 1 1304-
335 RING; SNAP,BEARING
T=2.30 THA 		1-33339-077-0 01 1 1304-
335 RING; SNAP,BEARING
T=2.20 THA 		1-33339-078-0 01 1 1304-
335 RING; SNAP,BEARING
T=2.10 THA 		1-33339-079-0 01 1 1304-
335 RING; SNAP,BEARING
T=2.00 THA 		1-33339-080-0 01 1 1304-
336 WASHER; THRUST,PLANETARY GEAR
THA 		1-33239-174-0 08 1 1304-
337 WASHER; PLANETARY GEAR,INNER
THA 		1-33239-176-0 12 1 1304-
338 CARRIER; RING GEAR
THA 		1-33331-275-0 01 1 1304-
340 GEAR; RING
THA 		1-33339-099-0 01 1 1304-
341 WIRE; LOCK,CARRIER
THA 		1-33339-096-0 01 1 1304-
342 FLANGE; OUTPUT
THA 		1-37243-429-0 01 1 1304-
345 BOLT; FLANGE TO YOKE
THA 		1-37249-147-0 04 1 1304-
346 GASKET; FLANGE
THA 		1-37249-156-0 01 1 1304-
347 WASHER; FLANGE
THA 		1-09509-060-0 01 1 1304-
348 BOLT; SHAFT 1-37249-207-0 02 1 1304-1305
348 BOLT; SHAFT
THA 		1-37249-215-0 02 1 1306-
400 BEARING; OUTPUT SHAFT RR
THA 		1-33139-212-0 01 1 1304-
çizim 355570
339 126 66 42 324 66 339 408 408 323
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE
THA 		1-33262-195-0 01 1 1304-
66 RING; BLOCK,SYN
THA 		1-33339-069-0 02 1 1304-
126 RING; SNAP,CLU HUB
(A) T=2.8 THA 		1-33259-050-0 01 1 1304-
126 RING; SNAP,CLU HUB
(A) T=2.7 THA 		1-33259-051-0 01 1 1304-
126 RING; SNAP,CLU HUB
(A) T=2.6 THA 		1-33259-052-0 01 1 1304-
126 RING; SNAP,CLU HUB
(A) T=2.5 THA 		1-33259-053-0 01 1 1304-
126 RING; SNAP,CLU HUB
(A) T=2.4 THA 		1-33259-054-0 01 1 1304-
126 RING; SNAP,CLU HUB
(B) T=4.0 THA 		1-33269-047-0 01 1 1304-
126 RING; SNAP,CLU HUB
(B) T=3.9 THA 		1-33269-048-0 01 1 1304-
126 RING; SNAP,CLU HUB
(B) T=3.8 THA 		1-33269-049-0 01 1 1304-
126 RING; SNAP,CLU HUB
(B) T=3.7 THA 		1-33269-050-0 01 1 1304-
323 INSERT
(B) THA 		1-33263-027-0 09 1 1304-
323 INSERT
(A) THA 		1-33263-030-0 06 1 1304-
324 HUB; CLU
THA 		1-33261-230-0 01 1 1304-
339 CLUTCH; PLANETARY GEAR
(A) THA 		1-33265-453-0 01 1 1304-
339 CLUTCH; PLANETARY GEAR
(B) THA 		1-33265-632-0 01 1 1304-
408 SPRING
(C) THA 		1-33269-038-0 09 1 1304-
408 SPRING
(B) THA 		1-33269-039-0 09 1 1304-
408 SPRING
(A) THA 		1-33269-042-0 06 1 1304-
çizim 358011
1 3 301 325
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
THA 		1-33215-036-0 01 1 1304-
3 BEARING; TOP GEAR SHAFT
THA 		1-33219-320-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.20 THA 		1-33139-047-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.10 THA 		1-33139-050-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.15 THA 		1-33139-204-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.25 THA 		1-33139-205-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
T=1.80 THA 		1-33139-039-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.70 THA 		1-33139-041-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.60 THA 		1-33139-042-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.50 THA 		1-33139-043-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.40 THA 		1-33139-045-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.30 THA 		1-33139-046-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.45 THA 		1-33139-201-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.55 THA 		1-33139-202-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.35 THA 		1-33139-206-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=2.30 THA 		1-33139-223-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=2.25 THA 		1-33139-224-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=2.20 THA 		1-33139-225-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=2.15 THA 		1-33139-226-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=2.10 THA 		1-33139-227-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=2.05 THA 		1-33139-228-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=2.00 THA 		1-33139-229-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.95 THA 		1-33139-230-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.90 THA 		1-33139-231-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.85 THA 		1-33139-232-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.75 THA 		1-33139-233-0 01 1 1304-
301 SHIM; TOP GEAR SHAFT
T=1.65 THA 		1-33139-234-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.60 THA 		1-33389-047-0 01 1 1304-1305
325 SHIM; COUNTER SHAFT BRG
T=1.60 THA 		8-98080-572-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=1.55 THA 		1-33389-048-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.50 THA 		1-33389-049-0 01 1 1304-1305
325 SHIM; COUNTER SHAFT BRG
T=1.50 THA 		8-98080-571-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=2.00 THA 		1-33389-073-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.90 THA 		1-33389-074-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.80 THA 		1-33389-075-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.70 THA 		1-33389-076-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.65 THA 		1-33389-077-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.75 THA 		1-33389-078-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.85 THA 		1-33389-079-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.95 THA 		1-33389-080-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.05 THA 		1-33389-081-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.10 THA 		1-33389-082-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.15 THA 		1-33389-083-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.20 THA 		1-33389-084-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.40 THA 		1-33389-086-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.35 THA 		1-33389-087-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.30 THA 		1-33389-088-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=2.25 THA 		1-33389-089-0 01 1 1304-
çizim 358224
330 393 59 314 126 68 67 70 313 82 306 311 49 49 50 315 41 429 41 44 408 323 316 36 33 32 18 27 306 16 9 569 233 230 21 408 323 233 317 30
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR
THA 		1-33265-631-0 01 1 1304-
16 BEARING; PILOT,MAINSHAFT
THA 		1-33239-212-0 01 1 1304-
18 RING; SNAP,CLU HUB
T=2.4 THA 		1-33259-054-0 01 1 1304-
18 RING; SNAP,CLU HUB
T=2.3 THA 		1-33259-060-0 01 1 1304-
18 RING; SNAP,CLU HUB
T=2.2 THA 		1-33259-061-0 01 1 1304-
18 RING; SNAP,CLU HUB
T=2.1 THA 		1-33259-062-0 01 1 1304-
18 RING; SNAP,CLU HUB
T=2.0 THA 		1-33259-063-0 01 1 1304-
18 RING; SNAP,CLU HUB
T=1.9 THA 		1-33259-064-0 01 1 1304-
21 HUB; CLU,4TH & 5TH
THA 		1-33261-295-0 01 1 1304-
27 BEARING; 4TH GEAR
THA 		1-33259-128-0 02 1 1304-
30 GEAR; 4TH,MAINSHAFT
THA 		1-33251-436-0 01 1 1304-
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 1304-1305
32 COLLAR; 3RD GEAR
THA 		1-33259-140-0 01 1 1306-
33 BEARING; NEEDLE,3RD GEAR
THA 		1-33259-127-0 01 1 1304-
36 GEAR; 3RD,MAINSHAFT
THA 		1-33252-478-0 01 1 1304-
41 RING; BLOCK,2ND & 3RD
THA 		1-33265-498-0 02 1 1304-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 1304-1305
44 HUB; CLU,2ND & 3RD,MAIN
THA 		1-33261-303-0 01 1 1306-
49 BEARING; NEEDLE,2ND GEAR
THA 		1-33259-126-0 02 1 1304-
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 1304-1305
50 GEAR; 2ND,MAINSHAFT
THA 		1-33251-448-0 01 1 1306-
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 1304-1305
59 GEAR; REV MAINSHAFT
THA 		1-33257-101-0 01 1 1306-
67 HUB; CLU,1ST TO REV
THA 		1-33259-135-0 01 1 1304-
68 SLEEVE; 1ST TO REV
THA 		1-33259-049-0 01 1 1304-
70 GEAR; 1ST,MAINSHAFT
THA 		1-33251-434-0 01 1 1304-
82 SHAFT; MAIN,TRANS
THA 		1-33231-337-0 01 1 1304-
126 RING; SNAP,CLU HUB
(A) T=2.8 THA 		1-33259-050-0 01 1 1304-
126 RING; SNAP,CLU HUB
(A) T=2.7 THA 		1-33259-051-0 01 1 1304-
126 RING; SNAP,CLU HUB
(A) T=2.6 THA 		1-33259-052-0 01 1 1304-
126 RING; SNAP,CLU HUB
(A) T=2.5 THA 		1-33259-053-0 01 1 1304-
126 RING; SNAP,CLU HUB
(A) T=2.4 THA 		1-33259-054-0 01 1 1304-
126 RING; SNAP,CLU HUB
(B) T=4.0 THA 		1-33269-047-0 01 1 1304-
126 RING; SNAP,CLU HUB
(B) T=3.9 THA 		1-33269-048-0 01 1 1304-
126 RING; SNAP,CLU HUB
(B) T=3.8 THA 		1-33269-049-0 01 1 1304-
126 RING; SNAP,CLU HUB
(B) T=3.7 THA 		1-33269-050-0 01 1 1304-
230 SLEEVE; 4TH TO 5TH
THA 		1-33262-239-0 01 1 1304-
233 RING; BLOCK 4TH TO 5TH
THA 		1-33269-096-0 02 1 1304-
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 1304-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 1304-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 1304-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 1304-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 1304-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.95 THA 		1-33319-066-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(A) T=2.90 THA 		1-33319-067-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 THA 		1-33319-068-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 THA 		1-33319-069-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 THA 		1-33319-070-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 THA 		1-33319-071-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 THA 		1-33319-072-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 THA 		1-33319-073-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(B) T=2.55 THA 		1-33319-074-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(B) T=2.50 THA 		1-33319-075-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(B) T=2.45 THA 		1-33319-076-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(B) T=2.40 		1-33319-077-0 01 1 1304-1305
306 RING; SNAP,MAINSHAFT
(B) T=2.35 		1-33319-078-0 01 1 1304-1305
306 RING; SNAP,MAINSHAFT
(B) T=2.30 		1-33319-079-0 01 1 1304-1305
306 RING; SNAP,MAINSHAFT
(B) T=2.25 		1-33319-080-0 01 1 1304-1305
306 RING; SNAP,MAINSHAFT
(B) T=2.20 		1-33319-081-0 01 1 1304-1305
306 RING; SNAP,MAINSHAFT
(B) T=2.15 		1-33319-082-0 01 1 1304-1305
306 RING; SNAP,MAINSHAFT
(B) T=2.10 		1-33319-083-0 01 1 1304-1305
306 RING; SNAP,MAINSHAFT
(B) T=2.5 THA 		1-43319-021-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(B) T=2.4 THA 		1-43319-101-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(B) T=2.3 THA 		1-43319-102-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(B) T=2.0 THA 		1-43319-103-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(B) T=2.1 THA 		1-43319-104-0 01 1 1304-
306 RING; SNAP,MAINSHAFT
(B) T=2.2 THA 		1-43319-105-0 01 1 1304-
311 PIPE; MAINSHAFT
THA 		1-33239-349-0 01 1 1304-
313 BEARING; NEEDLE,LOW GEAR
THA 		1-33259-124-0 01 1 1304-
314 BEARING; NEEDLE,REV GEAR
THA 		1-33259-125-0 01 1 1304-
315 CLUTCH; DOG,2ND GEAR
THA 		1-33265-629-0 01 1 1304-
316 CLUTCH; DOG,3RD GEAR
THA 		1-33265-629-0 01 1 1304-
317 CLUTCH; DOG,4TH GEAR
THA 		1-33265-630-0 01 1 1304-
323 INSERT
(B) THA 		1-33263-027-0 09 1 1304-
323 INSERT
(A) THA 		1-33263-030-0 06 1 1304-
330 GEAR; SUN 1-33259-105-0 01 1 1304-1305
330 GEAR; SUN
THA 		1-33259-134-0 01 1 1306-
393 BEARING; MAINSHAFT END
THA 		1-33259-104-0 01 1 1304-
408 SPRING
(C) THA 		1-33269-038-0 09 1 1304-
408 SPRING
(B) THA 		1-33269-039-0 09 1 1304-
408 SPRING
(A) THA 		1-33269-042-0 06 1 1304-
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 1304-1305
429 SLEEVE; 2ND & 3RD
THA 		1-33262-244-0 01 1 1306-
569 DAM; OIL
THA 		1-33269-097-0 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
