2-26A — MANUAL TRANSMISSION GEAR (#121867) — 113 parça

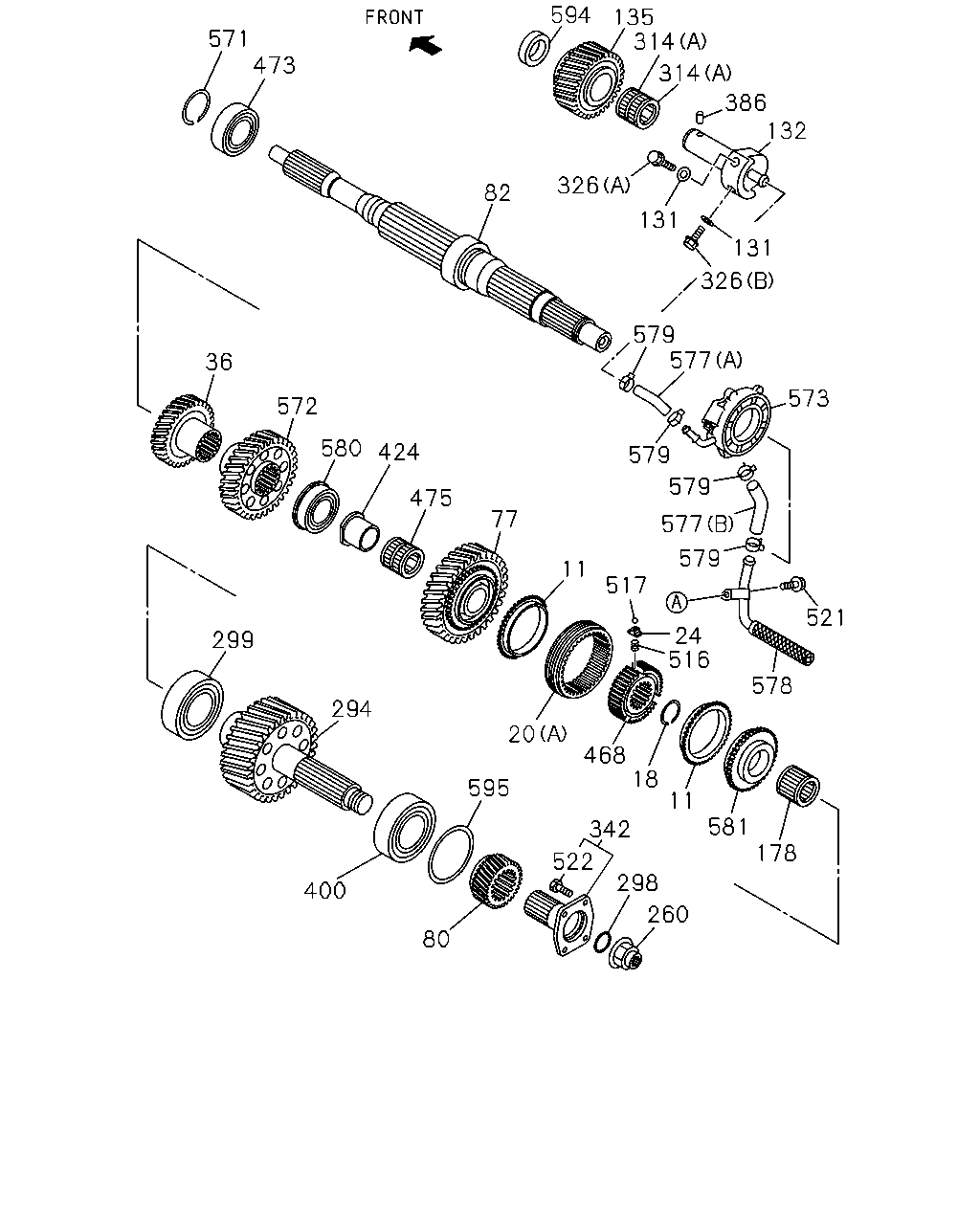

çizim 358223
571 473 82 326 594 135 314 314 386 132 131 131 326 579 577 573 573 579 577 579 521 578 178 581 11 18 468 20 516 24 517 11 77 475 424 580 572 36 299 294 400 80 595 522 342 298 260
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1304-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1304-
20 SLEEVE
(A) Z=45 		8-97241-296-1 03 1 1304-1308
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1309-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1309-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1304-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1304-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1304-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-0 01 1 1304-
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98140-880-0 01 1 1304-1308
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98245-057-0 01 1 1309-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1304-
132 SHAFT; REV 8-98009-372-0 01 1 1304-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1304-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1304-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1304-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1304-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1304-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1304-
314 BEARING; NEEDLE,REV GEAR
(A) KOYO 		1-09811-017-0 02 1 1304-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1304-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1304-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1304-
342 FLANGE; OUTPUT
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> 		8-98155-332-0 01 1 1304-
386 PIN; REV SHAFT 9-08150-408-0 01 1 1304-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1304-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1304-
468 HUB; CLU,5TH & 6TH 8-98075-734-0 01 1 1304-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1304-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1304-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1304-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1304-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1304-
521 BOLT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1304-
522 BOLT; FLANGE
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M16X51 W/MARK 		1-46219-086-0 04 1 1304-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1304-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1304-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1304-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 01 1 1304-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 01 1 1304-
578 SCREEN; OIL PUMP 8-98009-345-0 02 1 1304-
579 CLAMP; HOSE
ID=16 THA 		8-97329-628-0 07 1 1304-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1304-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1304-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1304-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1304-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1304-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1304-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1304-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1304-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1304-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1304-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1304-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1304-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1304-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1304-

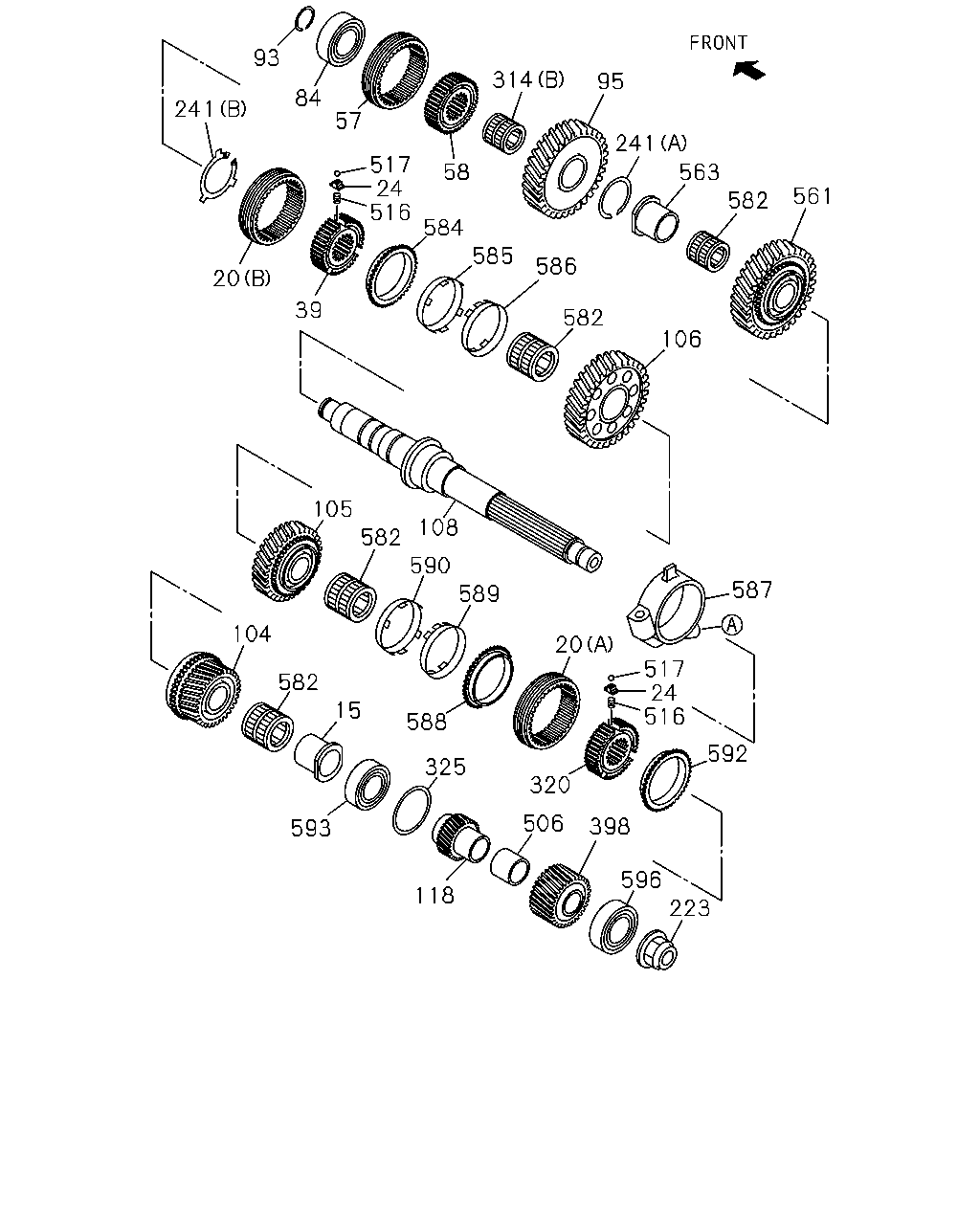

çizim 358787
93 84 57 58 314 95 241 563 582 561 106 582 586 585 584 516 24 517 241 20 39 108 105 582 590 589 20 517 24 516 587 592 104 582 15 588 325 320 398 596 223 506 118 593
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1304-
20 SLEEVE
(A) Z=45 		8-97241-296-1 03 1 1304-1308
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1309-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1309-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1304-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98075-732-0 01 1 1304-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1304-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1304-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-0 01 1 1304-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1304-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1304-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1304-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1304-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1304-
108 SHAFT; COUNTER
Z=27-42-26 		8-98223-607-0 01 1 1304-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1304-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1304-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1304-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1304-
314 BEARING; NEEDLE,REV GEAR
(A) KOYO 		1-09811-017-0 02 1 1304-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1304-
320 HUB; CLU,4TH & 3RD 8-98075-733-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1304-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1304-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1304-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1304-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1304-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1304-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1304-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1304-
584 RING; BLOCK,2ND
Z=45 		8-98223-605-1 01 1 1304-1308
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1309-
585 RING; OUTSIDE,2ND 8-97241-309-1 01 1 1304-
586 RING; INSIDE,2ND 8-98223-606-1 01 1 1304-1308
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1309-
587 CASE; PUMP,COUNTER 8-98212-196-0 01 1 1304-
588 RING; BLOCK,3RD
Z=45 		8-98223-605-1 01 1 1304-1308
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1309-
589 RING; OUTSIDE,3RD 8-97241-309-1 01 1 1304-
590 RING; INSIDE,3RD 8-98223-606-1 01 1 1304-1308
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1309-
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1304-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1304-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1304-
