Isuzu WW
▶
TRUCKS
▶
FVM
▶
11491 - FVM(THAI)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

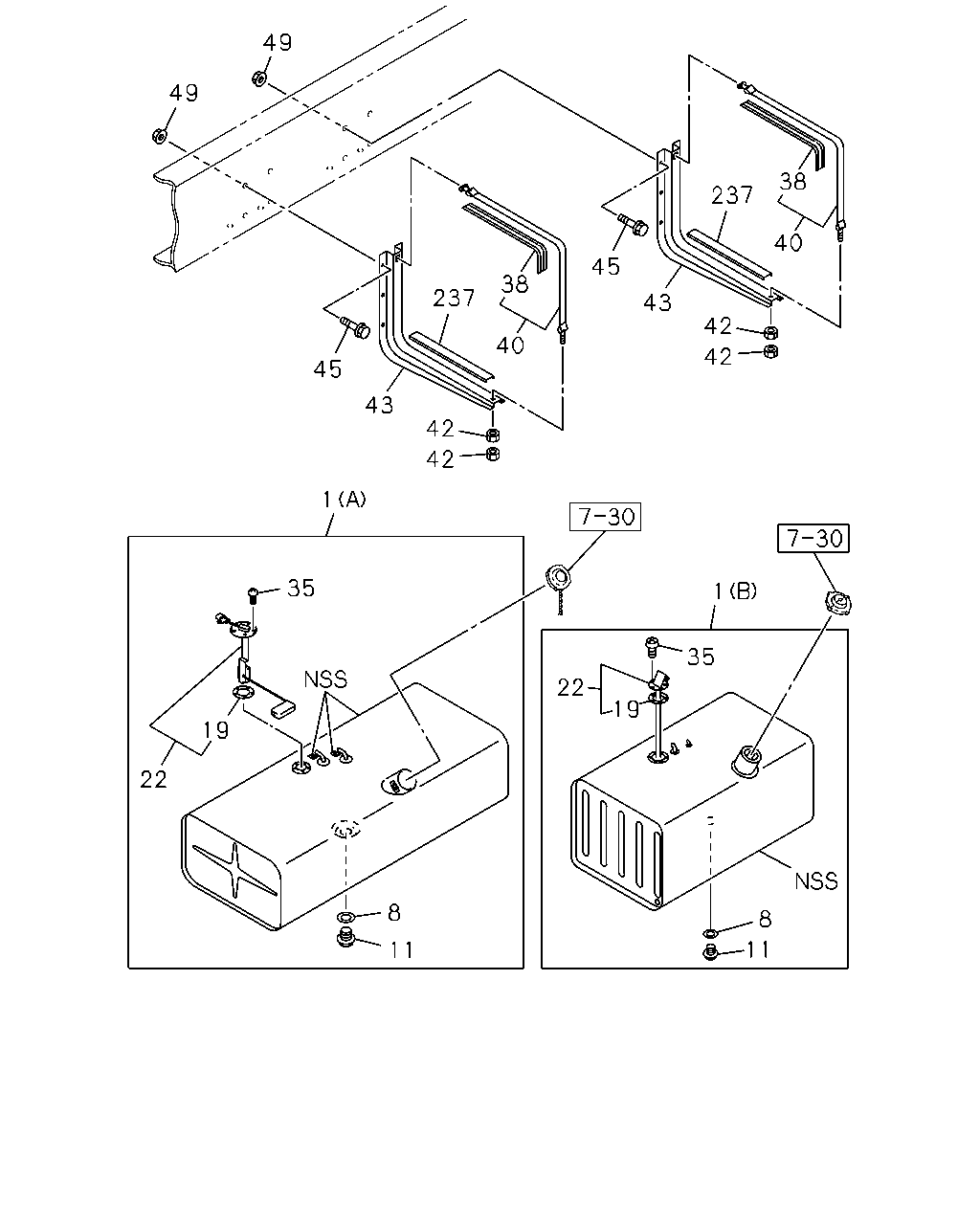

1-40 — FUEL TANK
(#121850) — 21 parça
49
49
45
43
1
35
19
22
8
11
42
42
237
38
40
45
43
22
11
8
35
19
1
42
42
40
237
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20> (A) 1100X632X322 200L THA
8-97924-531-1
01
1
1304-
1
TANK; FUEL
EXC. FUEL TANK 200L FRAME SIDE<N20> (B) 1275X603X503 370L THA
8-98240-497-0
01
1
1304-
8
GASKET; DRAIN PLUG,FUEL TANK
THA
8-97913-627-0
01
1
1304-
11
PLUG; DRAIN,FUEL TANK
THA
8-97913-628-0
01
1
1304-
19
GASKET; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71
5-83148-001-0
01
1
1304-
19
GASKET; FUEL TANK UNIT
EXC. FUEL TANK 200L FRAME SIDE<N20>
1-83149-003-0
01
1
1304-
22
UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
1-83141-084-1
01
1
1304-
22
UNIT; FUEL TANK
EXC. FUEL TANK 200L FRAME SIDE<N20>
8-98232-363-0
01
1
1304-
35
SCREW; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> M5X10 W/LK WASHER
0-36220-510-0
05
1
1304-
35
SCREW; FUEL TANK UNIT
EXC. FUEL TANK 200L FRAME SIDE<N20>
1-22419-012-0
05
1
1304-
38
INSULATION; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20> THA
8-97922-749-0
02
1
1304-
38
INSULATION; SUPPORT BELT
EXC. FUEL TANK 200L FRAME SIDE<N20> THA
8-97922-175-0
04
1
1304-
40
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> THA
8-97922-752-0
02
1
1304-
40
BELT; SUPPORT,FUEL TANK
EXC. FUEL TANK 200L FRAME SIDE<N20> THA
8-97922-751-0
02
1
1304-
42
NUT; SUPPORT BELT
M10 THA
0-91110-510-0
04
1
1304-
43
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> THA
8-97910-388-2
02
1
1304-
43
BRACKET; FUEL TANK
EXC. FUEL TANK 200L FRAME SIDE<N20> THA
8-97921-801-1
02
1
1304-
45
BOLT; BRKT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE THA
0-28051-240-0
12
1
1304-
45
BOLT; BRKT,FUEL TANK
EXC. FUEL TANK 200L FRAME SIDE<N20> M12X45 FLANGE THA
0-28051-245-0
12
1
1304-
49
NUT; BRKT
M12 FLANGE THA
0-91180-212-0
12
1
1304-
237
GASKET; BRKT TO FUEL TANK
L=580 THA
8-97916-877-0
02
1
1304-
