Sayfa 4-40 - Isuzu EPC

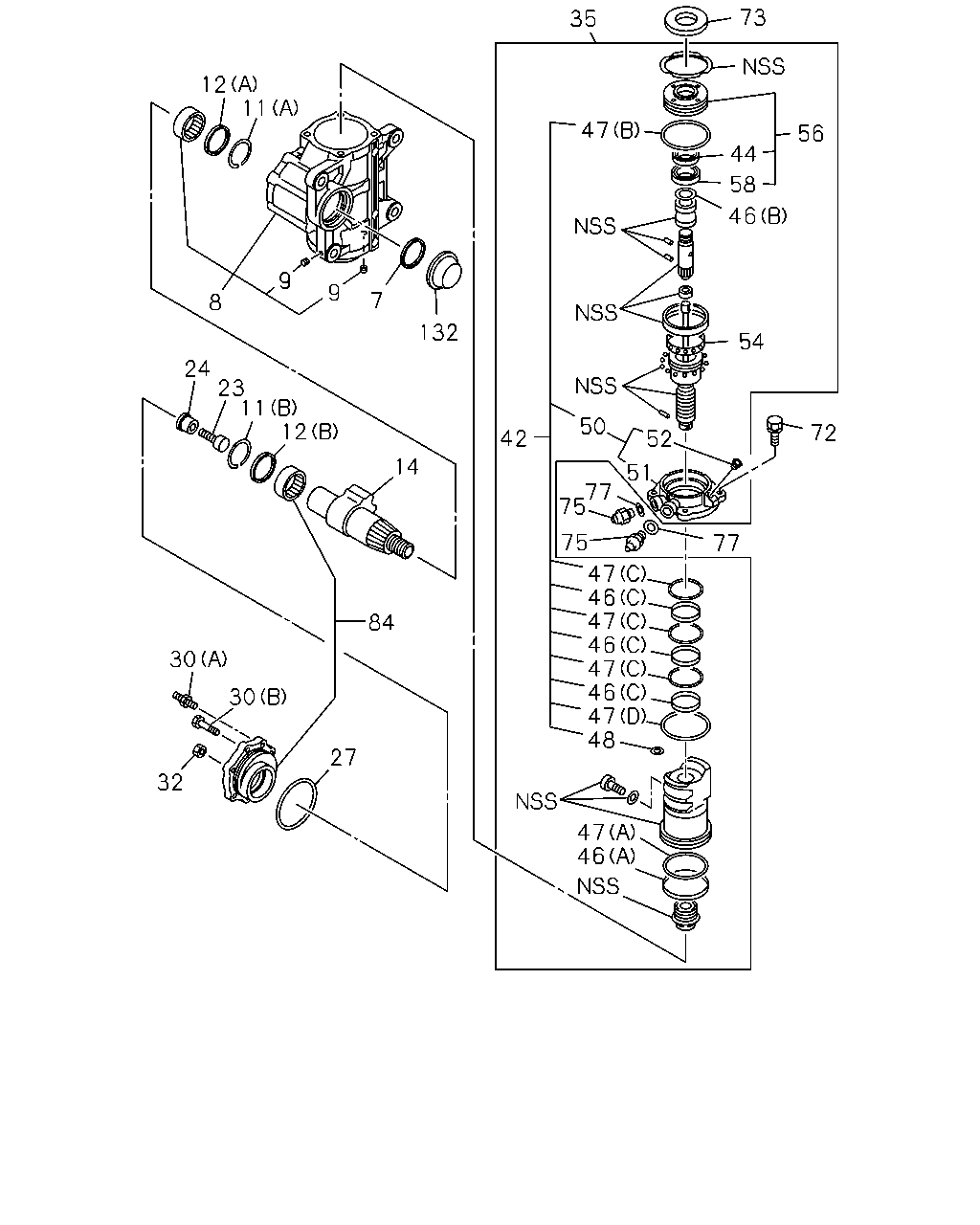

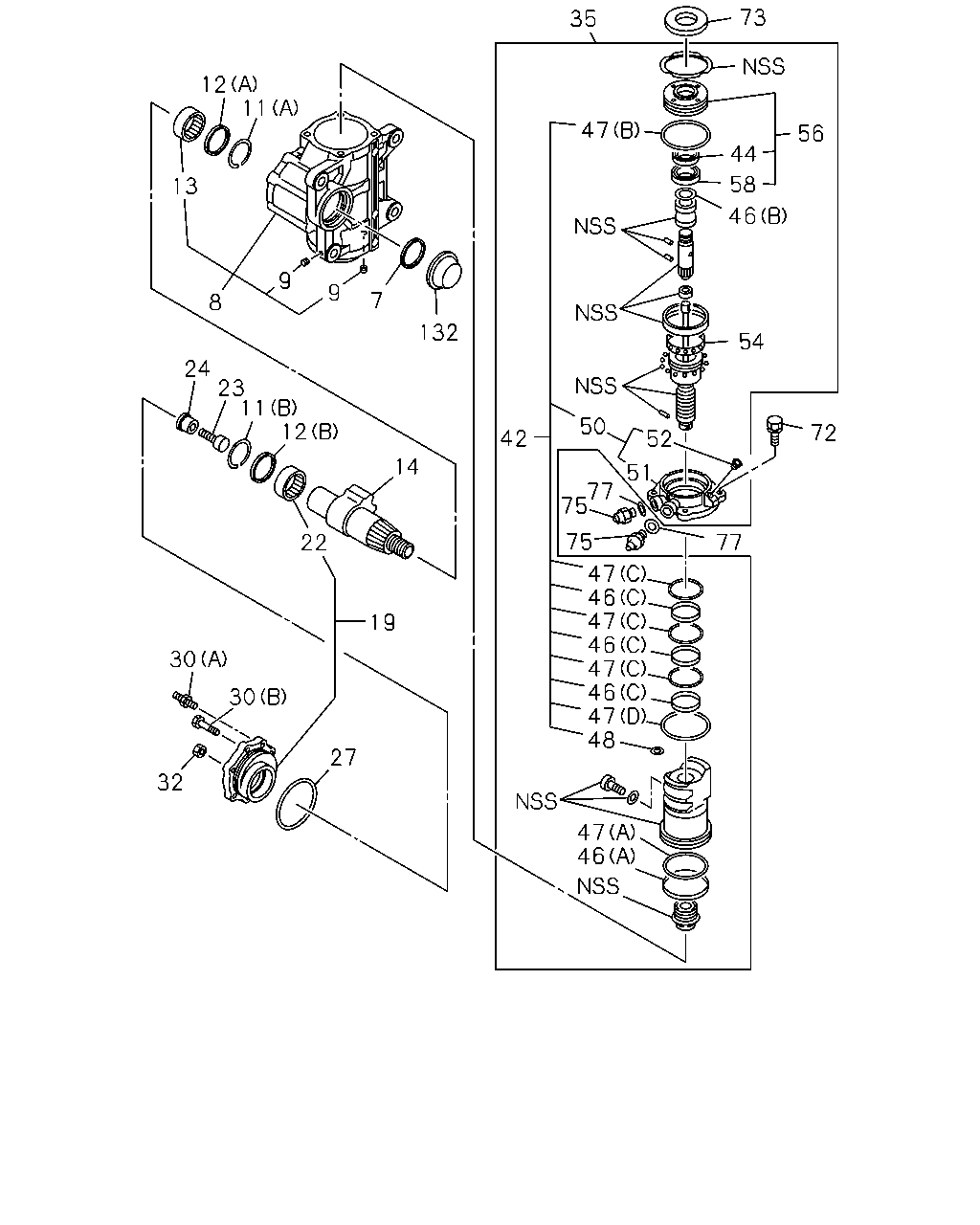

4-40 — STEERING UNIT (#12185) — 132 parça

73 35 12 11 47 56 44 58 46 9 9 7 8 132 54 24 23 11 12 50 72 42 52 14 51 77 75 75 77 47 46 47 46 47 46 47 48 84 30 30 27 32 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44249-041-0	01	1	-1003
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44249-041-0	01	1	-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	8-98159-116-0	01	1	1004-
8	BOX ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44240-114-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44240-152-0	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: A = 1-44000-861-2, C = 1-44000-893-0, D = 1-44000-894-0	1-44519-071-0	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: B = 1-44000-866-1, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-071-0	02	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-252-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-265-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, G = 1-44000-916-2	1-44321-032-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: A = 1-44000-861-2, F = 1-44000-915-2	1-44321-035-0	01	1	-
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44277-003-1	01	1	-
24	RETAINER; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44279-011-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44269-035-0	01	1	-
30	BOLT; COVER STRG UNIT (A) STUD ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-19519-121-0	03	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44279-012-0	05	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-861-2	1-44279-012-0	05	1	0202-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-861-2	1-44569-103-0	05	1	-0201
32	NUT; ADJ SCREW,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44269-007-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 1-44000-866-1, E = 1-44000-914-2	1-44150-073-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: A = 1-44000-861-2, F = 1-44000-915-2	1-44150-084-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 1-44000-893-0	1-44150-101-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: D = 1-44000-894-0, G = 1-44000-916-2	1-44150-103-0	01	1	-
42	HOUSING & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44560-080-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44159-170-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, E = 1-44000-914-2, F = 1-44000-915-2	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-255-0	03	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: D = 1-44000-894-0, G = 1-44000-916-2	1-44519-302-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44159-163-0	01	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-260-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-261-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-262-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44560-076-0	01	1	-
51	HOUSING; VALVE STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44561-020-0	01	1	-1003
51	HOUSING; VALVE STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44561-020-0	01	1	-
52	PLUG; HSG STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-071-0	01	1	-
54	CASE; BEARING STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44241-088-0	01	1	-
56	PLUG & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44250-006-1	01	1	-
58	BEARING; HSG STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44259-029-0	01	1	-
72	BOLT; HSG FIX STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44259-017-0	04	1	-
73	COVER; DUST,STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-114-0	01	1	-1003
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44519-114-0	01	1	-
73	COVER; DUST,STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	8-98166-307-0	01	1	1004-
75	CONNECTOR; HSG STRG UNIT M22X1.5 ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44259-035-1	02	1	-
77	GASKET; CONNECTOR,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	9-89970-787-0	02	1	-
84	COVER ASM; STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44260-030-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-227-0	01	1	-

73 35 12 11 47 56 44 58 13 46 9 9 7 8 132 54 24 23 11 12 50 72 42 52 14 51 77 75 75 22 77 47 46 47 46 47 46 47 48 19 30 30 27 32 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44249-041-0	01	1	-1003
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44249-041-0	01	1	-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	8-98159-116-0	01	1	1004-
8	BOX ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44240-114-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44240-152-0	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: A = 1-44000-861-2, C = 1-44000-893-0, D = 1-44000-894-0	1-44519-071-0	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: B = 1-44000-866-1, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-071-0	02	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-252-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-265-0	01	1	-
13	BEARING; SHAFT,BOX SIDE,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44249-072-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, G = 1-44000-916-2	1-44321-032-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: A = 1-44000-861-2, F = 1-44000-915-2	1-44321-035-0	01	1	-
19	COVER; SIDE STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44260-021-0	01	1	-
22	BEARING; SHAFT,COVER SIDE,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44519-234-0	01	1	-
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44277-003-1	01	1	-
24	RETAINER; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44279-011-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44269-035-0	01	1	-
30	BOLT; COVER STRG UNIT (A) STUD ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-19519-121-0	03	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44279-012-0	05	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-861-2	1-44279-012-0	05	1	0202-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-861-2	1-44569-103-0	05	1	-0201
32	NUT; ADJ SCREW,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44269-007-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 1-44000-866-1, E = 1-44000-914-2	1-44150-073-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: A = 1-44000-861-2, F = 1-44000-915-2	1-44150-084-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 1-44000-893-0	1-44150-101-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: D = 1-44000-894-0, G = 1-44000-916-2	1-44150-103-0	01	1	-
42	HOUSING & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44560-080-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44159-170-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, E = 1-44000-914-2, F = 1-44000-915-2	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-255-0	03	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: D = 1-44000-894-0, G = 1-44000-916-2	1-44519-302-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44159-163-0	01	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-260-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-261-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-262-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44560-076-0	01	1	-
51	HOUSING; VALVE STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44561-020-0	01	1	-1003
51	HOUSING; VALVE STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44561-020-0	01	1	-
52	PLUG; HSG STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-071-0	01	1	-
54	CASE; BEARING STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44241-088-0	01	1	-
56	PLUG & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44250-006-1	01	1	-
58	BEARING; HSG STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44259-029-0	01	1	-
72	BOLT; HSG FIX STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44259-017-0	04	1	-
73	COVER; DUST,STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-114-0	01	1	-1003
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44519-114-0	01	1	-
73	COVER; DUST,STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	8-98166-307-0	01	1	1004-
75	CONNECTOR; HSG STRG UNIT M22X1.5 ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44259-035-1	02	1	-
77	GASKET; CONNECTOR,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	9-89970-787-0	02	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-227-0	01	1	-

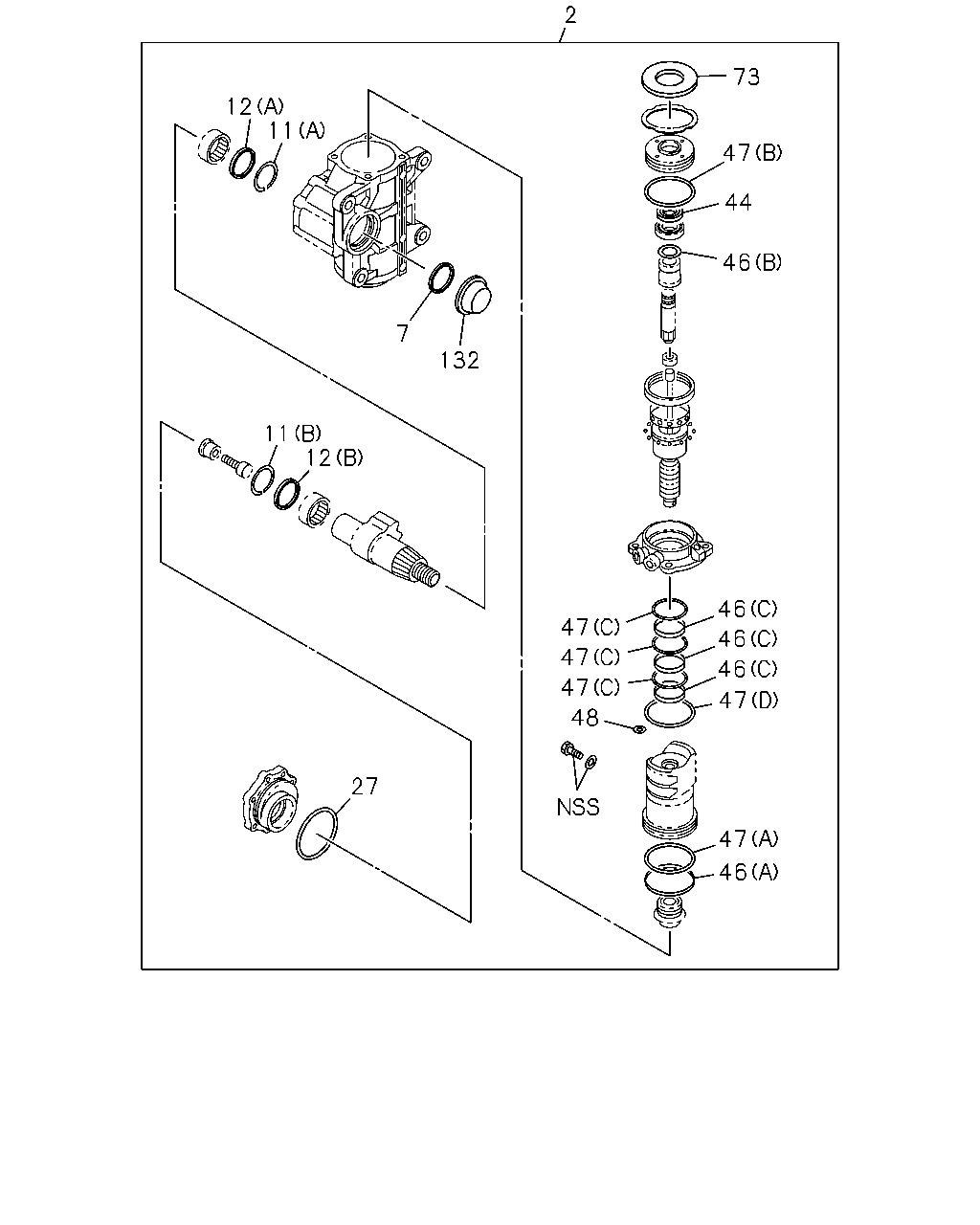

2 73 12 11 47 44 46 7 132 11 12 46 47 46 47 46 47 47 48 27 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: E = 1-44000-914-2, F = 1-44000-915-2	1-85574-052-0	01	1	-1003
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0	1-85574-052-0	01	1	-
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: G = 1-44000-916-2	1-85574-084-0	01	1	-1003
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: D = 1-44000-894-0	1-85574-084-0	01	1	-
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: G = 1-44000-916-2	8-98166-304-0	01	1	1004-
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: E = 1-44000-914-2, F = 1-44000-915-2	8-98166-305-0	01	1	1004-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44249-041-0	01	1	-1003
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44249-041-0	01	1	-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	8-98159-116-0	01	1	1004-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-252-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-265-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44269-035-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44159-170-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, E = 1-44000-914-2, F = 1-44000-915-2	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-255-0	03	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: D = 1-44000-894-0, G = 1-44000-916-2	1-44519-302-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44159-163-0	01	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-260-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-261-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-262-0	01	1	-
73	COVER; DUST,STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-114-0	01	1	-1003
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44519-114-0	01	1	-
73	COVER; DUST,STRG UNIT ASM PART: E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	8-98166-307-0	01	1	1004-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-2, F = 1-44000-915-2, G = 1-44000-916-2	1-44519-227-0	01	1	-
