Isuzu WW
▶
TRUCKS
▶
FVM
▶
11491 - FVM(THAI)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#121845) — 59 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
◀
[110A] NO.3 (9 parça)
[110A] NO.2 (23 parça)
[110A] NO.1 (27 parça)
▶

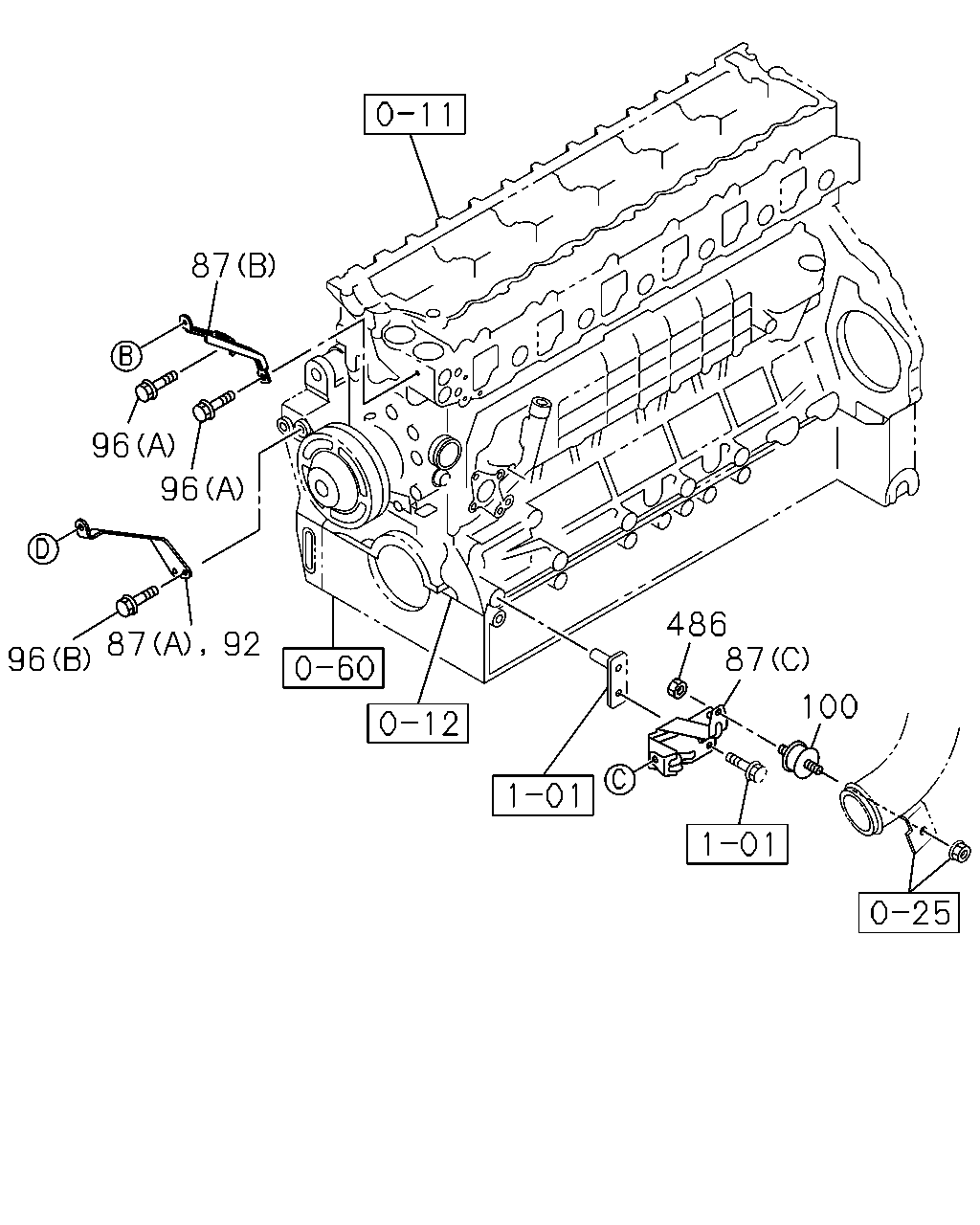

87
96
87
92
96
100
87
486
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
87
STAY; FAN GUIDE
(B)
8-94393-776-1
01
1
1304-
●
●
87
STAY; FAN GUIDE
(C)
8-94393-778-2
01
1
1304-
●
●
87
STAY; FAN GUIDE
(A)
8-97602-988-0
01
1
1304-1402
●
●
92
BRACKET; FAN GUIDE
8-97602-988-0
01
1
1403-
●
●
96
BOLT; STAY FIX
(B) M8X16 FLANGE THA
0-28050-816-0
02
1
1304-1402
●
●
96
BOLT; STAY FIX
(B) M8X16 FLANGE THA
0-28050-816-0
02
1
1403-
●
●
96
BOLT; STAY FIX
(A) M10X16 FLANGE THA
0-28151-016-0
02
1
1304-
●
●
100
RUBBER; MTG
8-98148-109-0
01
1
1304-
●
●
486
NUT; MTG RUBBER
M8 FLANGE THA
0-91180-108-0
01
1
1304-
●
●

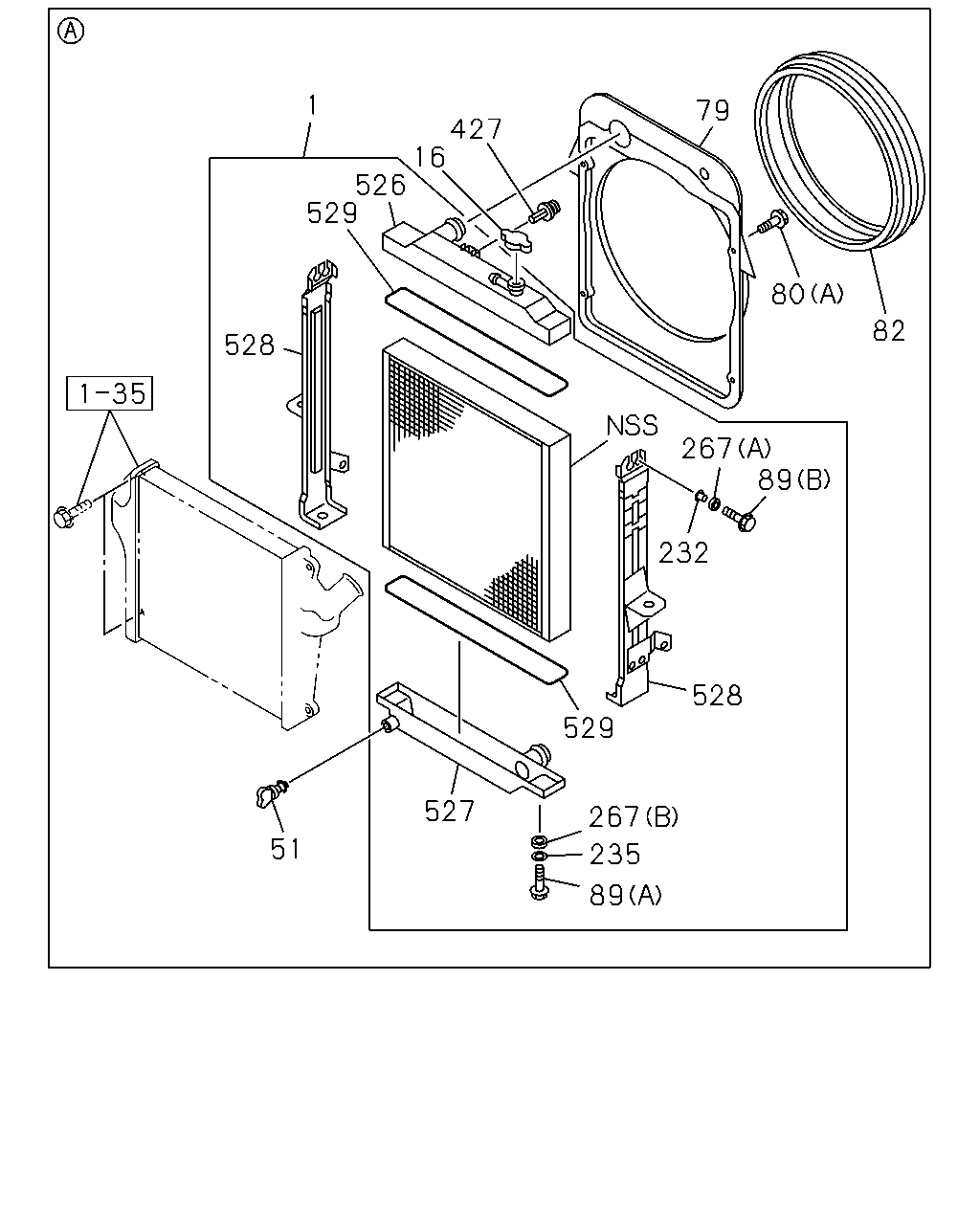

1
529
526
16
427
79
80
82
267
89
232
528
529
267
235
527
89
51
528
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
THA
8-98042-837-3
01
1
1304-
●
1
RADIATOR ASM
THA
8-98010-360-4
01
1
1304-
●
16
CAP; RAD
THA
8-97239-187-0
01
1
1304-
●
●
51
PLUG; DRAIN
W/GASKET THA
8-97171-437-0
01
1
1304-
●
●
79
GUIDE; FAN,RAD
8-98004-207-0
01
1
1304-
●
79
GUIDE; FAN,RAD
8-98010-384-0
01
1
1304-
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1304-
●
●
80
BOLT; FAN GUIDE
(A) M8X14 THA
8-98046-222-0
04
1
1304-
●
●
82
COVER; FAN,RAD
8-98004-211-0
01
1
1304-
●
●
89
BOLT
(A) M6X12 FLANGE THA
0-28050-612-0
02
1
1304-
●
●
89
BOLT
(B) M8X25 THA
1-21469-153-0
04
1
1304-
●
●
232
COLLAR; DIST,CUSHION RUBBER
THA
8-98141-232-0
04
1
1304-
●
●
235
WASHER; CUSHION RUBBER
THA
1-21469-133-0
02
1
1304-
●
●
267
RUBBER; CUSHION
(A) THA
1-21469-130-0
04
1
1304-
●
●
267
RUBBER; CUSHION
(B) THA
1-21469-131-0
02
1
1304-
●
●
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1304-
●
●
526
TANK; UPR,RADIATOR CORE
THA
8-98004-202-2
01
1
1304-
●
●
527
TANK; LWR,RADIATOR CORE
THA
8-98004-203-0
01
1
1304-
●
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98042-838-3
01
1
1304-
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98042-839-2
01
1
1304-
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98010-371-3
01
1
1304-
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98010-372-4
01
1
1304-
●
529
GASKET; CORE,RADIATOR
THA
8-98004-206-0
02
1
1304-
●
●

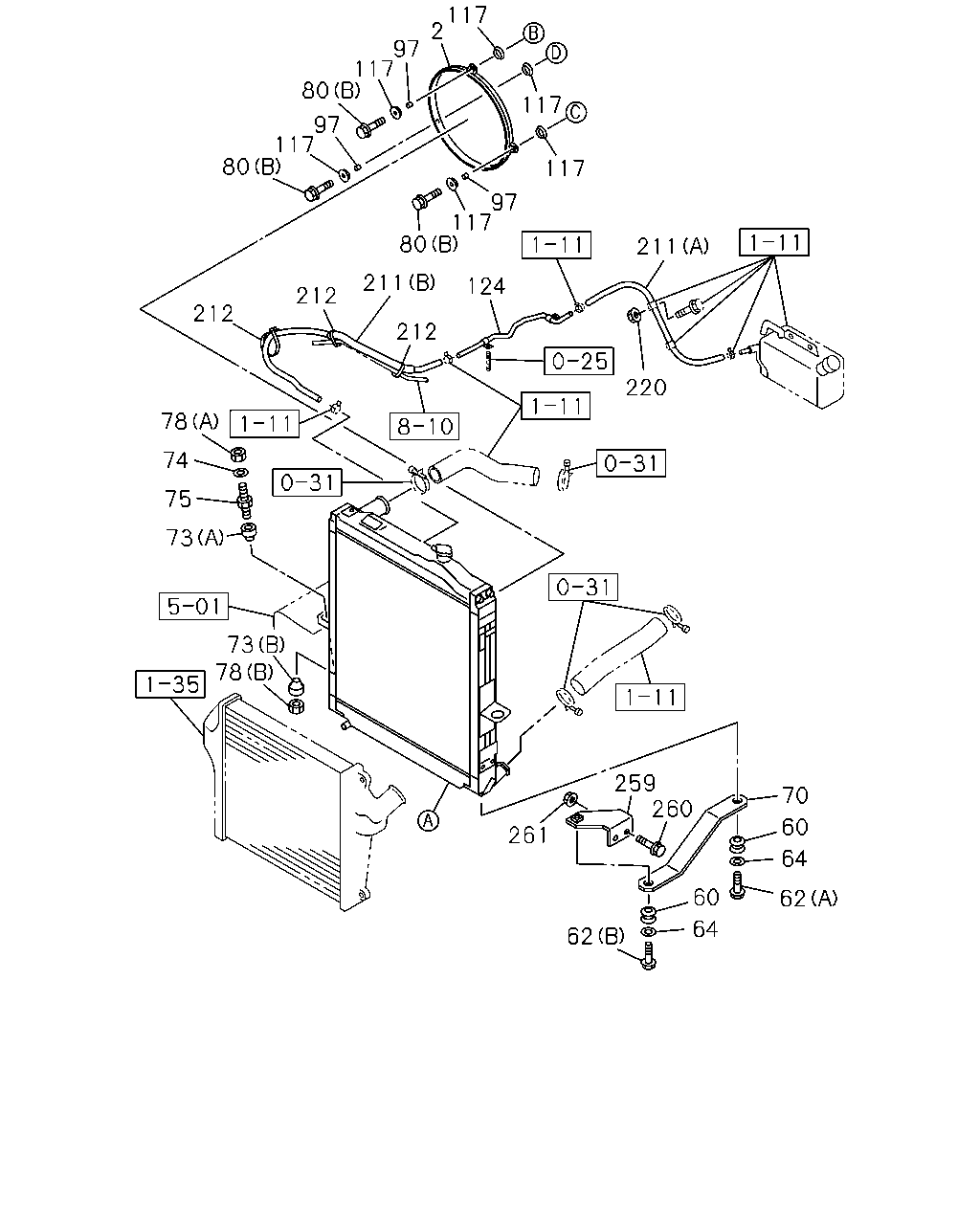

117
2
97
117
80
97
117
80
212
212
211
212
124
117
80
97
117
117
211
220
259
260
70
60
64
62
60
64
62
261
78
73
73
75
74
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GUIDE; FAN
8-94393-779-1
01
1
1304-
●
●
60
GROMMET
1-09332-117-0
04
1
1304-
●
●
62
BOLT; STAY
(A) M8X30
1-09009-020-1
02
1
1304-
●
●
62
BOLT; STAY
(B) M8X26
1-09009-175-0
02
1
1304-
●
●
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
1304-
●
●
70
STAY; RAD
8-98004-132-2
02
1
1304-
●
●
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1304-
●
●
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1304-
●
●
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
1-09503-154-2
02
1
1304-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1304-
●
●
78
NUT; CUSHION RUBBER
(A) M10 FLANGE THA
0-91180-110-0
02
1
1304-
●
●
78
NUT; CUSHION RUBBER
(B) M12 FLANGE THA
0-91180-212-0
02
1
1304-
●
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1304-
●
●
80
BOLT; FAN GUIDE
(A) M8X14 THA
8-98046-222-0
04
1
1304-
●
●
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
1304-
●
●
117
RUBBER; MTG,FAN GUIDE
8-94395-766-0
06
1
1304-
●
●
124
PIPE; WATER,TANK TO RAD
8-97611-022-1
01
1
1304-
●
●
211
HOSE; RAD TO PIPE
(B) L=940
8-98073-544-0
01
1
1304-
●
211
HOSE; RAD TO PIPE
(A) L=560
8-98119-375-0
01
1
1304-
●
●
211
HOSE; RAD TO PIPE
(B) L=970
8-98073-545-0
01
1
1304-
●
212
CLIP; HOSE
L=250
5-09707-030-1
02
1
1304-
●
●
212
CLIP; HOSE
L=140
5-09707-031-1
01
1
1304-
●
●
220
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1304-
●
●
259
BRACKET; RAD STAY
8-98071-821-0
01
1
1304-
●
●
259
BRACKET; RAD STAY
8-98071-822-0
01
1
1304-
●
●
260
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
04
1
1304-
●
●
261
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
04
1
1304-
●
●
