0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#121841) — 56 parça

107 217 13 11 10 2 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=280 THA	8-97922-383-0	01	1	1304-
2	CABLE; BATTERY L=305 THA	8-97924-521-1	01	1	1304-
8	CABLE; BATTERY,STARTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=2435 THA	8-97925-466-0	01	1	1304-
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	8-97926-440-0	01	1	1304-
8	CABLE; BATTERY,STARTER WHEEL BASE 5800MM<58W>,WHEEL BASE 6300MM<63W>, WHEELBASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	8-97926-441-0	01	1	1304-
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1304-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1304-
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=23	1-09332-112-0	01	1	1304-
107	CLIP; BAND L=140 THA	8-97920-656-0	01	1	1304-
217	CLIP; BAND,CABLE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=250	5-09707-030-1	01	1	1304-
217	CLIP; BAND,CABLE WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=250	5-09707-030-1	01	1	1304-

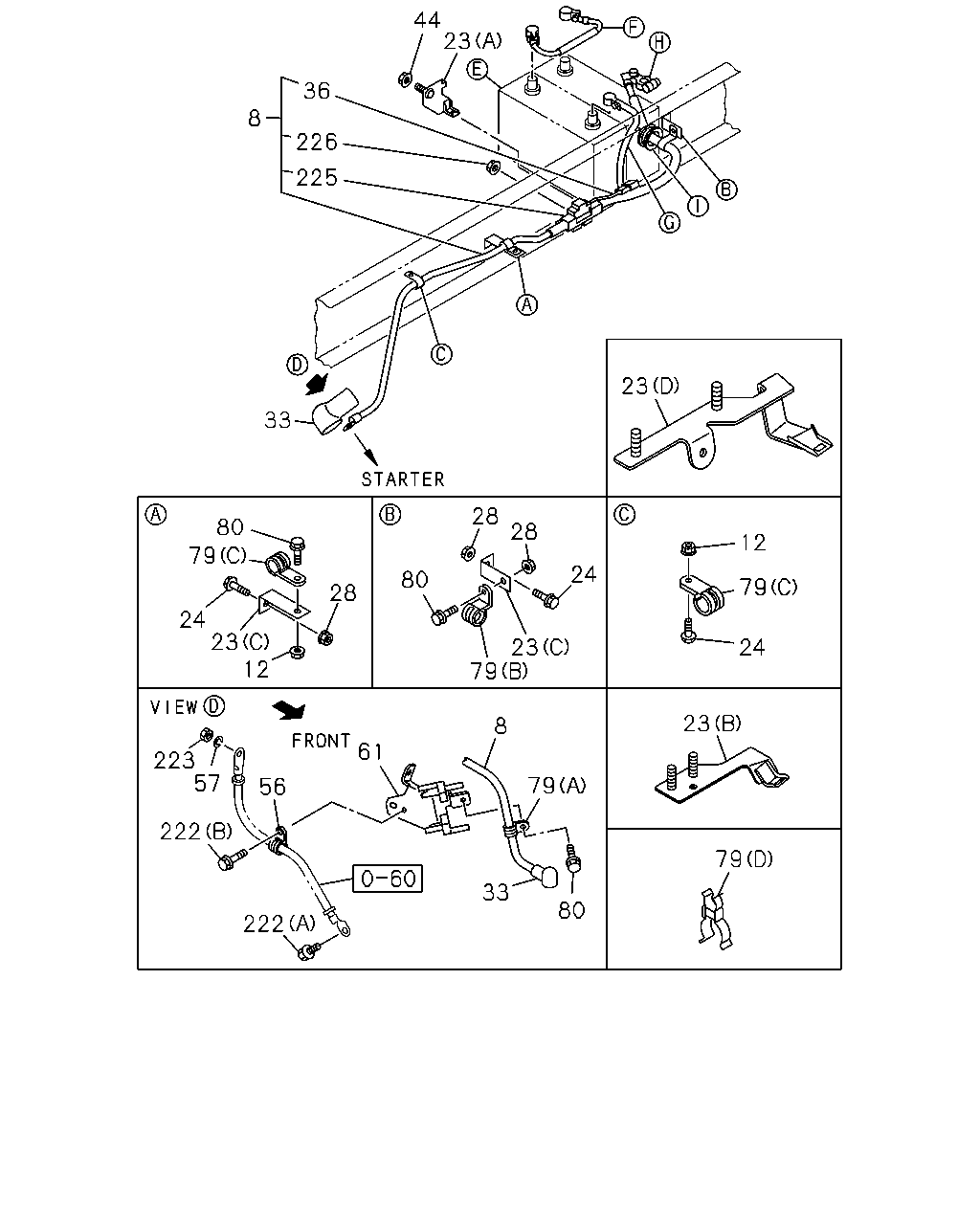

79 23 24 79 12 23 80 33 79 8 61 56 57 223 222 222 79 23 24 28 28 80 28 12 23 24 79 80 33 36 8 225 226 23 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=2435 THA	8-97925-466-0	01	1	1304-
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	8-97926-440-0	01	1	1304-
8	CABLE; BATTERY,STARTER WHEEL BASE 5800MM<58W>,WHEEL BASE 6300MM<63W>, WHEELBASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	8-97926-441-0	01	1	1304-
12	NUT; BATTERY CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	03	1	1304-
12	NUT; BATTERY CABLE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	04	1	1304-
12	NUT; BATTERY CABLE CLIP WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=145	1-47475-655-0	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=95	1-82699-085-0	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D)	8-98201-024-0	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=95	1-82699-085-0	03	1	1304-
23	BRACKET; CABLE CLIP TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98201-025-0	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=55	1-47475-304-0	01	1	1304-
23	BRACKET; CABLE CLIP TO FRAME (C) L=55	1-47475-304-0	01	1	1304-
24	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	03	1	1304-
24	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	04	1	1304-
24	BOLT; BRKT TO FRAME WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA	0-28650-825-0	01	1	1304-
28	NUT; BRKT TO FRAME M8 FLANGE THA	0-91180-108-0	02	1	1304-
28	NUT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	03	1	1304-
28	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	04	1	1304-
28	NUT; BRKT TO FRAME WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1304-
33	CAP; INSULATOR	1-82699-431-0	01	1	1304-
36	FUSIBLE LINK; BATTERY THA	8-97615-498-1	01	1	1304-
44	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1304-
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	1304-1402
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1304-1402
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	1304-1402
79	CLIP; BATTERY CABLE (B) ID=19 L=24 H=21	1-09700-109-1	01	1	1304-
79	CLIP; BATTERY CABLE WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=19 L=24 H=21	1-09700-109-1	01	1	1304-
79	CLIP; BATTERY CABLE (A) ID=16 L=28	1-09700-872-0	01	1	1304-
79	CLIP; BATTERY CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) ID=13-18 L=26	1-09709-293-0	03	1	1304-
79	CLIP; BATTERY CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=21 L=24	8-98019-191-0	02	1	1304-
79	CLIP; BATTERY CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) ID=20 L=70	1-09700-485-0	01	1	1304-
79	CLIP; BATTERY CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) ID=13-18 L=26	1-09709-293-0	02	1	1304-
79	CLIP; BATTERY CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) ID=21 L=24	8-98019-191-0	03	1	1304-
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE THA	0-28050-816-0	01	1	1304-
80	BOLT; BATTERY CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA	0-28650-825-0	02	1	1304-
80	BOLT; BATTERY CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA	0-28650-825-0	01	1	1304-
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA	0-28650-825-0	01	1	1304-
80	BOLT; BATTERY CABLE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	04	1	1304-
222	BOLT; EARTH CABLE (B) M8X16 FLANGE THA	0-28050-816-0	01	1	1304-
222	BOLT; EARTH CABLE (A) M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1304-
223	NUT; EARTH CABLE KEY076 M10 FLANGE THA	0-91180-210-0	01	1	1304-
225	BLOCK; TERMINAL THA	8-98029-689-0	01	1	1304-
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1304-
